About Gigabyte B650M AORUS ELITE AX ICE Motherboard
Reliable Power and Compatibility: Built on the AMD AM5 socket and B650 chipset, this motherboard effortlessly supports AMD Ryzen 9000, 8000, and 7000 series desktop processors. It is equipped with a Twin 12+2+2 phases digital VRM solution utilizing premium chokes and capacitors. This ensures your high-end processor receives clean, stable power even during demanding gaming sessions and heavy multitasking workloads.
High-Speed Storage and Memory: Maximize your system speed with native support for the latest DDR5 memory, reaching overclocked speeds of up to 8000+ MT/s. The board also features one PCIe 5.0 x4 M.2 slot and one PCIe 4.0 x4 M.2 slot. This provides massive storage potential and ultra-fast data transfer speeds, drastically reducing game load times and speeding up large file transfers.
Advanced Cooling Features: Thermal throttling is completely prevented through an extensive cooling solution. The motherboard features advanced thermal armor with a 3X larger surface area, a 6mm heatpipe, and premium 5W/mK thermal pads. Additionally, the primary M.2 slot is covered by an M.2 Thermal Guard, which protects your fast NVMe SSD and keeps it operating at maximum speed without overheating.
Next-Generation Connectivity: Connect all your modern peripherals with ease. The rear I/O includes a fast USB 3.2 Gen 2 Type-C port, while the internal header supports a 20Gbps Type-C front panel connection. For networking, you get the combined advantage of an ultra-low latency Wi-Fi 6E module with Bluetooth 5.3 support, and a dedicated Realtek 2.5GbE LAN port for a secure, stable, and fast wired connection.
Specifications Gigabyte B650M AORUS ELITE AX ICE Motherboard
| Specification | Details |
| Brand | Gigabyte |
| Model | B650M AORUS ELITE AX ICE |
| Form Factor | Micro-ATX (mATX) |
| CPU Socket | AMD AM5 |
| Supported CPUs | AMD Ryzen 9000, 8000, and 7000 Series |
| Chipset | AMD B650 |
| Memory | 4x DDR5 Slots, Up to 256GB Max Capacity |
| Memory Speed | Up to 8000+ MT/s (Overclocked) |
| Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 4.0 x4 |
| Storage | 1x M.2 (PCIe 5.0 x4), 1x M.2 (PCIe 4.0 x4), 4x SATA 6Gb/s |
| Networking | Realtek 2.5GbE LAN (2.5Gbps) |
| Wireless | Wi-Fi 6E and Bluetooth 5.3 |
| Audio | Realtek High Definition Audio Codec (7.1-Channel) |
| Power Design | Twin 12+2+2 Phases Digital VRM |

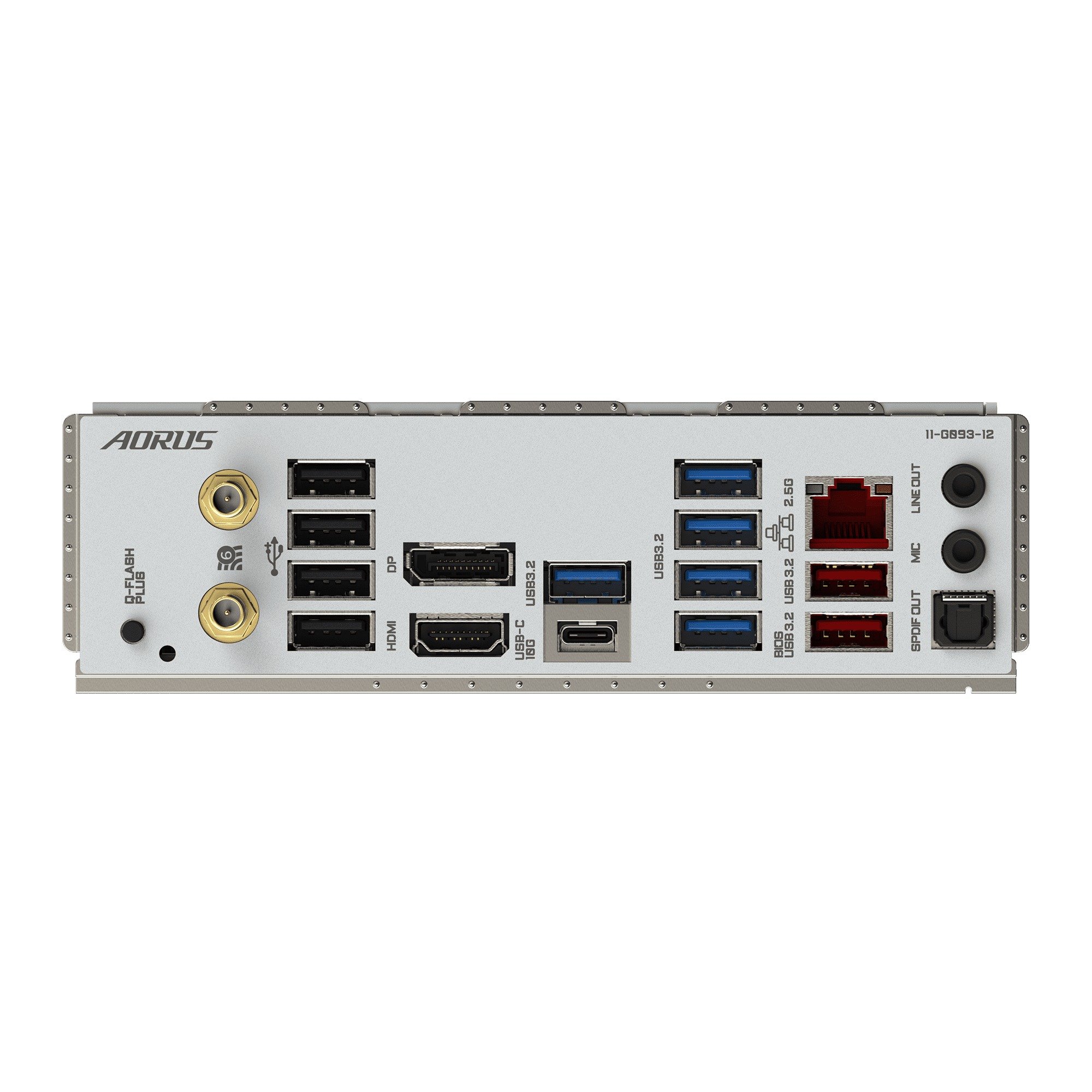

| Rear I/O Ports | 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 2 Type-A, 5x USB 3.2 Gen 1 Type-A, 4x USB 2.0, 1x HDMI 2.1, 1x DisplayPort 1.4, 1x 2.5GbE LAN, Audio Jacks, Wi-Fi Antenna |
