About Corsair iCUE LINK LX120-R RGB Fan
| Specification / Property | Details |
|---|---|
| Fan Model / Series | LX-R (iCUE LINK) / LX SERIES |
| Fan Size / Dimensions | 120 mm × 25 mm (WxH) |
| Bearing Type | Magnetic Dome Bearing |
| Connector / Control | PWM control, compatible with iCUE LINK ecosystem |
| Speed (PWM Range) | 400 – 2400 RPM (±10%) |
| Airflow | 11.5 – 66.7 CFM |
| Static Pressure | 0.14 – 4.72 mmH₂O |
| Noise Level | 10 – 37.7 dBA |
| Power Draw / Current | 0.4 A |
| LED / Lighting | RGB LEDs — 18 LEDs per fan, arranged in dual light loops |

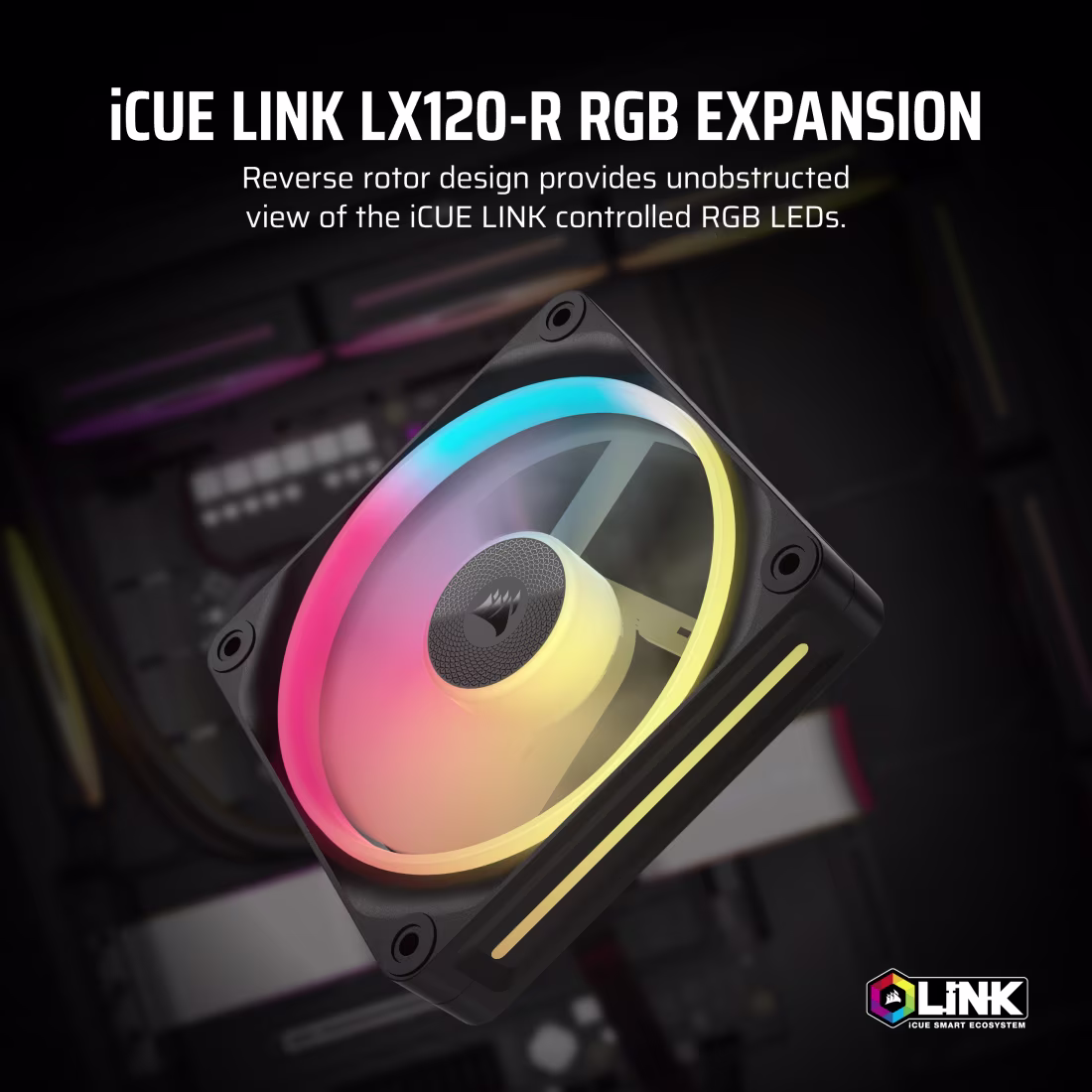

| Special Design | Reverse-rotor (reverse blade) design — optimized for intake with RGB lighting visible |
| Noise / Flow Type | Static pressure optimized fan; magnetic bearing for low noise and long lifespan |
| Package Contents | 1 × fan, 2 × iCUE LINK connectors (active + passive), 135 mm iCUE LINK cable (with angled connectors), QuikTurn mounting screws |
| Use Case / Compatibility | PC case fan (especially as intake), compatible with iCUE LINK ecosystem for unified control of fans and RGB |
| Warranty / Support | 5-Year Warranty from manufacturer |
If you’re looking for a cooling solution that seamlessly merges performance, aesthetics, and ease of installation — the Corsair iCUE LINK LX120-R RGB Fan delivers on all fronts.
Designed as a 120 mm PWM reverse-fan expansion, the Corsair iCUE LINK LX120-R RGB Fan brings together refined cooling efficiency and vibrant custom lighting, all wrapped in a build-friendly package ideal for modern PC cases and radiator setups.
But the Corsair iCUE LINK LX120-R RGB Fan isn’t just about looks: it’s engineered for performance.

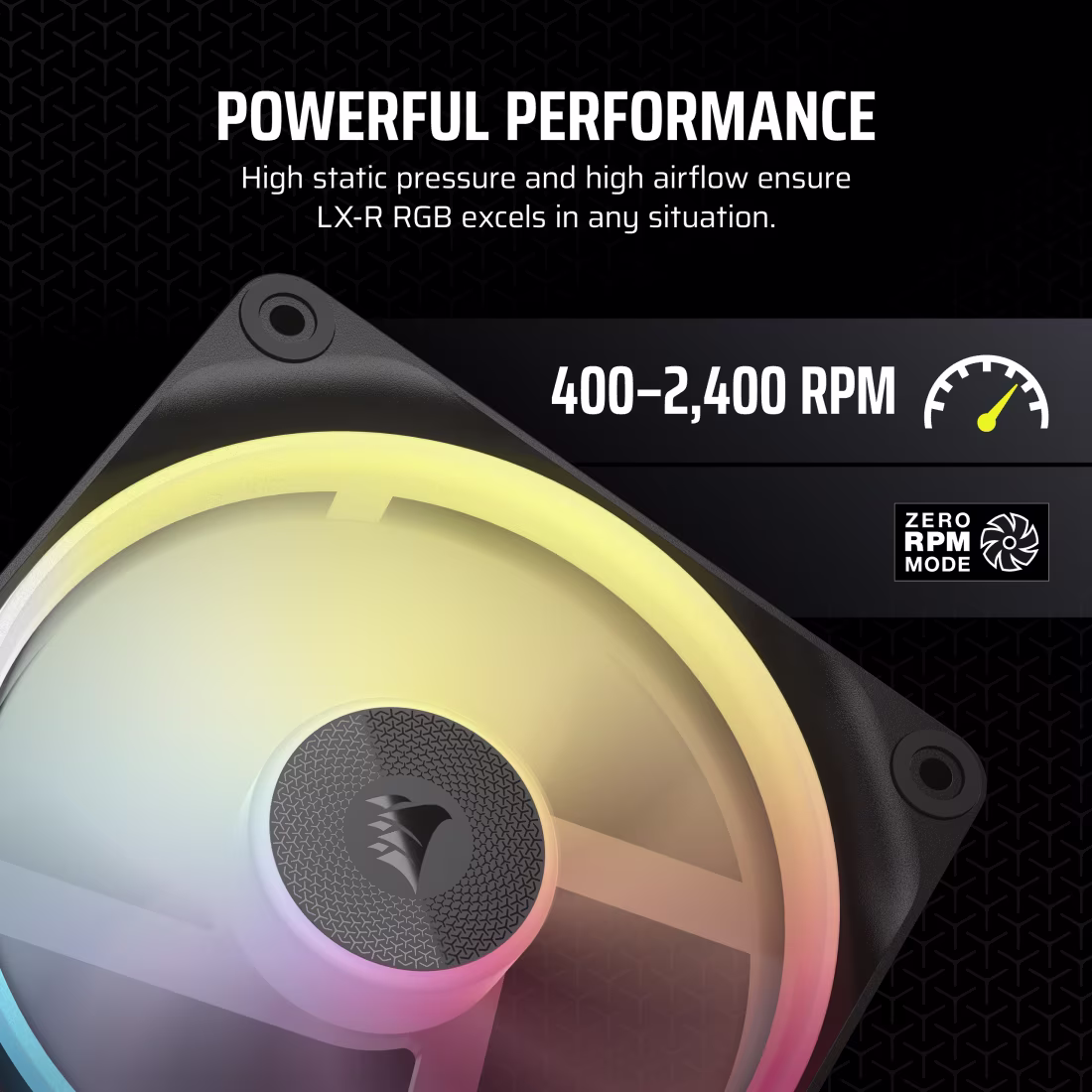

With PWM control allowing fan speeds between 400 and 2400 RPM,Corsair LX-R RGB Series Desktop Fan can generate airflow from 11.5 up to 66.7 CFM, and static pressure up to 4.72 mmH₂O.
That makes it versatile enough for standard case airflow as well as radiator or liquid cooling intake configurations, where adequate static pressure matters.
Whether you’re trying to exhaust hot air or push cool air through a dense radiator, Corsair iCUE LINK LX120-R RGB Fan handles both with balanced efficiency.

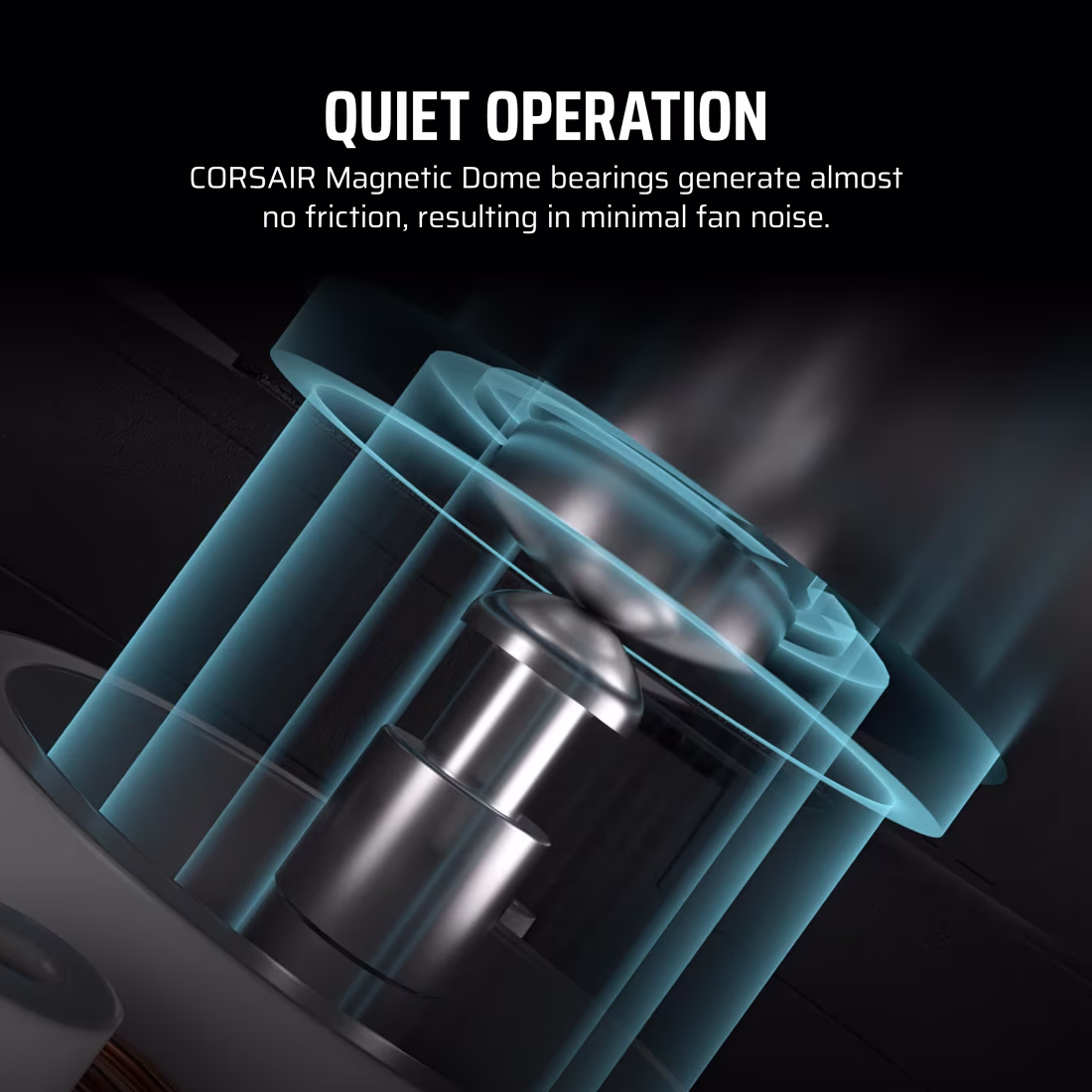

Under the hood, the Corsair 120mm RGB Desktop Fan uses a Magnetic Dome bearing, which significantly reduces friction and mechanical noise — a big plus if you value quiet operation.
The bearing type also contributes to longer lifespan and smoother rotation compared to simpler sleeve-bearing fans, so your build stays cool and quiet for years.
Installation and cable management have also been thought through carefully.
The Corsair iCUE Link Series RGB Fan is built to integrate with the iCUE LINK ecosystem, enabling you to chain multiple fans or RGB components using a universal connector system.
That translates to fewer cables cluttering your chassis and more streamlined control — one software suite can manage all your fans, lighting patterns, and even system monitoring.
For mounting, Corsair includes QuikTurn screw fasteners that make setup faster and cleaner than traditional screw mounting, especially handy if you’re installing multiple fans in a full build.
Each package includes the Corsair iCUE LINK LX120-R RGB Fan, a pair of iCUE LINK connectors (active and passive), a 135 mm iCUE LINK cable with 90-degree connectors, and the QuikTurn screws — everything you need to get started, right out of the box.
It’s a thoughtfully assembled package that’s just as suited to newcomers building their first custom PC as it is to seasoned modders fine-tuning a high-end rig.
In real-world use, the Corsair iCUE LINK LX120-R RGB Fan shines in builds where RGB presentation and airflow performance must coexist cleanly — like mesh-front cases, side-intake setups, or radiator-driven cooling systems.
Because of its dual-loop lighting, reversed rotor aesthetic, low noise profile, and strong cooling performance, this fan makes an ideal choice for gaming rigs, content-creation workstations, or any PC where form and function go hand in hand.
The Corsair iCUE LINK LX120-R RGB Fan is a refined, high-performance cooling fan that doesn’t compromise on style or practicality.
It’s perfectly suited for anyone who wants to build a clean, quiet, and visually striking PC — with minimal hassle, maximum flexibility, and long-term reliability.
