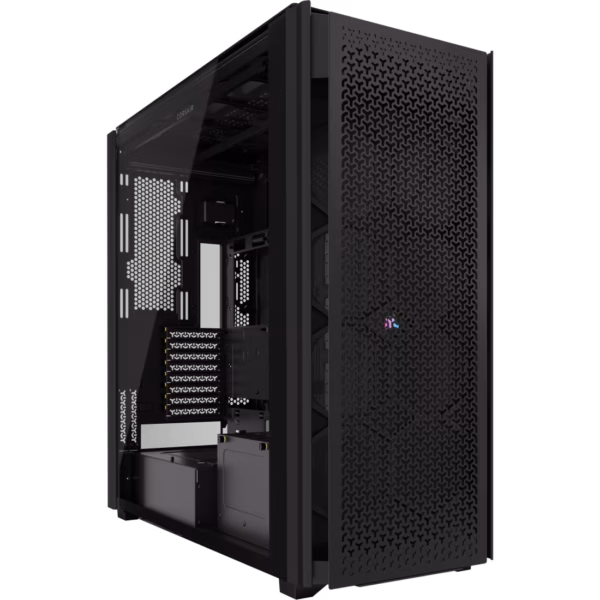

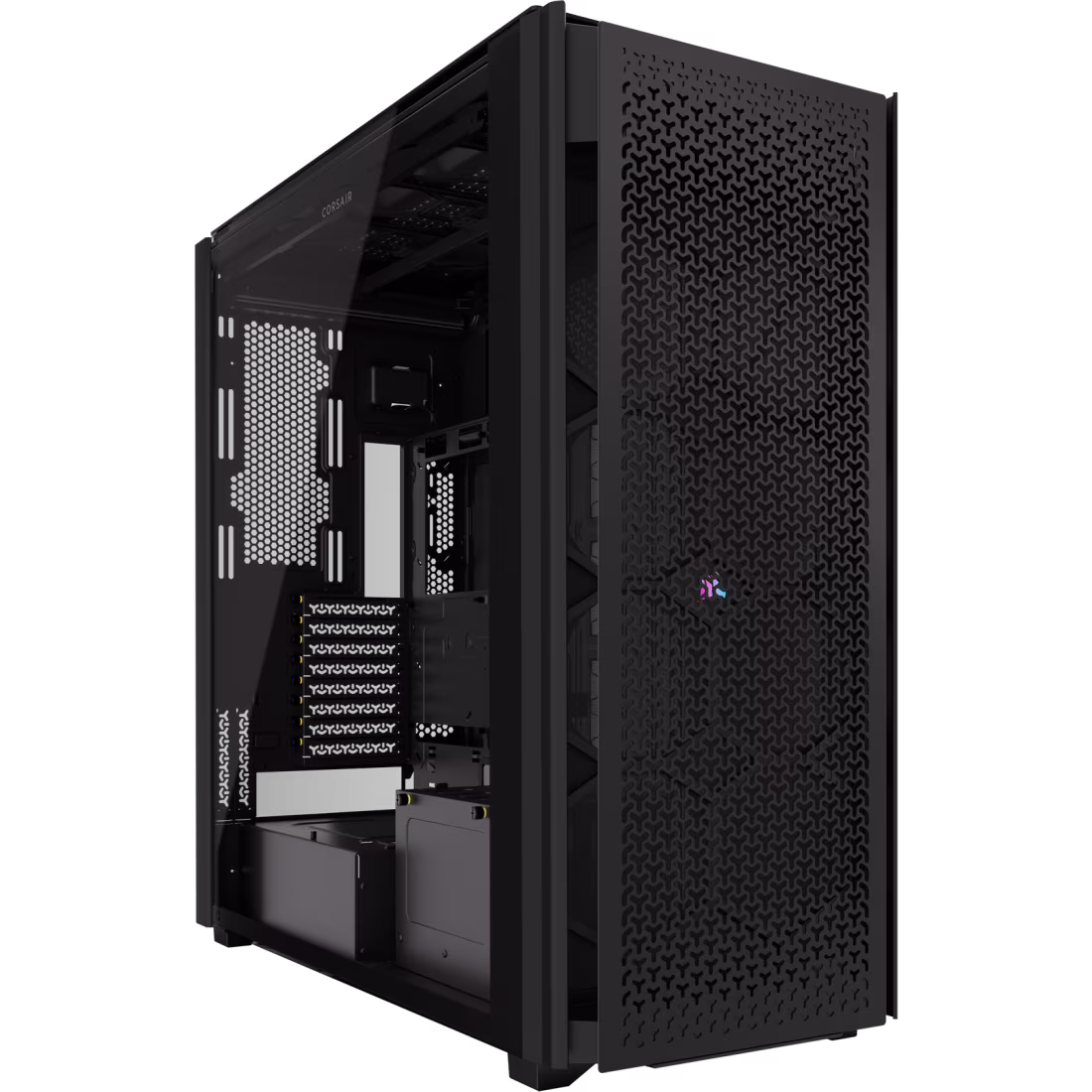

About Corsair 9000D RGB Airflow Desktop Cabinet
| Category | Specification |
|---|---|
| Case Type | Super Full-Tower / Super-Tower |
| Supported Motherboards | Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-EEB |
| Material / Panels | Steel frame; Tempered glass window (left side); Right side panel steel |
| Dimensions (HxWxD) | 698 mm × 307 mm × 698 mm |
| Case Color | Black (also available in White) |
| Motherboard Tray Clearance / Cable Management | ~30 mm behind motherboard tray for cable routing; Cable routing space ~76 mm |
| Drive Bays (internal) | 5 × 3.5″ HDD + 6 × 2.5″ SSD/HDD |
| Expansion Slots | 8 horizontal (or 4 vertical) + 2 vertical (for secondary motherboard) |
| Max GPU Length | 580 mm |
| Max CPU Cooler Height | 180 mm |
| Max PSU Length | 225 mm |
| Fan Mounting / Cooling Support | Supports up to 18 × 120 mm fans; also supports 140 mm and 200 mm fans. Radiator support: up to 480 mm (front/top), 360 mm (side), 240 mm (rear) for water-cooling loops. |
| Included Fans | None (fans not included) |
| Dust Filtration | Yes: dust filters for front, top, side, PSU area. |
| Front I/O Ports | 2 × USB 3.2 Gen 2 Type-C; 4 × USB 3.2 Gen 1 Type-A; Headphone/Mic combo jack; Power & Reset buttons. |
| PSU Compatibility | ATX PSU (not included) |
| Vertical GPU / Motherboard Support | Vertical GPU mount support; Reverse-connector motherboard support (with optional riser card) |
| Weight (Empty) | ~37.35 kg |
| Warranty | 2-year warranty |
From the moment you open the box, the scale of the 9000D becomes clear.
Its super-tower dimensions (698 × 307 × 698 mm) provide cavernous interior room to accommodate virtually any motherboard — from compact Mini-ITX to expansive E-ATX or SSI-EEB boards — as well as ultra-long graphics cards up to 580 mm, and robust power supplies up to 225 mm.
This vast interior is paired with generous storage support: space for up to five 3.5″ drives and six 2.5″ drives, making the 9000D ideal for data-heavy builds, content creation rigs, or dual-system workstations.
But the real magic of the 9000D lies in its cooling flexibility. Builders can install up to 18 × 120 mm fans — or a mix of 140 mm and 200 mm fans — across top, front, side, and rear mounts.
For liquid-cooling enthusiasts, there’s support for multiple large radiators: front or top up to 480 mm, side 360 mm, and rear 240 mm.

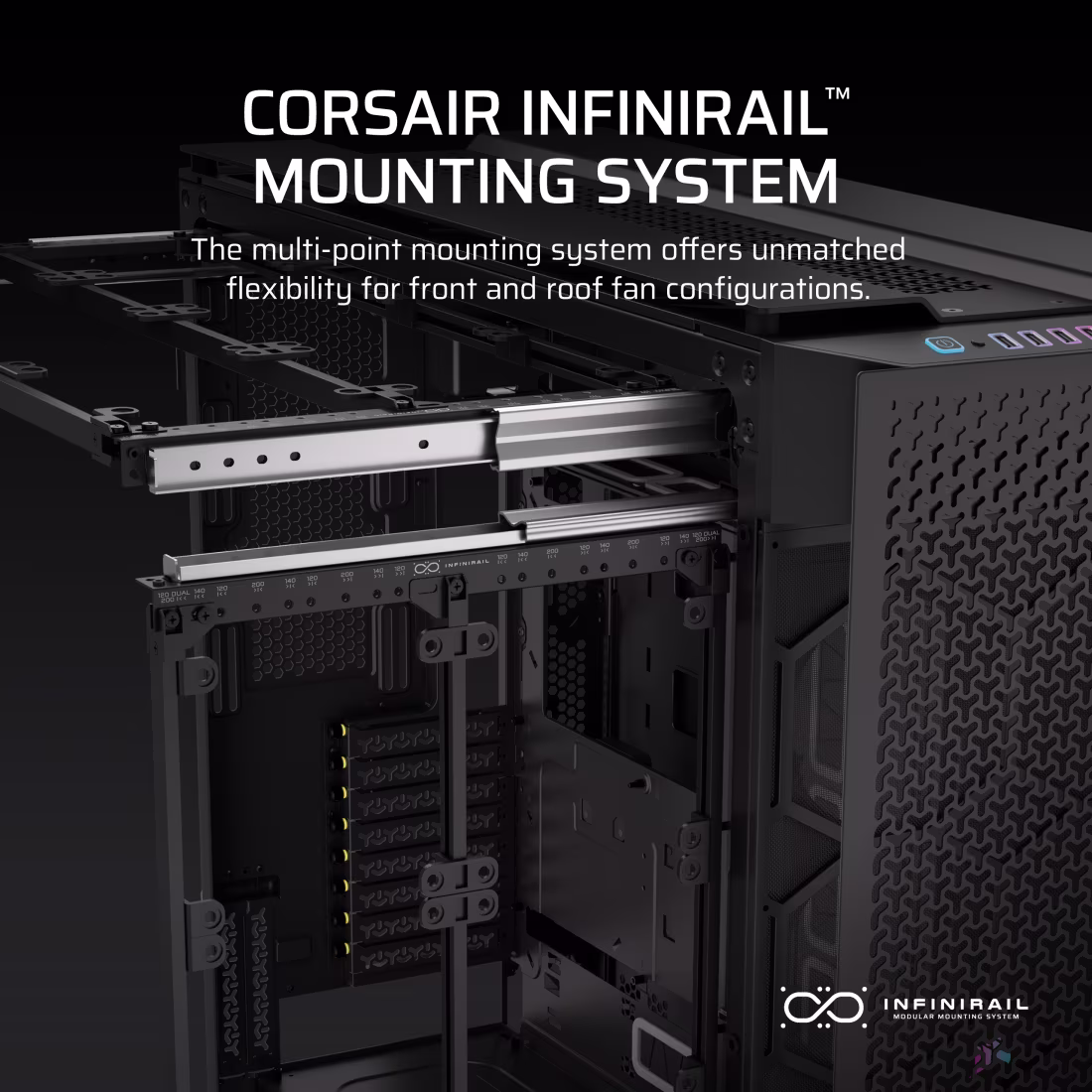

The unique InfiniRail fan mounting system dramatically increases flexibility — allowing you to slide and position fans freely rather than being restricted to fixed vertical mounts.
Whether you’re aiming for maximum airflow, silent operation, or a custom water-cooled setup, the 9000D adapts to your needs.
Inside the case, builder convenience is prioritized. About 30 mm of clearance behind the motherboard tray ensures tidy cable management.
Rubber grommets and wide cable routing space (≈ 76 mm) make cable runs clean and simple, even in monster builds.
A removable hard-drive cage adds further flexibility, allowing you to optimize airflow or accommodate larger cooling/radiator configurations.

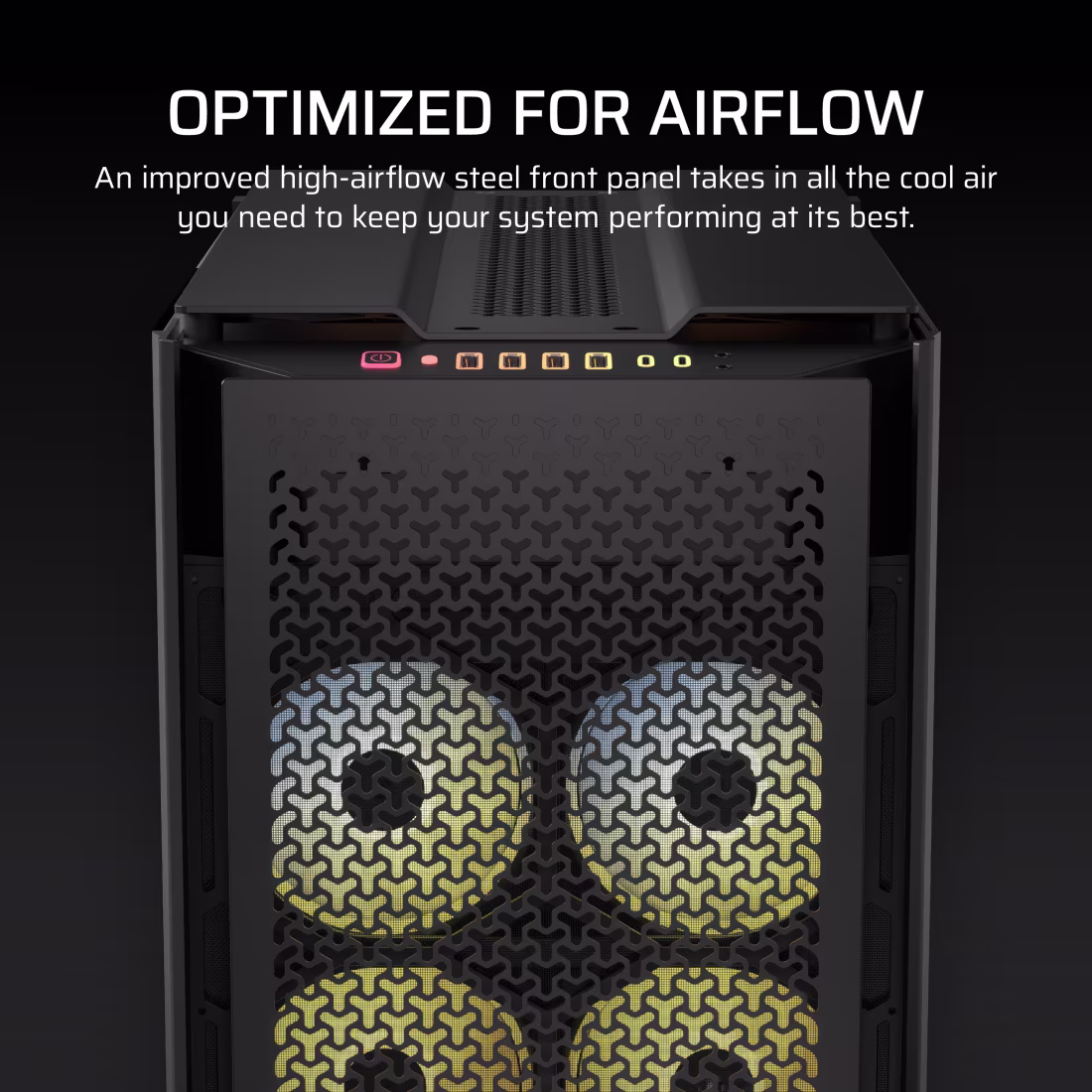

Dust filters on the front, top, side, and PSU area help keep your hardware clean.
Connectivity is modern and future-proof: the front panel includes 2 × USB 3.2 Gen 2 Type-C ports, 4 × USB 3.2 Gen 1 Type-A, and a headphone/mic combo jack — all accessible regardless of your motherboard’s port capabilities.
This ensures easy access for peripherals, external drives, VR, or frequent plug-and-unplug devices.
The case also supports vertical GPU mounting and reverse-connector motherboards (with an optional riser), giving modders more flexibility to show off hardware or build dual-system rigs.
Tempered glass on the left side lets you showcase your components — fans, cooling loops, GPUs, RGB lighting — while the steel right panel keeps structural integrity.
The build material — heavy-duty steel plus tempered glass — ensures durability and a premium feel.
Even with this level of build quality and spaciousness, Corsair offers a 2-year warranty to give builders peace of mind.
The 9000D RGB Airflow isn’t just a case — it’s a foundation for ambition.
If you’re planning a high-end gaming rig, a water-cooled workstation, a storage-heavy content creation PC, or even a dual-system build — this case gives you the room, flexibility, and practicality to realize your vision.
With component compatibility across the board, massive cooling potential, flexible fan/radiator mounting, modern I/O, and smart design geared towards easy, clean builds — the 9000D is engineered for the builders who want everything, without compromise.
Build big. Build bold. Build your dream rig.
