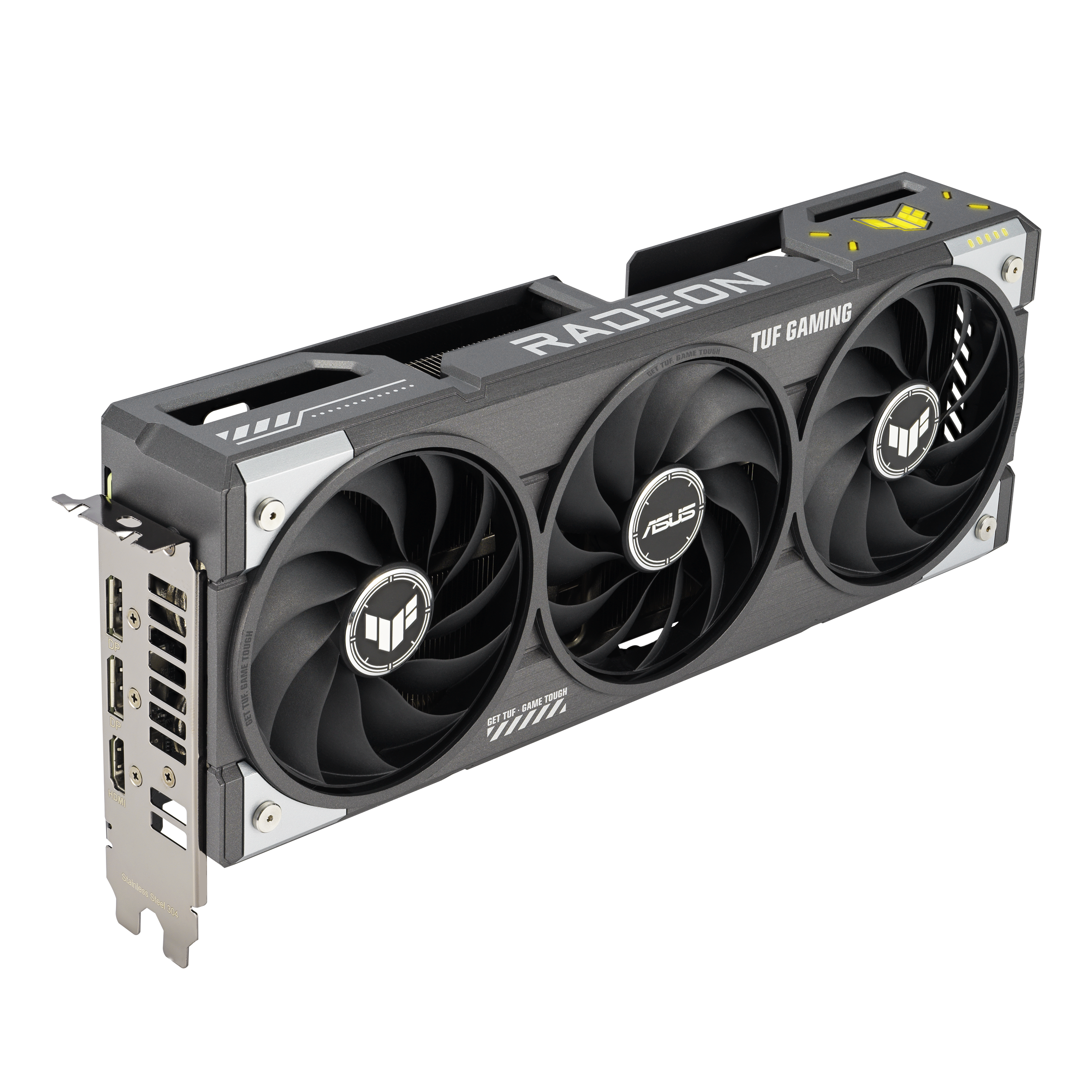

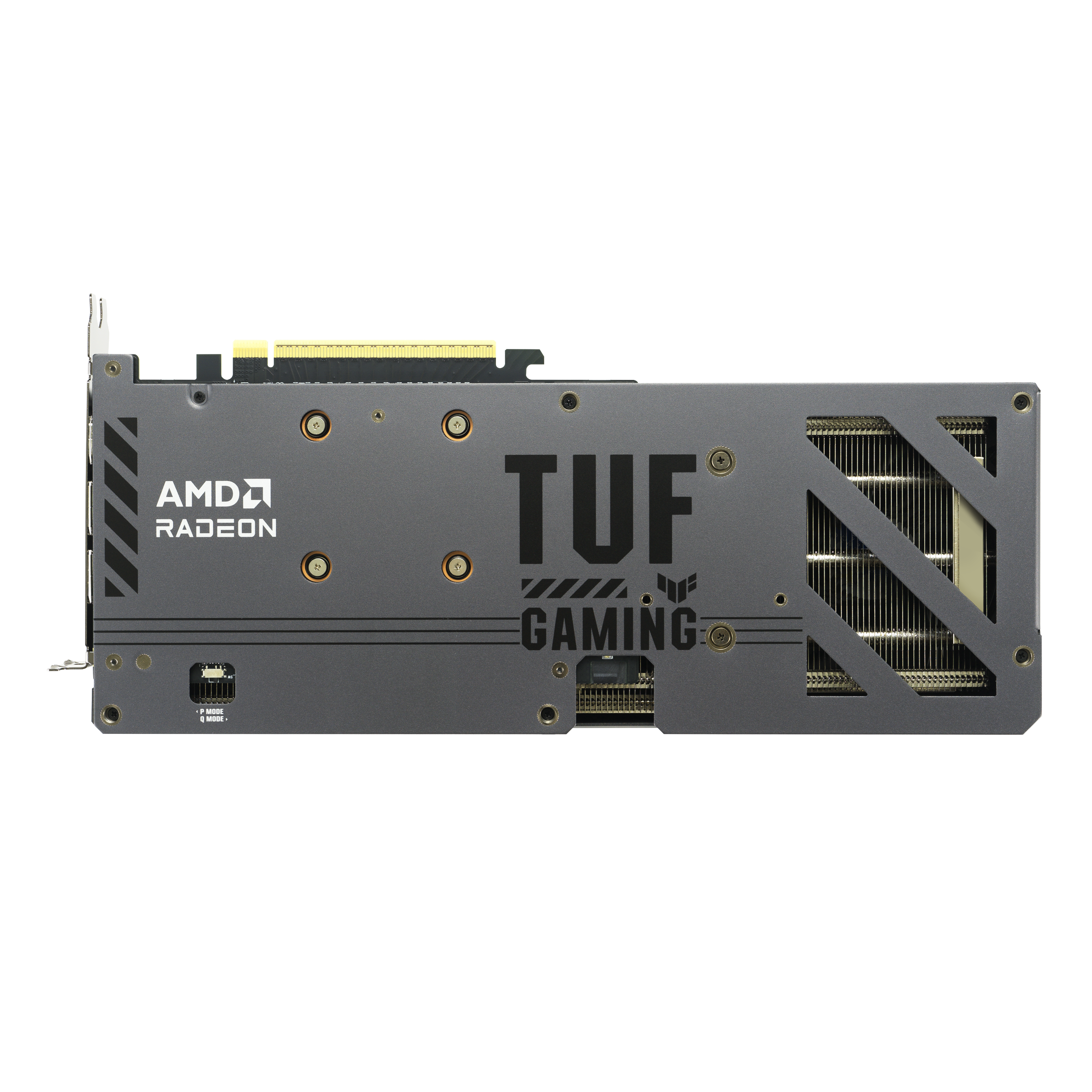

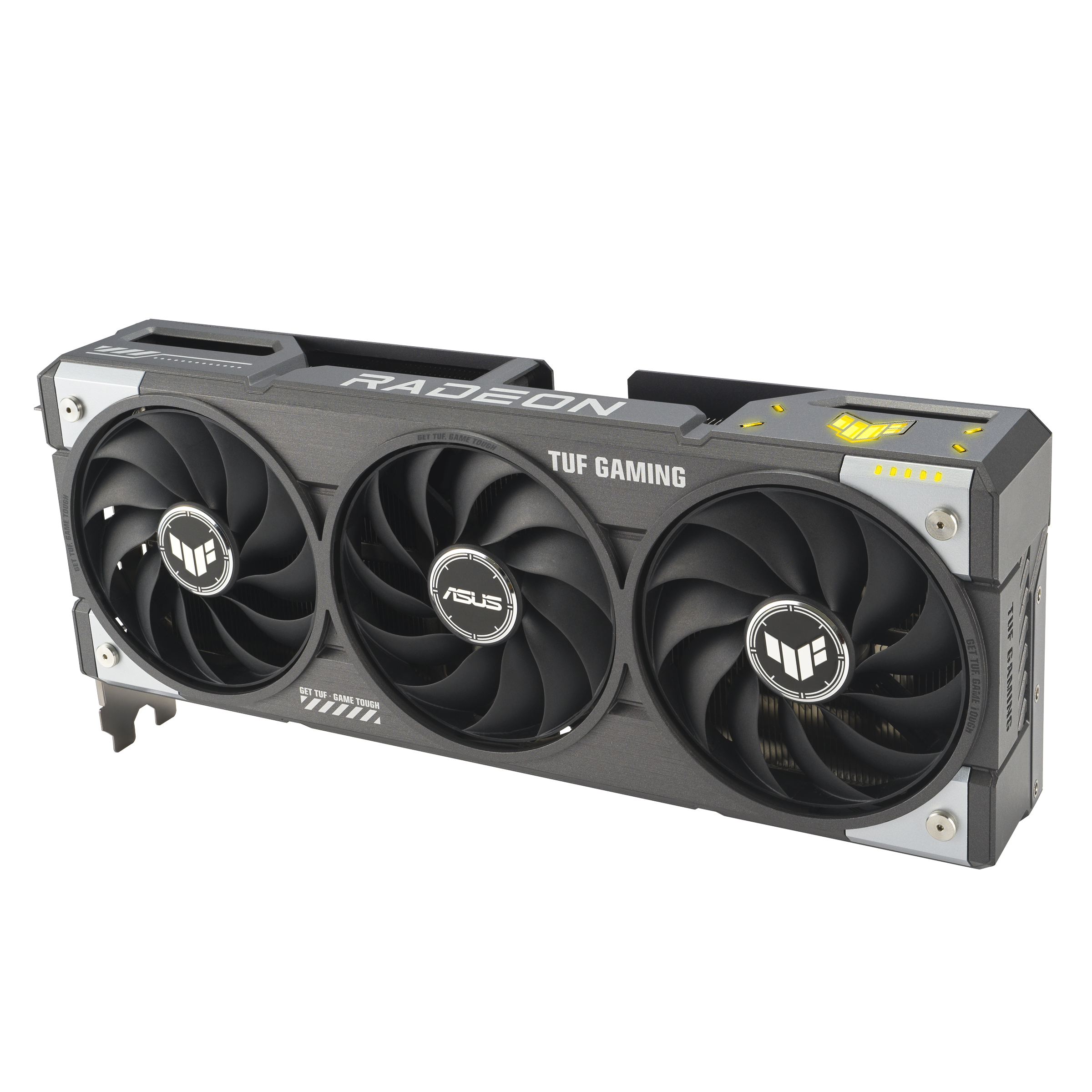

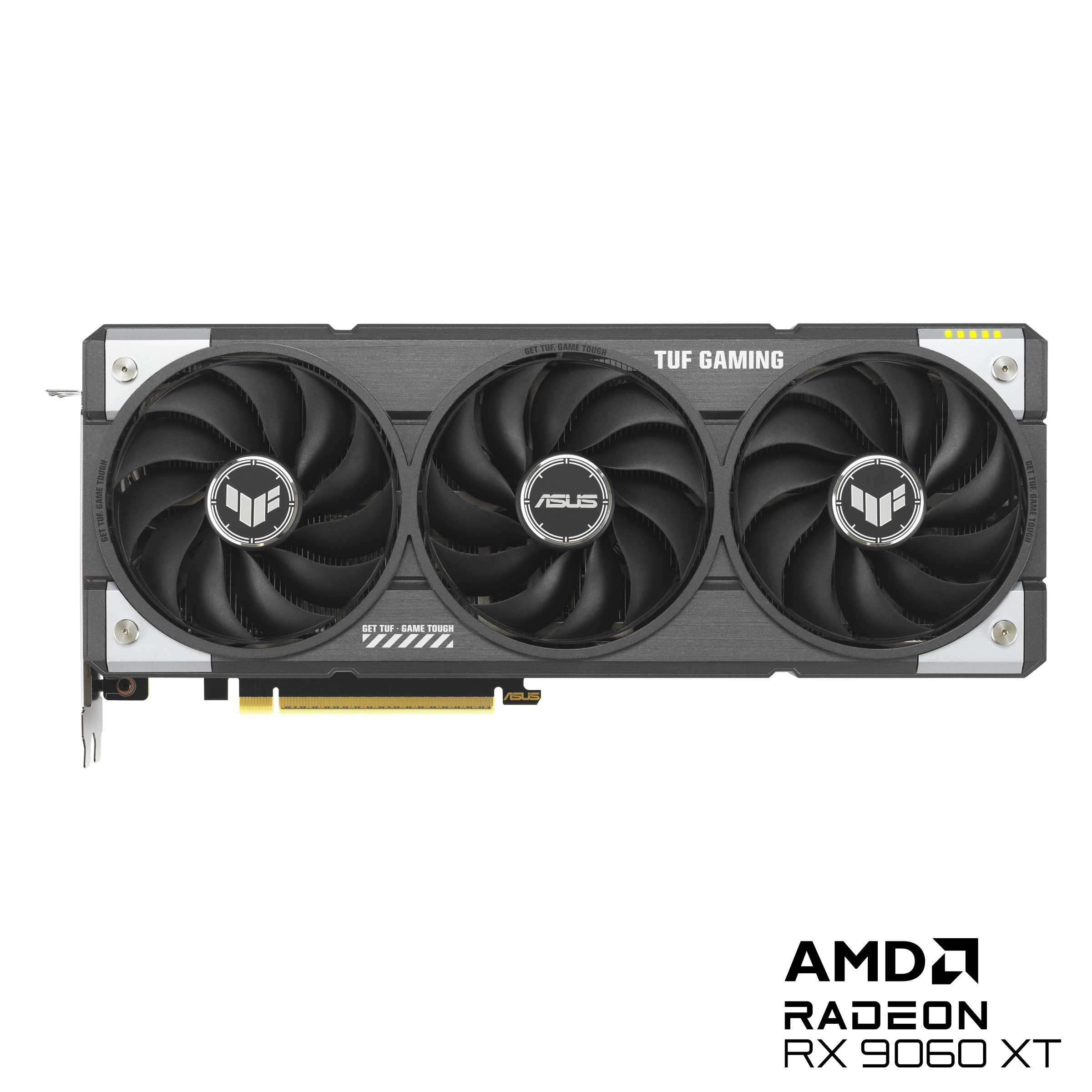

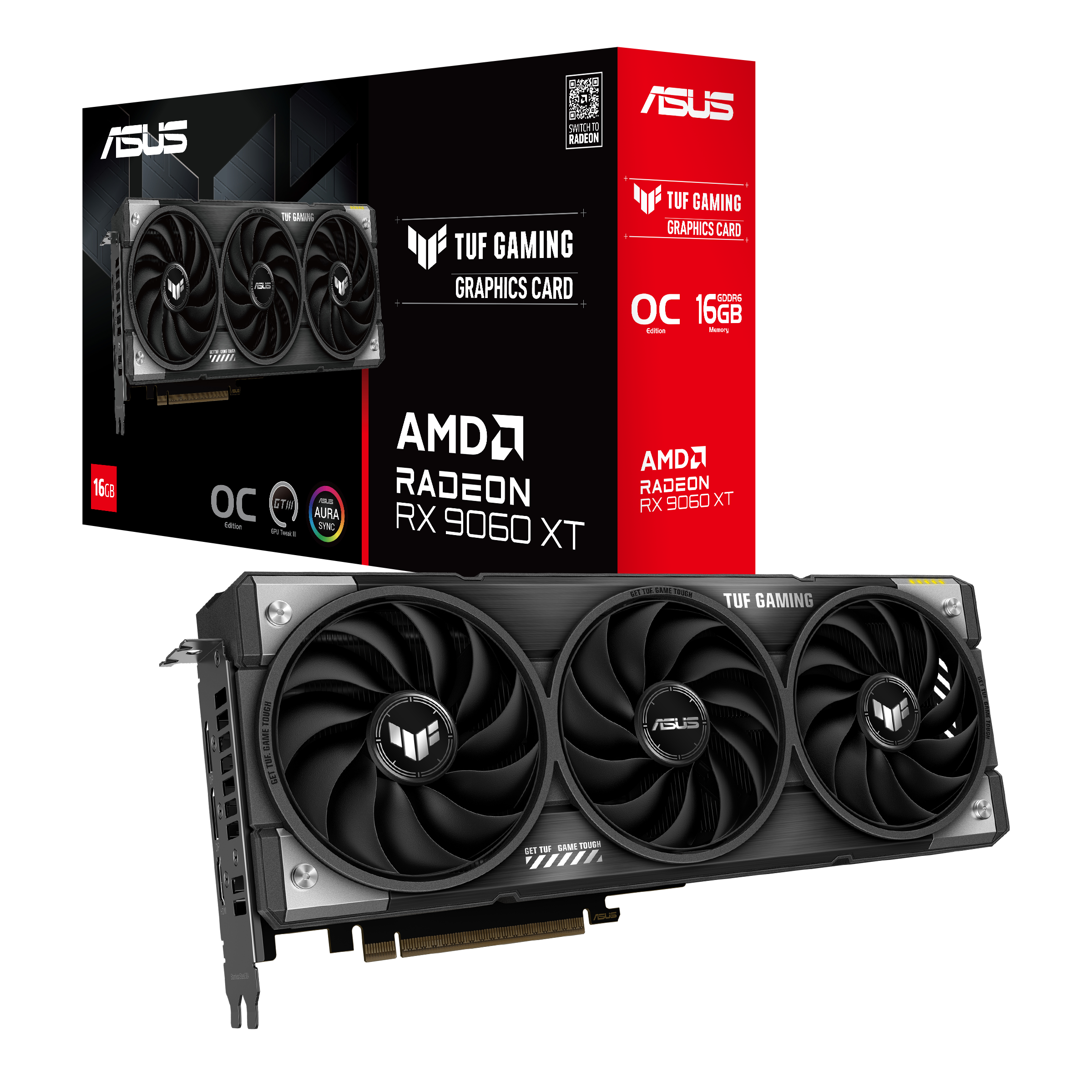

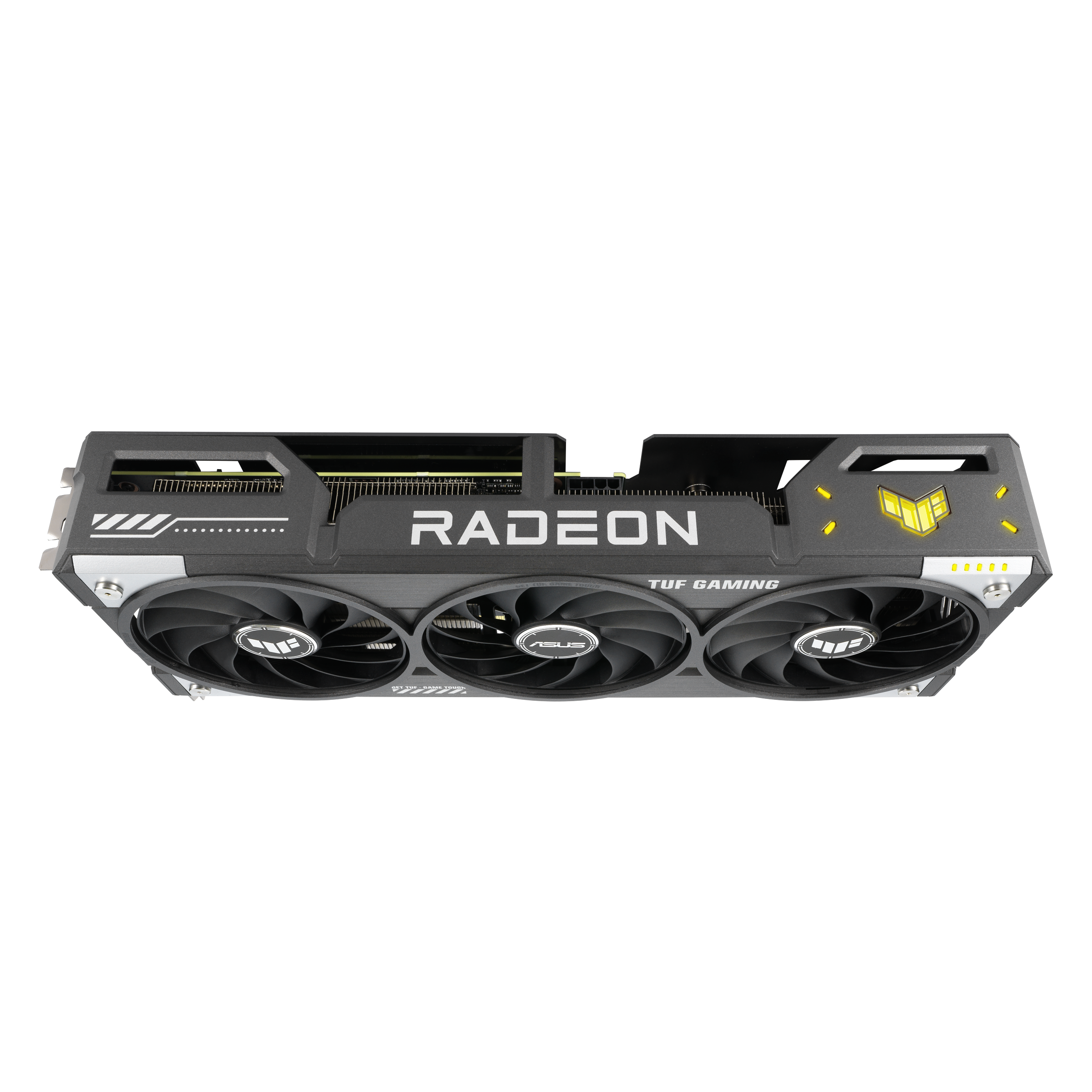

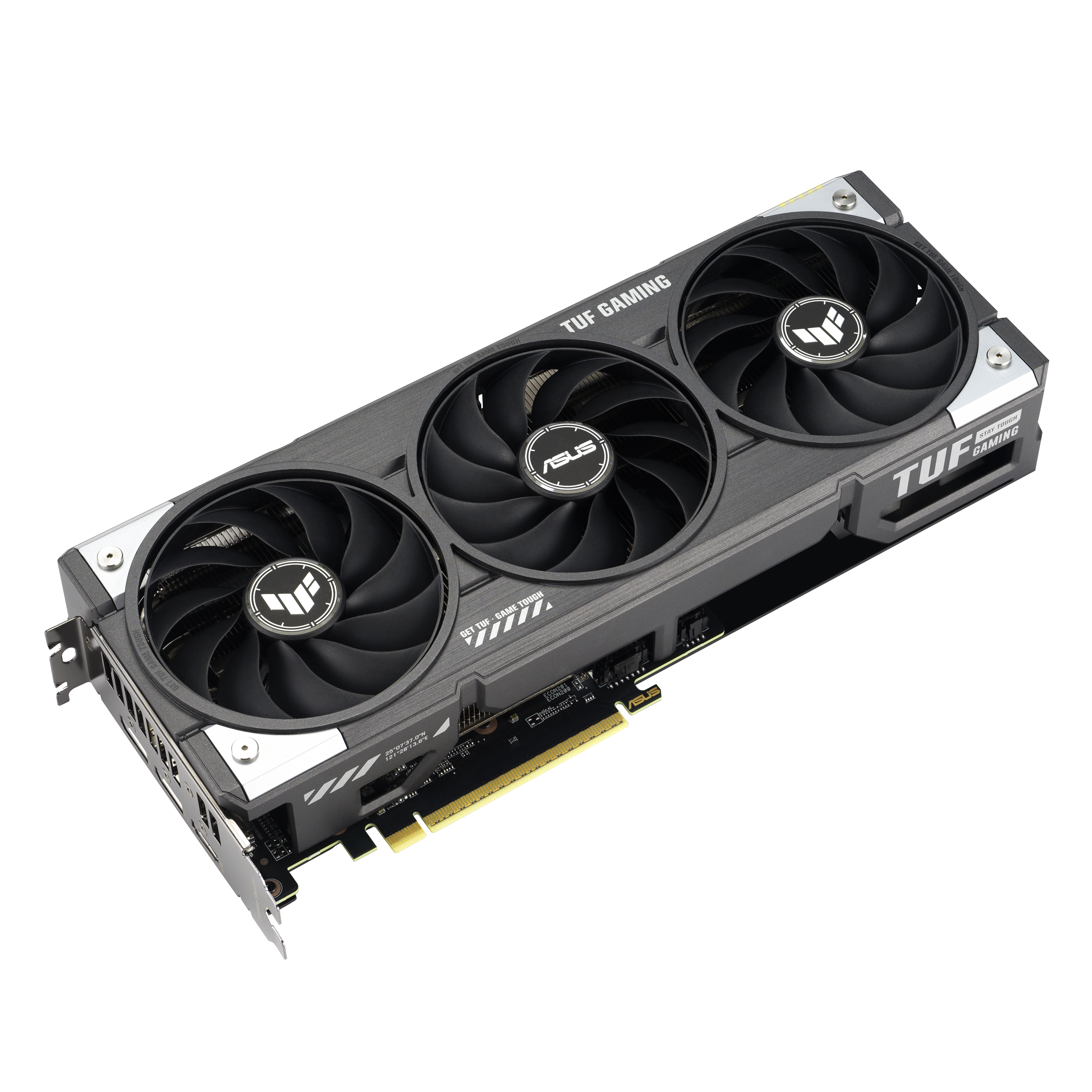

About ASUS TUF Gaming Radeon RX 9060 XT OC Edition 16 GB GDDR6
Built on AMD’s RDNA 4 Navi 44 GPU, the ASUS TUF Gaming RX 9060 XT OC Edition comes with 2048 stream processors and 16 GB of GDDR6 memory on a 128-bit bus (322 GB/s). The card is factory overclocked, operating at a boost clock of up to 3130 MHz in OC mode and a game clock of about 2530 MHz.
Triple long-bladed Axial-tech fans, dual ball bearings for durability, and 0 dB idle at moderate temperatures are all features of the cooling system. For effective thermal management, the heatsink employs a vapour-chamber-level cold plate. With military-grade capacitors, PCB coating, GPU Guard reinforcement, Auto-Extreme soldering, and dual BIOS for performance or silent tuning, the card is constructed for durability and protection.
It has a 1×8-pin power connector, measures approximately 304 × 126 × 50 mm (2.5 slots), supports PCIe 5.0 x16, and works best when combined with a high-quality 550-W PSU.
Features of ASUS TUF Gaming Radeon RX 9060 XT OC Edition 16 GB GDDR6
| Specification | Details |
|---|---|
| GPU Architecture | AMD RDNA 4 (Navi 44 XT) |
| Stream Processors | 2048 |
| Game Clock | ~2530 MHz |
| Boost Clock (OC) | Up to 3130 MHz |
| Memory | 16 GB GDDR6 @20 Gbps, 128‑bit (322 GB/s) |
| Infinity Cache | ~32 MB (RDNA 4 standard) |
| PCIe Interface | PCIe 5.0 x16 |

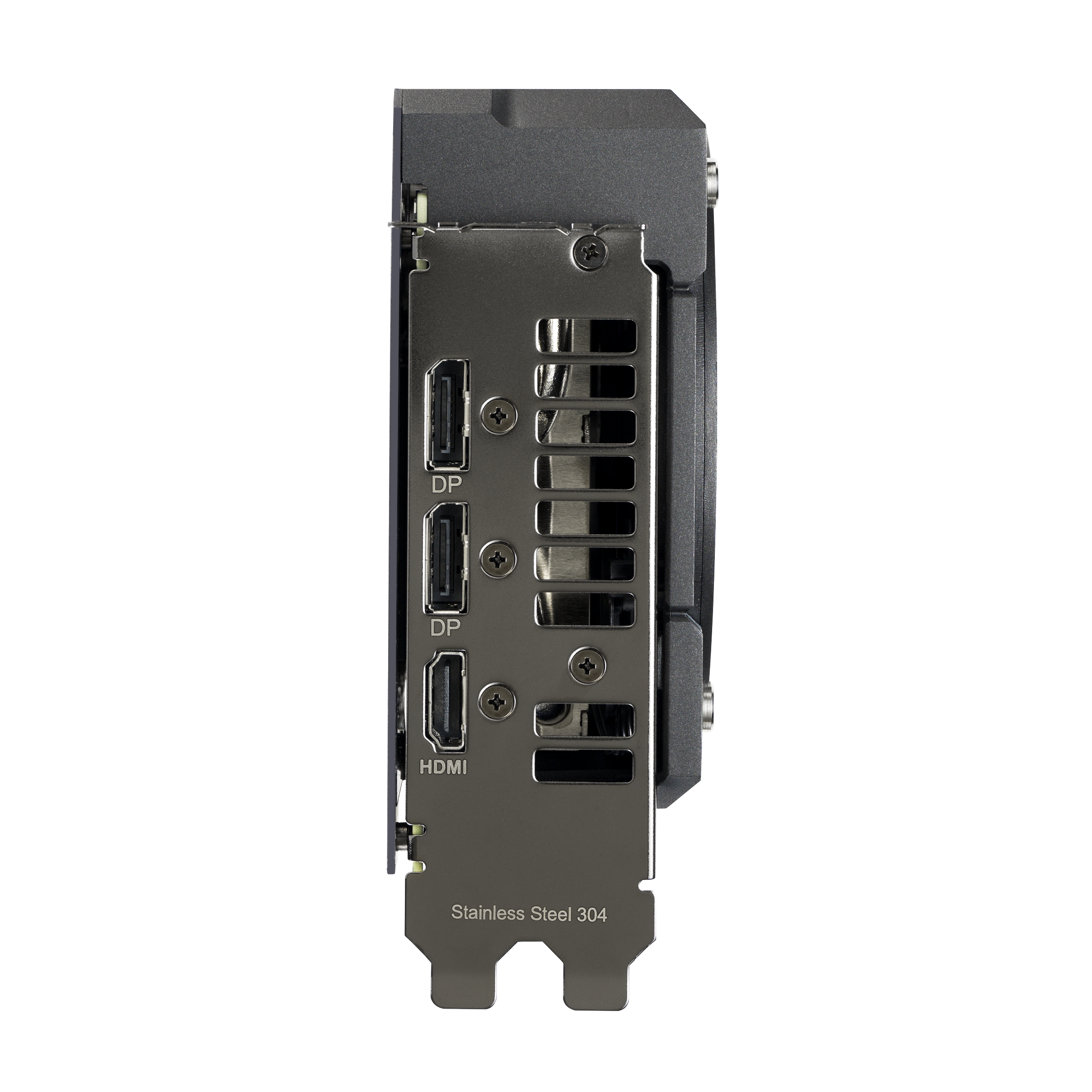

| Display Outputs | 2× DisplayPort 2.1a, 1× HDMI 2.1b |
| Cooling | Triple Axial‑tech fans, dual‑ball bearings, vapour-grade cold plate, 0 dB idle |
| BIOS Modes | Dual BIOS: Performance / Quiet |
| Build Features | Military‑grade components, PCB coating, and GPU Guard |
| Power Connector | 1×8-pin PCIe |
| Dimensions | ~304 × 126 × 50 mm (2.5 slots) |
| Recommended PSU | 550 W |
| Warranty | 3 years |
Ideally Best For
- Gamers targeting 1080p ultra or 1440p high settings with strong frame rates.
- Creators and modders who need 16 GB VRAM for assets or editing.
- Users are building quiet, compact systems without sacrificing performance or durability.
- Anyone looking for next-gen RDNA 4 features like FSR 4, HYPR-RX, improved ray tracing, and PCIe 5.0 support.
Buy ASUS TUF Gaming Radeon RX 9060 XT OC Edition 16 GB GDDR6 Triple‑Fan | PCIe 5.0 Online Today.
