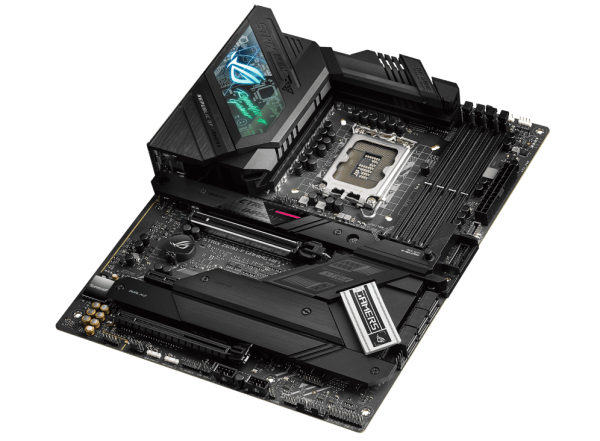

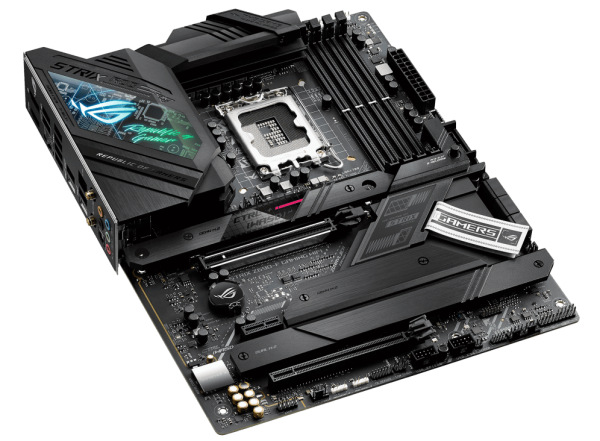

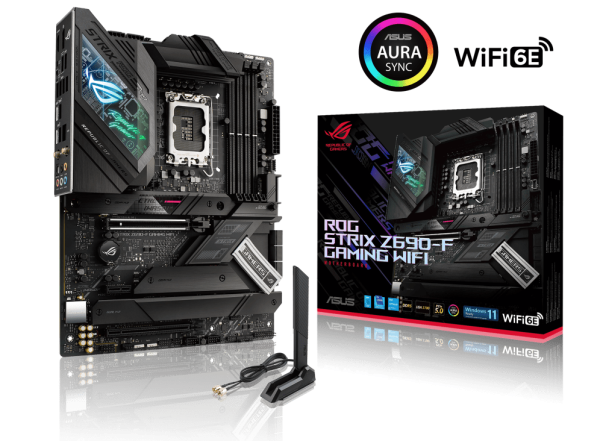

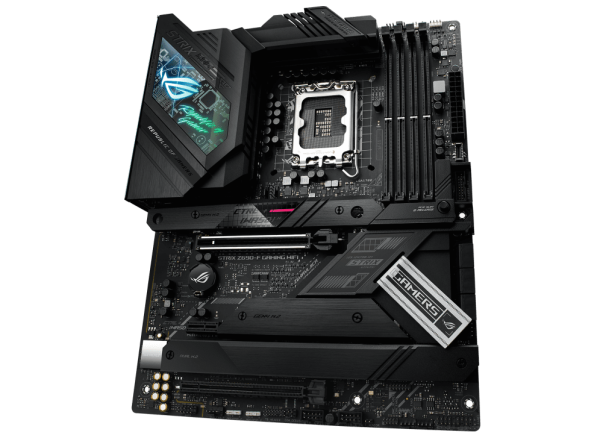

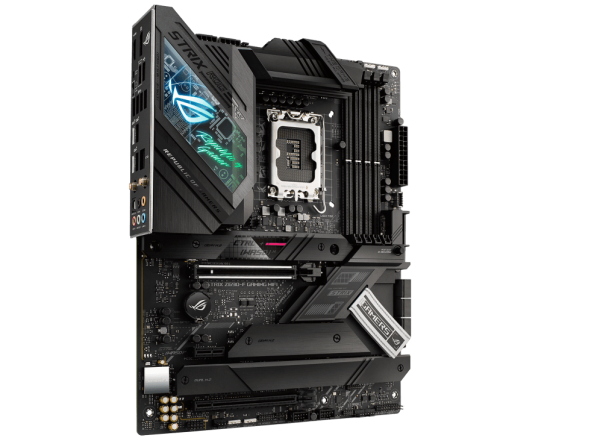

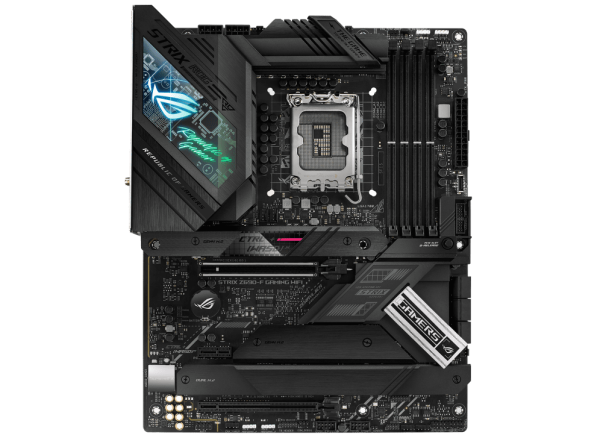

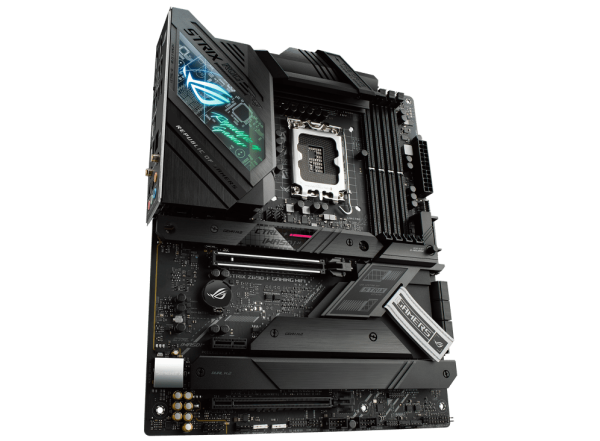

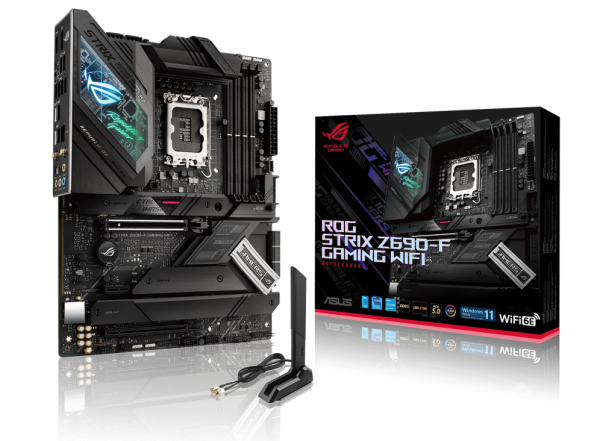

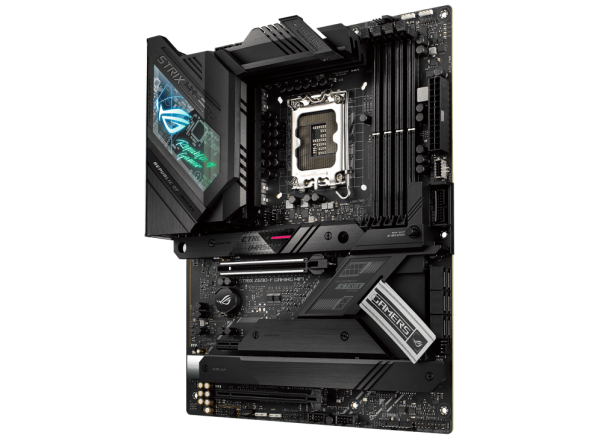

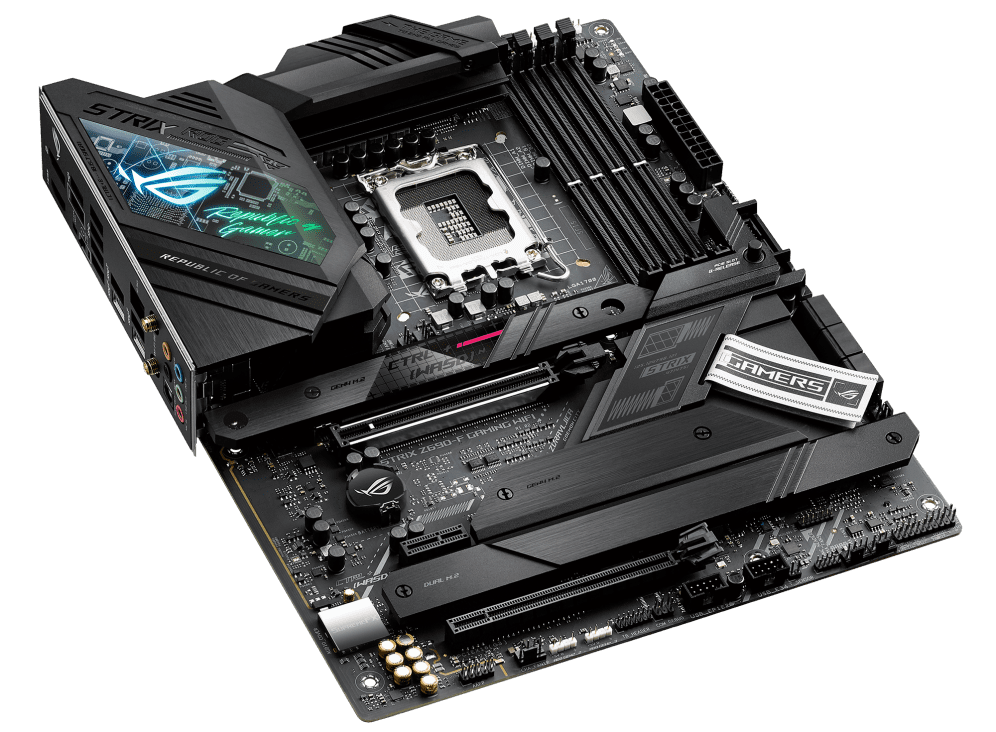

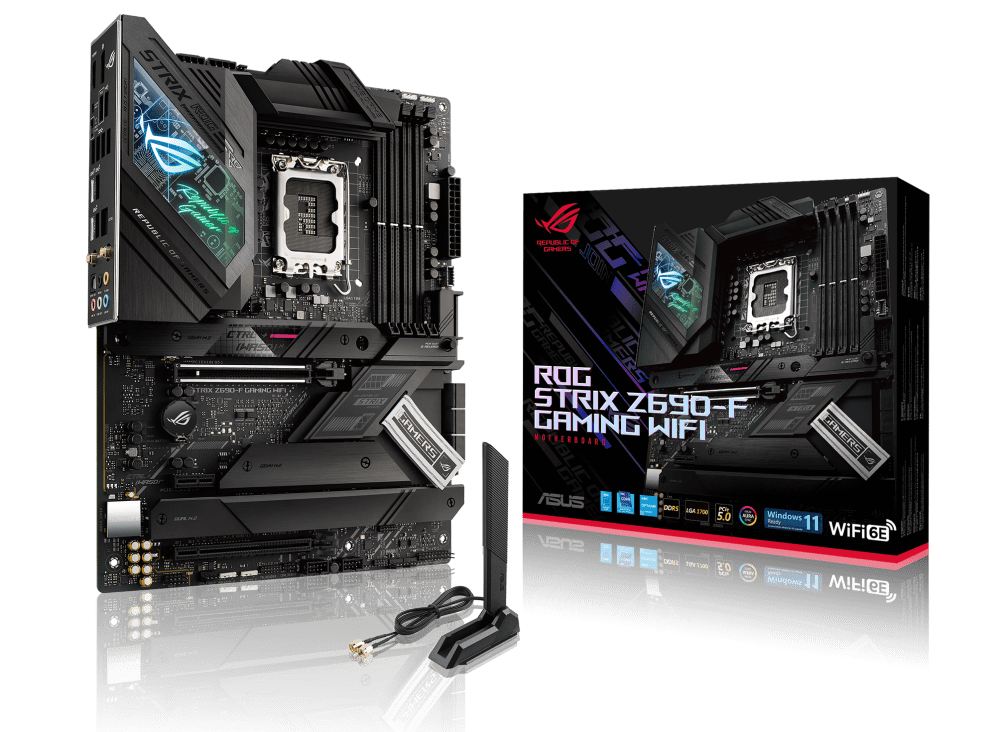

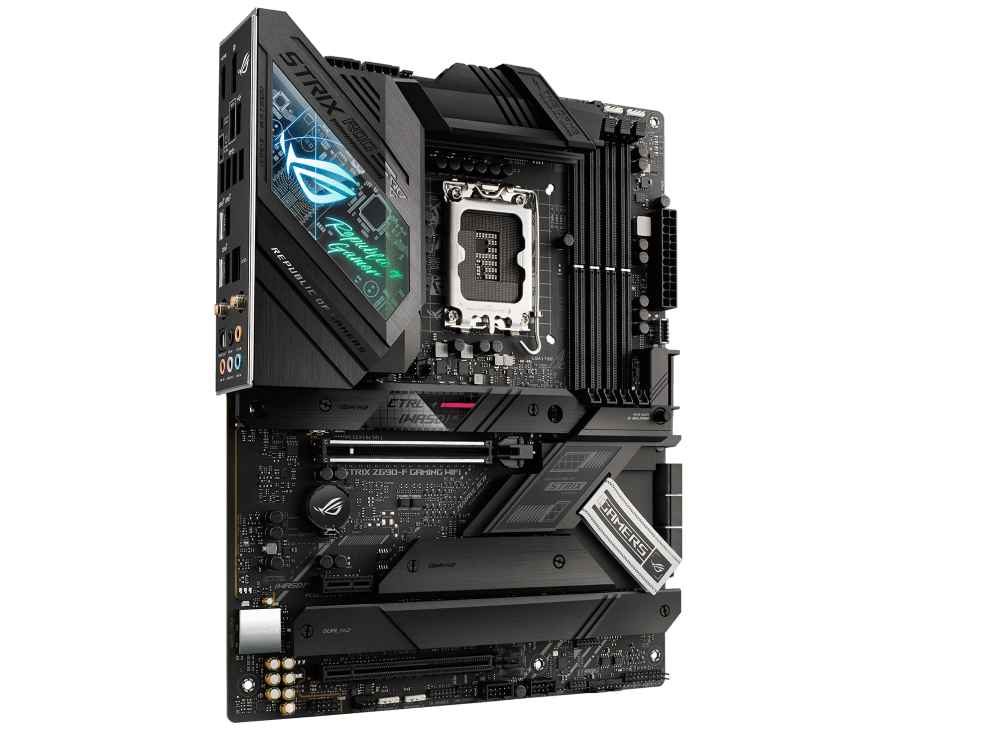

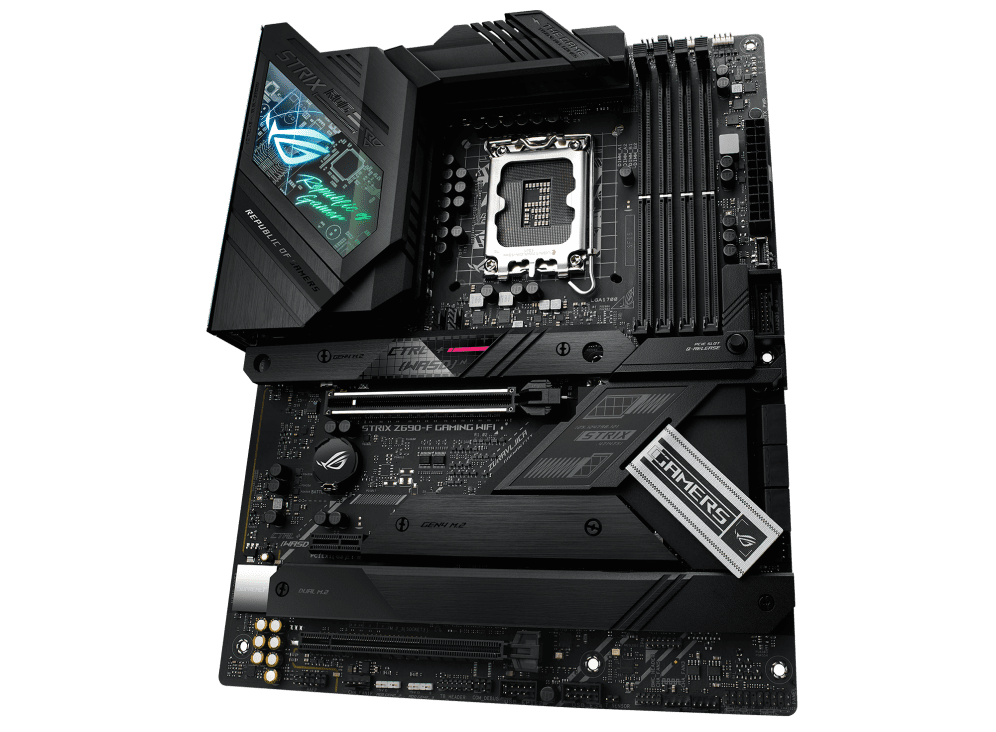

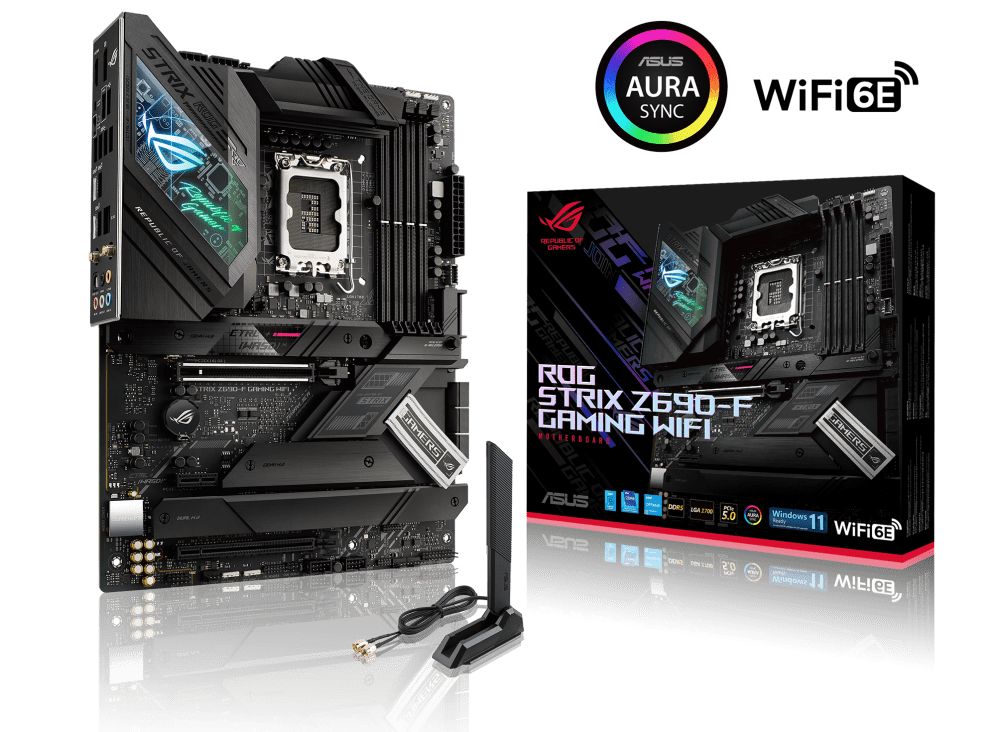

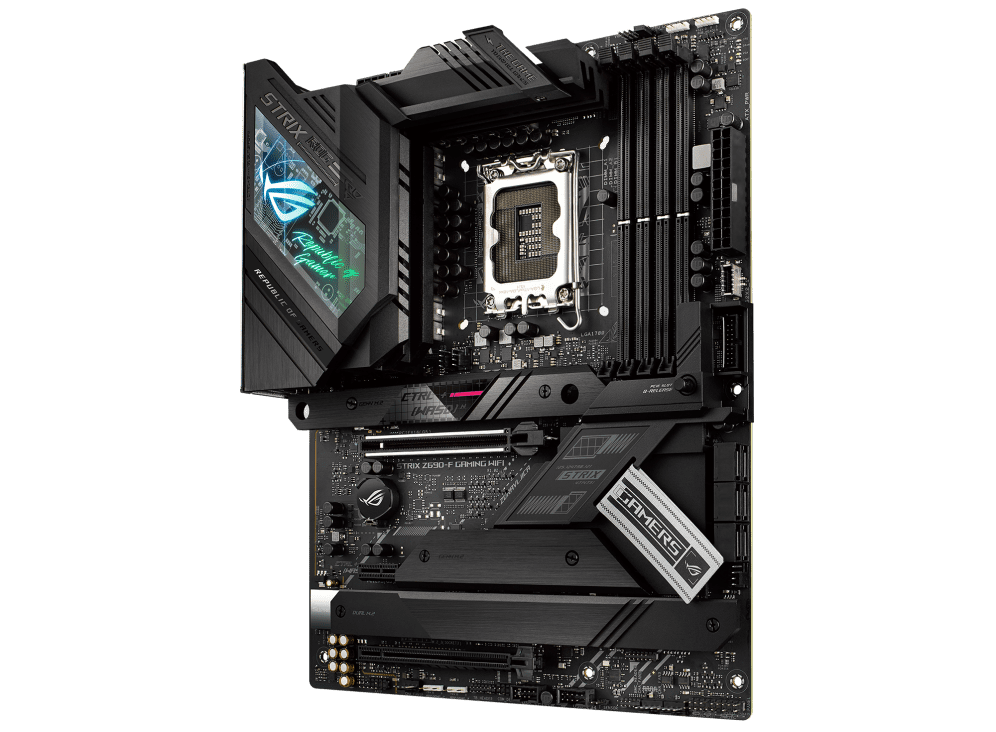

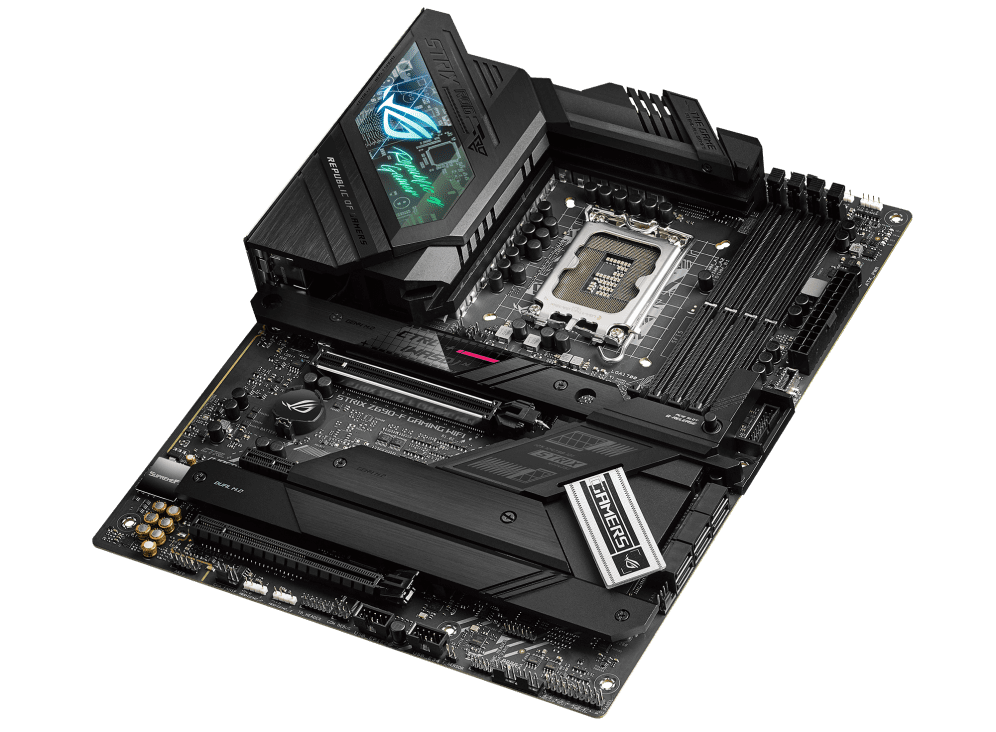

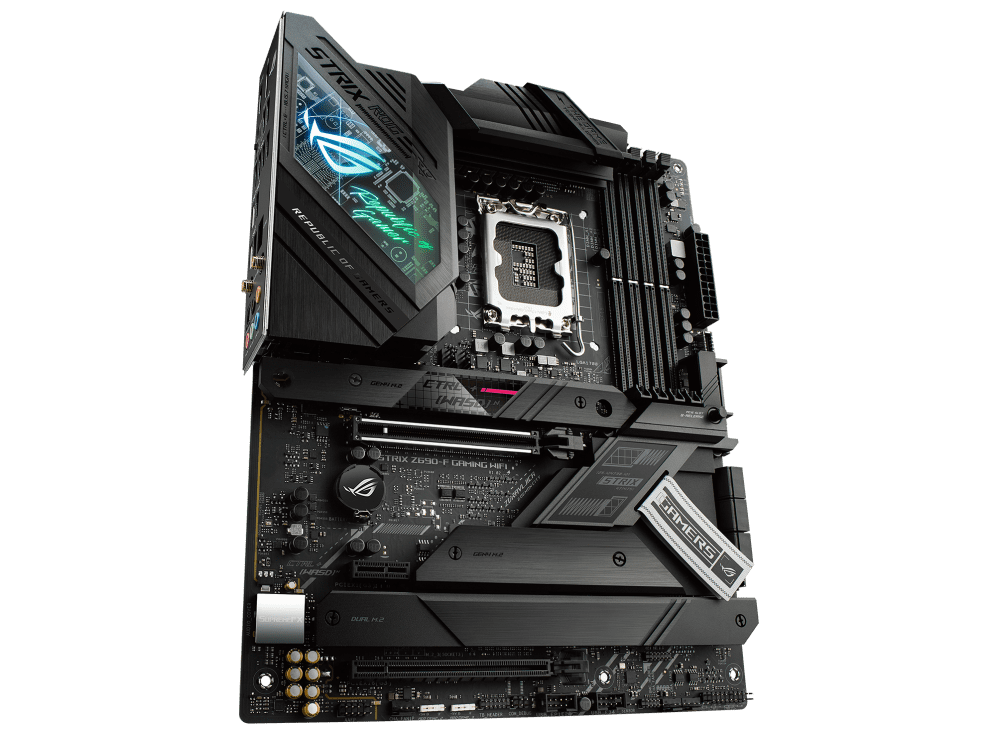

About ASUS ROG Strix Z690-F Gaming WiFi Intel LGA1700 ATX Motherboard
Maximize the power of your next custom PC build with the ASUS ROG Strix Z690-F Gaming WiFi ATX Motherboard. Designed around the Intel Z690 chipset and the LGA1700 socket, this motherboard fully supports 12th, 13th, and 14th Gen Intel Core processors. It is engineered with a heavy-duty 16+1 power stage design, high-quality alloy chokes, and durable capacitors, ensuring smooth and reliable power delivery to your CPU even under heavy overclocking loads. Performance is pushed even further with support for next-generation DDR5 memory, capable of reaching extreme speeds up to 6400 MHz (OC) thanks to ASUS OptiMem II technology.
Storage and expansion capabilities are truly cutting-edge. The primary expansion slot utilizes Lightning Gen 5 PCIe 5.0 x16 technology, providing massive bandwidth for the latest, most powerful graphics cards. For storage enthusiasts, the board features an impressive four M.2 slots, allowing you to build an ultra-fast NVMe SSD storage array. Thermal management is critical for high-end components, which is why ASUS has equipped this motherboard with thick VRM heatsinks, a fanless PCH heatsink, and four dedicated M.2 heatsinks-including a custom backplate for the primary M.2 slot to prevent thermal throttling and ensure peak drive performance.

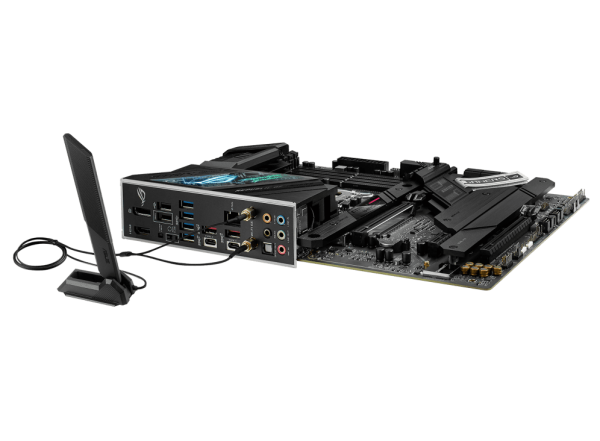

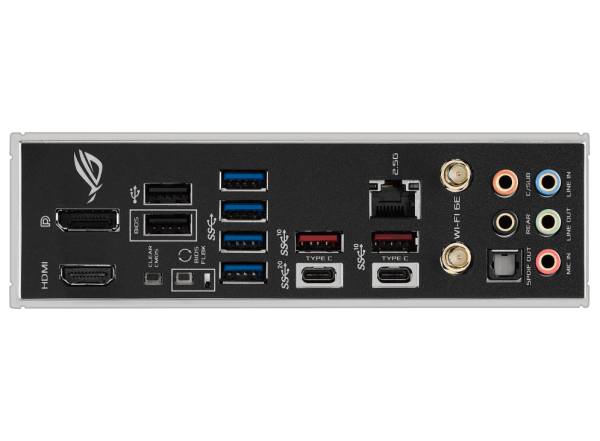

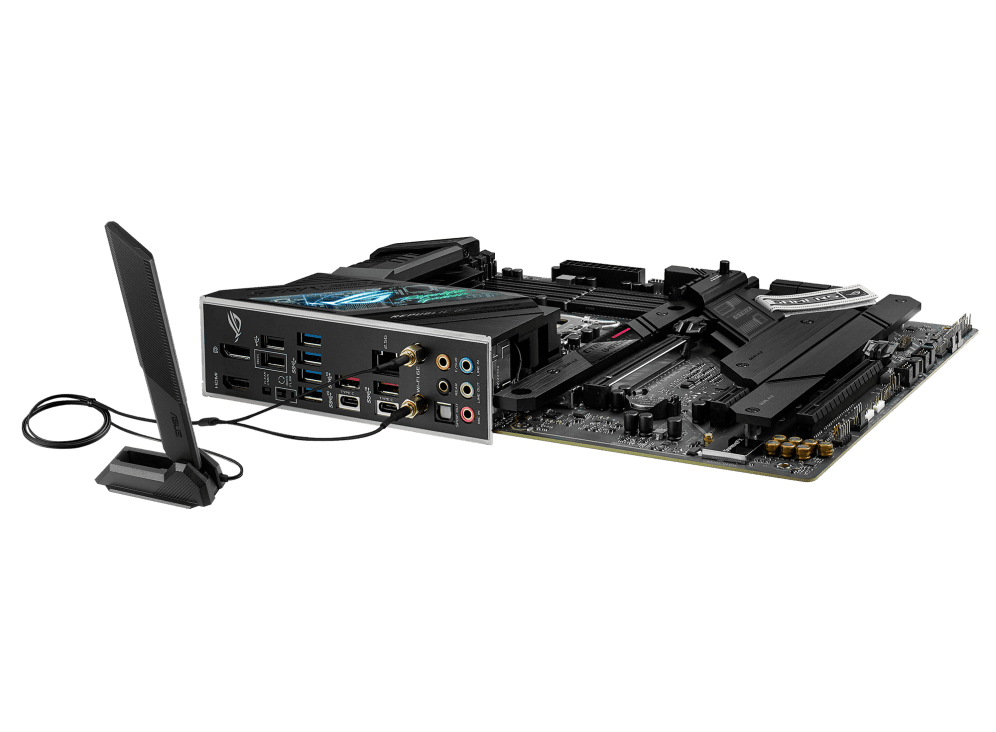

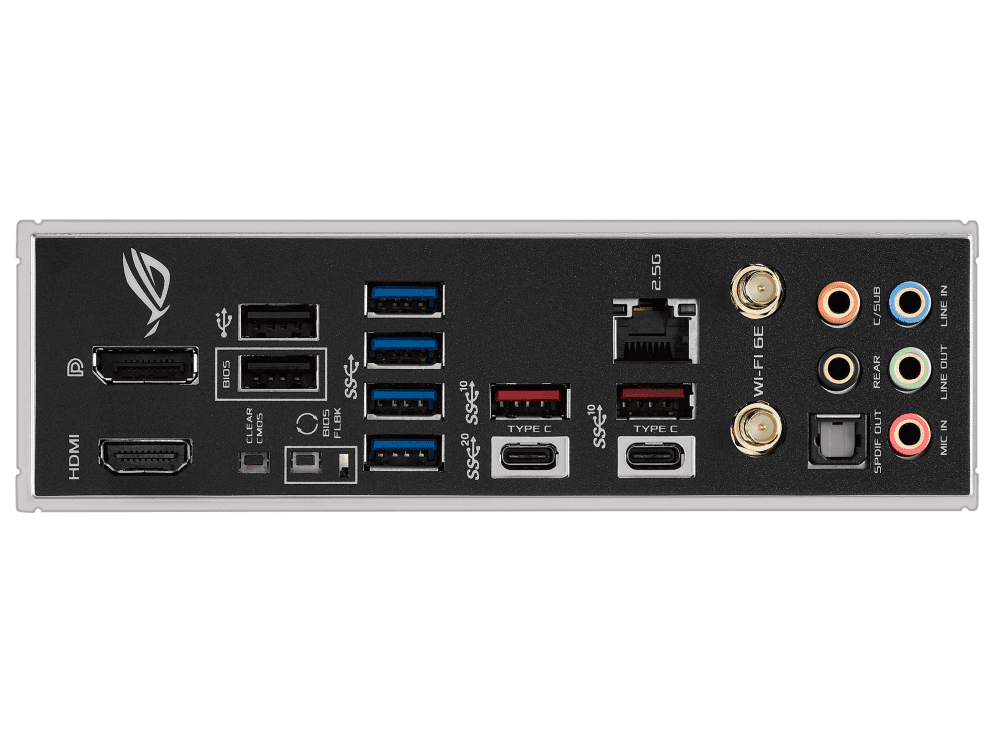

Connectivity and networking on the ROG Strix Z690-F are built for competitive gamers. It features lightning-fast onboard Wi-Fi 6E for low-latency wireless gaming on the newer 6GHz band, alongside an Intel 2.5Gb Ethernet port with ASUS LANGuard for rock-solid wired connections. The rear I/O panel is packed with advanced ports, including a high-speed USB 3.2 Gen 2×2 Type-C port capable of massive 20 Gbps data transfers. Complete with immersive ROG SupremeFX ALC4080 audio, tool-free PCIe Slot Q-Release, and customizable Aura Sync RGB lighting, this motherboard is the perfect foundation for an elite gaming PC.
Specifications ASUS ROG Strix Z690-F Gaming WiFi Intel LGA1700 ATX Motherboard
| Feature | Specification |
| Model | ROG STRIX Z690-F GAMING WIFI |
| CPU Socket | Intel LGA 1700 |
| Supported Processors | 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron Processors |
| Chipset | Intel Z690 |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Memory Capacity | 4x DIMM slots, Dual Channel, Up to 192GB DDR5 |
| Memory Speed | Up to 6400+ MHz (OC) |
| Power Stages | 16+1 Power Stages |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 3.0 x16 (x4 mode), 1x PCIe 3.0 x1 |
| Storage Connectors | 4x M.2 slots (3x PCIe 4.0 x4, 1x PCIe 4.0 x4 / SATA), 6x SATA 6Gb/s |
| Wireless Connectivity | Onboard Wi-Fi 6E (802.11ax), Bluetooth 5.2 |
| Wired Networking | Intel 2.5Gb Ethernet with ASUS LANGuard |
| USB Ports (Rear) | 1x USB 3.2 Gen 2×2 (Type-C), 3x USB 3.2 Gen 2 (2x Type-A, 1x Type-C), 4x USB 3.2 Gen 1 (Type-A), 2x USB 2.0 (Type-A) |
| Audio | ROG SupremeFX 7.1 Surround Sound ALC4080 + Savitech SV3H712 AMP |
| Cooling Solution | Integrated VRM Heatsinks, 4x M.2 Heatsinks (1x with backplate), Fanless PCH Heatsink |
| Special Features | PCIe Slot Q-Release, M.2 Q-Latch, AI Overclocking, AI Cooling, Aura Sync RGB |
