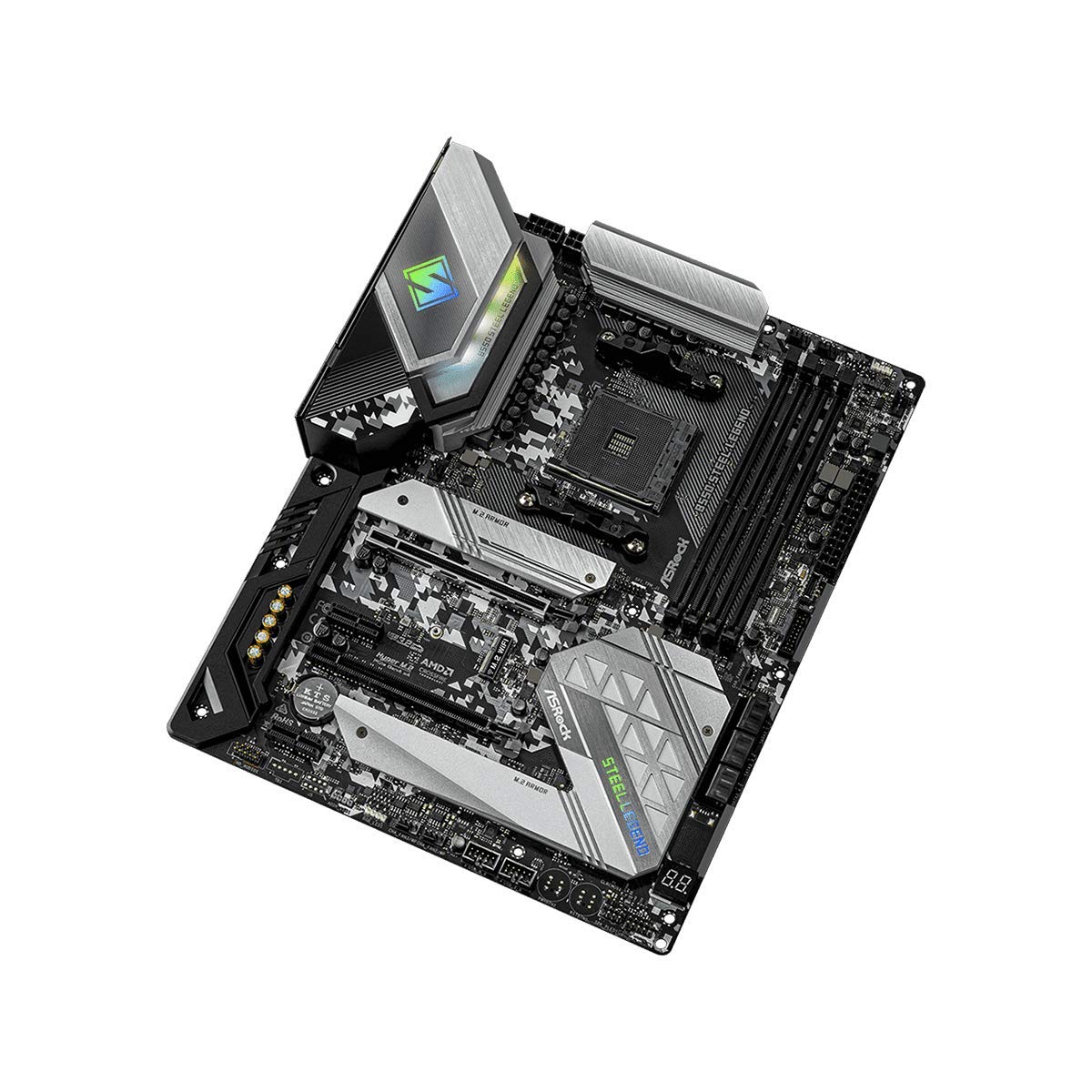

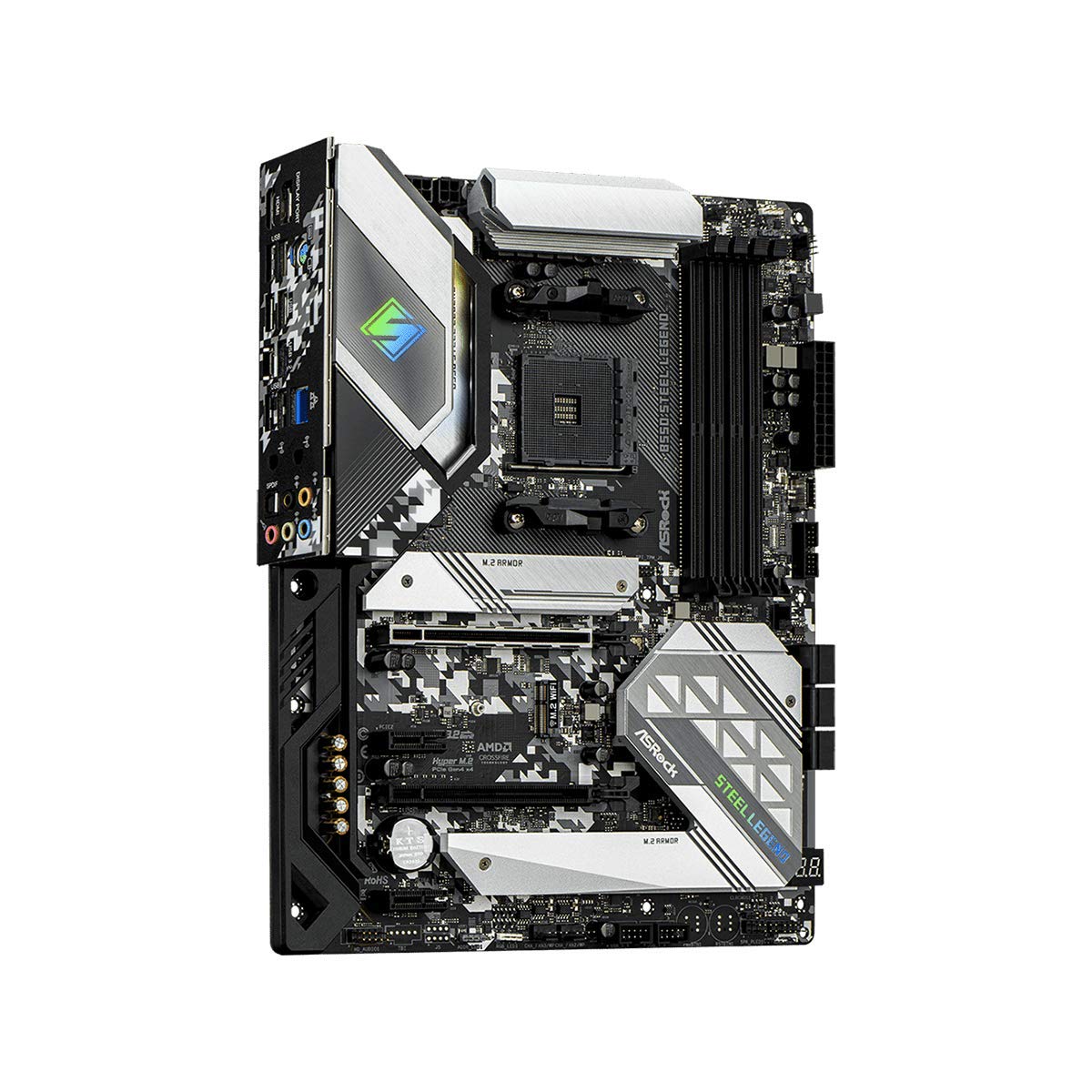

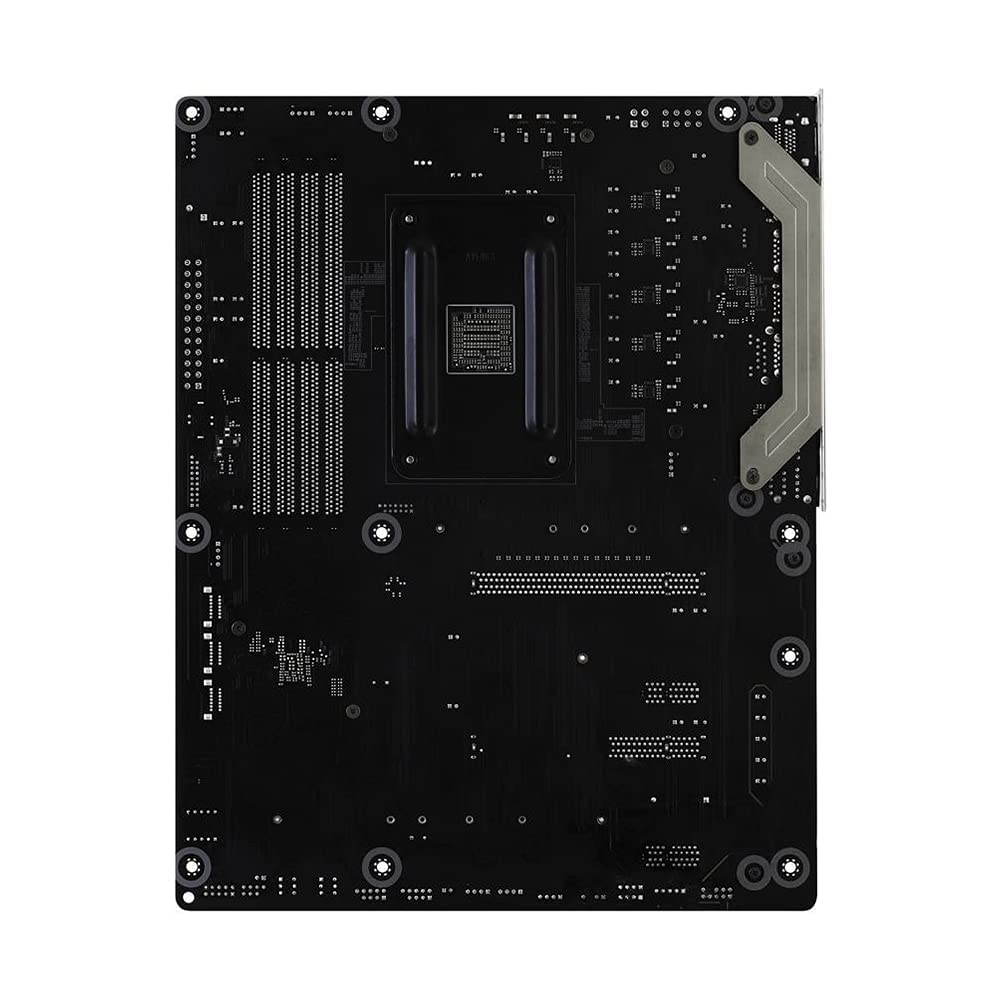

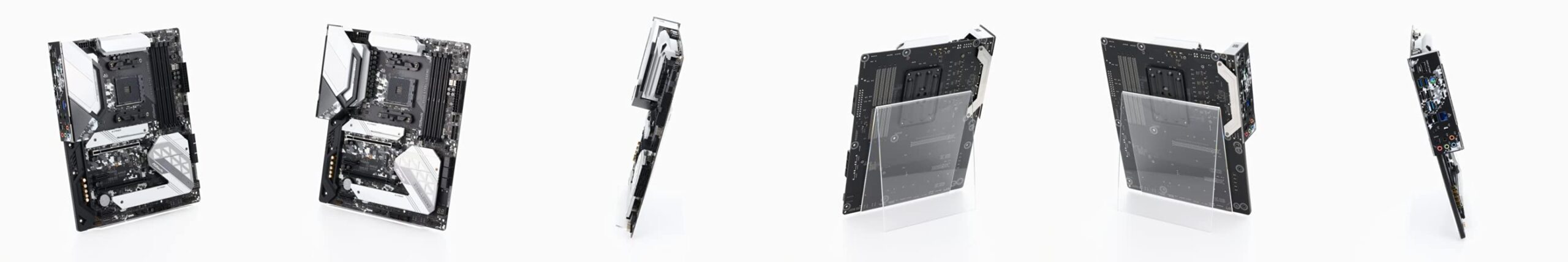

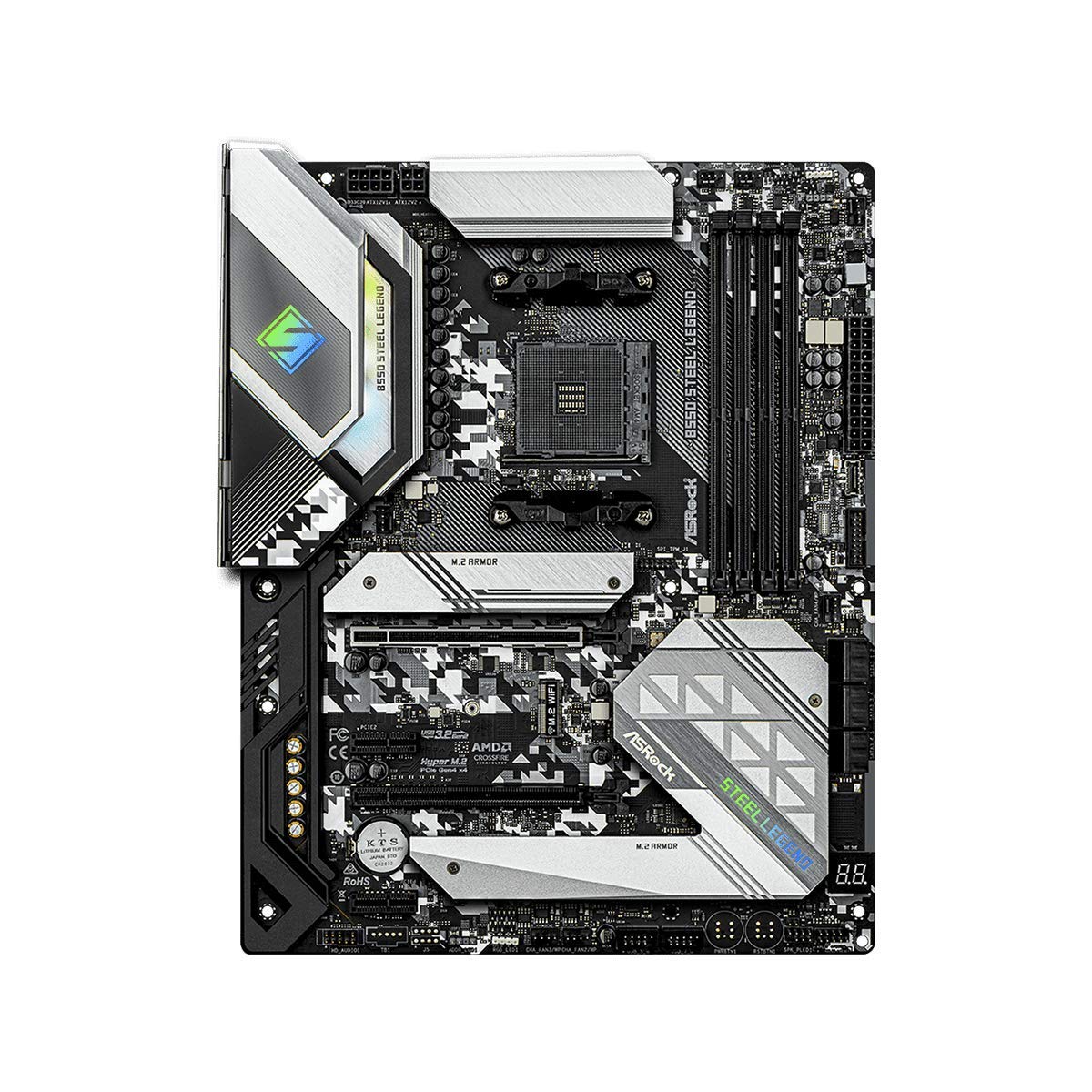

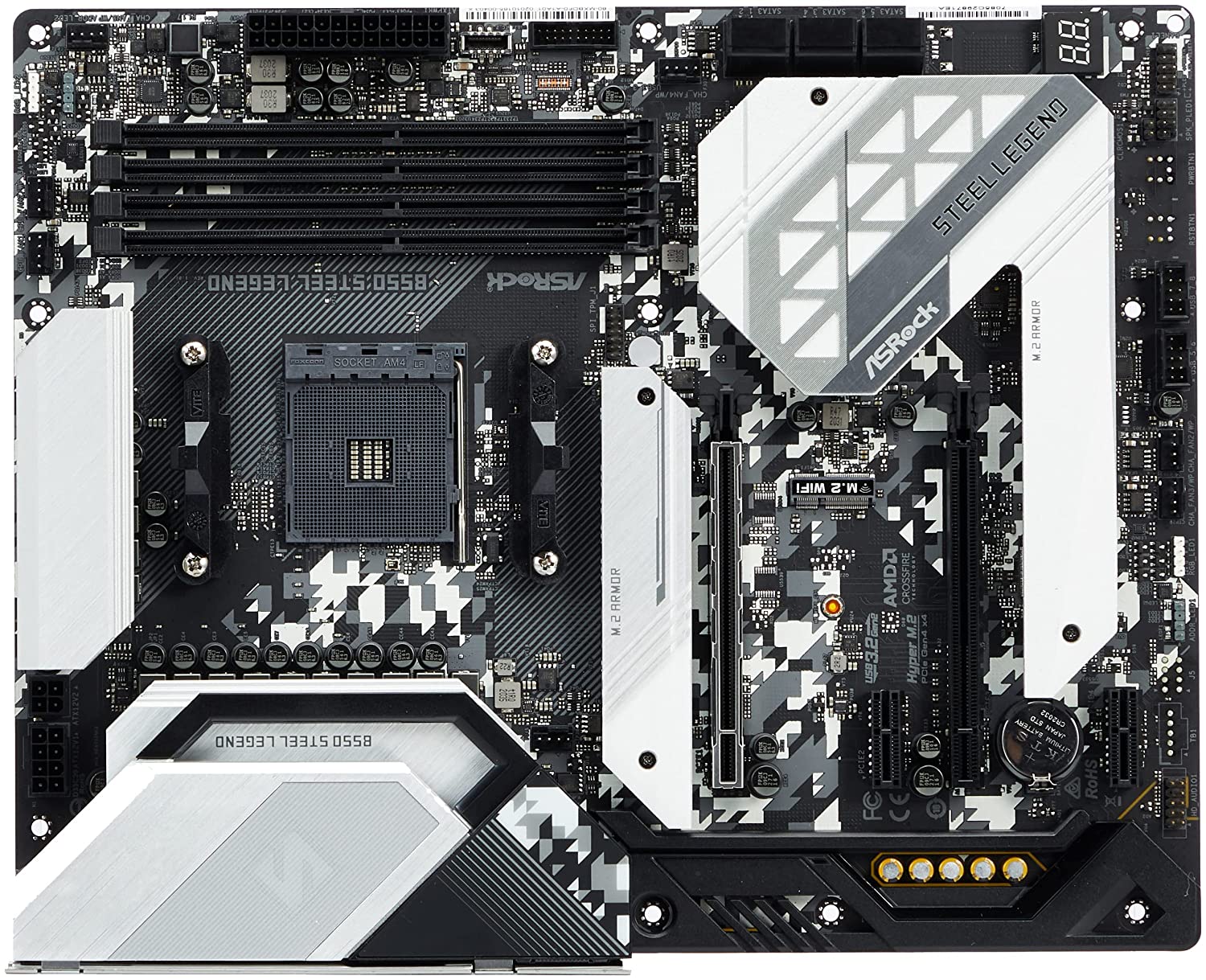

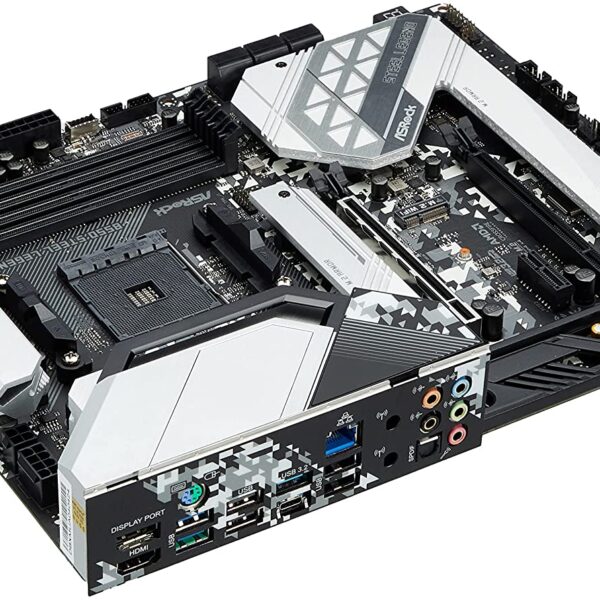

About ASRock B550 Steel Legend ATX AMD AM4 Motherboard
A dependable platform for AMD’s Ryzen ecosystem (3000–5000 Gen desktop CPUs) is the ASRock B550 Steel Legend. Even with overclocking loads, its high-end 14-phase Digi Power VRM with Dr. MOS and 60A power chokes guarantees steady power delivery.
It is perfect for high-speed memory because it has a sturdy 2 oz copper PCB and next-generation DDR4 support up to 4733 MHz (OC). A PCIe 4.0 x16 GPU slot, a PCIe Gen4 x4 Hyper M.2 slot, a secondary PCIe Gen3 slot, and an additional M.2 (Gen3 x2/SATA3) slot are among the connectivity highlights. With USB 3.2 Gen2 Type-A/C and numerous Gen1 ports both internally and externally, the USB options are robust.
It also has Dragon 2.5 G LAN, RGB and ARGB headers, and Realtek ALC1220-powered HD audio with Nahimic enhancements. Quality components such as Nichicon 12K Black Caps, premium memory chokes, and a reinforced aluminum heatsink underscore its durability
Features of ASRock B550 Steel Legend ATX AMD AM4 Motherboard
| Specification | Details |
|---|---|
| Platform | AM4 socket – Ryzen 3000, 4000 G‑Series, 5000 Series |
| VRM | 14-phase Digi Power, Dr. MOS, 60A power chokes |
| Memory Support | DDR4 2133–4733 (OC), up to 128 GB across 4 DIMMs |
| PCIe Slots | 1× PCIe 4.0 x16, 1× PCIe 3.0 x16, 2× PCIe 3.0 x1 |
| M.2 Slots | 1× Gen4 x4 1× Gen3 x2 / SATA3 |
| Storage | 6× SATA3 6 Gb/s |

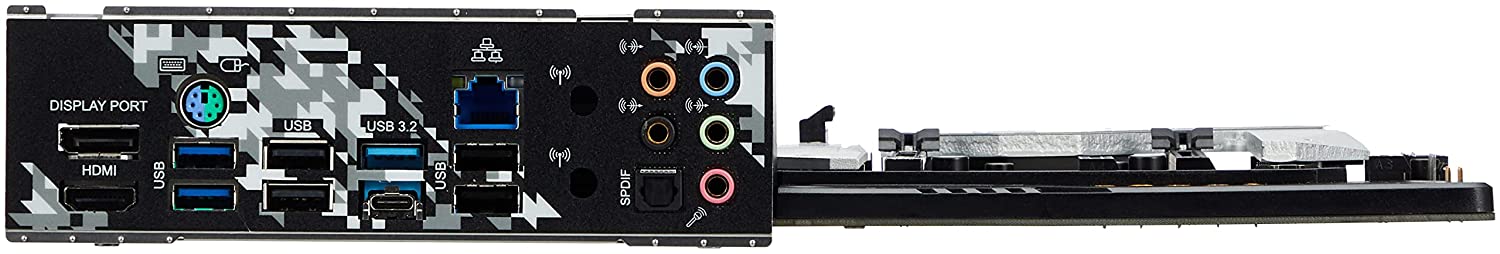

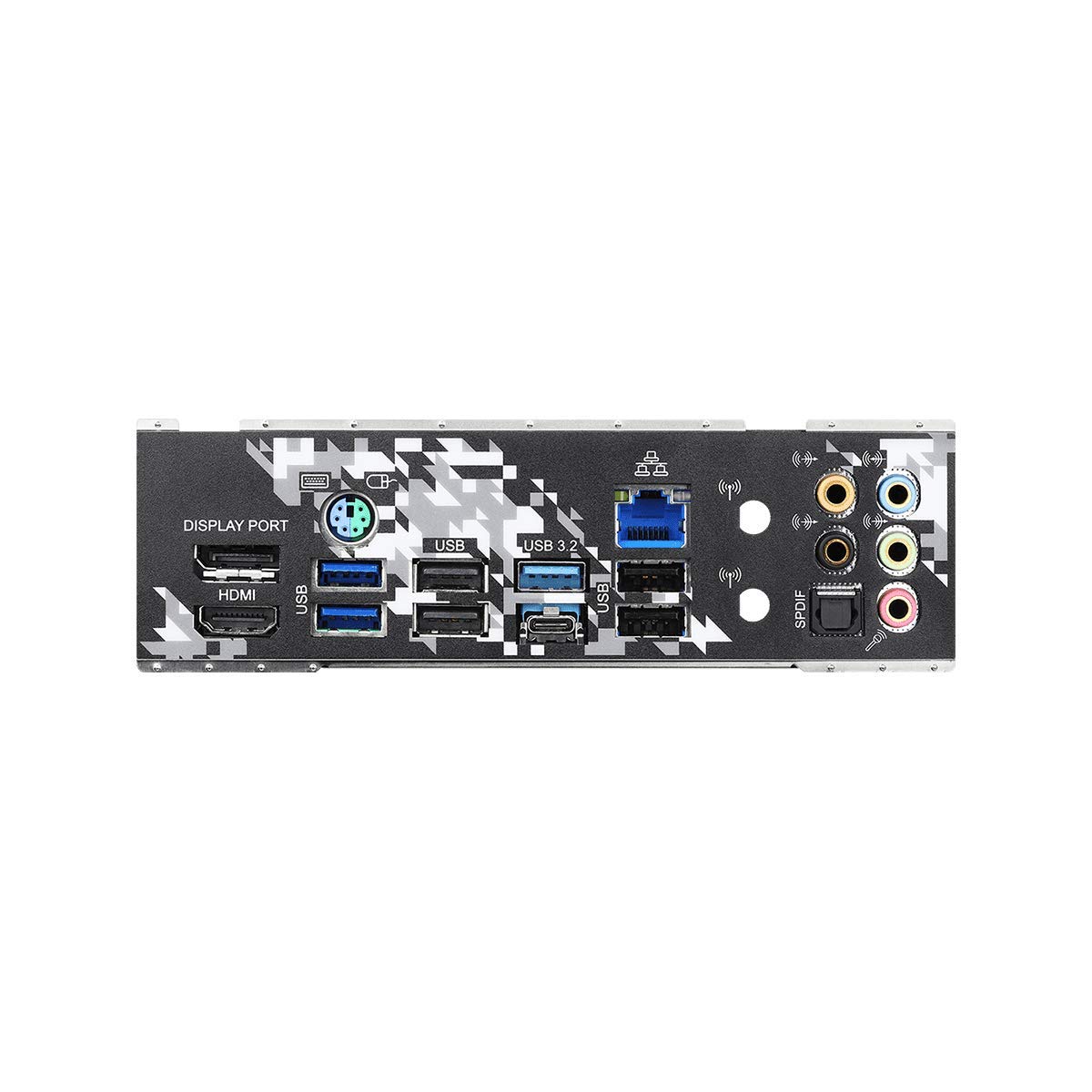

| USB Ports | 2× USB 3.2 Gen2 (Type A C), multiple Gen1 & USB2.0 |
| Networking | Dragon RTL8125BG 2.5 Gigabit LAN |
| Audio | Realtek ALC1220, Nahimic 7.1-channel |
| Heatsinks & PCB | XXL aluminium heatsink, 2oz copper PCB |
| RGB Support | 2× RGB 2× ARGB headers |
| Form Factor | ATX (305×244 mm) |
| Warranty | Typically 3 years (varies by region) |
Ideally Best For
Mid/High-end Ryzen builds with overclocking potential.
Gamers need PCIe 4.0 and fast M.2 storage for graphics and loading performance.
Builders want durable components, RGB customisation, and robust power delivery.
Anyone preferring reliable 2.5 Gb networking and rich audio features.
