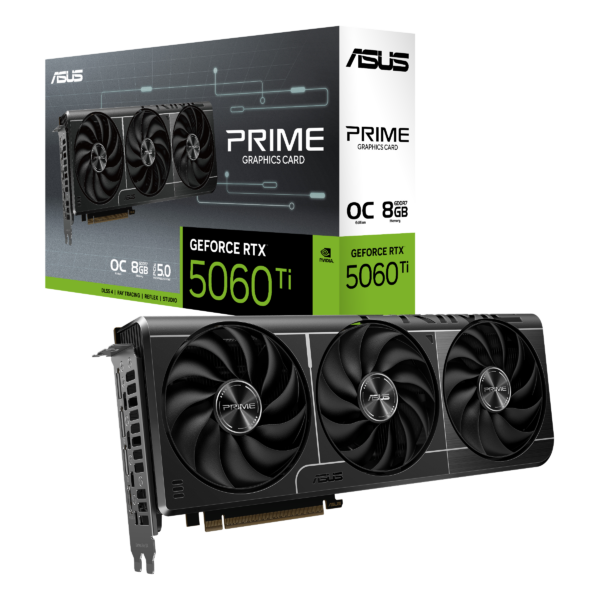

About ASUS Prime GeForce RTX 5060 Ti OC Edition 8GB GDDR7 Graphics Card
Optimized Triple-Fan Cooling The ASUS Prime RTX 5060 Ti features a powerful cooling solution with three Axial-tech fans. These fans have smaller hubs to accommodate longer blades and a barrier ring to increase downward air pressure. The 2.5-slot design maximizes compatibility while providing ample surface area for heat dissipation. With 0dB Technology, the fans completely stop spinning during light loads, ensuring silent operation when you aren’t gaming.
Next-Gen Performance with GDDR7 Built on the NVIDIA Blackwell architecture, this card leverages 8GB of GDDR7 memory to deliver a massive bandwidth boost over previous generations. This ensures faster texture loading and smoother gameplay in 1440p titles. While the user prompt mentions DLSS 3.5, this card fully supports the newer DLSS 4 with AI Frame Generation, while retaining full support for DLSS 3.5 Ray Reconstruction for the best visual fidelity.
SFF-Ready & Durable Build Despite having three fans, this card is engineered to meet NVIDIA’s “SFF-Ready Enthusiast” guidelines (max 304mm length, 50mm width), making it compatible with many small form factor cases. It is built using Auto-Extreme Technology, an automated manufacturing process that improves reliability. A vented backplate reinforces the PCB structure and allows hot air to escape, preventing heat recirculation.
ASUS Prime GeForce RTX 5060 Ti OC Edition 8GB GDDR7 Graphics Card Specifications:
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti |
| Bus Standard | PCI Express 5.0 (Backwards compatible with 4.0) |
| Video Memory | 8GB GDDR7 |
| Memory Interface | 128-bit |
| Core Clock | 2647 MHz (OC Mode) / 2617 MHz (Default) |
| CUDA Cores | 4608 |
| Memory Speed | 28 Gbps |
| Cooling System | Prime Triple Fan (Axial-tech) |
| Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Connectors | 1 x 8-pin |
| Recommended PSU | 550W |
| TDP | 165W |
| Card Dimensions | 304 x 120 x 50 mm (2.5-Slot SFF-Ready) |
| Feature Support | DLSS 4, Ray Tracing, Dual BIOS |
Key Features
-
8GB GDDR7 Memory: High-speed memory for 1440p gaming textures.
-
Triple Axial-tech Fans: Superior airflow and static pressure.
-
SFF-Ready Compatible: Fits in compact builds despite triple-fan layout.
-
PCIe 5.0 Ready: Future-proof bandwidth (works with PCIe 4.0).
-
Dual BIOS: Physical switch for Performance or Quiet modes.
