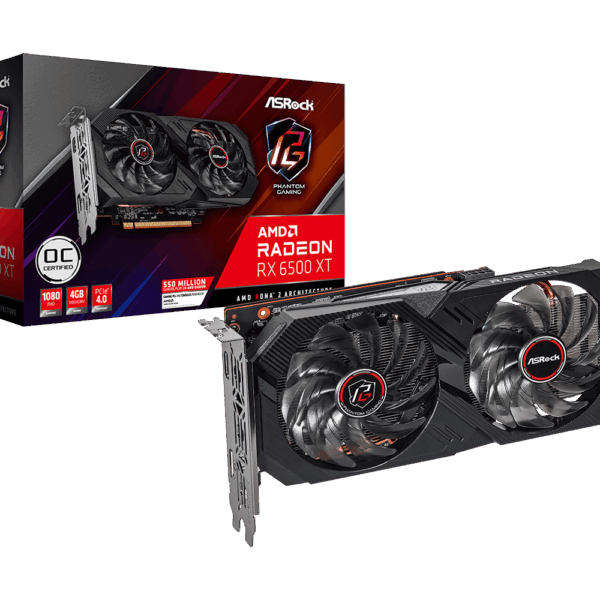

About ASRock Radeon RX 6500 XT Phantom OC 4 GB GDDR6
Compact and effective gaming performance is provided by the ASRock Radeon RX 6500 XT Phantom Gaming OC 4GB. With 16 compute units and 1024 stream processors, AMD’s RDNA 2 architecture powers it. It has an initial game clock of about 2650 MHz and a boost clock of 2820 MHz.

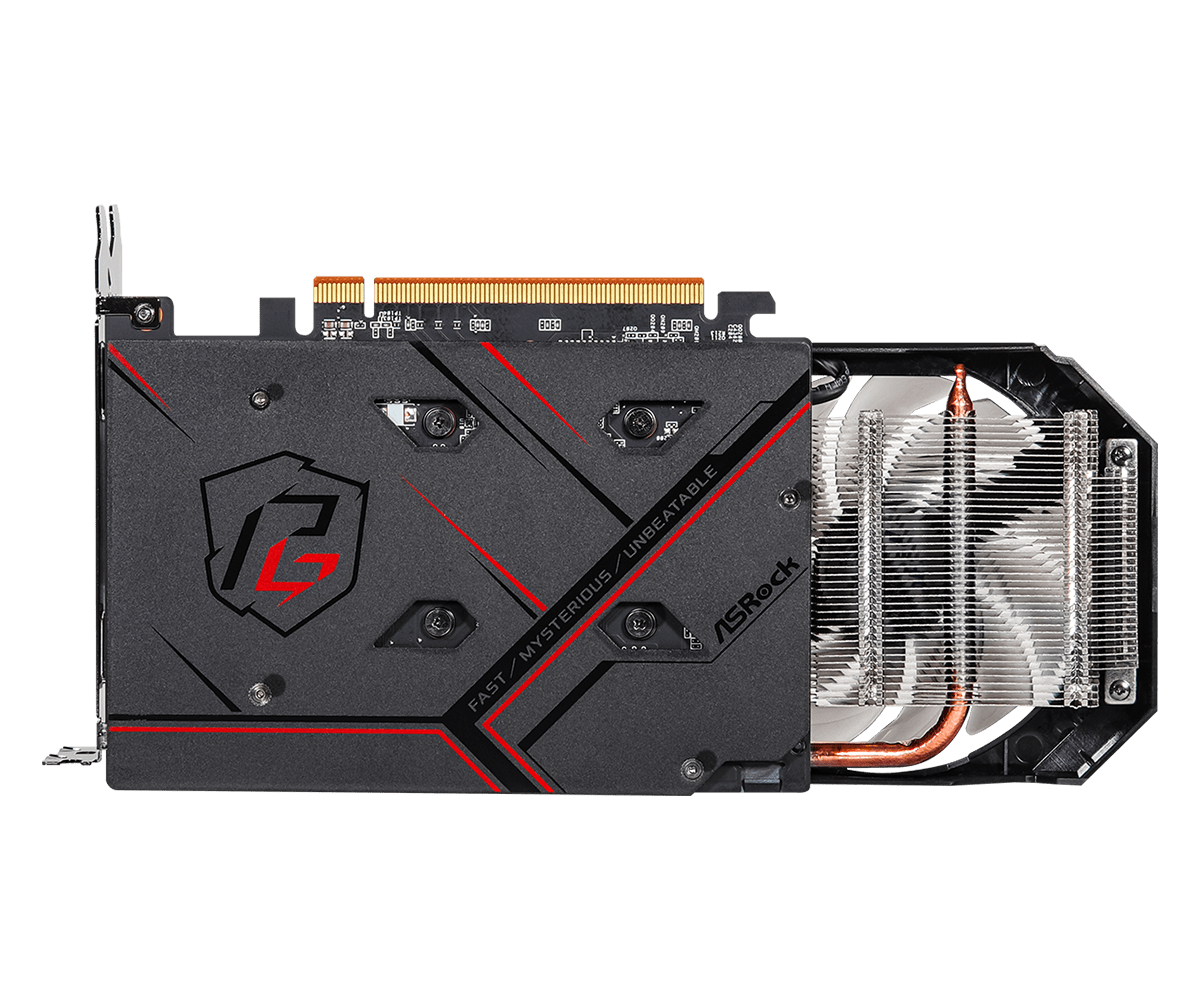

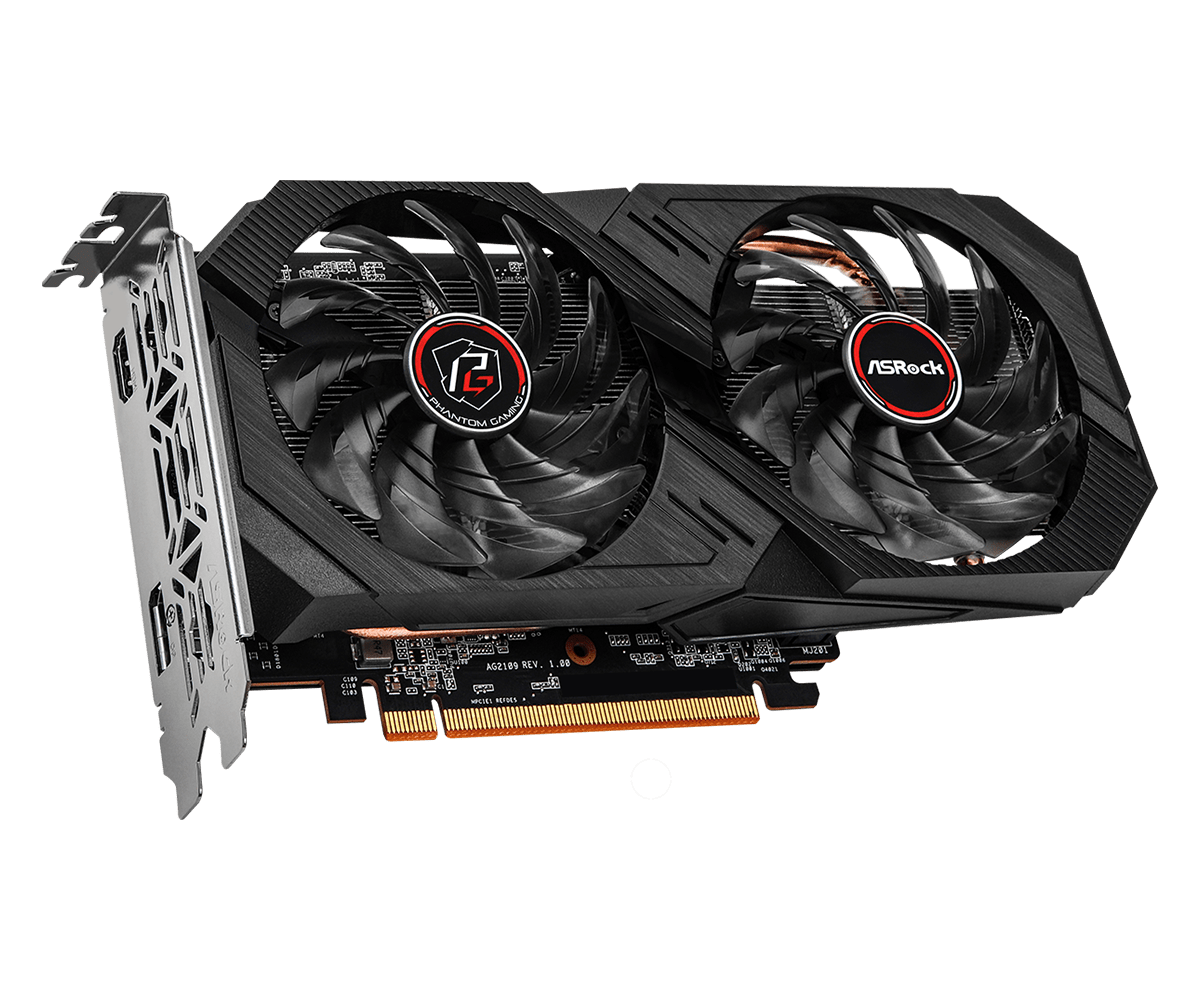

It uses about 107 watts of power from the PCIe slot and has 4 GB of GDDR6 memory on a 64-bit bus, which satisfies single-slot GPU requirements without the need for external power. A metal backplate adds durability, and the large heatsink, 0 dB cooling mode, and dual striped-axial fans guarantee almost silent operation under light load.

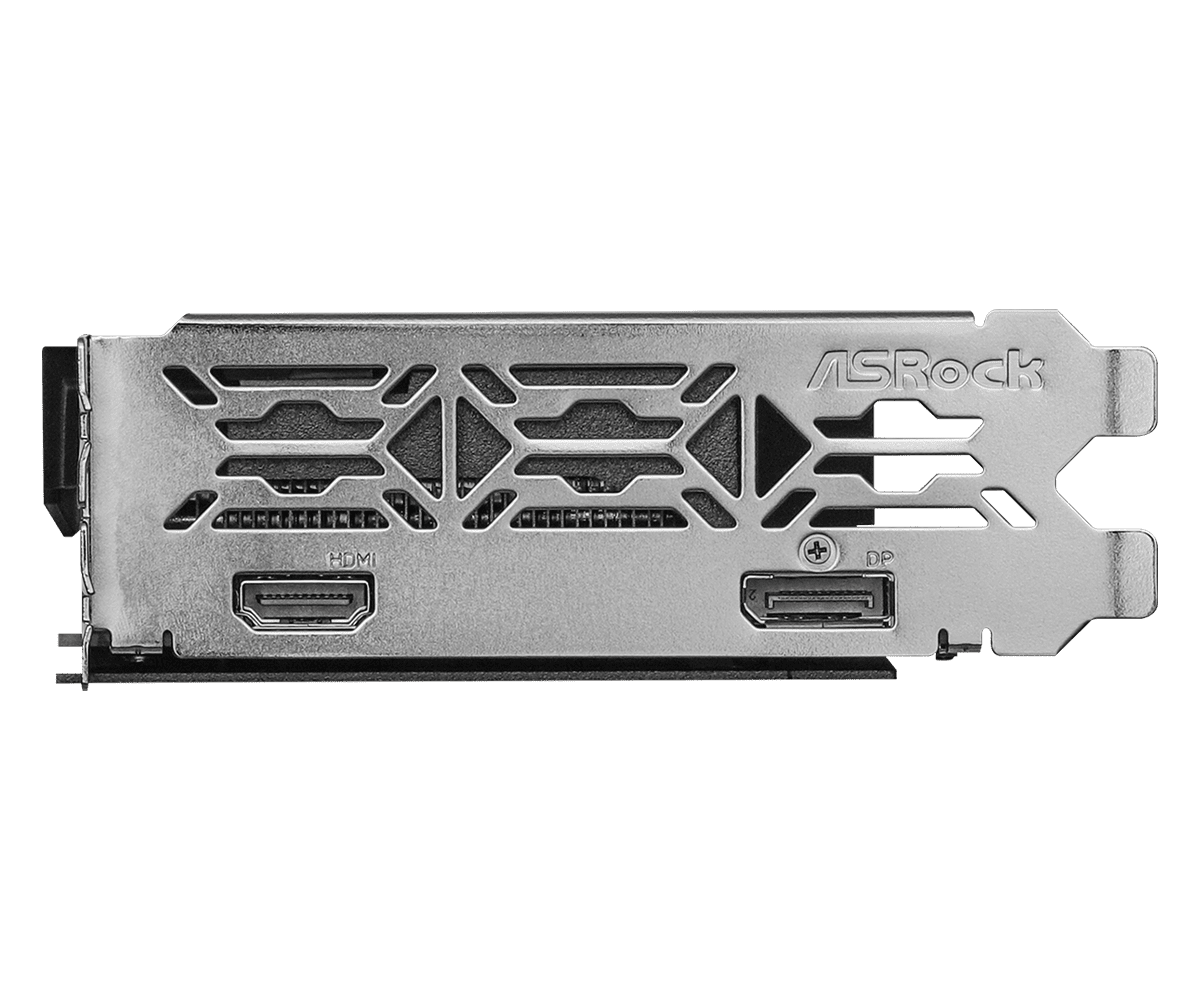

With support for resolutions up to 8K, the outputs include 1× HDMI 2.1 and 1× DisplayPort 1.4a. The PCIe 4.0 x4 interface guarantees the best bandwidth on contemporary motherboards. Compact builds and casual gamers interested in esports genres will find it to be a good choice; however, compatibility with more demanding games may be impacted by limited VRAM and bandwidth.
Features of ASRock Radeon RX 6500 XT Phantom OC 4 GB GDDR6
| Specification | Details |
|---|---|
| GPU Architecture | RDNA 2 (Navi 24): 16 CUs, 1024 SPs |
| Game Clock | ~2650 MHz |
| Boost Clock | Up to 2820 MHz |
| Memory | 4 GB GDDR6 @18 Gbps, 64-bit (144GB/s) |
| PCIe Interface | PCIe 4.0 x4 (physical x16) |
| Display Outputs | 1× HDMI 2.1, 1× DisplayPort 1.4a |
| Cooling System | Dual striped fans, heatsink, 0 dB idle, metal backplate |
| Power Connector | 1× 8‑pin (slot-powered, ~107 W TDP) |
| Recommended PSU | 300–400 W |
| Dimensions | 240 × 129 × 42 mm (dual-slot) |
| Software Features | DX12 Ultimate, Ray Tracing, FreeSync, Tweak 2.0 support |
| Warranty | 3 years (varies by region) |
Best For
- eSports & casual gaming at 1080p on budget
- HTPC or office setups needing quiet, efficient graphics
- Compact builds where space and power connectors are limited
- Users upgrading from integrated graphics with next-gen port support
Buy ASRock Radeon RX 6500 XT Phantom OC 4 GB GDDR6 Dual‑Fan, Up to 2820 MHz Boost Online Today.
