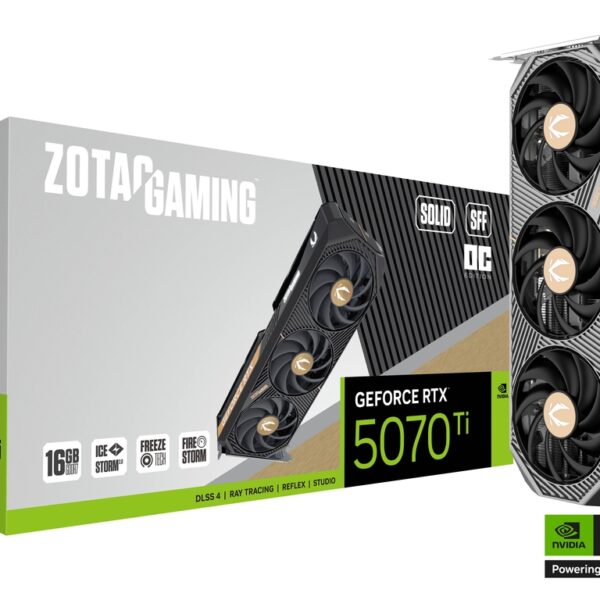

About ZOTAC GAMING GeForce RTX 5070 Ti SOLID SFF OC 16GB GDDR7 Graphics Card
Factory Overclocked SFF Power This “OC” edition takes the compact brilliance of the SOLID SFF series and adds a factory tune, boosting the clock speed to 2482 MHz for higher frame rates right out of the box. Despite this extra performance, it maintains the strict 304mm length and 2-slot (41.6mm) thickness required for NVIDIA’s “SFF-Ready Enthusiast” certification, making it the most powerful card available for many compact PC cases.
Advanced BladeLink Cooling To manage the heat of an overclocked 5070 Ti in such a slim profile, ZOTAC employs IceStorm 2.0 cooling with triple BladeLink Fans. These fans feature interconnected blades that reduce flexing and increase static pressure, ensuring consistent airflow through the heatsink. FREEZE Fan Stop technology keeps the system silent during light tasks like web browsing or video playback.
Built for Durability & Safety The card is built on a high-density PCB and reinforced with a metal backplate that adds structural rigidity and a premium finish. It utilizes the new 12V-2×6 power connector, which offers enhanced safety features and reliability for high-wattage power delivery. The design is minimalist and industrial, fitting seamlessly into any build aesthetic without excessive RGB distraction.
ZOTAC GAMING GeForce RTX 5070 Ti SOLID SFF OC 16GB GDDR7 Graphics Card Specifications:
| Graphics Engine | NVIDIA GeForce RTX 5070 Ti |
| Bus Standard | PCI Express 5.0 x16 |
| Video Memory | 16GB GDDR7 |
| Memory Interface | 256-bit |
| Core Clock | 2482 MHz (Factory OC) |
| CUDA Cores | 8960 |
| Memory Speed | 28 Gbps |
| Cooling System | IceStorm 2.0 (Triple BladeLink Fans) |
| Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Connectors | 1 x 12V-2×6 (16-pin) |
| Recommended PSU | 750W |
| TDP | 300W |
| Card Dimensions | 304.4 x 115.8 x 41.6 mm (2-Slot SFF-Ready) |
| Feature Support | DLSS 4, SFF-Ready, Metal Backplate |
Key Features
-
Factory Overclocked: Boosted to 2482 MHz for superior performance.
-
SFF-Ready Certified: Fits 99% of SFF cases with its 2-slot, 304mm design.
-
16GB GDDR7 Memory: Next-gen bandwidth for smooth 4K textures.
-
BladeLink Fans: Interconnected fan blades for high-pressure cooling.
-
12V-2×6 Connector: Safer, future-proof power delivery standard.
