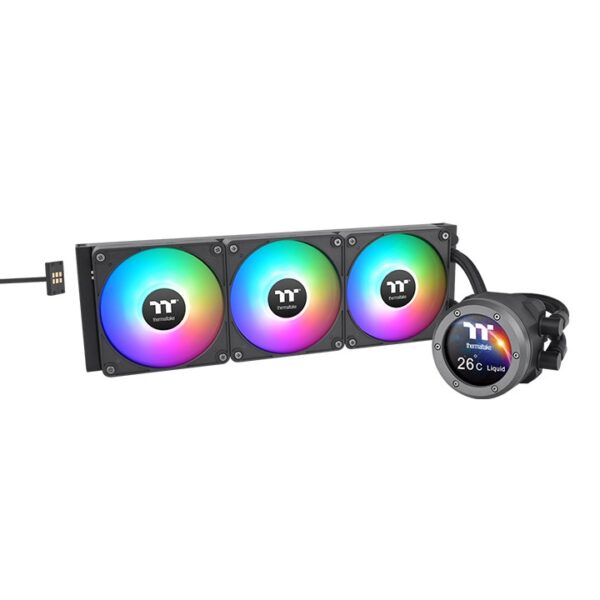

About Thermaltake Th360 V2 Ultra Ex ARGB Black CPU Cooler
| Category | Specification Detail |
|---|---|
| Product Name | TH360 V2 Ultra EX ARGB Sync AIO |
| Part Number (P/N) | CL-W415-PL12SW-A |
| Cooler Type | Closed-Loop (AIO) Liquid Cooler |
| Radiator Size | 360 mm (396 × 120 × 27 mm) |
| Radiator Material | Aluminum |
| Fans Included | 3 × CT120 EX ARGB Sync Fans |
| Fan Size | 120 × 120 × 25 mm |
| Fan Speed | 500–2000 RPM (PWM) |
| Airflow | ~68 CFM per fan |
| Static Pressure | ~2.95 mm-H₂O per fan |
| Noise Level | ~28.5 dB-A |
| Pump Type | PWM Pump |
| Pump Speed Range | 1500–3300 RPM |
| Pump Power Input | ~5.16 W |
| Water Block Material | Copper Baseplate |
| Display Type | 2.1″ TFT-LCD |
| Display Resolution | 480 × 480 pixels |
| Display Power Input | ~1.15 W |
| Display Support | Micro USB to USB (9-pin) |
| ARGB Sync | Yes (5 V addressable header support) |
| Tube Length / Material | 460 mm, Rubber |
| Intel Compatibility | LGA 2066/2011-3/2011/1851/1700/1200/1156/1155/1151/1150 |
| AMD Compatibility | AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 |
| Recommended Case Size | Medium to Large (supporting 360 mm radiator) |
| Warranty | 2 Years |

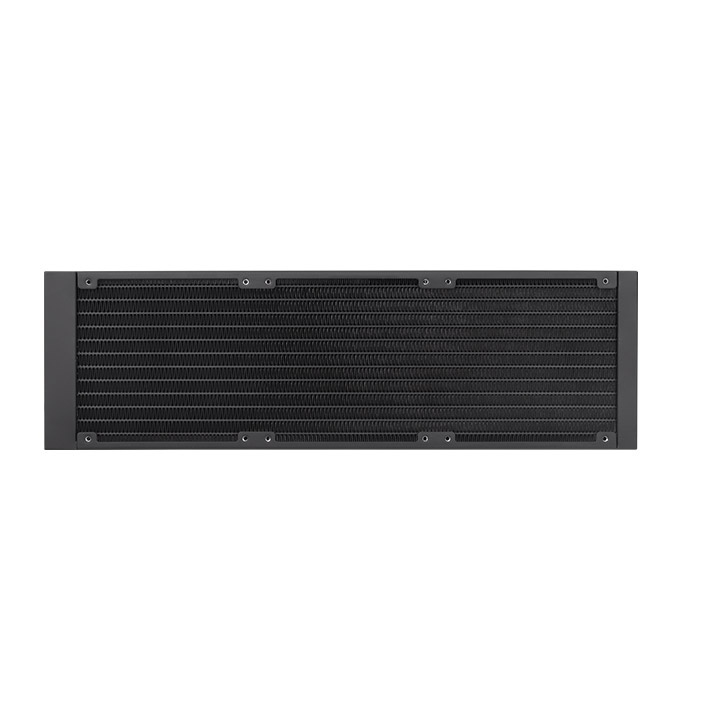

At the heart of this AIO is a 360 mm aluminum radiator that offers ample surface area for dissipating heat from demanding CPUs.

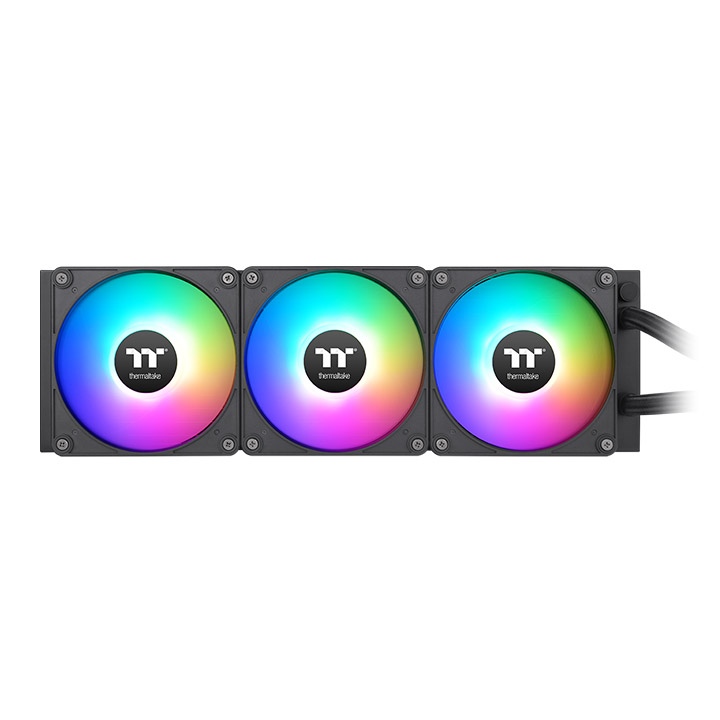

Paired with three CT120 EX ARGB Sync fans, the setup is engineered to deliver strong airflow (~68 CFM) and static pressure (~2.95 mm-H₂O) to push air effectively through the dense radiator fins.
These fans operate via PWM, allowing the system to dynamically adjust fan speeds between 500 – 2000 RPM based on thermal load — maintaining a balance between cooling performance and acoustic comfort with maximum noise levels around 28.5 dB-A at full speed.
One of the defining highlights of this cooler is the integrated 2.1″ TFT-LCD display located on the pump housing.
With a 480 × 480 resolution, this high-quality screen can display real-time system data, such as CPU temperatures, fan speeds, or even custom animations and graphics uploaded through compatible software.
This feature transforms the cooler into both a functional and aesthetic centerpiece within your system, especially valuable for builds with side-panel glass.
Installation is streamlined thanks to Thermaltake’s MagForce 2.0 modular design, which uses magnetic pogo-pin connectors for fan daisy-chaining and modular cabling.
This not only reduces cable clutter but also makes connecting or replacing fans simpler — a thoughtful detail for builders who care about clean cable management and ease of assembly.
The water block itself features a copper baseplate, renowned for its excellent thermal conductivity, ensuring rapid heat transfer from the CPU into the circulating liquid.
The rubber tubes measuring approximately 460 mm provide flexible routing within medium to large PC cases, helping users position the radiator and pump wherever they see fit without tension or strain.
ARGB lighting across the fans can synchronize with major motherboard RGB ecosystems via 5 V addressable headers, enabling cohesive lighting effects throughout your build.
Whether you’re aiming for coordinated lighting themes or dynamic colors that react to system activity, the cooler integrates seamlessly with popular RGB software.
In terms of compatibility, the TH360 V2 Ultra EX supports a comprehensive range of modern CPU sockets from both Intel and AMD platforms, including the latest LGA 1700 and AM5.
This makes it a versatile choice for builds centered around current-generation CPUs as well as slightly older but still capable platforms.
Overall, this AIO liquid cooler brings together performance, customization, and ease of use.
Whether you’re pushing your system with overclocked processors or simply want reliable thermal management with a visually rich presentation, it delivers advantages in both functional cooling and striking system aesthetics.
