About Super Flower Leadex Platinum SE 1600W SMPS
| Specification Category | Details |
|---|---|
| Model Name | Super Flower Leadex Platinum SE 1600W |
| Maximum Output Power | 1600 Watts (Continuous Output) |
| Efficiency Certification | 80 PLUS Platinum Certified |
| ATX Version | Intel ATX 2.4 |
| Cooling System | 140 mm Fluid Dynamic Bearing (FDB) fan with ECO Intelligent Fan Control |
| Fan Mode | Semi-fanless operation under low loads (ECO Mode) |
| Modularity | Fully Modular |
| Main Capacitors | 100% High-quality Japanese 105°C capacitors |

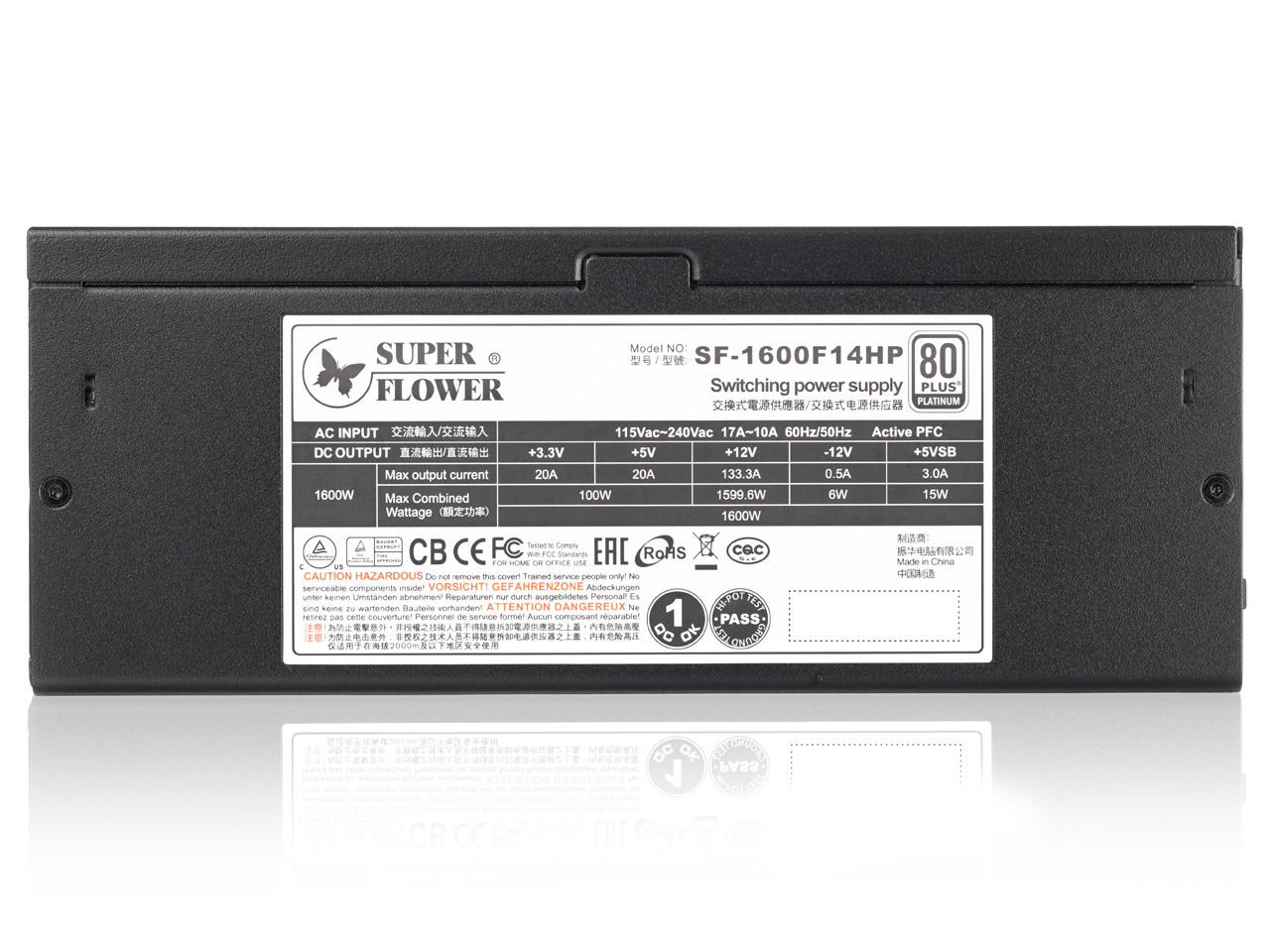

| 12V Rail Output | Single Rail 12V @ 133.3 A (1599.6 W) |
| Other DC Outputs | 3.3V @ 24A, 5V @ 24A, -12V @ 0.5A, 5VSB @ 3.0A |

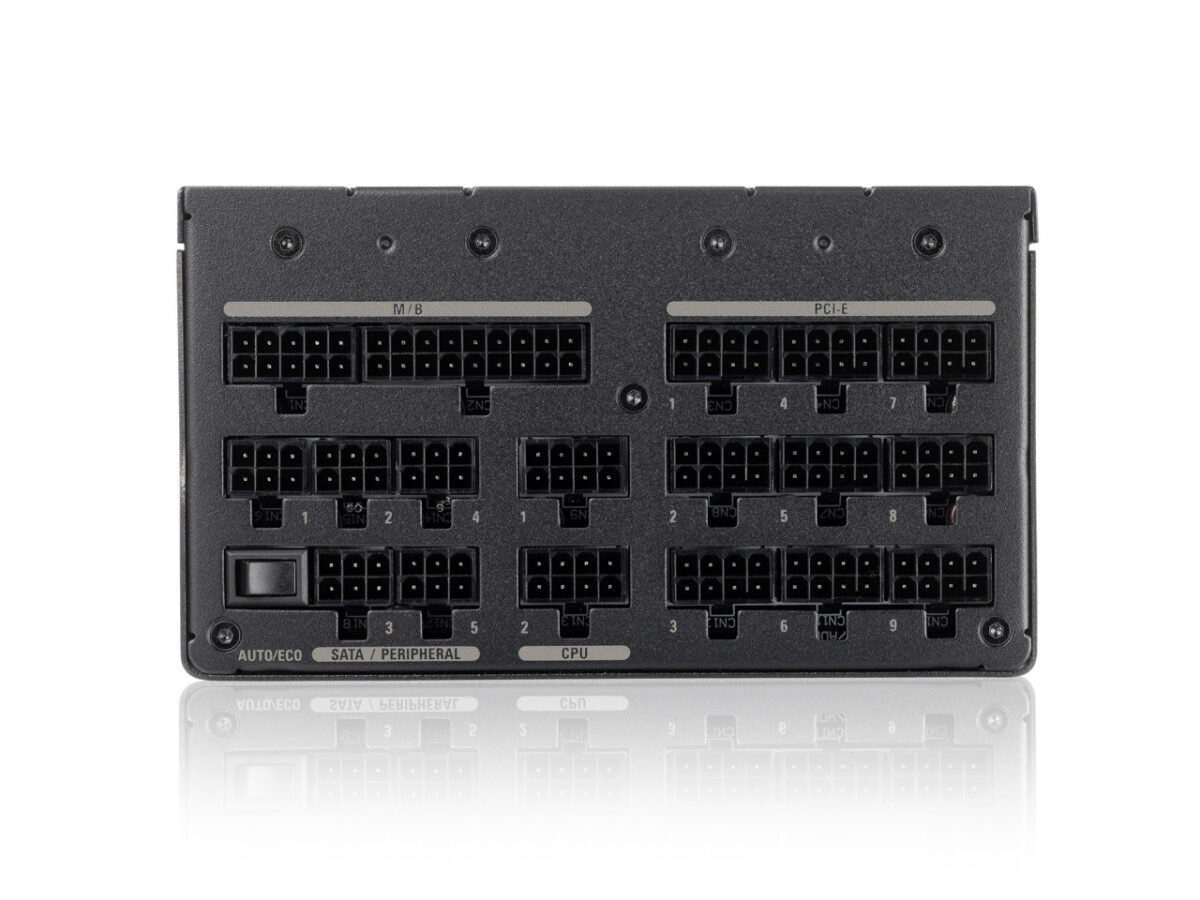

| Connector Types | 1× 24-pin ATX, 3× 4 4-pin EPS, 9× 6 2-pin PCIe, SATA, Molex |

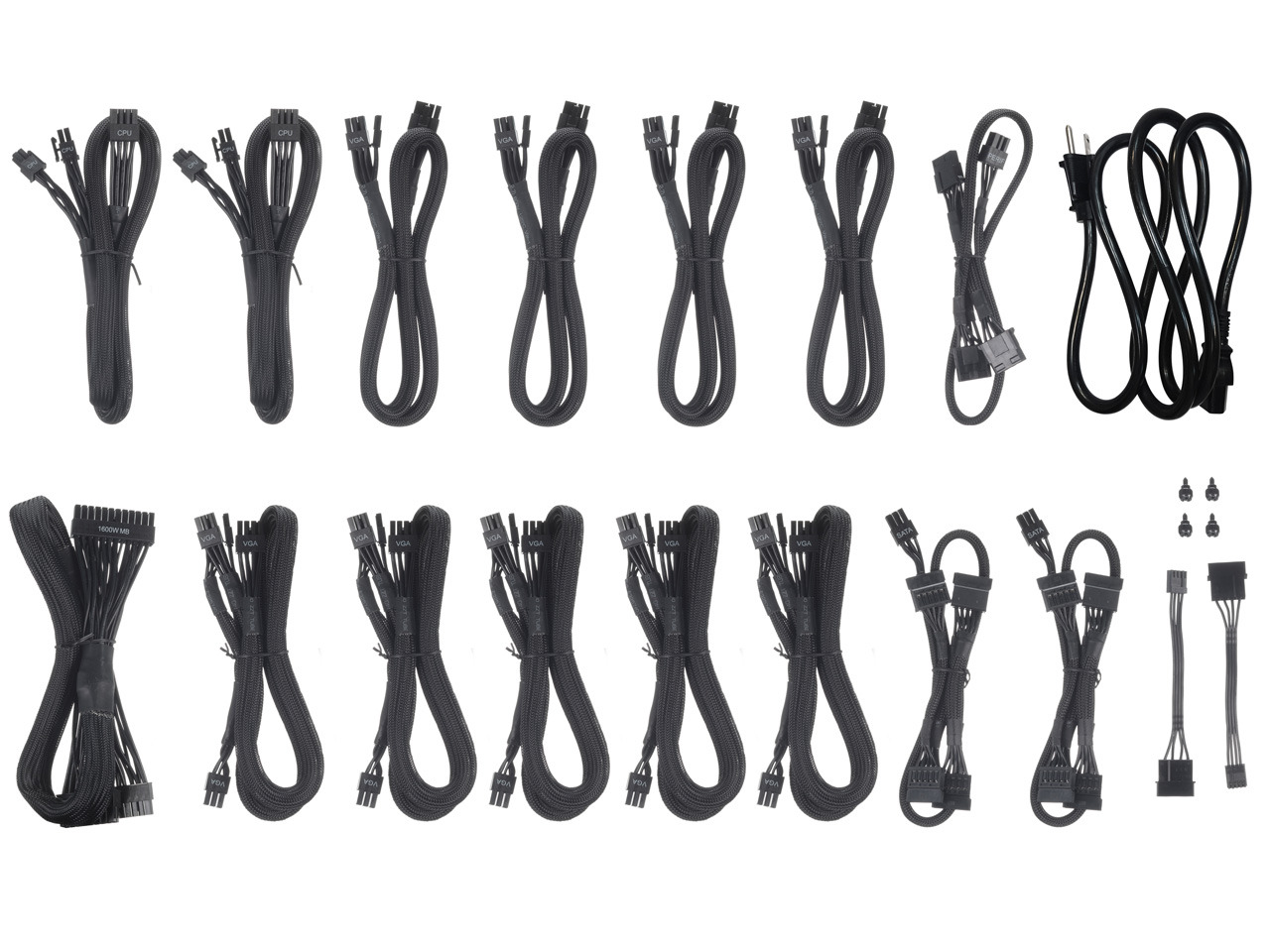

| Cable Design | Flat black ribbon-style cables |
| Protections | OVP, UVP, OCP, OPP, SCP, OTP |
| Dimensions | 150 mm (W) × 220 mm (L) × 86 mm (H) |
| Thermal Design | Optimized airflow layout and smart fan curves |
| Use Case Suitability | High-end gaming rigs, multi-GPU setups, workstations, mining rigs |
| Build Quality | Industrial-grade components and internal PCB layout |
| Noise Level | Low acoustic profile under typical use due to ECO fan control |
