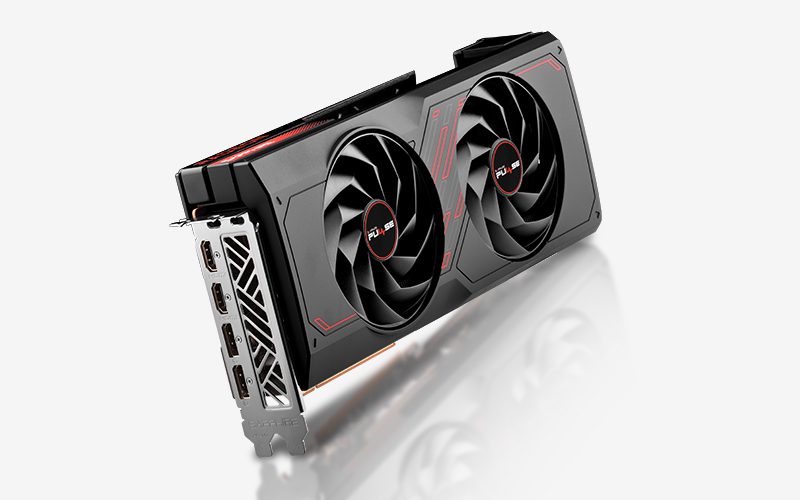

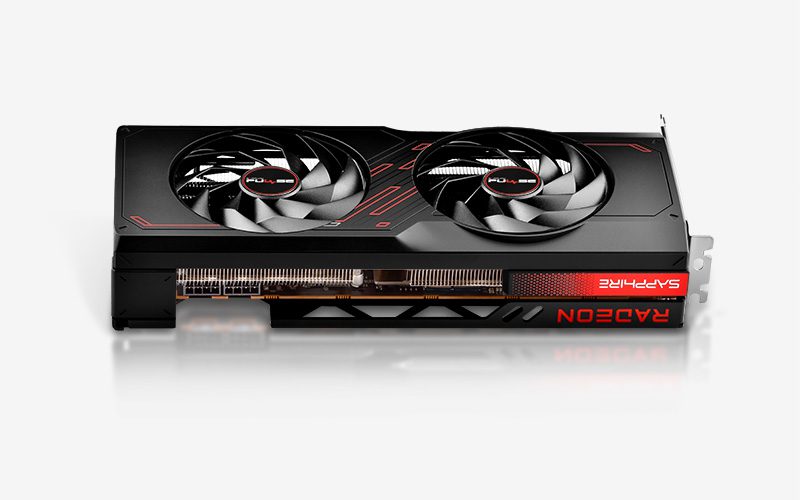

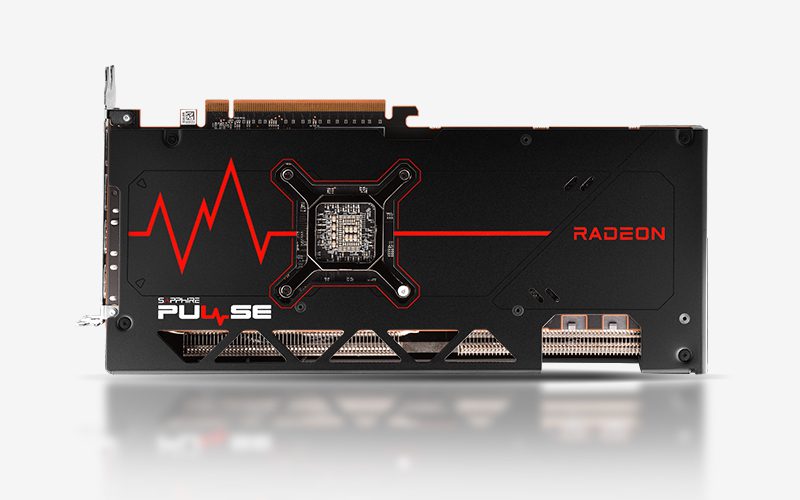

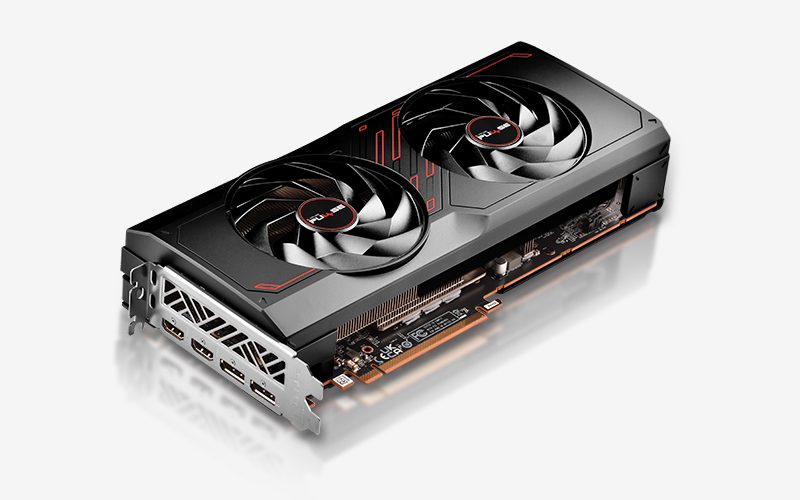

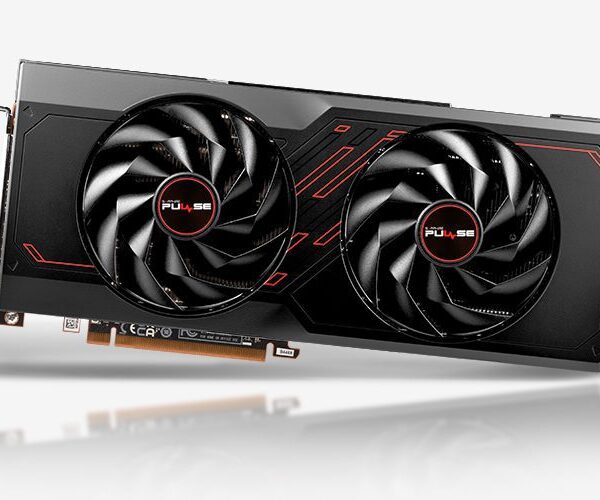

About Sapphire Pulse Radeon RX 7800 XT 16 GB GDDR6
AMD’s RDNA 3 Navi 32 GPU, which has 3,840 stream processors, 60 compute units, 60 ray accelerators, and 64 MB of Infinity Cache, is the foundation of the Sapphire Pulse RX 7800 XT. It provides a significant performance boost over reference designs with a boost clock of up to 2,430 MHz and a game clock of about 2,124 MHz.
It offers 10% quieter and longer-lasting cooling thanks to its dual-fan Dual-X cooling system, which has dual ball bearings and angular velocity fan blades. Stable temperatures and long-term construction are guaranteed by the metal backplate, copper PCB, heatsink density, and fuse protection.
It has a 266-watt board power rating, 2× HDMI 2.1 and 2× DisplayPort 2.1, PCIe 4.0, and 16 GB GDDR6 @ 19.5 Gbps on a 256‑bit bus (≈624 GB/s). Users will require two 8-pin connectors and a 700-watt power supply. For the majority of mid-tower builds, the form factor of ~280 × 128.75 × 52.6 mm is ideal.
Features of Sapphire Pulse Radeon RX 7800 XT 16 GB GDDR6
| Specification | Details |
|---|---|
| GPU Architecture | AMD RDNA 3 (Navi 32), 3,840 SPs, 60 CUs, 60 Ray Accelerators |
| Boost Clock | Up to 2,430 MHz |
| Game Clock | Up to 2,124 MHz |
| Memory | 16 GB GDDR6 @ 19.5 Gbps, 256‑bit (≈624 GB/s) |
| Infinity Cache | 64 MB |
| PCIe Interface | PCIe 4.0 x16 |
| Cooling | Dual‑X dual-fan, angular velocity blades, dual-ball bearings, full metal backplate |
| Power Draw | 266 W (board power) |
| Power Connectors | 2×8-pin PCIe |
| Dimensions | ~280 × 128.75 × 52.57 mm (2.5 slots) |
| Recommended PSU | 700 W |
| Display Outputs | 2× HDMI 2.1, 2× DisplayPort 2.1 |
| Features | Fuse protection, copper PCB, 14-phase power, TriXX support, metal backplate |
Ideally Best For
- High-refresh 1440p gaming with potential for entry-level 4K.
- Builders seeking a compact, dual-slot GPU with strong cooling.
- Users wanting the latest RDNA 3 features like FSR, ray tracing, and DisplayPort 2.1 support.
- Value-focused buyers aiming for performance and acoustics without premium overhead.
Buy Sapphire Pulse Radeon RX 7800 XT 16 GB GDDR6 Dual‑Fan Pulse Cooling PCIe 4.0 Online Today.
