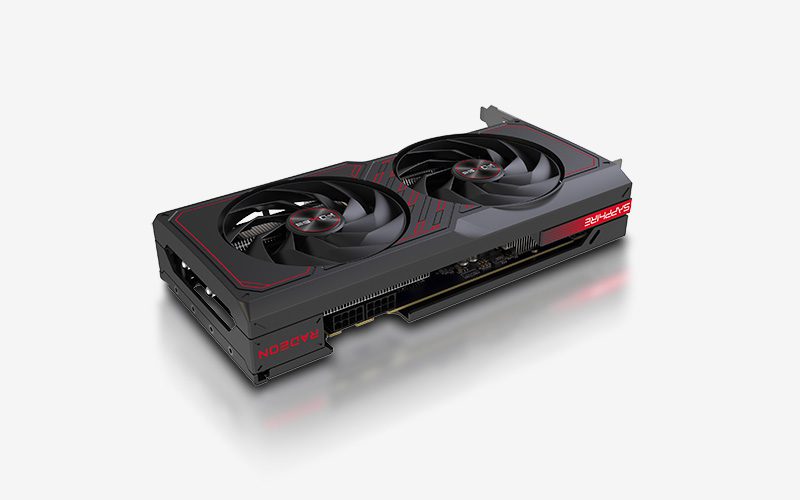

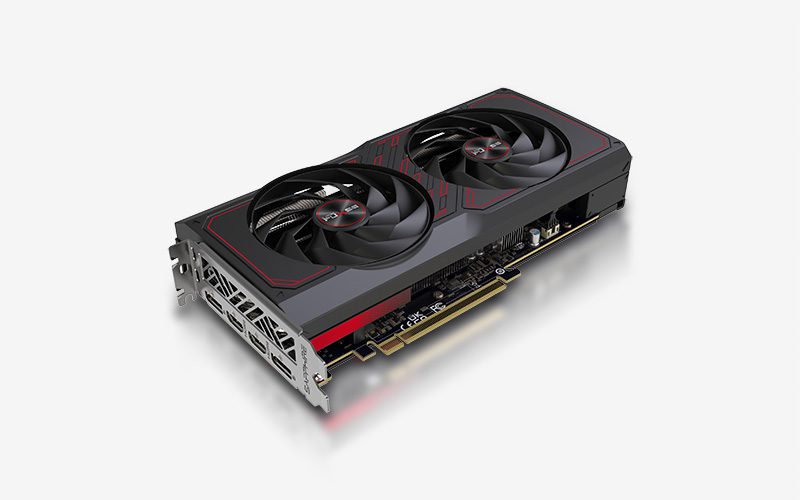

About Sapphire Pulse Radeon RX 7600 XT 16 GB GDDR6
Based on AMD’s RDNA 3 Navi 33 GPU, the Pulse RX 7600 XT has 2,048 stream processors, 32 compute units, 32 ray accelerators, and 64 AI accelerators. Within a modest 192W power draw, Factory OC sets the game clock at approximately 2,539MHz and boosts the clock to approximately 2,810MHz, which is about 2–3% higher than reference.
For seamless texture handling and latency efficiency, this model has 16 GB of GDDR6 memory on a 128-bit bus clocked at 18 Gbps, supported by a 32 MB Infinity Cache.

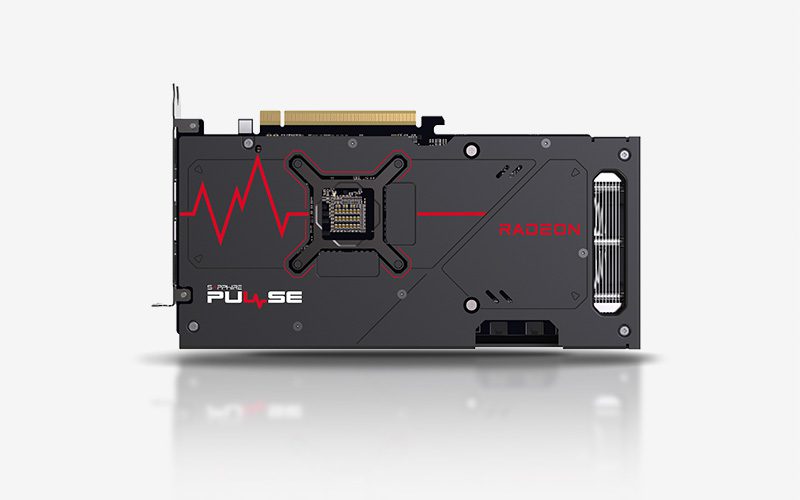

Sapphire’s robust Dual-X solution, which consists of a solid metal backplate, two ball-bearing fans, and composite heatpipes, cools it. Despite being small (~250 x 129 x 45 mm, 2.2 slot), this design provides silent and efficient thermal performance.
Features of Sapphire Pulse Radeon RX 7600 XT 16 GB GDDR6
Specification | Details |
---|---|
GPU Architecture | RDNA 3 (Navi 33), 2,048 SPs, 32 CUs, 32 Rays & 64 AI Accelerators |
Game Clock | ~2,539 MHz (OC) |
Boost Clock | Up to ~2,810 MHz |
Memory | 16 GB GDDR6 @ 18 Gbps, 128-bit (~288 GB/s) |
Infinity Cache | 32 MB |
PCIe Interface | PCIe 4.0 x8 |
Outputs | 2× HDMI 2.1, 2× DisplayPort 2.1 |
Cooling | Dual-X dual-fan, composite heatpipes, metal backplate |
Power Connectors | 2×8-pin PCIe |
Board Power (TBP) | 192 W |
Dimensions | 250 × 129.25 × 44.56 mm (2.2 slots) |
Recommended PSU | 450–600 W |
Sapphire Features | Fuse protection, fans with/ 85% longer lifespan, and RGB-free aesthetics |
AMD Features | FSR, AV1, Anti‑Lag, Smart Access Memory, DX12 Ultimate |
Form Factor | Compact 2.2-slot suitable for mATX/ITX builds |
Ideally Best For
- 1080p high-FPS gaming, including AAA and esports titles at ultra settings.
- Compact builds—mATX/ITX friendly with low noise and heat.
- Players are seeking future-ready features like FSR, AV1, and DisplayPort 2.1.
- Value-conscious gamers want strong performance without a premium price.
Buy Sapphire Pulse Radeon RX 7600 XT 16 GB GDDR6 Dual‑Fan Pulse Cooling PCIe 4.0 Online Today.
