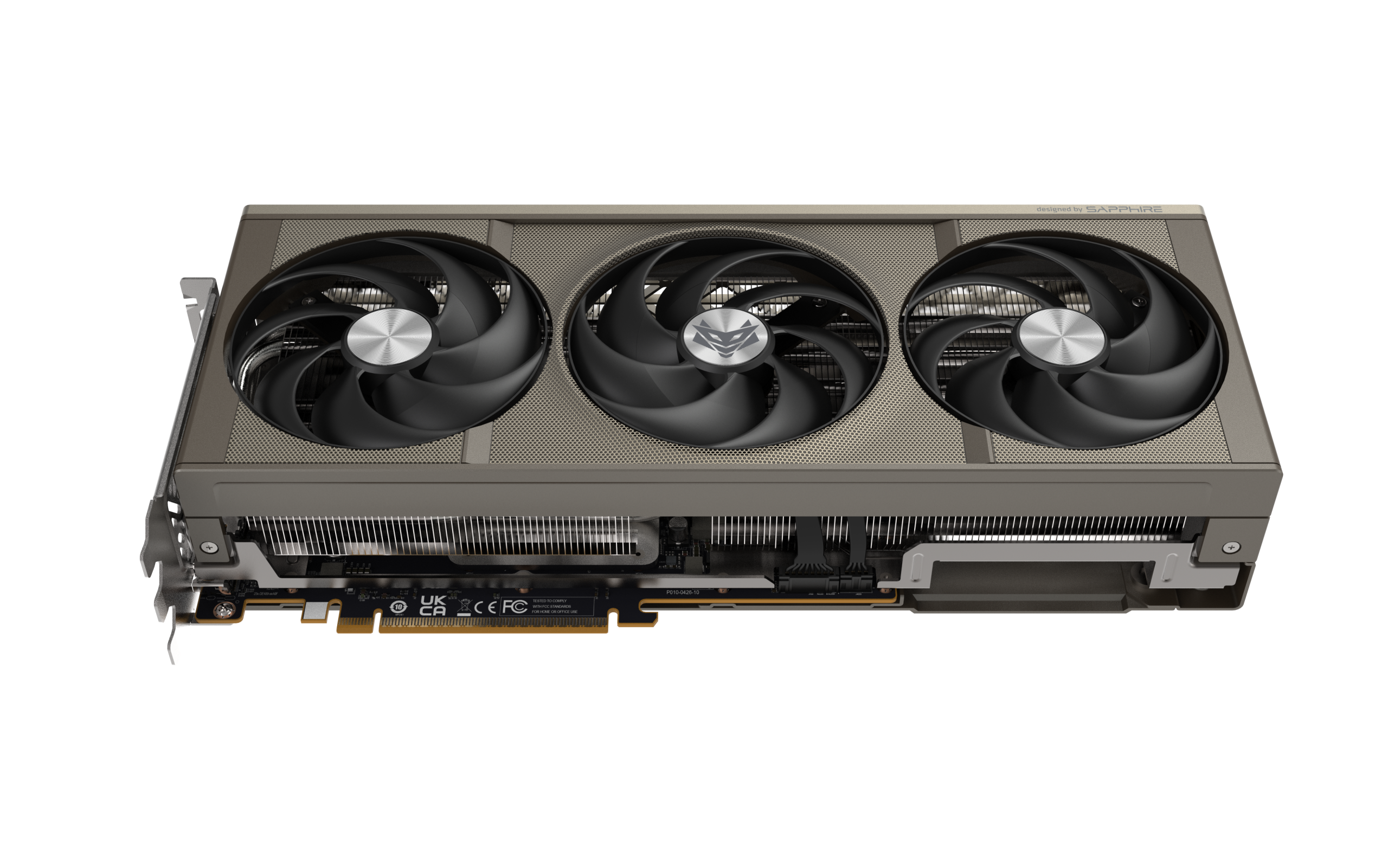

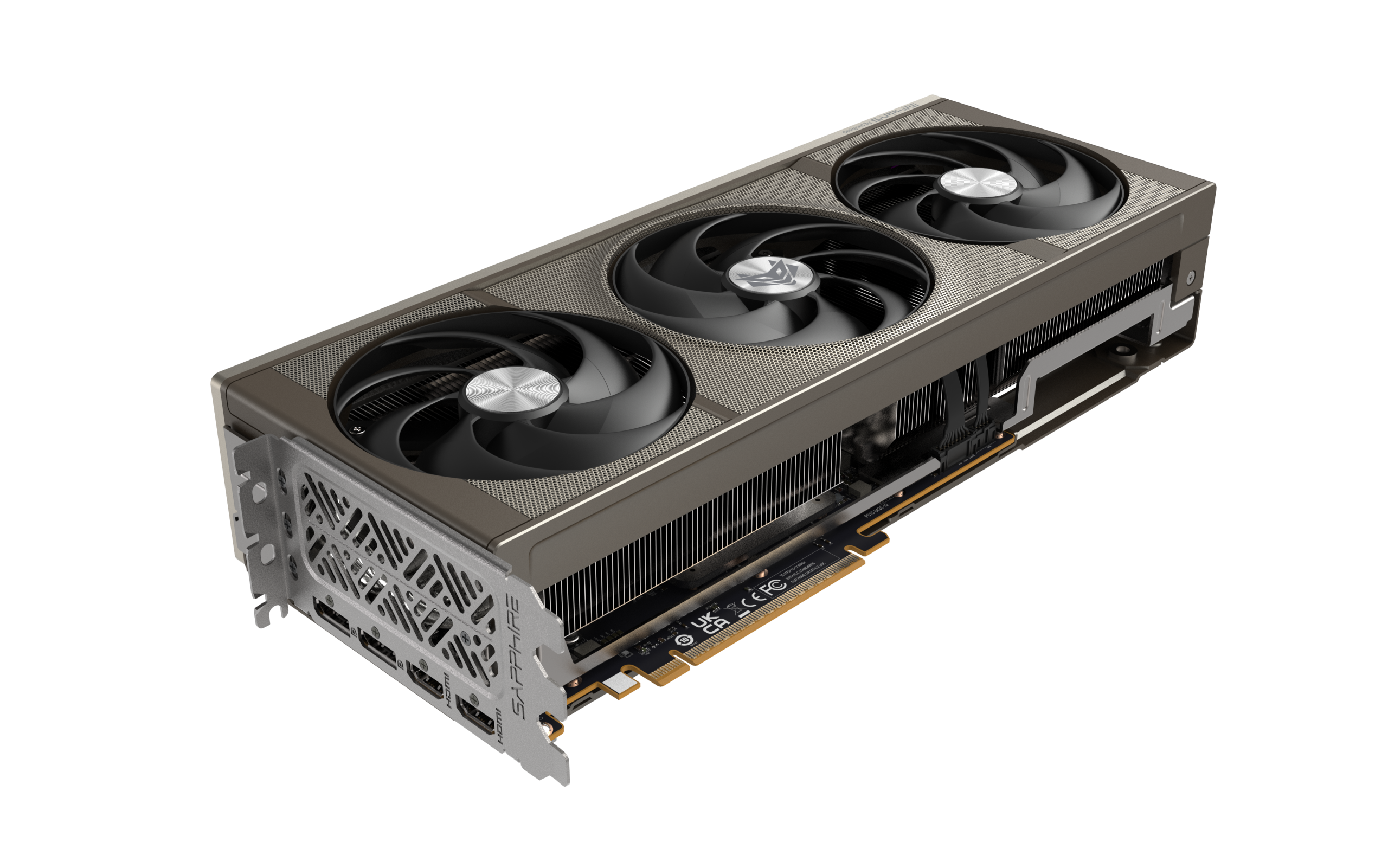

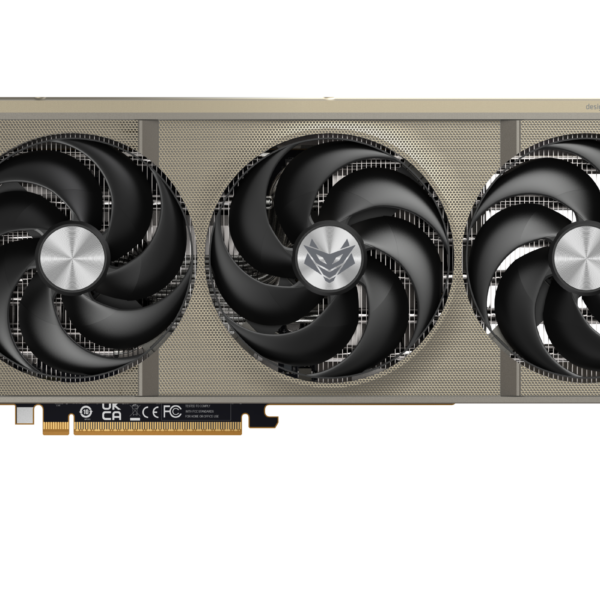

About Sapphire NITRO Radeon RX 9070 XT OC 16 GB GDDR6
The Sapphire NITRO RX 9070 XT OC is powered by AMD’s RDNA 4 Navi 48 GPU and has 4,096 stream processors, 64 Compute Units (with 2nd-generation AI acceleration and 3rd-generation ray tracing), and 16 GB of GDDR6 memory on a 256-bit bus. With a normal game clock of about 2520 MHz, factory OC mode pushes the boost clock to 3060 MHz while providing outstanding real-world performance.

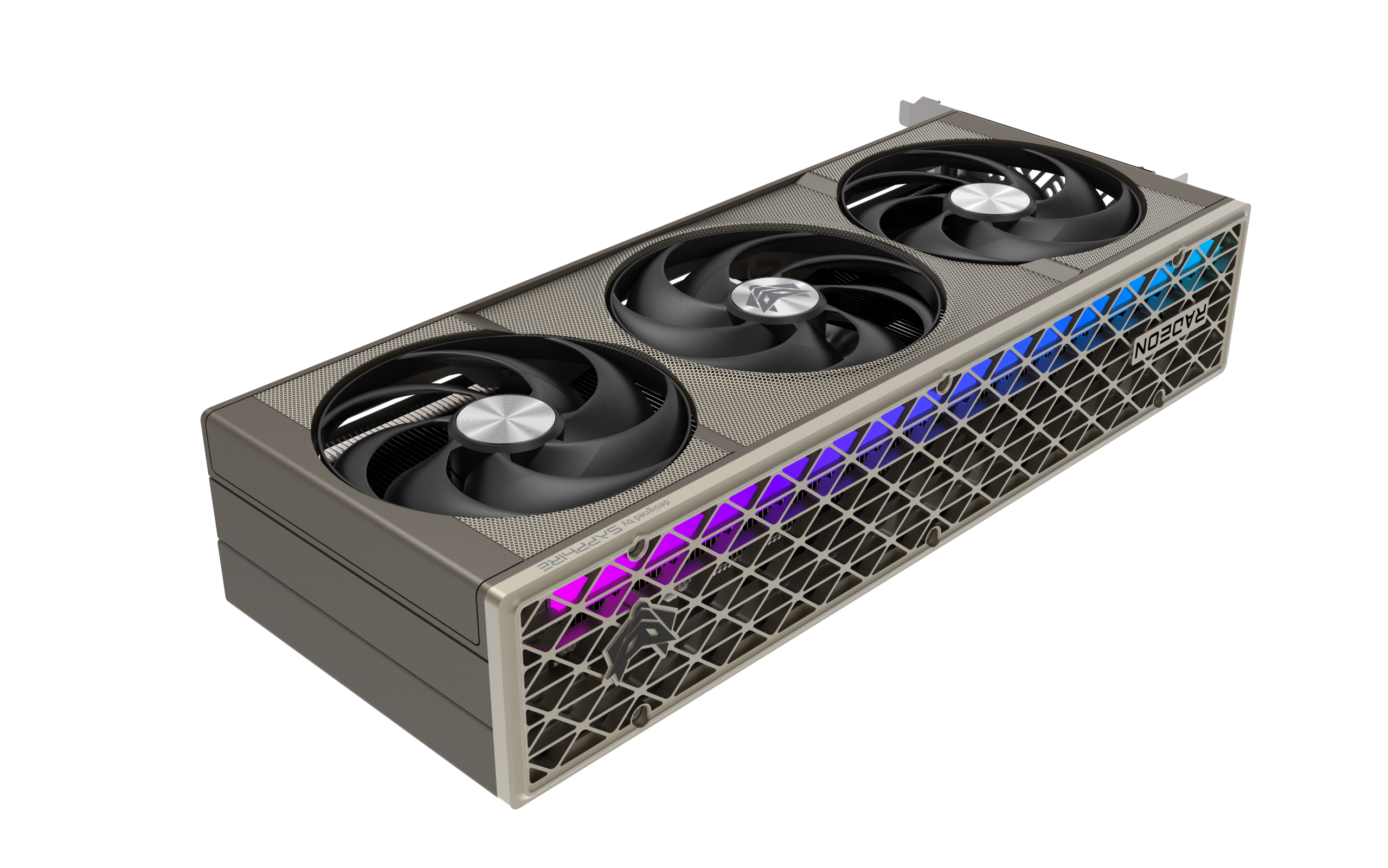

Sapphire’s Tri-X system, which consists of three AeroCurve fans with dual-ball bearings, composite heatpipes, a nickel-plated copper base, and a full metal backplate, controls cooling. ARGB lighting improves appearance, and dual BIOS enables switching between performance and silence. High-refresh, high-resolution monitors are supported by PCIe 5.0 compatibility and outputs via HDMI 2.1b and DisplayPort 2.1a.

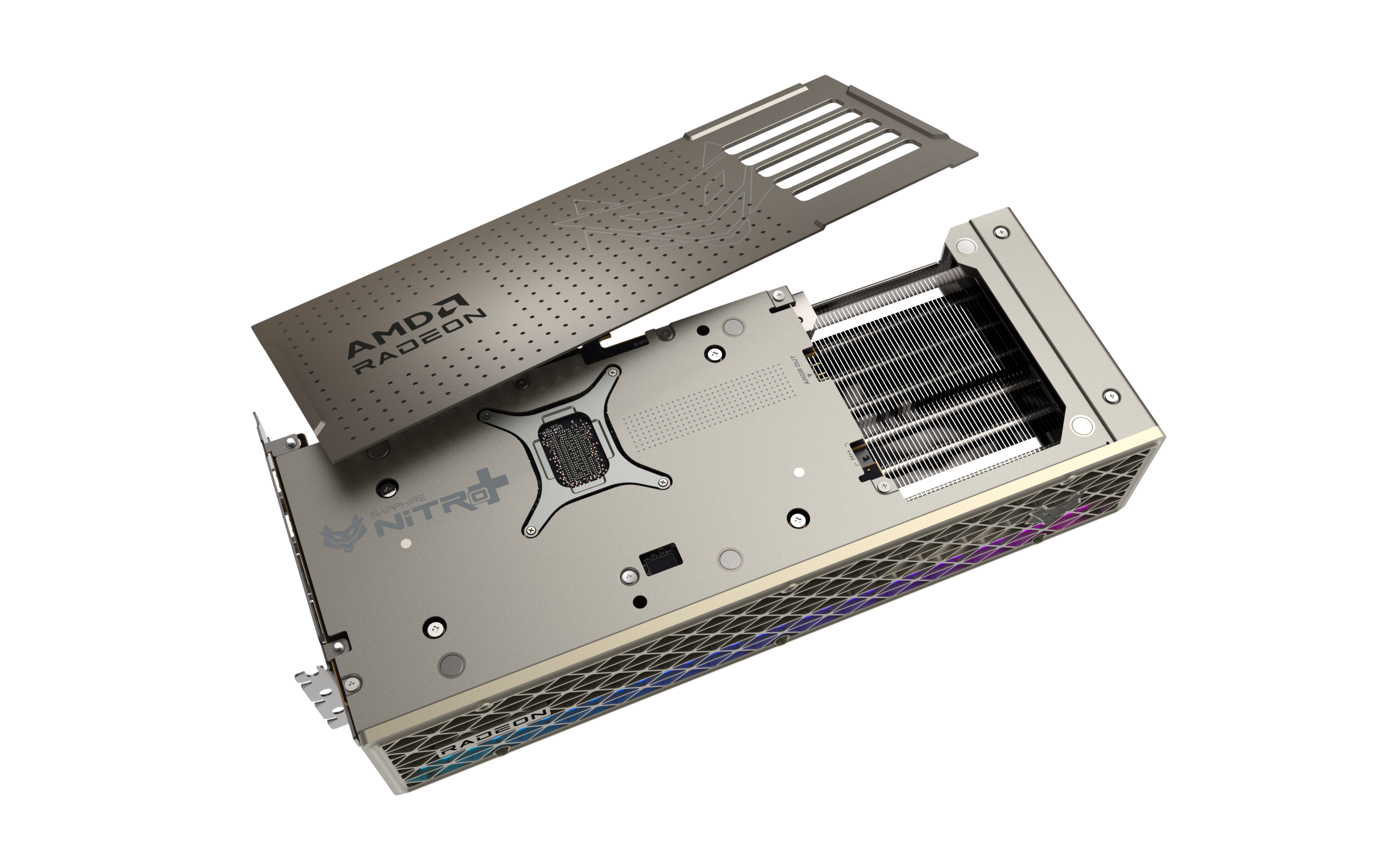

An L-bracket, an ARGB cable, a magnetic backplate, and power connector adapters are among the included accessories. Given that the average board power is about 330 W, an 800 W PSU is advised.
Features of Sapphire NITRO Radeon RX 9070 XT OC 16 GB GDDR6
| Specification | Details |
|---|---|
| GPU Architecture | AMD RDNA 4 (Navi 48) – 4,096 SPs, 64 CUs, 64 RT 128 AI accelerators |
| Boost Clock (OC BIOS) | Up to 3060 MHz |
| Game Clock (OC BIOS) | Around 2520 MHz |
| Memory | 16 GB GDDR6 @ 20 Gbps, 256‑bit (≈645 GB/s) |
| Infinity Cache | 64 MB |
| PCIe Interface | PCIe 5.0 x16 |
| Display Outputs | 2× HDMI 2.1b, 2× DisplayPort 2.1a |
| Cooling | Tri‑X triple‑fan w/ AeroCurve, copper base, heatpipes, 0 dB idle |
| Power Connectors | 12V‑2×6 (H ) w/ adapter to 3×8‑pin |
| Board Power | Approx. 330 W |
| PSU Recommendation | 750–800 W |
| Dimensions & Slots | 330.8 × 128.5 × 65.7 mm; 3.2 slots |
| BIOS Options | Dual BIOS: Performance / Quiet |
| Extras | ARGB bar, quick‑connect fans, TriXX support, L‑bracket |
| Software Features | FSR 4, HYPR‑RX, Ray Tracing, AV1 encode, Radeon Anti‑Lag, others |
| Warranty | 3 years |
Ideally Best For
- Gamers targeting high-refresh 1440p and capable 4K settings.
- Creators need efficient AV1 encoding and ray-tracing support.
- Builders are looking for a premium-feeling, future-ready GPU.
- Enthusiasts who appreciate customizable fan curves and BIOS toggling.
Buy Sapphire NITRO Radeon RX 9070 XT OC 16 GB GDDR6 Tri‑X Triple‑Fan | PCIe 5.0 Online Today.
