About NZXT N7 B850 Black Motherboard
| Category | Specification | Details |
|---|---|---|
| General | Form Factor | ATX |
| Chipset | AMD B850 | |
| CPU Socket | AMD AM5 (supports Ryzen 7000/8000/9000 series) | |
| Operating System | Windows 10/11 64-bit | |
| Memory | DIMM Slots | 4 × DDR5 |
| Memory Architecture | Dual-Channel | |
| Max Capacity | Up to 192GB (varies by config) | |
| XMP / EXPO Support | Yes | |
| Expansion | PCIe 5.0 x16 | 1 slot |
| PCIe 4.0 x16 | 2 slots (x2 mode) | |
| M.2 E-Key Slot | 1 (for Wi-Fi/BT module) | |
| Storage | M.2 Slots | 3 (1 × PCIe 5.0, 2 × PCIe 4.0) |
| SATA Ports | 4 × SATA 6Gb/s | |
| Networking | LAN | Realtek 2.5Gb Ethernet |
| Wi-Fi | Wi-Fi 6E | |
| Bluetooth | v5.2 | |
| Audio | Codec | Realtek ALC1220 |
| Rear I/O | USB 3.2 Gen2 Type-C | 1 |
| USB 3.2 Gen2 Type-A | 2 | |
| USB 3.2 Gen1 | 4 | |
| USB 2.0 | 2 | |
| HDMI | 1 | |
| LAN Port | 1 × RJ45 | |
| Audio Jacks | 2 + Optical S/PDIF | |
| Internal Connectors | Fan Headers | Multiple (CPU, AIO, SYS) |
| USB Headers | Multiple USB2.0 & USB3.2 | |
| RGB / ARGB | Supported (multiple headers) | |
| Miscellaneous | BIOS Update Required for Some CPUs | Yes (e.g., Ryzen 9800X3D) |
| Warranty | 3 years |

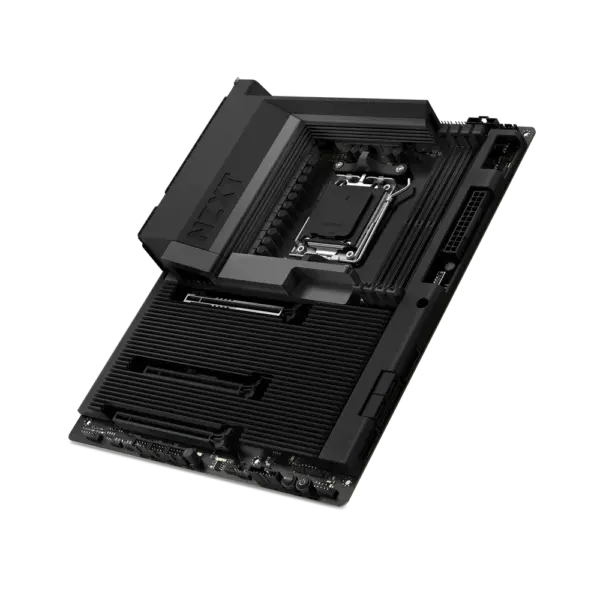

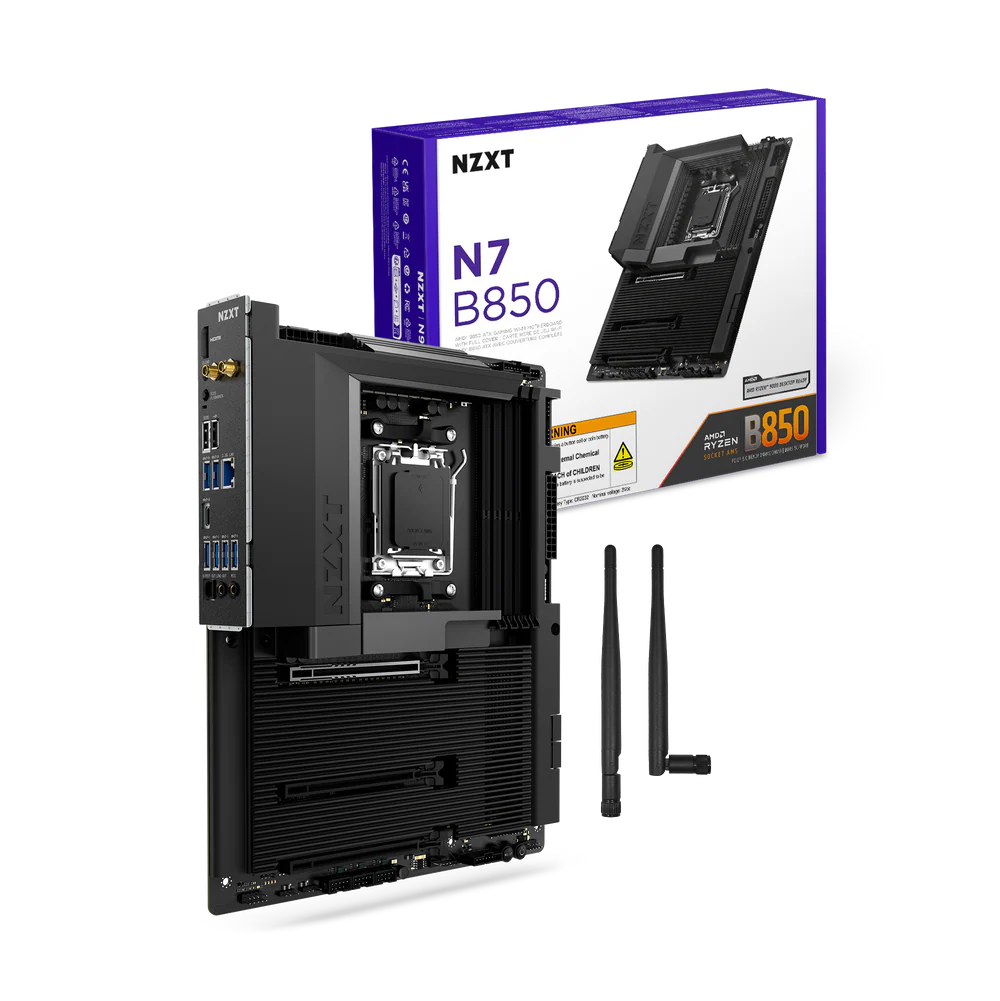

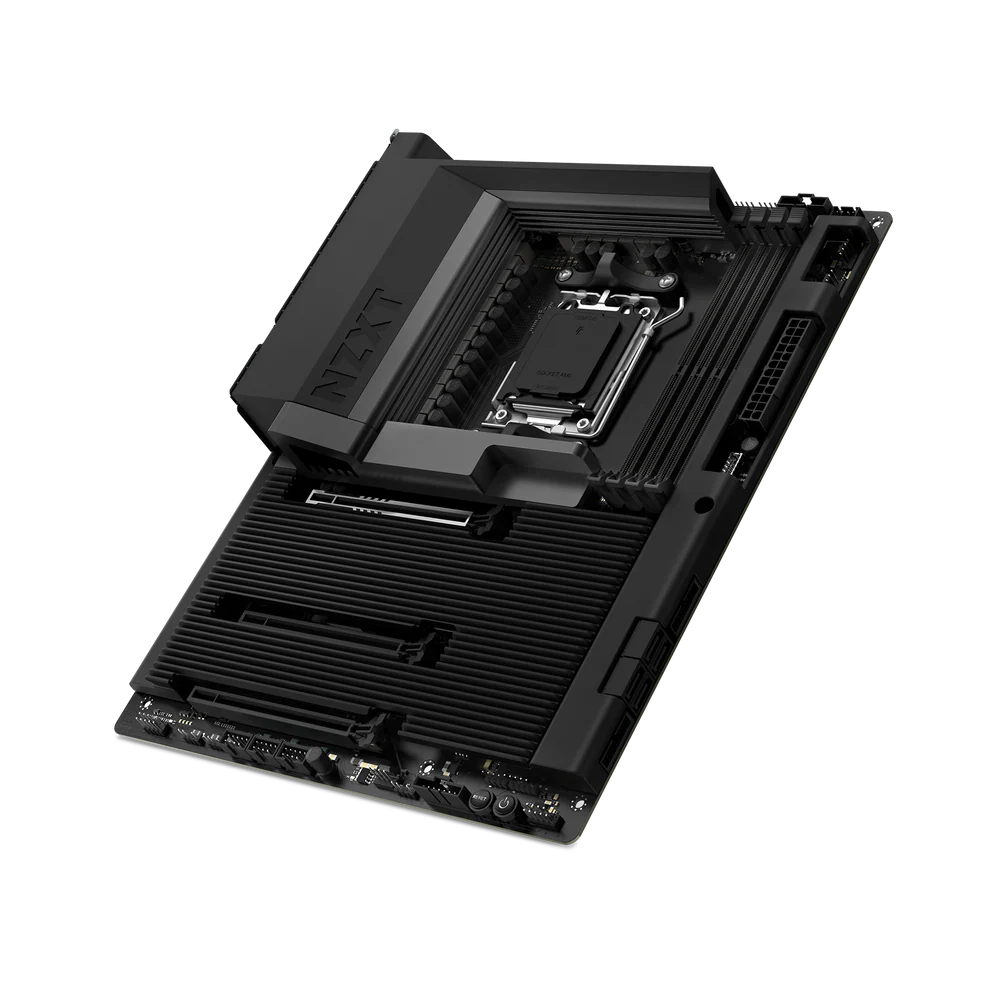

At the core of the NZXT N7 B850 Black Motherboard is the AMD B850 chipset, delivering stable performance and broad compatibility with current AMD processors.
Its form factor adheres to ATX standards, making it suitable for most mid-tower and full-tower cases.

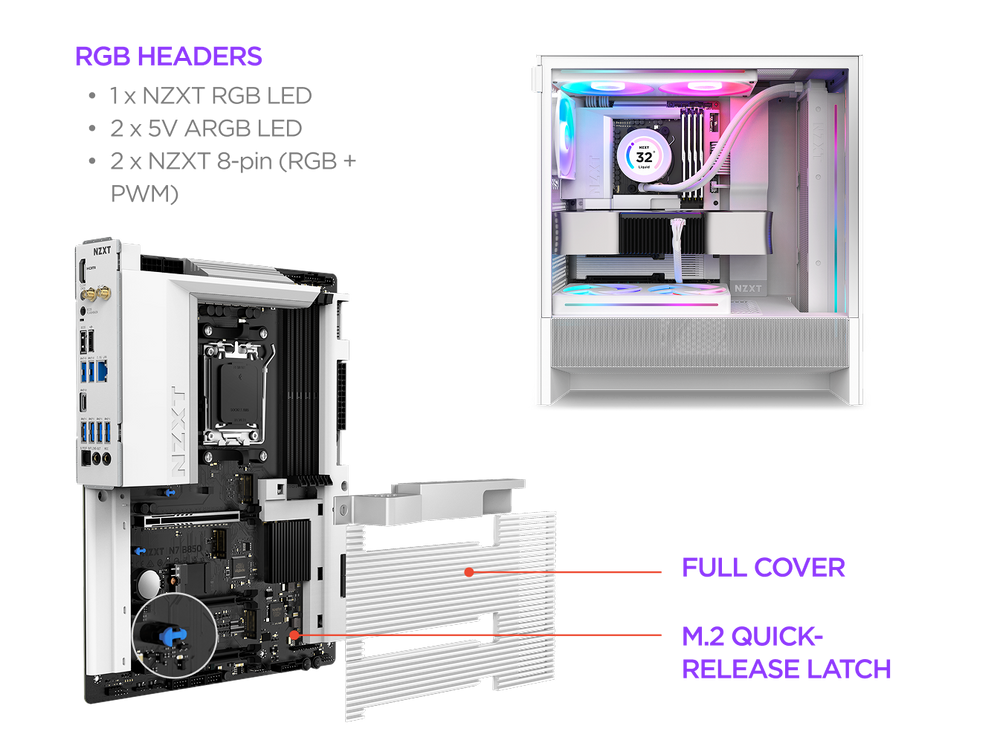

The NZXT N Series Desktop Motherboard‘s minimalist design, featuring a full PCB cover, enhances visual cohesion in builds where clean looks matter as much as performance.

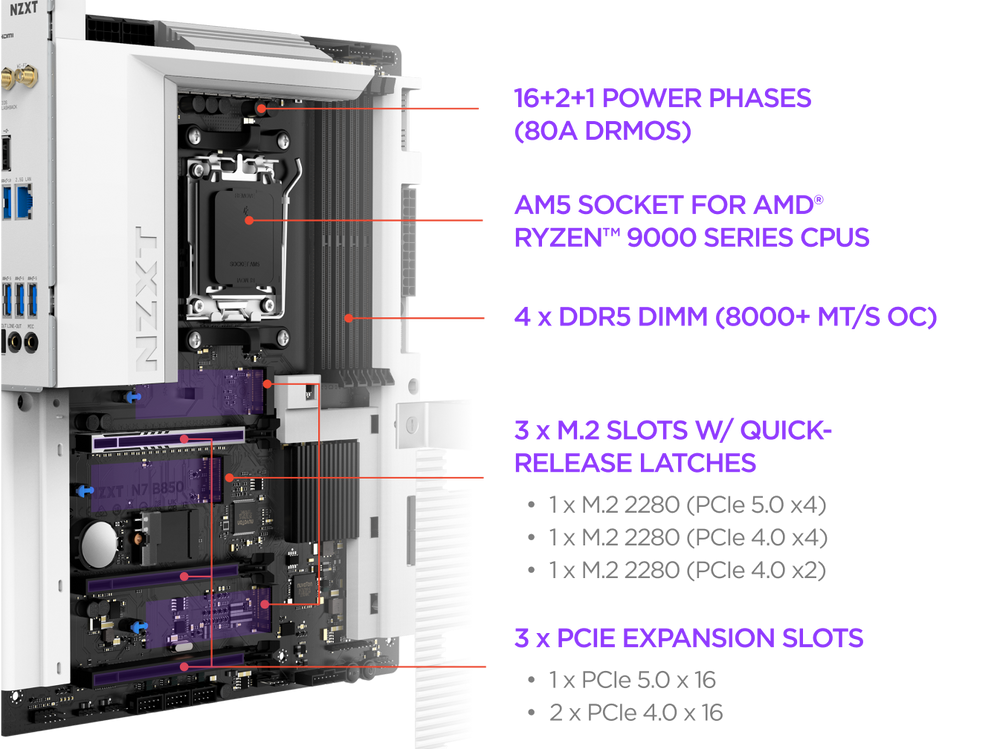

Memory support is robust, with four DDR5 DIMM slots enabling a dual-channel architecture that can accommodate up to 192GB of RAM.
Enthusiasts and gamers alike will appreciate the support for memory overclocking profiles, including both XMP and AMD’s EXPO technology, enhancing system responsiveness in demanding applications and games.
Expansion capabilities are extensive.

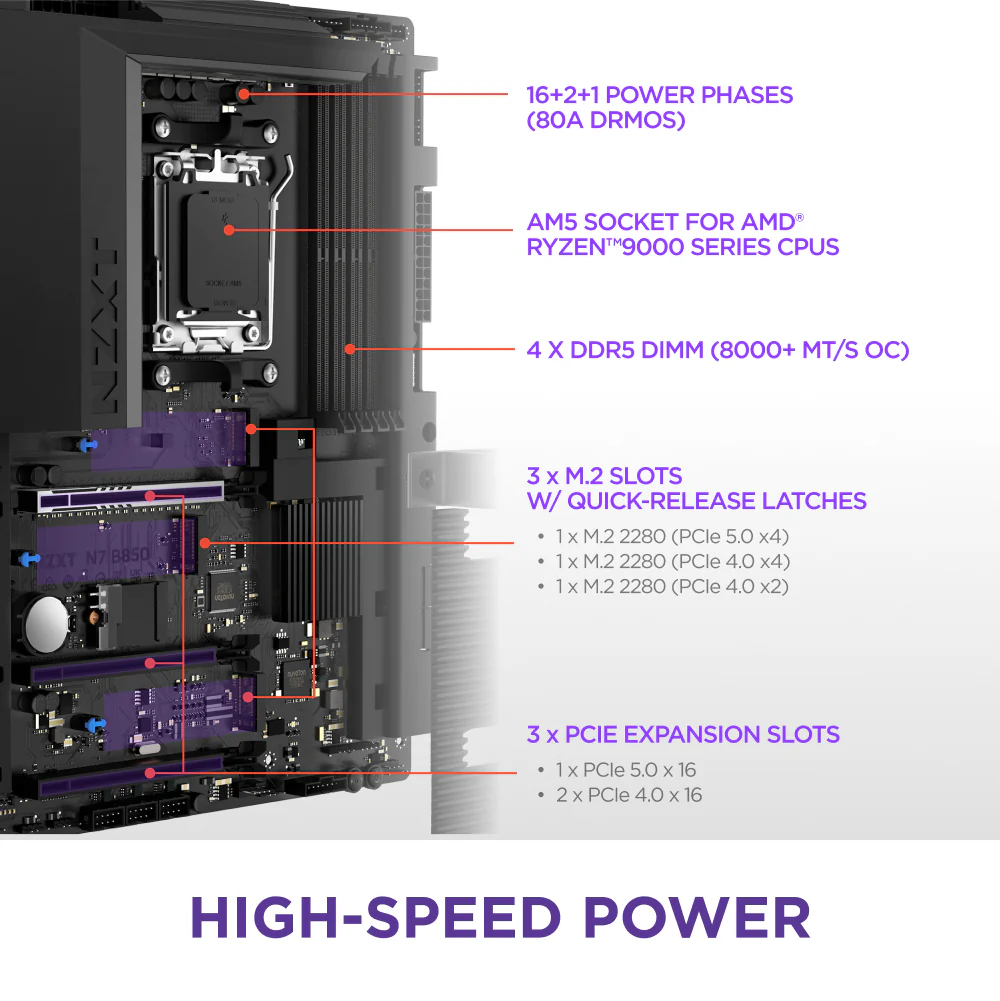

A dedicated PCIe 5.0 x16 slot future-proofs the board for next-generation graphics cards, while two additional PCIe 4.0 x16 slots support expansion cards and additional functionality.
Whether building a GPU-heavy workstation or a gaming setup with multiple add-ons, the AMD B850 ATX Gaming Motherboard’s layout provides flexibility.
Storage options are generous with three M.2 slots.
One is a blazing-fast PCIe 5.0 interface with a dedicated heatsink to manage thermals, and two PCIe 4.0 slots allow multiple NVMe drives for careful storage planning.
On top of that, four SATA 6Gb/s ports ensure compatibility with traditional SSDs and HDDs.
Networking is handled with modern standards, including Wi-Fi 6E for ultra-fast wireless connectivity and Bluetooth v5.2 for peripherals and accessories.
A Realtek 2.5Gb Ethernet port brings wired connectivity up to competitive levels, reducing latency and ensuring high-speed data transfer essential for online gaming and content creation workflows.

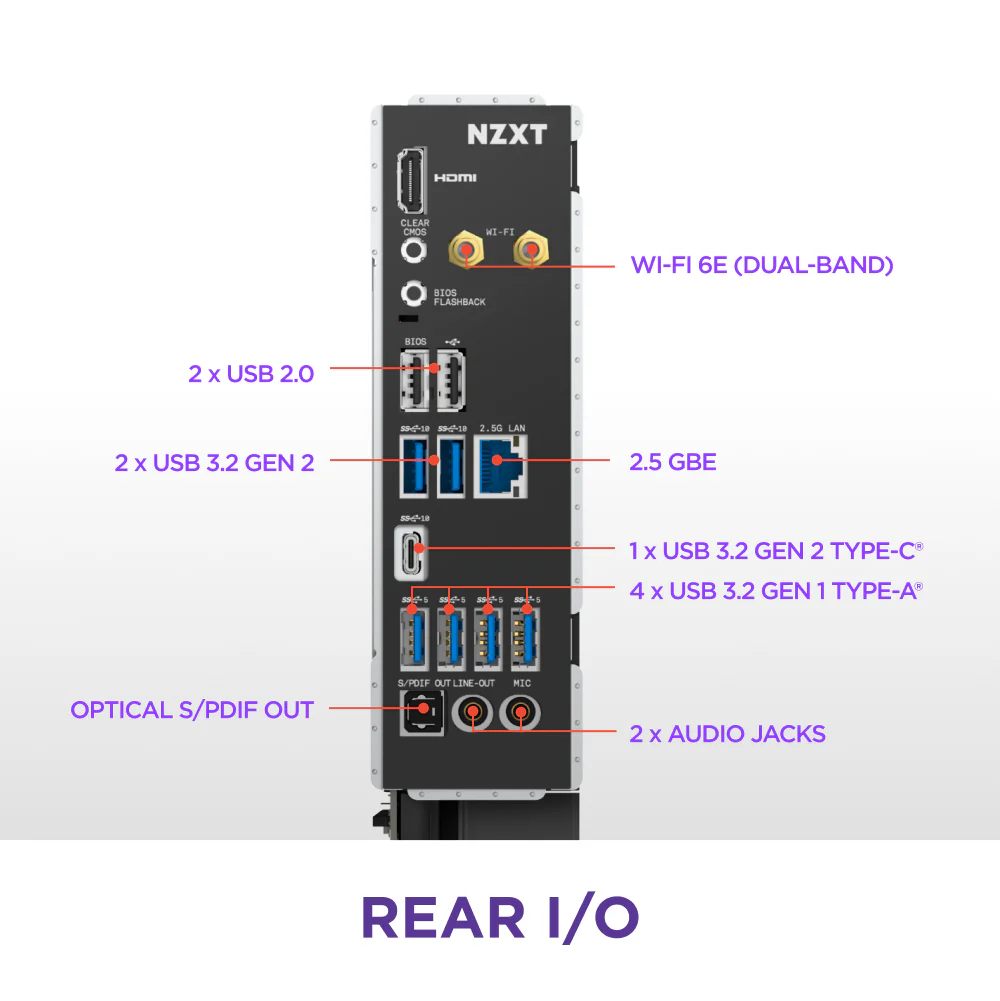

Connectivity extends to a rich assortment of rear I/O ports.
These include USB 3.2 Gen2 Type-C and Type-A ports for fast peripheral and storage connectivity, several USB 3.2 Gen1 and USB 2.0 ports for legacy devices, HDMI output for integrated graphics support, and multiple audio jacks including an optical S/PDIF output for high-fidelity sound systems.

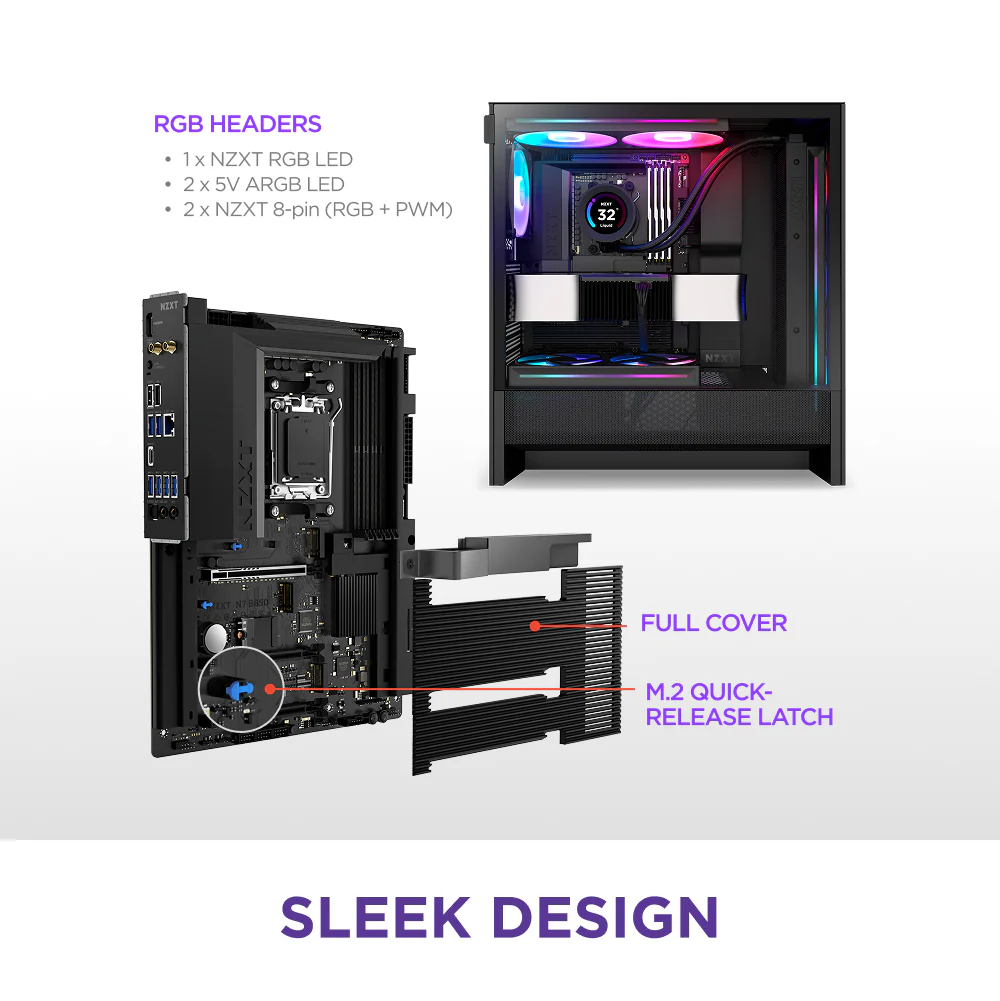

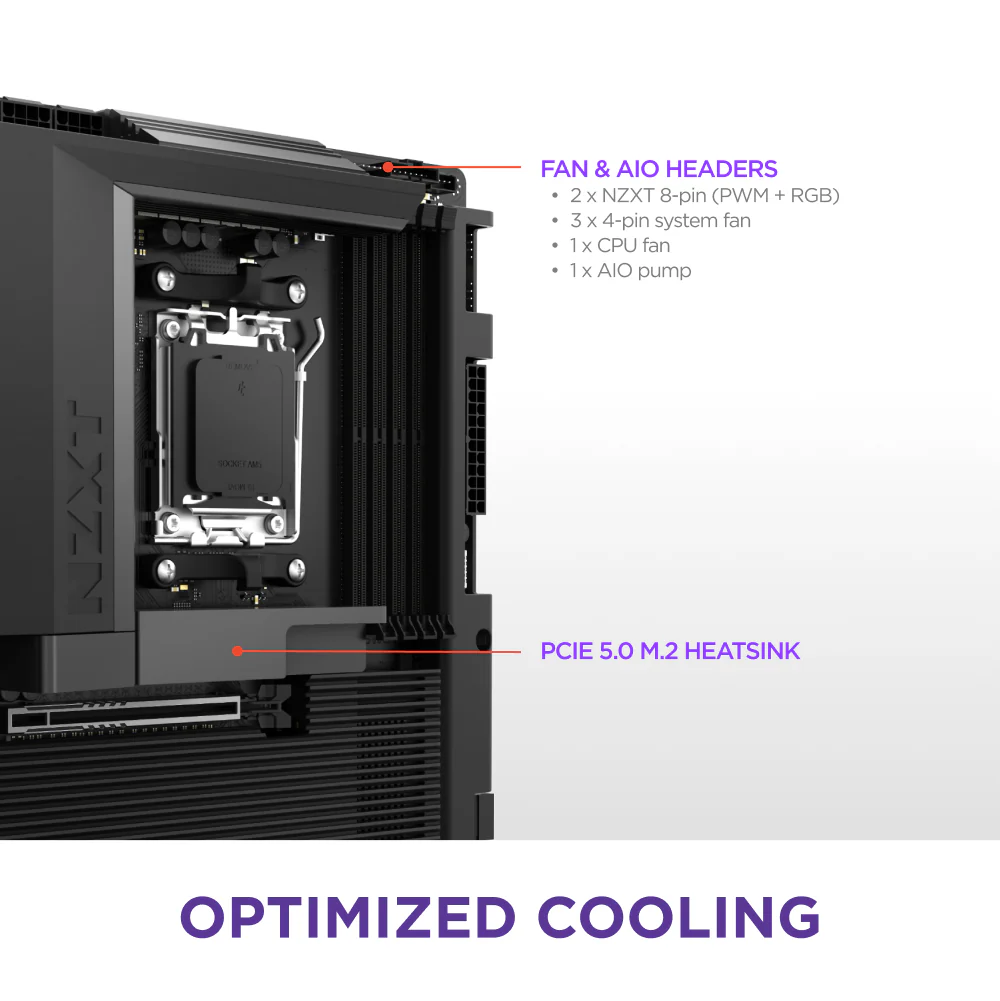

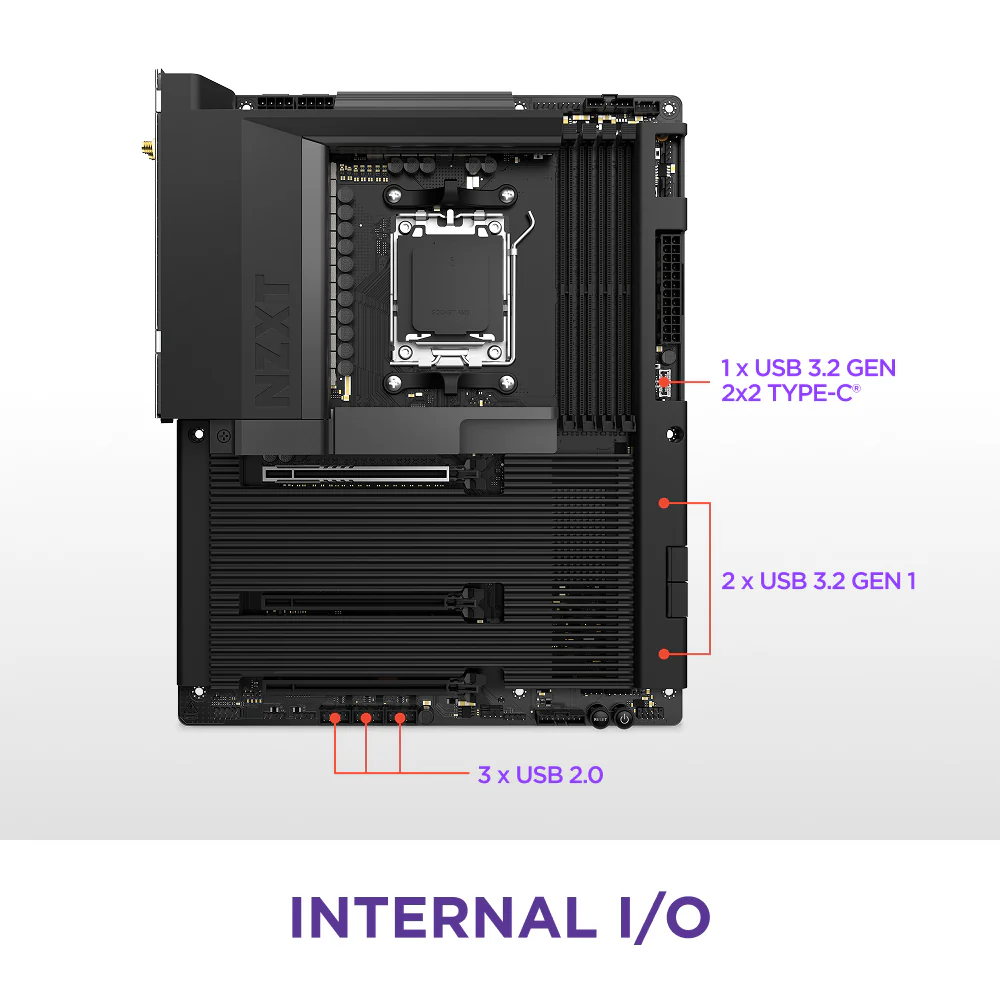

Internally, builders will find a comprehensive header set for fans, pumps, RGB lighting, and USB connectors.
This ensures full support for cooling solutions and synchronized lighting setups that can be customized through software control.
The NZXT N7 B850 Black Motherboard combines cutting-edge support for modern AMD CPUs, high-speed memory and storage, and rich connectivity in a design that prioritizes both performance and aesthetics.
Whether you’re building a competitive gaming PC or a powerful multimedia workstation, the NZXT AMD WiFi Gaming Motherboard provides the foundation for fast, efficient, and visually appealing systems.
