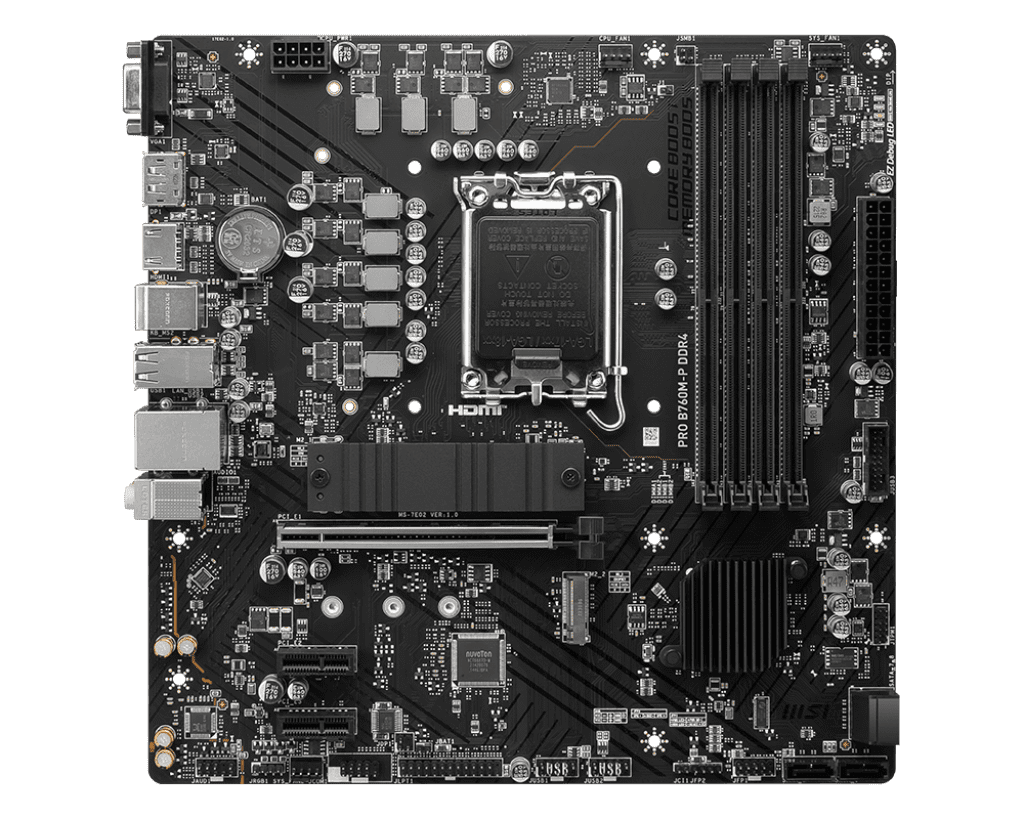

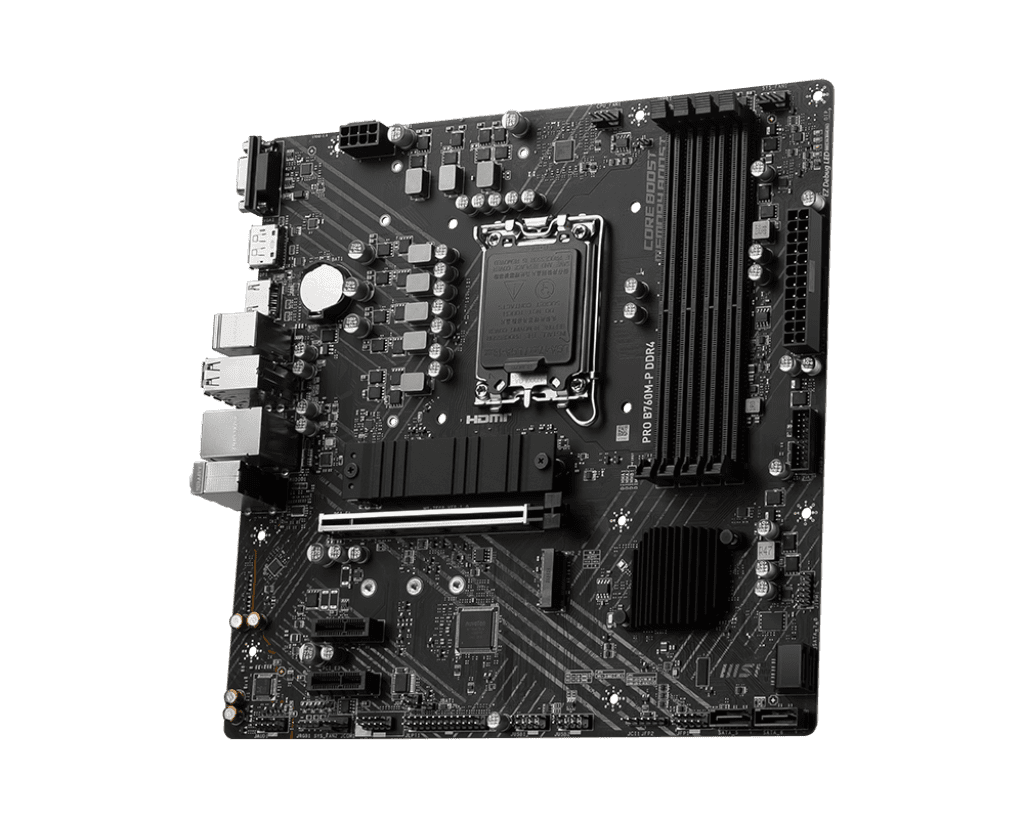

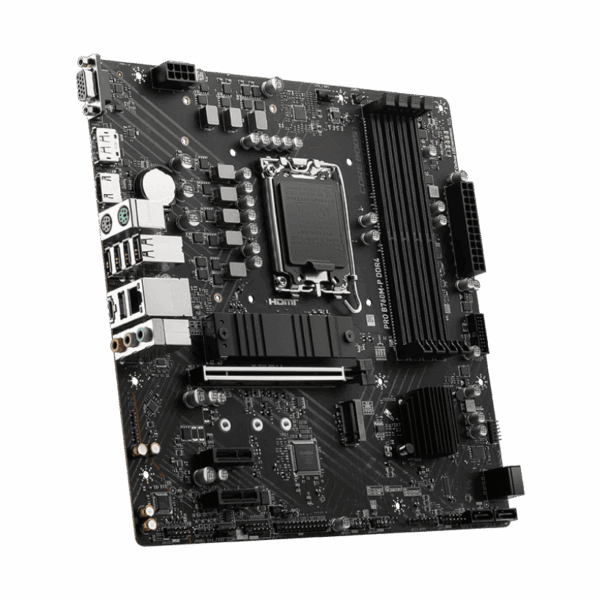

About MSI PRO B760M‑P DDR4 Micro‑ATX Motherboard
The MSI PRO B760M‑P DDR4 is made for consumers looking for dependable performance at a reasonable price with well-known DDR4 memory. Constructed using Intel’s B760 chipset and compatible with LGA 1700 processors, it offers crucial contemporary features in a small micro-ATX form factor.
- Memory & Performance: Equipped with four DDR4 DIMM slots supporting up to 128 GB, and capable of overclocking to 5333 MHz for faster multitasking and smooth responsiveness.
- Stable Power & Cooling: Powered by a 10 1 phase VRM design with reliable heatsinks to ensure consistent performance under load, ideal for Intel Core i5/i7 CPUs.
- Expansion & Storage: A reinforced PCIe 4.0 x16 slot supports today’s GPUs, while an additional PCIe 3.0 x1 slot allows for network or capture cards. Fast storage is handled by a PCIe 4.0 x4 M.2 slot with thermal protection and four SATA 6 Gb/s ports for SSDs or hard drives.

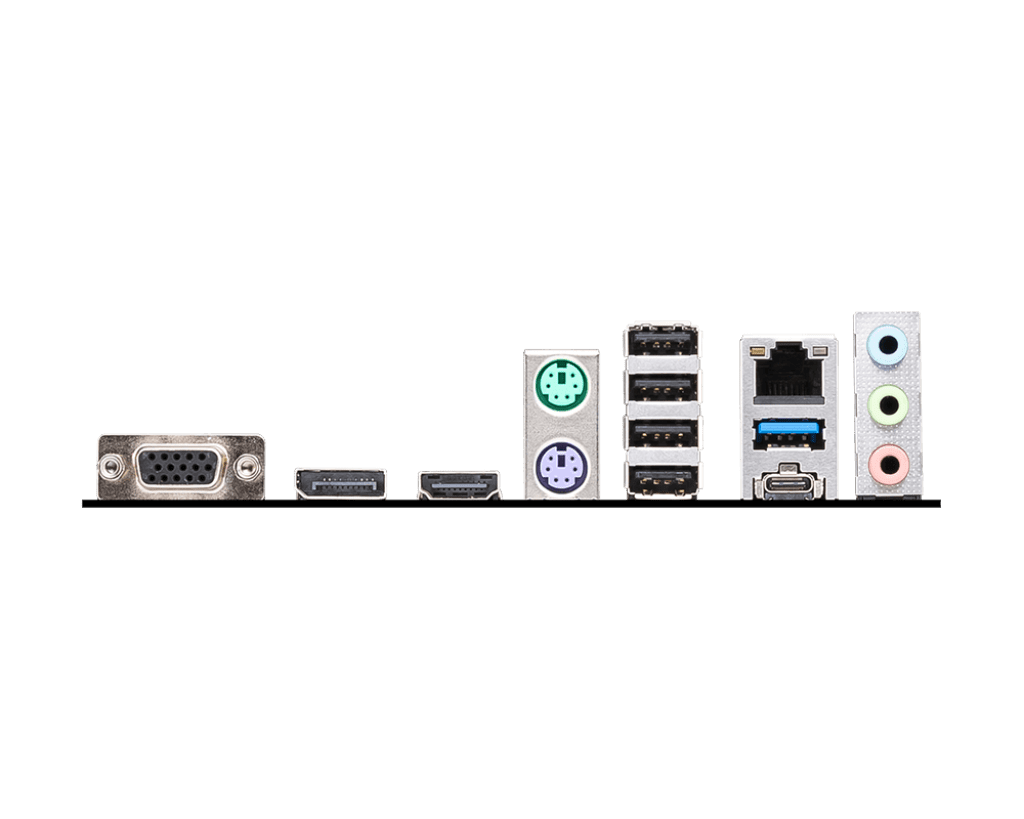

- Networking & I/O: Features ultra-fast 2.5G LAN for wired speeds, plus rear I/O with USB 3.2 Gen2 Type‑C, USB 3.2 Gen1 Type‑A, and USB 2.0 ports. Display support includes HDMI 2.1 and DisplayPort 1.4 for modern monitors.
- Audio & Build Convenience: Includes high-definition 7.1 audio and core build support with pre-installed I/O shield, EZ Debug LEDs, BIOS Flash button, and an ARGB header for lighting upgrades.
Features of the MSI PRO B760M‑P DDR4 Micro‑ATX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | Intel B760 / LGA 1700 |
| CPU Support | 12th–14th Gen Intel Core, Pentium, Celeron |
| Form Factor | Micro‑ATX |
| Memory Support | 4× DDR4 DIMM, up to 128 GB, OC up to 5333 MHz |
| Power Design | 10 1 phase VRM with heatsinks |
| PCIe Slots | 1× PCIe 4.0 x16 (Steel Armor), 1× PCIe 3.0 x1 |
| M.2 Storage | 1× PCIe 4.0 x4 NVMe M.2 (w/ heatsink) |
| SATA Ports | 4× SATA III (6 Gb/s) |
| Networking | 2.5G LAN |
| USB Connectivity | USB 3.2 Gen2 Type‑C, Gen1 Type‑A, USB 2.0 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 |
| Audio Codec | 7.1‑channel high-definition |
| Build Tools | Pre-installed I/O shield, BIOS Flash, Debug LEDs |
| Lighting Support | 1× ARGB header |
Ideally Best For
- Cost-effective compact systems using Intel’s latest CPUs
- Home or office computers need reliable performance and modern I/O
- Entry-level gamers wanting fast NVMe storage and solid graphics stability
- DIY enthusiasts who appreciate easy assembly and upgrade potential
- Mini system integrators focused on quality without breaking the budget
Buy MSI PRO B760M‑P DDR4 Micro‑ATX Motherboard LGA 1700 DDR4 | PCIe 4.0 M.2, 2.5G LAN Online Today.
