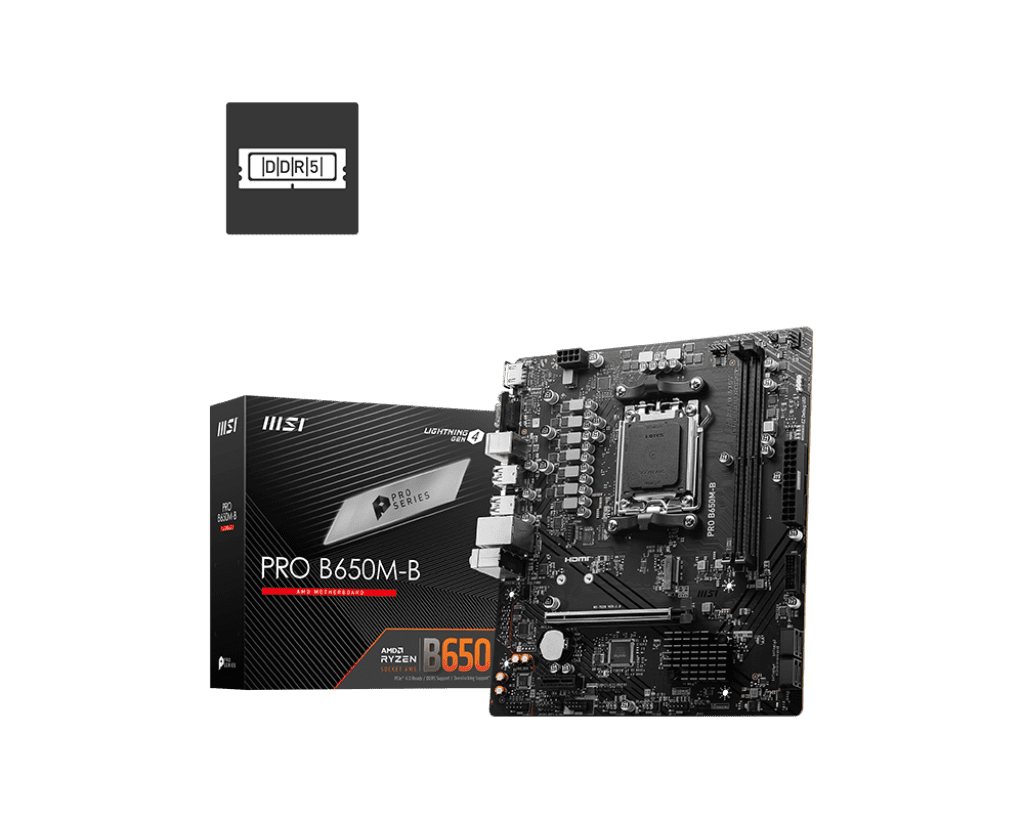

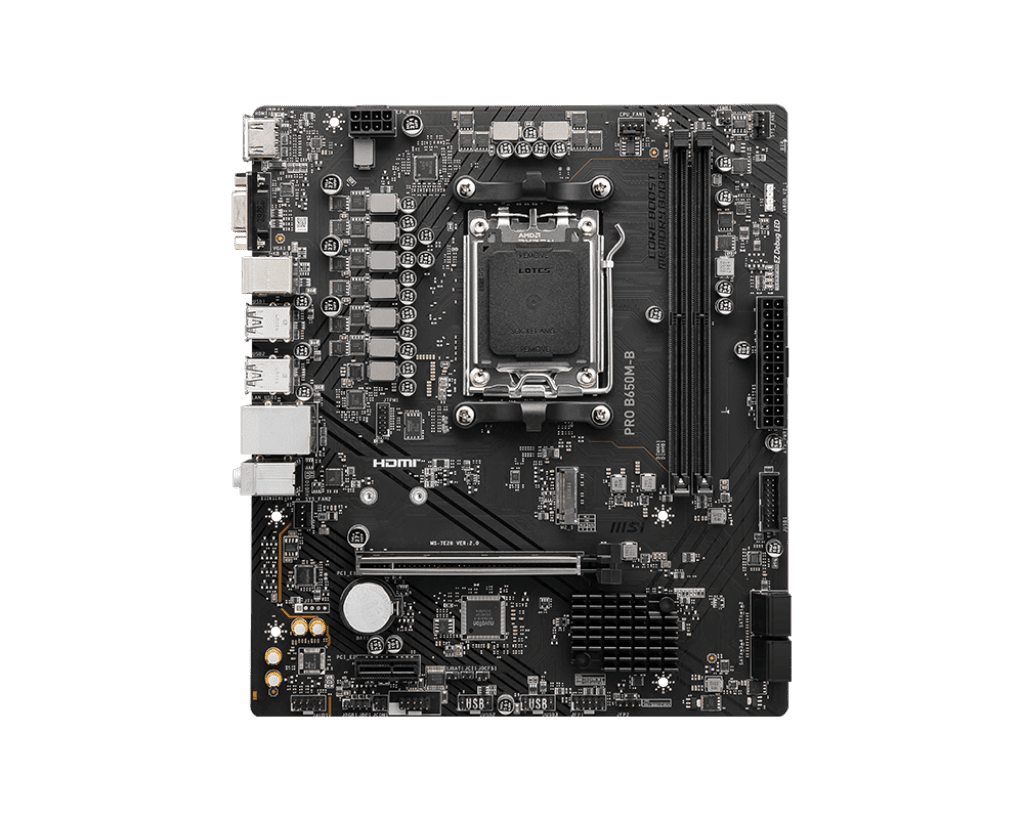

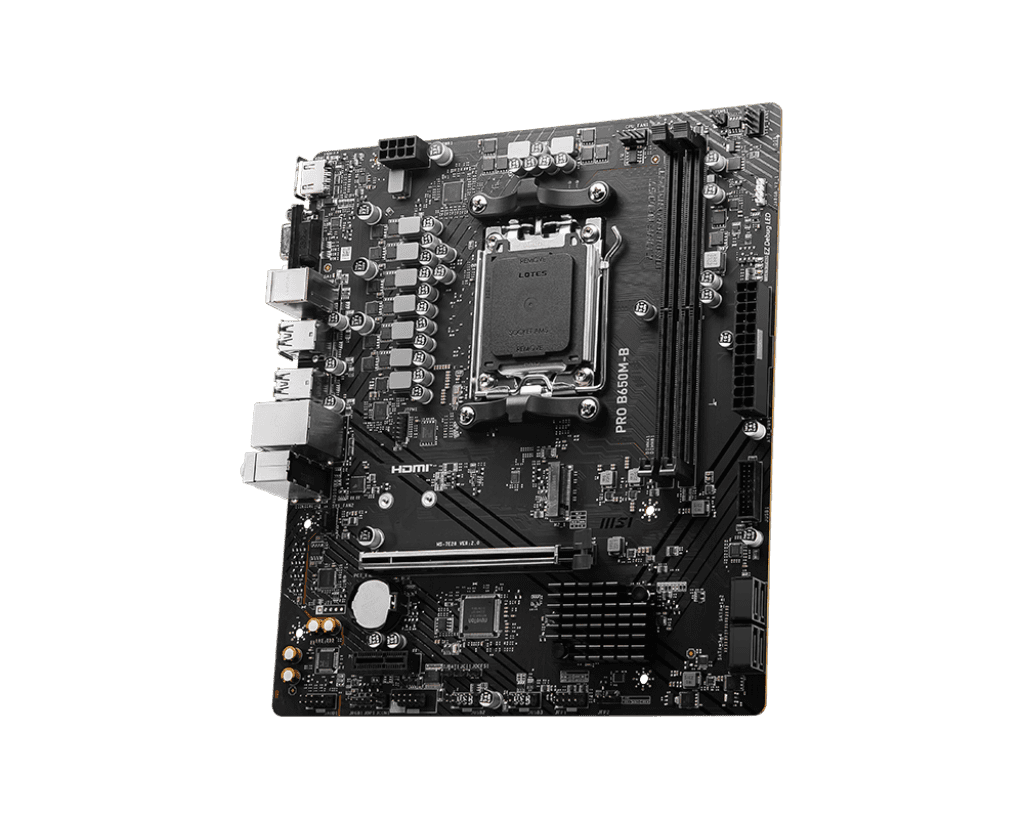

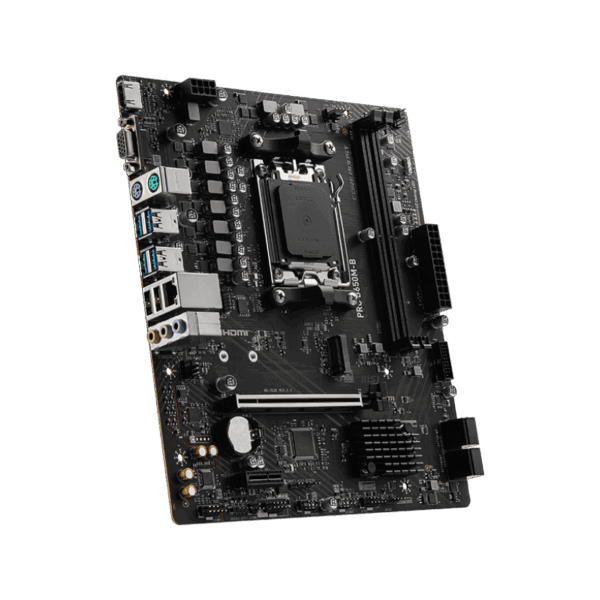

MSI PRO B650M‑B Micro‑ATX Motherboard AM5 DDR5 | PCIe 5.0 M.2, Dual M.2 Gen4
₹10,152.00
Pay With:
About MSI PRO B650M‑B Micro‑ATX Motherboard
For small AM5-based PCs, the MSI PRO B650M‑B provides a strong performance base by striking a balance between contemporary features and an affordable design. It supports Ryzen 7000 and 8000 series processors and uses the AMD B650 chipset to serve users looking for setups that are light on content creation or efficient in productivity. With support for up to 128 GB of RAM and 4× DDR5 DIMM slots, memory capabilities allow for overclocking speeds of 7200 MHz, making them ideal for multitasking and improved application performance. A 10 2 1 VRM configuration is used for power delivery, which offers steady and clean output for daily tasks.
A reinforced PCIe 4.0 x16 graphics card slot, a PCIe 3.0 x1 peripheral slot, and three M.2 storage slots—two PCIe 4.0 x4 and one PCIe 5.0 x4—all with thermal shielding are examples of design and expansion features. Four SATA 6 Gb/s ports are also available for legacy storage configuration. With 2.5G LAN, network connectivity is dependable and helpful for quick wired data transfers without the need for separate NICs. USB 3.2 Gen2 Type-C, a variety of USB 3.2 Gen1/Gen2 Type-A ports, HDMI 2.1, DisplayPort 1.4, and USB 2.0 for peripheral use are all included on the rear USB and display panel.
A Realtek codec provides standard 7.1-channel surround sound with PCB isolation for enhanced clarity, delivering audio functionality. With EZ Debug LEDs, a front-panel USB-C header, a Flash BIOS button, and an I/O shield pre-installed, the board accommodates builder convenience. It also adds a single RGB LED header for lighting customisation and expands support for TPM 2.0.
Features of the MSI PRO B650M‑B Micro‑ATX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | AMD B650 / AM5 |
| CPU Compatibility | Ryzen 7000 / 8000 Series |
| Form Factor | Micro‑ATX (mATX) |
| Memory Support | 4× DDR5 DIMM, up to 128 GB, OC up to 7200 MHz |
| Power Design | 10 2 1 VRM with Core Boost technology |
| PCIe Slots | 1× PCIe 4.0 x16 (Steel Armor), 1× PCIe 3.0 x1 |
| M.2 Storage | 1× PCIe 5.0 x4, 2× PCIe 4.0 x4 with thermal shields |
| SATA Ports | 4× SATA 6 Gb/s |
| Networking | 2.5G LAN |
| USB I/O | USB 3.2 Gen2 Type-C, USB 3.2 Gen1/Gen2 Type-A, USB 2.0 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 |
| Audio Codec | 7.1-channel Realtek HD audio with PCB isolation |
| Cooling & Build Design | Extended M.2 shields, reinforced slots, debug LEDs |
| Extras | Flash BIOS button, TPM 2.0 header, front USB-C header |
Ideally Best For
- Compact workstation or home office builds needing AM5 support
- DIY builders seeking modern connectivity in a small form factor
- Hybrid productivity PCs using Ryzen 5/7 with NVMe storage
- Value-oriented builders wanting future-proof RAM and storage without premium cost
- First-time builders who value easy setup and basic diagnostics
Buy MSI PRO B650M‑B Micro‑ATX Motherboard AM5 DDR5 | PCIe 5.0 M.2, Dual M.2 Gen4 Online Today.
