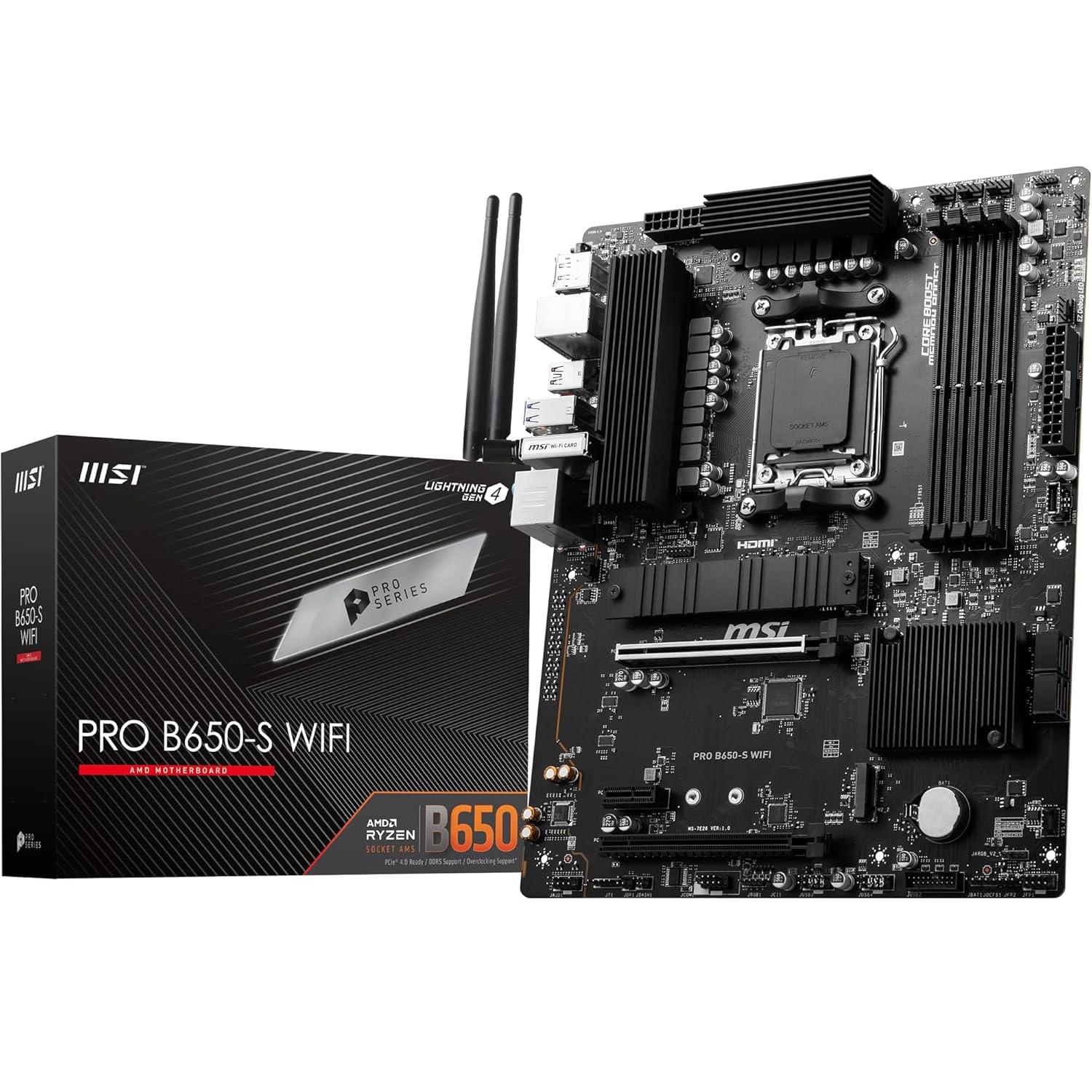

About MSI PRO B650-S WIFI Motherboard
Broad Processor Compatibility: Built around the AMD AM5 socket, this motherboard fully supports AMD Ryzen 9000, 8000, and 7000 series processors. It is designed to provide reliable and consistent power delivery for daily productivity, demanding applications, and gaming setups.
Fast Storage & Memory: Support for the latest DDR5 memory allows for massive capacities up to 256GB and fast overclocked speeds up to 7200+ MHz. The board also features two PCIe 4.0 M.2 slots for ultra-fast NVMe SSDs, drastically reducing application loading times and system boot speeds.
Stable Power & Cooling: To maintain system stability under heavy workloads, the motherboard utilizes a robust 12+2+1 Duet Rail Power System. It includes an extended PWM heatsink and an M.2 Shield Frozr to effectively dissipate heat and prevent component thermal throttling during intensive tasks.
Reliable Connectivity: The board comes equipped with comprehensive networking options out of the box. It features built-in Wi-Fi 6E and Bluetooth 5.3 for high-speed wireless connections, alongside a dedicated Realtek 2.5G LAN port for maximum stability during competitive gaming or large file transfers.
Specifications MSI PRO B650-S WIFI Motherboard
| Specification | Details |
| Brand | MSI |
| Model | PRO B650-S WIFI |
| Form Factor | ATX |
| CPU Socket | AMD AM5 |
| Supported CPUs | AMD Ryzen 9000, 8000, and 7000 Series |
| Chipset | AMD B650 |
| Memory | 4x DDR5 Slots, Up to 256GB Max Capacity |
| Memory Speed | Up to 7200+ MHz (Overclocked) |
| Expansion Slots | 2x PCIe 4.0 x16 (Support x16 / x4), 1x PCIe 3.0 x1 |
| Storage | 2x M.2 (PCIe 4.0 x4), 4x SATA 6Gb/s |
| Networking | Realtek 2.5G LAN |
| Wireless | AMD Wi-Fi 6E & Bluetooth 5.3 |
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
| Rear I/O Ports | 1x HDMI 2.1, 1x DisplayPort 1.4, 1x USB 3.2 Gen 2×2 Type-C, 3x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1 Type-A, 1x 2.5G LAN, Audio Jacks, Wi-Fi Antenna |
