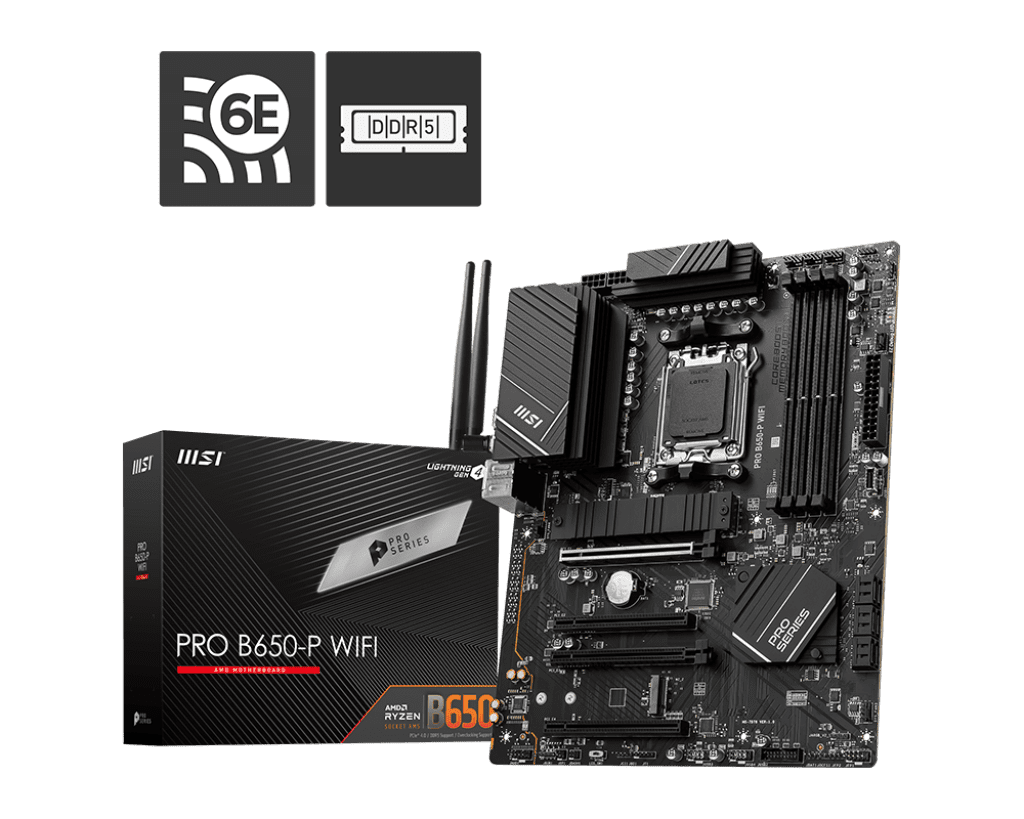

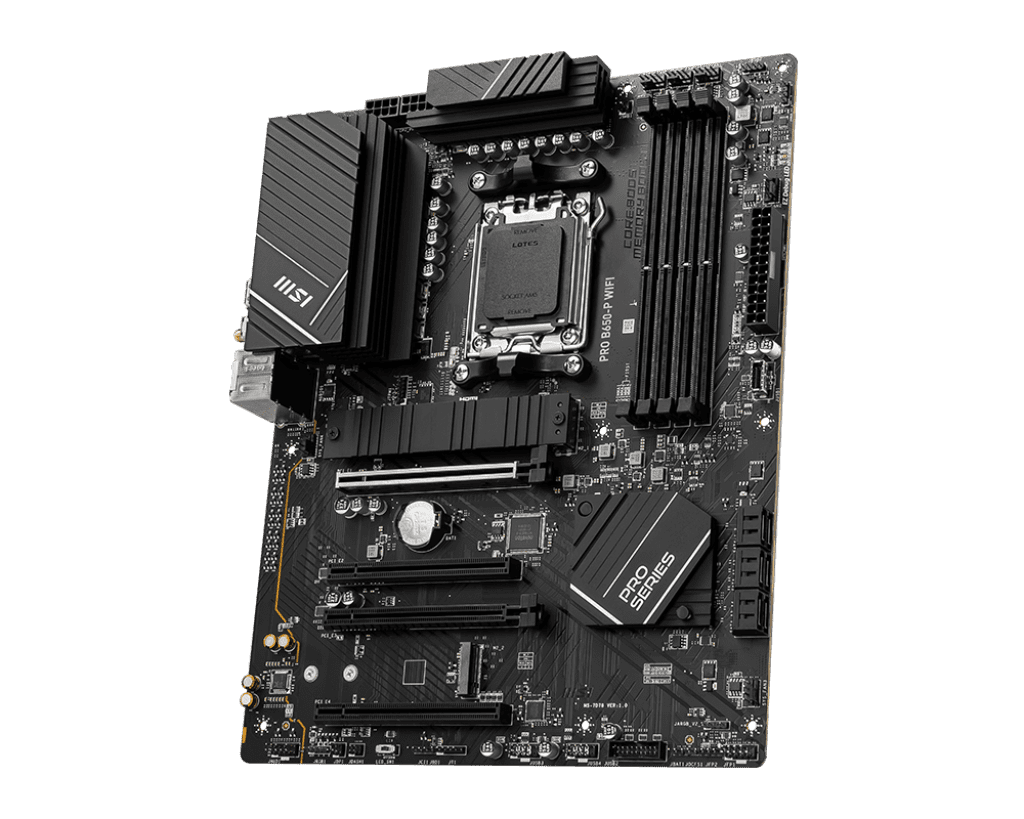

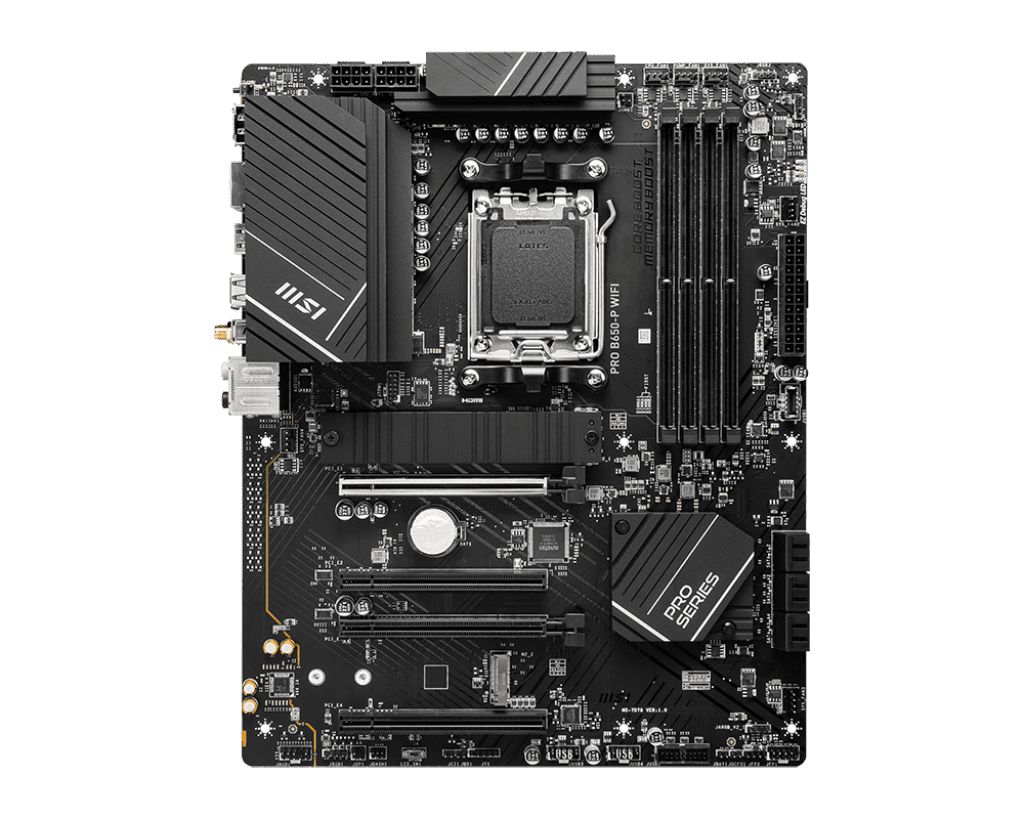

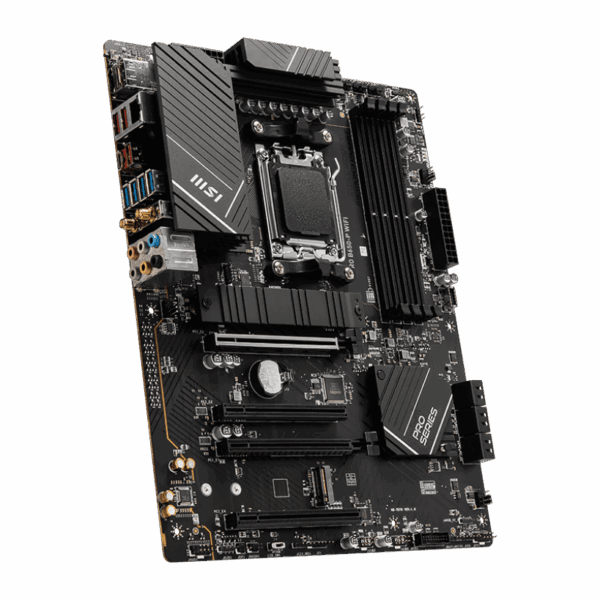

About MSI Pro B650‑P WiFi ATX Motherboard AM5 DDR5
The MSI Pro B650-P WiFi is designed for professional and productive use. Performance, stability, and contemporary connectivity are all balanced in this affordable package, which is based on the AMD B650 chipset and supports Ryzen 7000/8000 processors. Support for 4× DDR5 DIMM slots allows for up to 128 GB of memory and overclocks to 7600+ MHz, making it perfect for multi-threaded applications and demanding productivity workloads. Two Gen4 M.2 slots, up to six SATA 6 Gb/s ports for legacy drives, and PCIe 5.0 M.2 for future-ready NVMe storage provide cutting-edge connectivity.

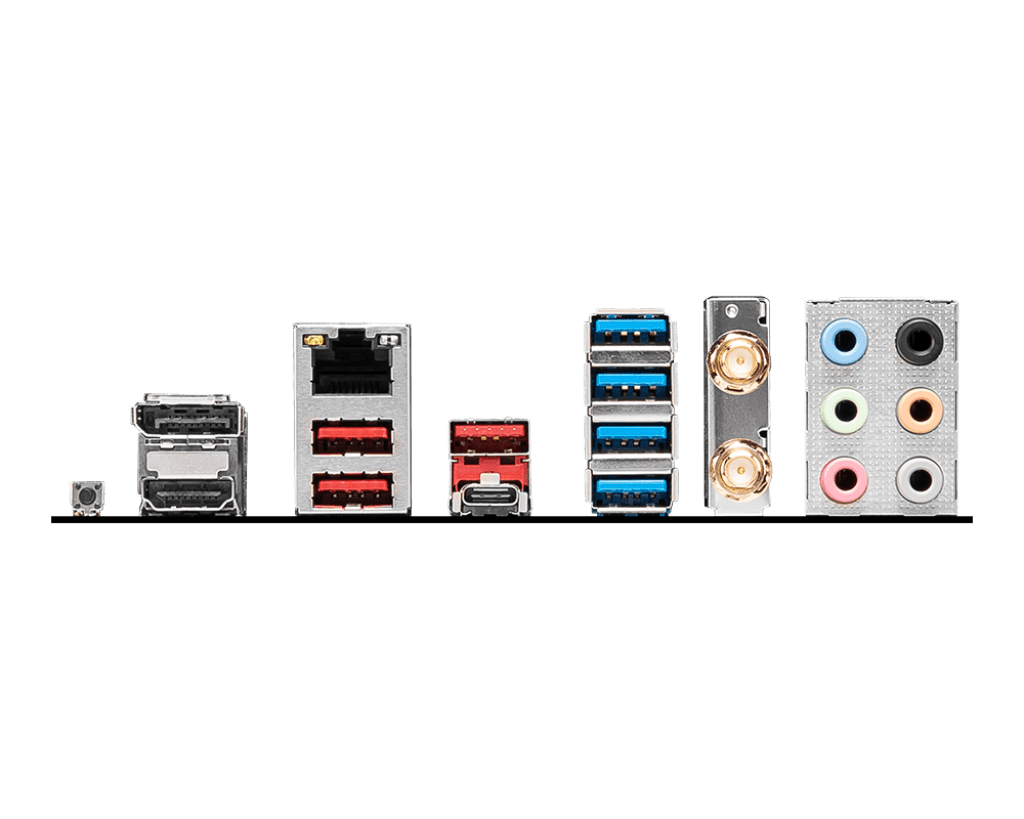

With Wi-Fi 6E, Bluetooth 5.2, and 2.5G LAN, networking is flexible and appropriate for offices, remote work arrangements, and hybrid settings. USB 2.0, USB 3.2 Gen2 Type-A and Type-C ports, and a dependable HDMI 2.1 + DisplayPort 1.4 combination for display flexibility are all located on the back panel. Extended heatsinks and a 12+2+1 VRM layout are used to deliver power for reliable performance, and a USB-C front-panel header and support for AMD EXPO memory profiles enhance connectivity.
The pre-installed I/O shield, diagnostic LEDs, Flash BIOS button, and dual BIOS support are pro-focused features that make future CPU updates, maintenance, and installation simple and long-lasting. For status indicators or simple lighting, RGB headers are available.
Features of the MSI Pro B650‑P WiFi ATX Motherboard AM5 DDR5
Feature | Specification |
---|---|
Chipset / Socket | AMD B650 / AM5 |
CPU Compatibility | Ryzen 7000 / 8000 Series |
Form Factor | ATX |
Memory Support | 4× DDR5 DIMM, up to 128 GB, OC up to 7600+ MHz |
Power Design | 12+2+1 VRM with efficient thermal cooling |
PCIe Slots | PCIe 4.0 x16 (Steel Armor), PCIe 3.0 x1 |
M.2 Slots | 1× PCIe 5.0 x4, 2× PCIe 4.0 x4; all with heatsinks |
SATA Ports | 6× SATA 6 Gb/s |
Networking | 2.5G LAN, Wi‑Fi 6E, Bluetooth 5.2 |
USB Connectivity | USB 3.2 Gen2 Type-C, USB 3.2 Gen2/Gen1 Type-A, USB 2.0 |
Display Outputs | HDMI 2.1, DisplayPort 1.4 |
Audio Codec | Realtek ALC897 with Audio Boost |
Cooling Features | Extended heatsinks, M.2 Shield Frozr, active airflow channels |
Build & Maintenance | Pre-installed I/O shield, Flash BIOS, EZ Debug LEDs, USB C front-header |
Extras | Supports AMD EXPO profiles, dual BIOS compatibility |
Ideally Best For
- Office/Workstation PCs needing reliability and Ryzen performance
- Content creators who require fast storage and high memory throughput
- Hybrid remote work setups with advanced wireless networking
- Entry-level AMD PV builders looking for modern connectivity
- DIY system integrators seeking a professional-grade, update-friendly board
Buy MSI Pro B650‑P WiFi ATX Motherboard AM5 DDR5 | PCIe 5.0 M.2, Dual M.2 Gen4 Online Today.
