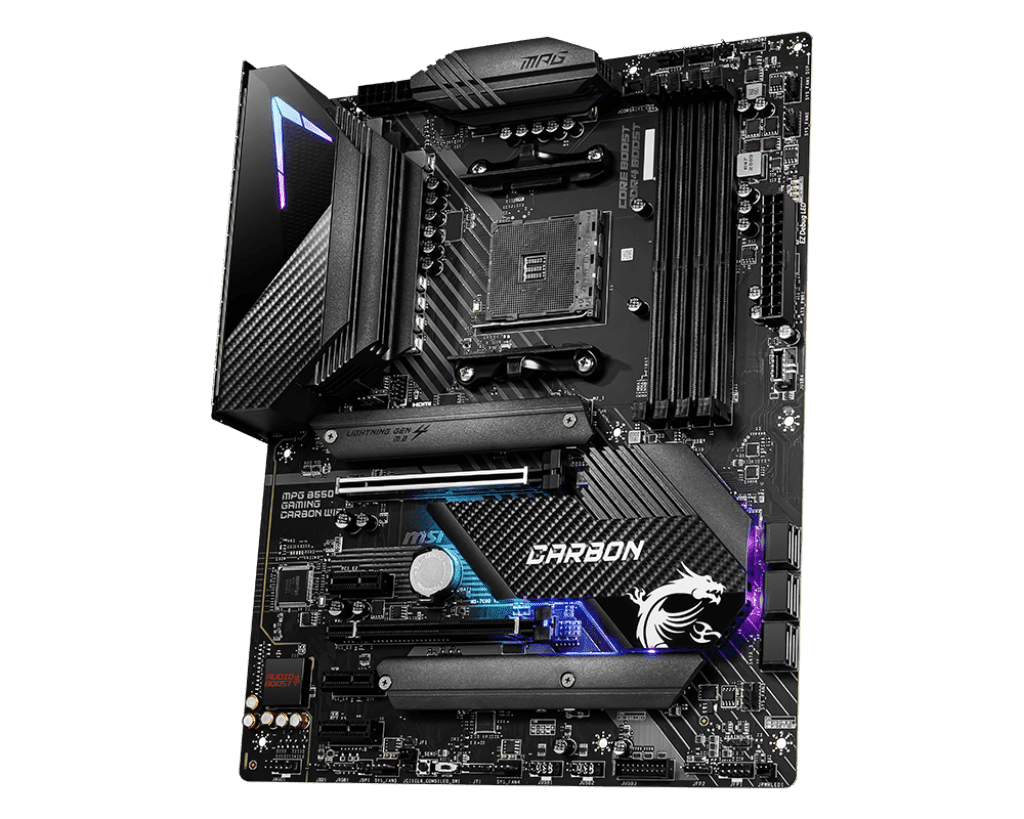

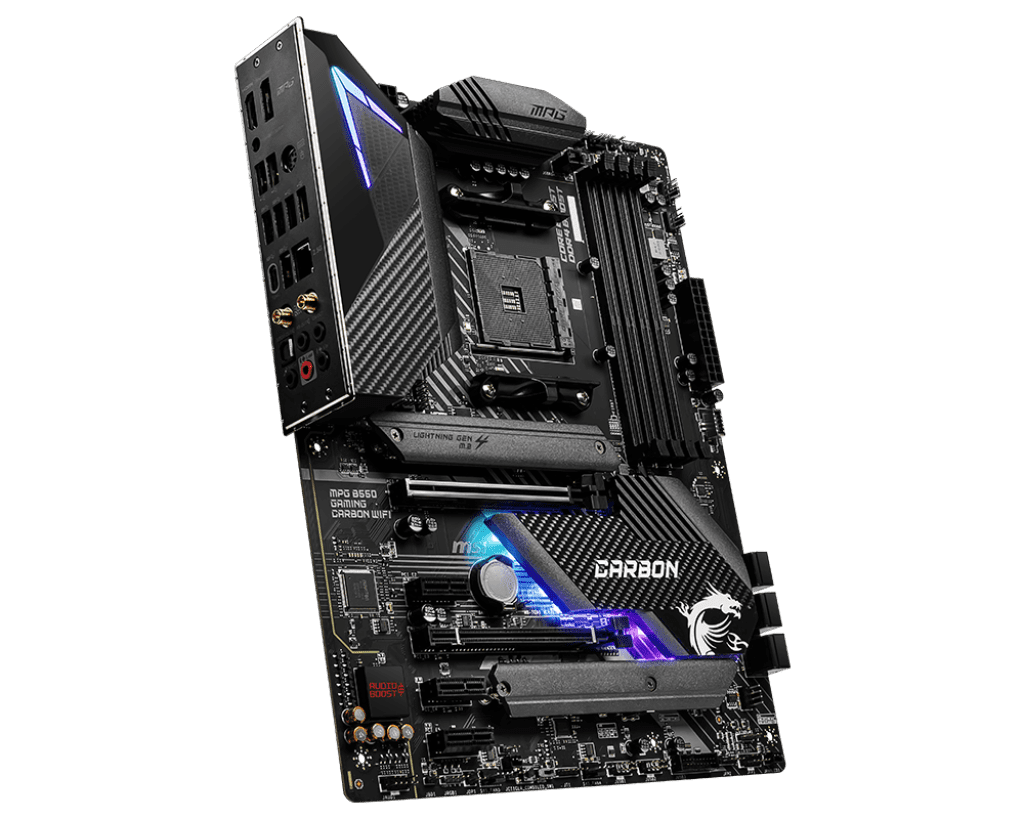

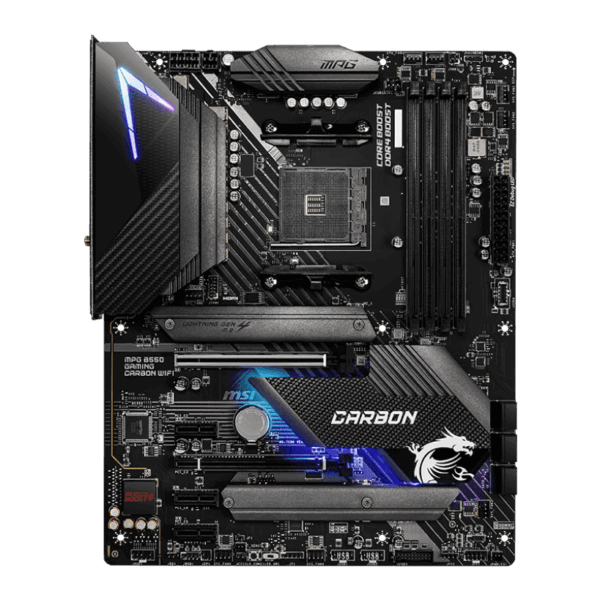

About MSI MPG B550 Gaming Carbon WiFi ATX Motherboard
A robust and fashionable ATX motherboard designed for AMD Ryzen 3000 and 5000 series processors is the MSI MPG B550 Gaming Carbon WiFi. It is ideal for high-performance gaming or productivity builds because it is built on the B550 chipset and AM4 socket and offers state-of-the-art PCIe 4.0 support, fast wireless networking, and memory that is ready for overclocking.
The board’s 4× DDR4 DIMM slots allow for up to 128 GB of RAM, which can be overclocked to 5100 MHz, providing users with the speed they need for seamless multitasking, streaming games, and creating content. Even under demanding overclocking conditions, clean power delivery is guaranteed by the sturdy 12 2 1 power phase VRM.
The motherboard has two M.2 slots: a Gen3 x4 PCIe slot for more NVMe drives and a Gen4 x4 PCIe slot with Shield Frozr heatsink for incredibly fast SSDs. Additionally, it has 6× SATA 6Gb/s ports for RAID configurations and conventional hard drives. With a PCIe 4.0 x16 Steel Armour slot for large GPUs and extra PCIe 3.0 slots for other expansion cards, graphics and expansion are future-proof.

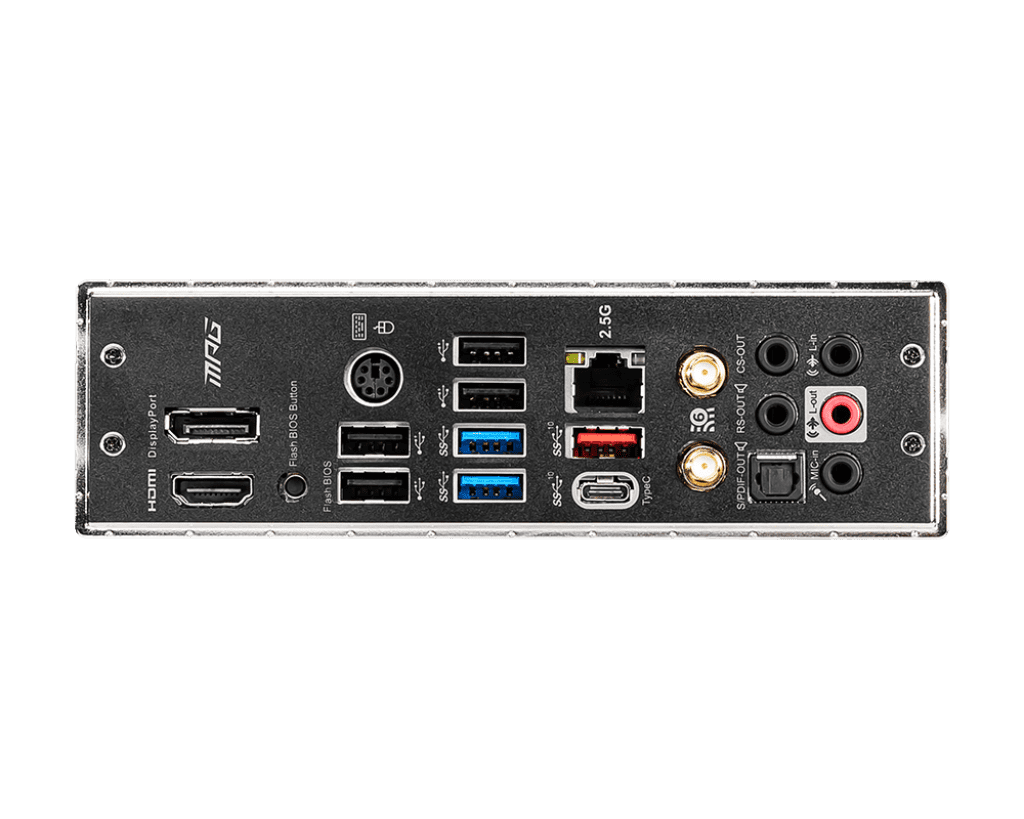

Another highlight is connectivity. 2.5G LAN, Bluetooth 5.1, and built-in Wi-Fi 6 guarantee lag-free networking for productivity and gaming. High-speed USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0, and USB Type-C are available to users on the rear I/O, making them ideal for contemporary peripherals and quick data transfers.
Features of the MSI MPG B550 Gaming Carbon WiFi ATX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | AMD B550 / AM4 |
| CPU Compatibility | Ryzen 3000 & 5000 Series |
| Form Factor | ATX |
| Memory Support | 4× DDR4, up to 128 GB, up to 5100 MHz (OC) |
| Power Phases | 12 2 1 VRM with Core Boost, 8 4 pin CPU connectors |
| PCIe Slots | 1× PCIe 4.0 x16 (Steel Armor), 1× PCIe 3.0 x16, 3× PCIe 3.0 x1 |
| M.2 Slots | 2× (1× Gen4 x4, 1× Gen3 x4) with heatsinks |
| SATA Ports | 6× SATA 6 Gb/s |
| Networking | 2.5G LAN, Wi‑Fi 6, Bluetooth 5.1 |
| USB Ports | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0, USB Type-C |
| Audio | 7.1 HD Audio, Realtek ALC1200 |
| RGB Support | Mystic Light, ARGB & RGB headers |
| Cooling | Extended heatsinks, M.2 Shield Frozr, 6-layer PCB |
| Build Tools | BIOS Flash Button, EZ Debug LEDs, Pre-installed I/O Shield |
Ideally Best For
-
Gaming enthusiasts who need PCIe 4.0 and high-speed DDR4
-
Content creators looking for reliable M.2 performance and fast connectivity
-
Performance builders seeking a solid Ryzen AM4 platform with advanced networking
-
RGB-focused setups that demand visual customisation and aesthetics
-
DIY PC builders who value VRM strength, build quality, and ease of assembly
Buy MSI MPG B550 Gaming Carbon WiFi ATX Motherboard AM4 DDR4 | PCIe 4.0, Dual M.2, Wi‑Fi 6 Online Today.
