MSI MEG Z790 ACE Max DDR5 ATX Motherboard Intel LGA 1700 DDR5 | PCIe 5.0, Triple M.2 Gen4
MSI MEG Z790 ACE Max DDR5 ATX Motherboard Intel LGA 1700 DDR5 | PCIe 5.0, Triple M.2 Gen4
Original price was: ₹74,620.00.₹72,859.00Current price is: ₹72,859.00.
Out of stock
MSI MEG Z790 ACE Max DDR5 ATX is a motherboard for Intel 12th–14th Gen processors. Packed with DDR5 support, PCIe 5.0 GPU slot, triple Gen4 M.2 SSD support, Wi‑Fi 6E, Bluetooth 5.3, high-speed USB-C, and robust VRM.
About MSI MEG Z790 ACE Max DDR5 ATX Motherboard
A premium ATX motherboard designed for enthusiasts and performance-seekers is the MSI MEG Z790 ACE Max DDR5. It supports 12th, 13th, and 14th Gen Intel CPUs and offers future-oriented features and extreme overclocking potential thanks to its Intel Z790 chipset and LGA 1700 socket. With DDR5 support up to 7800+ MHz (OC) across four DIMM slots, memory performance reaches new heights and is ideal for demanding multitasking, content creation, and high-end gaming.
The board is prepared for next-generation graphics cards thanks to its reinforced PCIe 5.0 x16 slot. Triple M provides good storage coverage. Six SATA 6 Gb/s ports for conventional storage options and two Gen4 x4 slots with thermal shields for blazing-fast NVMe SSDs are included.

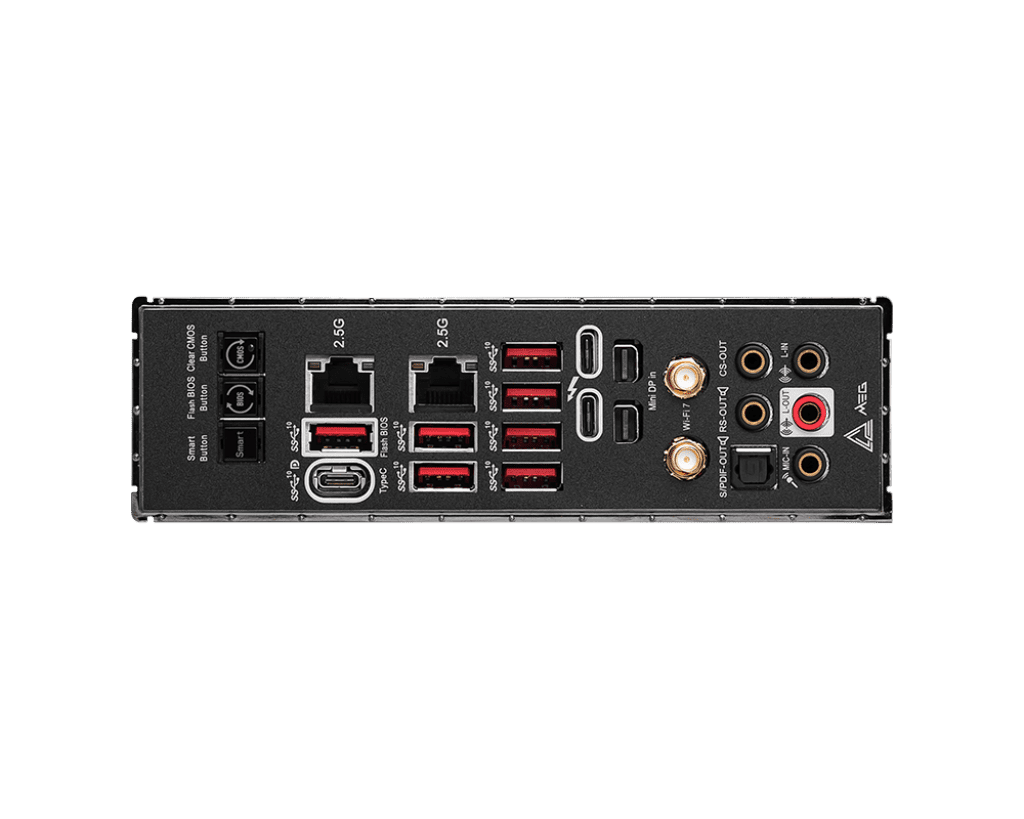

Fast wireless performance and low-latency networking are made possible by built-in Wi-Fi 6E, Bluetooth 5.3, and 2.5G LAN. Users benefit from multiple USB 3.2 Gen2/Gen1 Type-A connectors, USB 2.0 ports, and USB 3.2 Gen2x2 Type-C (20Gbps) on the rear panel. A 16+1+1 Duet Rail VRM design, an 8-layer PCB with 2 ounces of copper, and extended heatsinks with heatpipes and thermal pads ensure stable overclocking and overextended workloads. The power delivery is incredibly reliable.
High-end onboard audio, RGB/ARG headers that can be customised, EZ Debug LEDs, a Flash BIOS button, and an integrated I/O shield are all complementary features that make this board both powerful and easy to assemble. The Z790 ACE Max DDR5 provides superior performance, connectivity, and durability, whether building an enthusiast PC, a high-end gaming setup, or an editing workstation.
Features of the MSI MEG Z790 ACE Max DDR5 ATX Motherboard
| Feature | Specification |
|---|---|
| Chipset / Socket | Intel Z790 / LGA 1700 |
| CPU Support | Intel 12th–14th Gen Core, Pentium, Celeron |
| Form Factor | ATX |
| Memory Support | 4× DDR5 DIMM, up to 128 GB, up to 7800+ MHz (OC) |
| Power Design | 16+1+1 Duet Rail VRM, 8-layer PCB, 2oz copper |
| PCIe Expansion | 1× PCIe 5.0 x16 (Steel Armor), 2× PCIe 3.0 x1 |
| M.2 Storage | 3× Gen4 x4 M.2 with heatsinks |
| SATA Ports | 6× SATA 6 Gb/s |
| Networking | 2.5G LAN, Intel Wi‑Fi 6E, Bluetooth 5.3 |
| USB Ports | USB 3.2 Gen2x2 Type‑C, USB 3.2 Gen2/Gen1, USB 2.0 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4 (for CPUs with iGPU) |
| Audio | 7.1 High-Definition Audio with Audio Boost technology |
| Cooling Design | Extended heatsinks, M.2 Shield, heatpipes, thermal pads |
| Build Tools | Flash BIOS Button, EZ Debug LEDs, pre-installed I/O shield, RGB headers |
Ideally Best For
- High-end gaming PCs with DDR5 and PCIe 5.0 GPU support
- Content creators & streamers needing high-speed memory and storage
- Performance builders using Intel 13th/14th Gen CPUs
- DIY enthusiasts looking for reliability, excellent thermals, and overclocking headroom
