About MSI MAG Z790 TOMAHAWK WIFI DDR4 Motherboard
Reliable Power and Compatibility: Built on the Intel LGA 1700 socket and Z790 chipset, this motherboard effortlessly supports 14th, 13th, and 12th Gen Intel Core processors. It is equipped with a premium 16+1+1 Duet Rail Power System utilizing 90A Smart Power Stages. This ensures your high-end processor receives clean, stable power even during demanding gaming sessions and heavy multitasking workloads.
High-Speed Storage and DDR4 Support: Maximize your system capabilities with native support for DDR4 memory, reaching overclocked speeds of up to 5333+ MHz. The board also features a PCIe 5.0 x16 slot for next-generation graphics cards, alongside four PCIe 4.0 M.2 slots. This provides massive storage potential and ultra-fast data transfer speeds, drastically reducing game load times and speeding up large file transfers.
Advanced Cooling Features: Thermal throttling is completely prevented through an extensive and premium cooling solution. The motherboard features an extended VRM heatsink, premium 7W/mK thermal pads, and an enlarged chipset heatsink. Additionally, all M.2 slots are covered by MSI’s Shield Frozr technology, which protects your fast NVMe SSDs and keeps them operating at maximum speed without overheating.

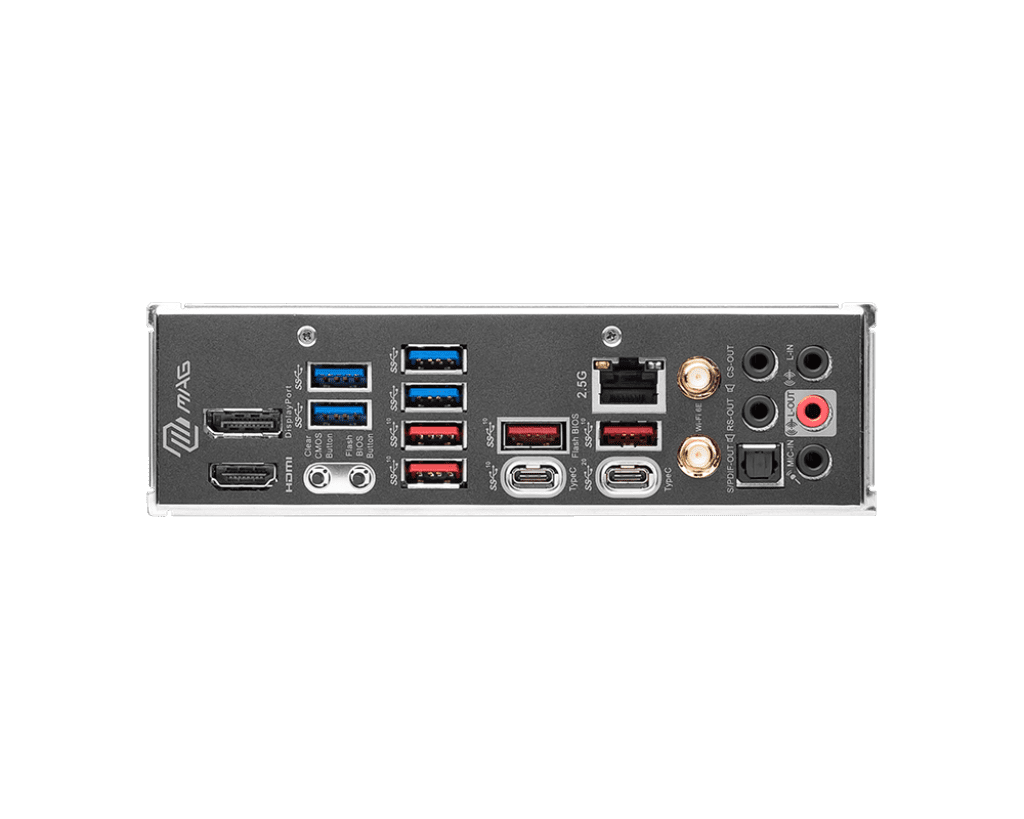

Next-Generation Connectivity: Connect all your modern peripherals with ease. The rear I/O includes a blazing-fast USB 3.2 Gen 2×2 Type-C port offering 20Gbps transmission speeds. For networking, you get the combined advantage of an ultra-low latency Intel Wi-Fi 6E module with Bluetooth 5.3 support, and a dedicated Intel 2.5G LAN port for a secure, stable, and fast wired connection.
Specifications MSI MAG Z790 TOMAHAWK WIFI DDR4 Motherboard
| Specification | Details |
| Brand | MSI |
| Model | MAG Z790 TOMAHAWK WIFI DDR4 |
| Form Factor | ATX |
| CPU Socket | Intel LGA 1700 |
| Supported CPUs | 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron |
| Chipset | Intel Z790 |
| Memory | 4x DDR4 Slots, Up to 128GB Max Capacity |
| Memory Speed | Up to 5333+ MHz (Overclocked) |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (Supports x4 mode), 1x PCIe 3.0 x1 |
| Storage | 4x M.2 (PCIe 4.0 x4), 7x SATA 6Gb/s |
| Networking | Intel 2.5G LAN |
| Wireless | Intel Wi-Fi 6E and Bluetooth 5.3 |
| Audio | Realtek ALC4080 Codec, 7.1-Channel High Performance Audio |
| Power Design | 16+1+1 Duet Rail Power System (90A SPS) |
| Rear I/O Ports | 1x USB 3.2 Gen 2×2 Type-C, 1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1 Type-A, 1x HDMI 2.1, 1x DisplayPort 1.4, 1x 2.5G LAN, Audio Jacks, Optical S/PDIF, Wi-Fi Antenna |
