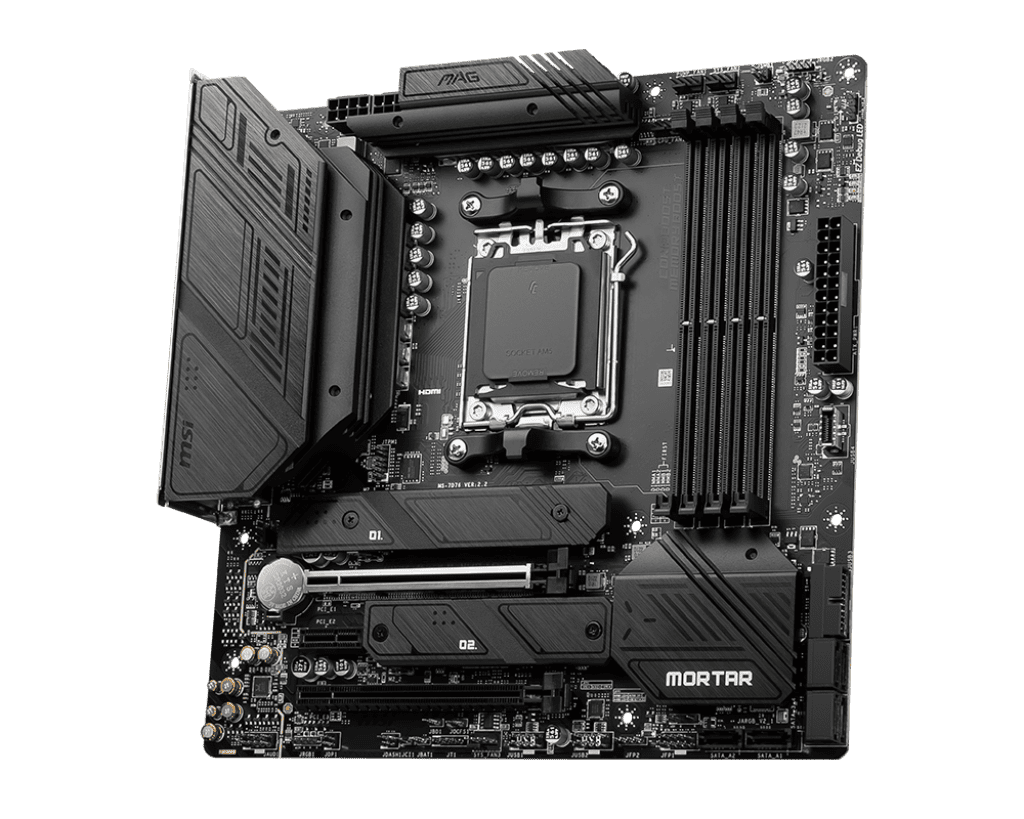

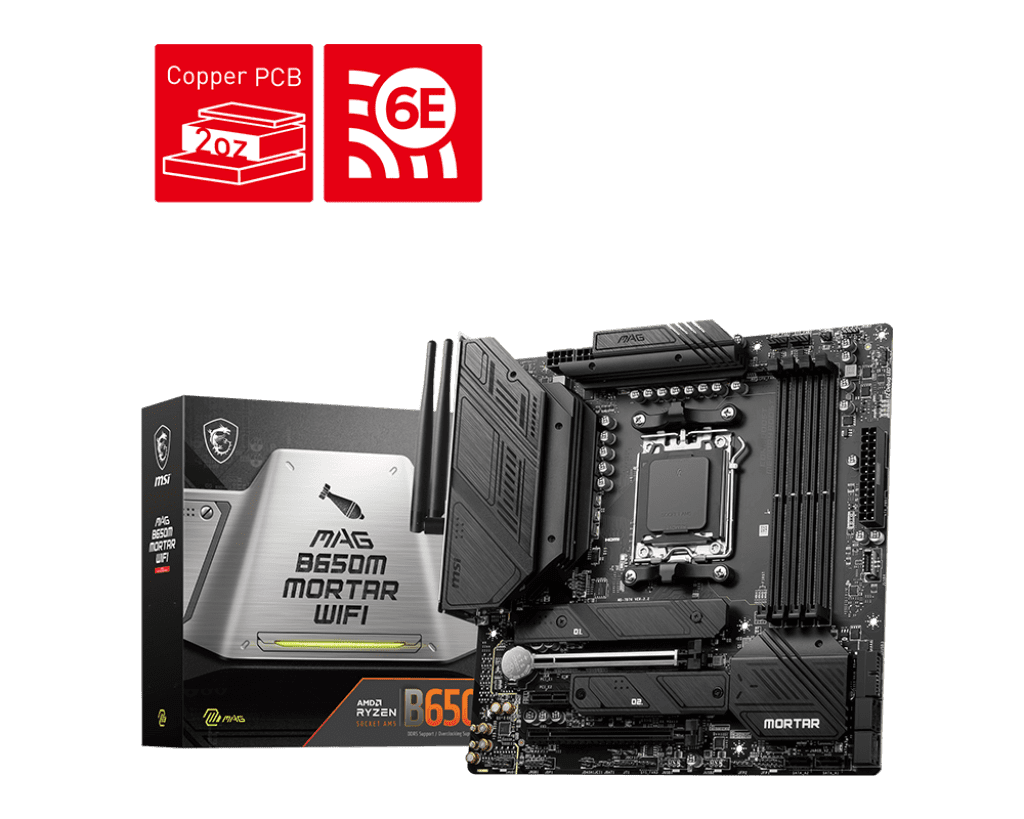

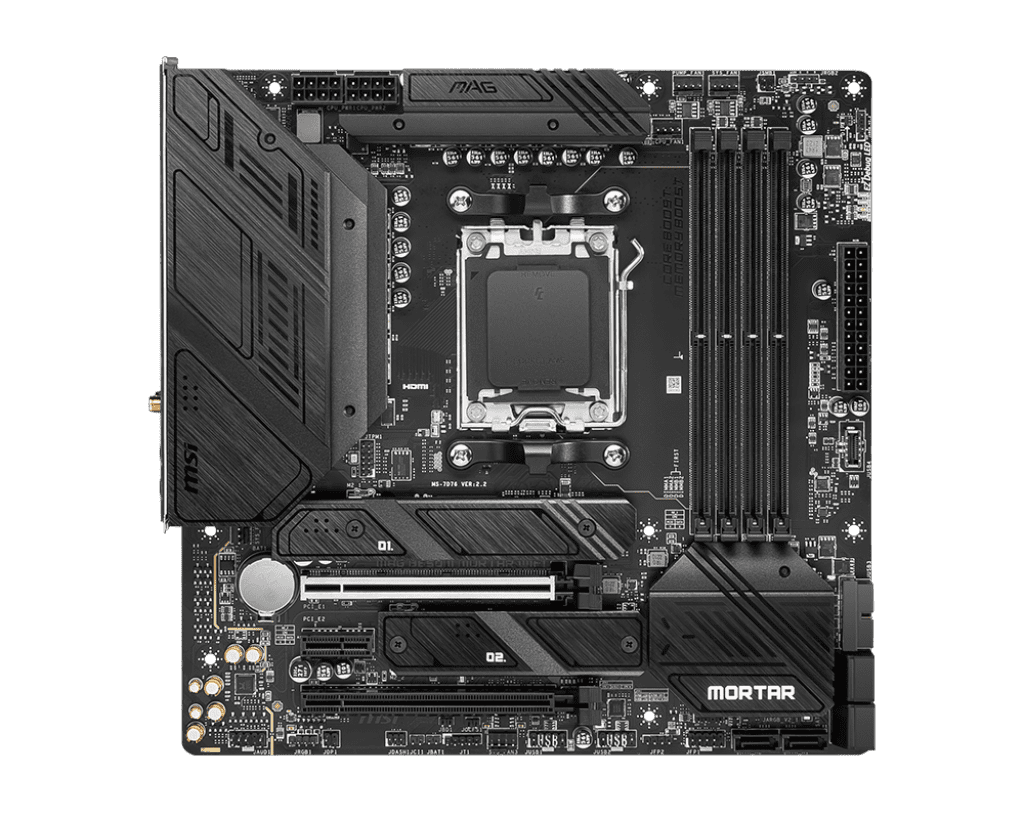

MSI MAG B650M MORTAR WIFI Motherboard (Micro-ATX, AMD AM5, DDR5, PCIe 4.0, Wi-Fi 6E)

About MSI MAG B650M MORTAR WIFI Motherboard

Reliable Power and Compatibility: Engineered for the AMD AM5 socket and B650 chipset, this motherboard effortlessly supports the latest AMD Ryzen 9000, 8000, and 7000 series desktop processors. It is equipped with a heavy-duty 12+2+1 Duet Rail Power System utilizing 80A Smart Power Stages, ensuring your high-end CPU receives clean and stable power even during demanding gaming sessions and heavy multitasking.

High-Speed Memory and Storage: Maximize your system speed with native support for the latest DDR5 memory, reaching overclocked speeds of 7600+ MHz. The board also features two Lightning Gen4 M.2 slots utilizing a PCIe 4.0 x4 interface. This provides up to 64Gbps of bandwidth for ultra-fast NVMe SSDs, drastically reducing game load times and speeding up large file transfers.

Advanced Cooling Features: Thermal throttling is completely prevented through an extensive cooling solution. The motherboard features an extended PWM heatsink and premium 7W/mK thermal pads to keep the VRMs cool under heavy loads. Additionally, both M.2 slots are covered by MSI’s Shield Frozr technology, which protects your SSDs and keeps them operating at maximum speed without overheating.

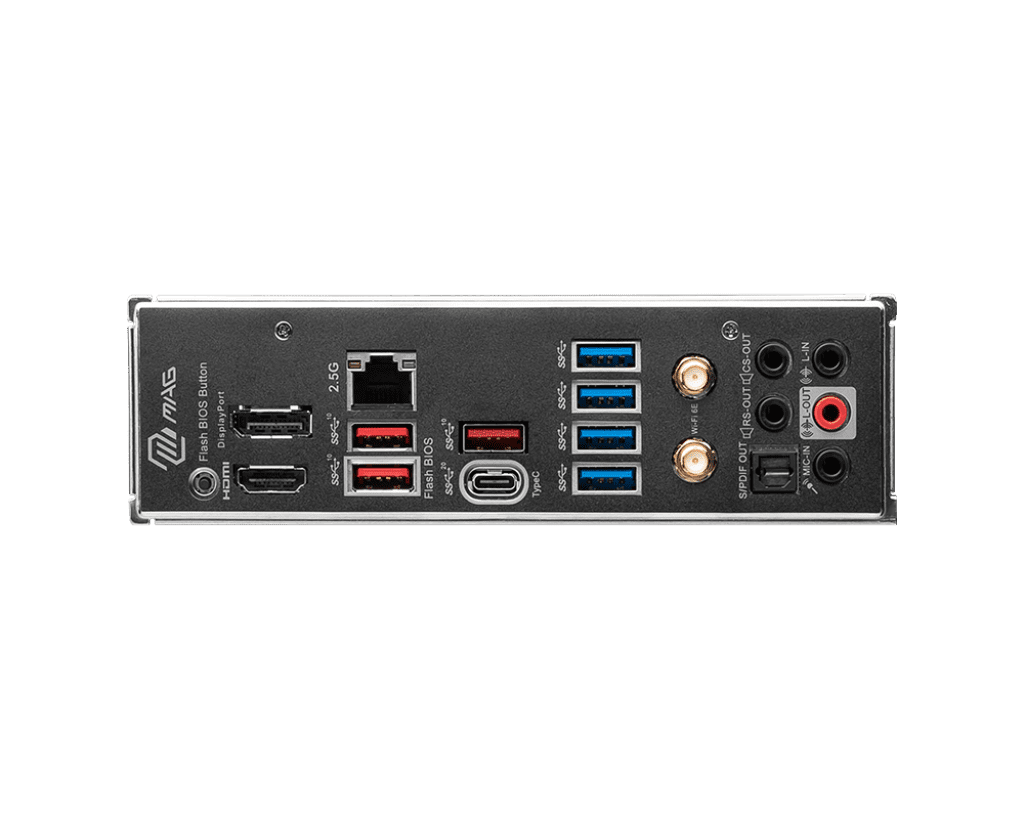

Next-Generation Connectivity: Connect all your modern peripherals with ease. The rear I/O includes a blazing-fast USB 3.2 Gen 2×2 Type-C port offering 20Gbps transmission speeds. For networking, you get the combined advantage of an ultra-low latency AMD Wi-Fi 6E module with Bluetooth support and a dedicated Realtek 2.5G LAN port for a secure, stable, and fast wired connection.

Specifications MSI MAG B650M MORTAR WIFI Motherboard
