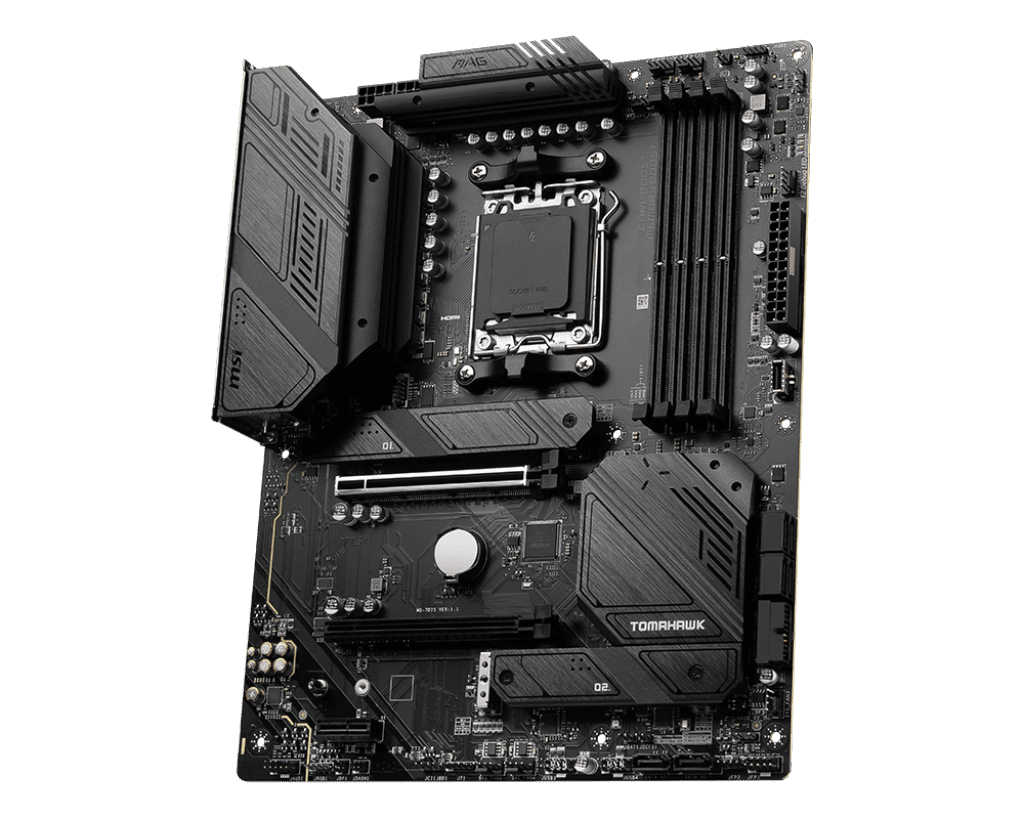

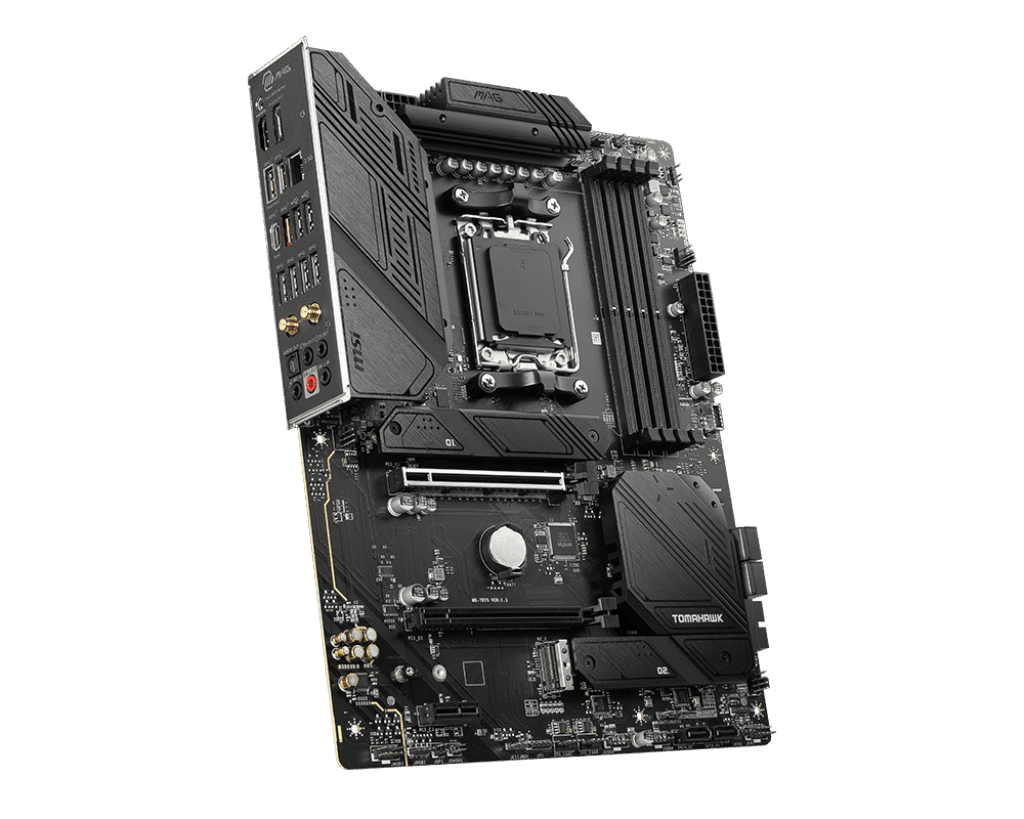

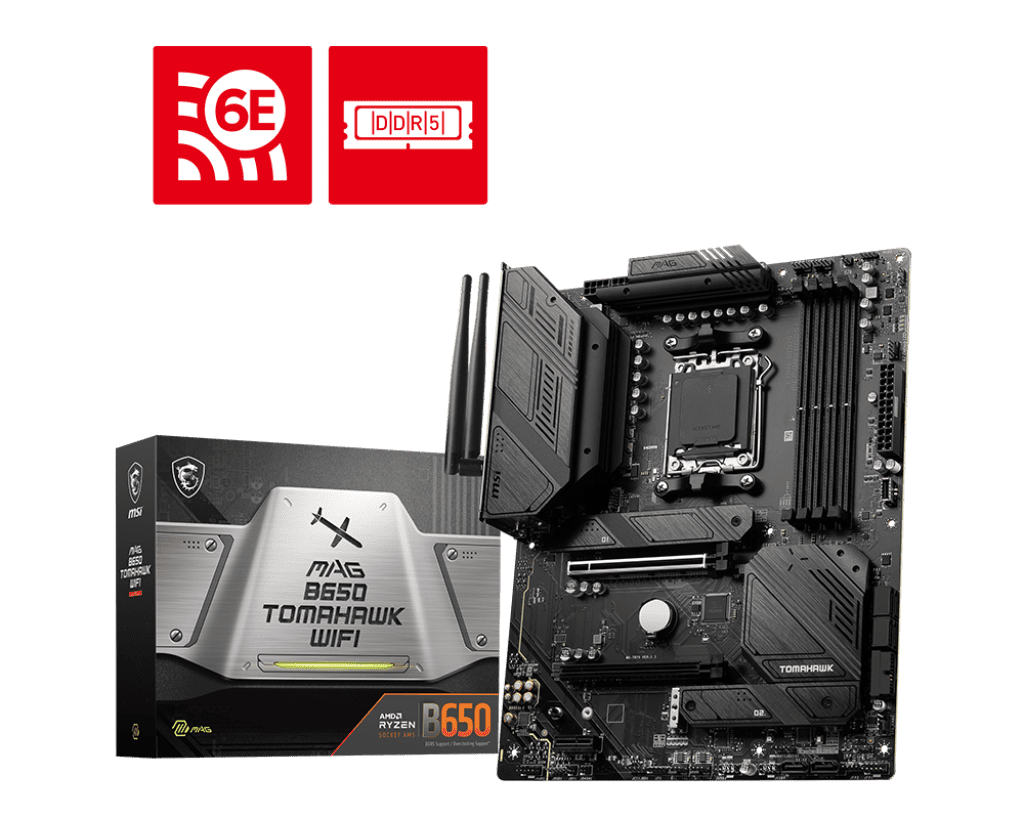

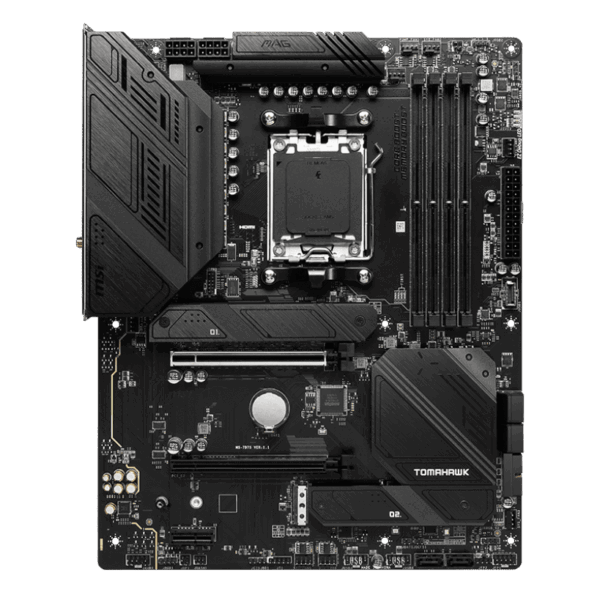

About MSI MAG B650 Tomahawk WiFi Gaming ATX Motherboard AM5
A potent AM5 platform, the MSI MAG B650 Tomahawk WiFi Gaming Motherboard was created to fully utilise AMD Ryzen 7000 series processors. This ATX board, which is based on the B650 chipset, strikes a balance between connectivity, performance, and thermal durability for both content producers and gamers. With support for up to 128 GB of DDR5 RAM, it enables 6600+ MHz (OC) speeds for memory-intensive applications such as streaming, competitive gaming, and 3D rendering. It guarantees quick and steady memory performance with DDR5 Boost technology and optimised trace routing.

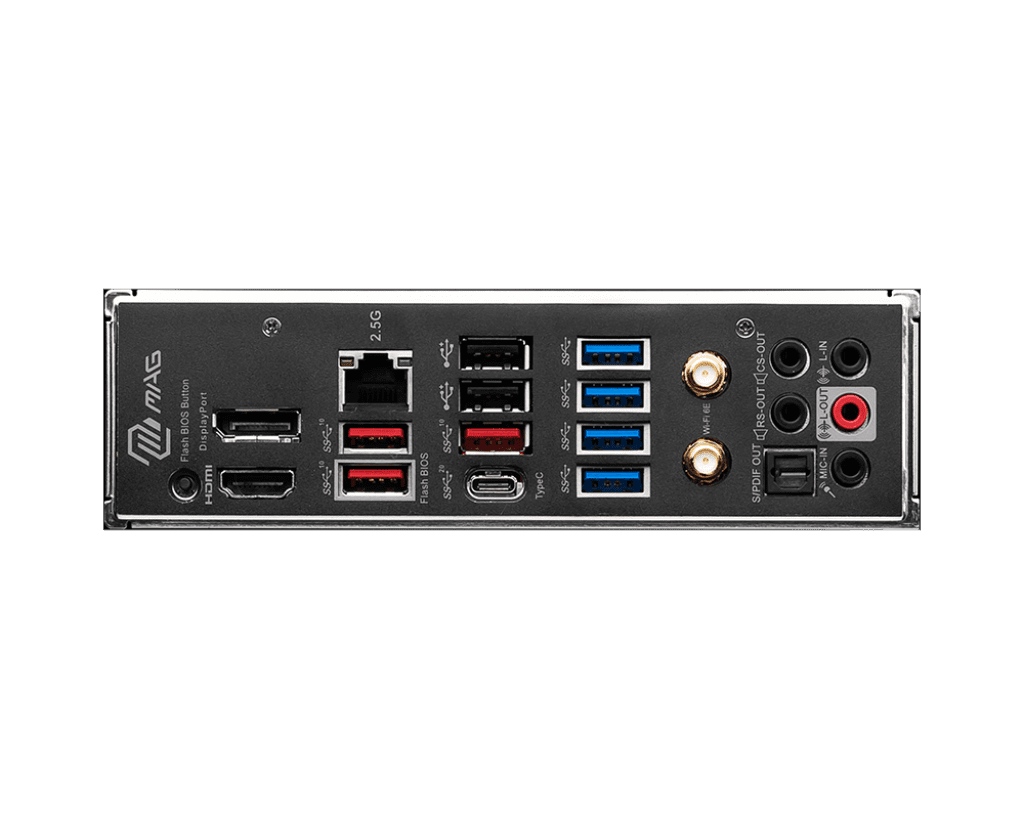

With dual PCIe 4.0 x4 M.2 slots (with heatsinks) and SATA 6 Gb/s ports, storage is both flexible and fast, enabling you to combine high-capacity HDDs with quick NVMe SSDs. A reinforced PCIe 4.0 x16 Steel Armor slot that is compatible with contemporary GPUs is advantageous for graphics cards. Wi-Fi 6E, 2.5G LAN, and Bluetooth 5.3 provide seamless wireless connectivity, making networking and I/O completely future-ready. In addition to HDMI and DisplayPort support for integrated graphics output, the rear panel has USB 3.2 Gen2x2 Type-C (20Gbps) for fast external devices.
Even under high loads, cool and clean power delivery is guaranteed by MSI’s patented 14+2+1 Duet Rail Power System, extended heatsinks, M.2 Shield Frozr, and 6-layer PCB with 2 oz copper. Features that are build-friendly and diagnostic include a BIOS for Flash
Features of the MSI MAG B650 Tomahawk WiFi Gaming ATX Motherboard AM5
Feature | Specification |
---|---|
Chipset / Socket | AMD B650 / AM5 |
CPU Support | AMD Ryzen 7000 Series (Zen 4 architecture) |
Form Factor | ATX |
Memory Support | 4× DDR5 DIMM, up to 128 GB, 6600+ MHz (OC) |
Power Phases | 14+2+1 Duet Rail VRM, Digital PWM, Core Boost |
PCIe Expansion | 1× PCIe 4.0 x16 (Steel Armor), 2× PCIe 3.0 x1 |
M.2 Storage | 2× M.2 Gen4 x4 with heatsinks |
SATA Ports | 4× SATA 6 Gb/s |
Networking | 2.5G LAN, Wi‑Fi 6E, Bluetooth 5.3 |
USB Ports | USB 3.2 Gen2x2 Type-C, USB 3.2 Gen1, USB 2.0 |
Display Outputs | HDMI, DisplayPort (requires Ryzen with iGPU) |
Audio | 7.1 HD Audio with Audio Boost |
Cooling Design | Extended heatsinks, M.2 Shield Frozr, 6-layer PCB |
Extra Features | Flash BIOS Button, EZ Debug LEDs, RGB headers |
Ideally Best For
- Enthusiast Gamers using Ryzen 7000 and high-end DDR5 RAM
- Content Creators who need Gen4 NVMe storage and fast memory
- Next-Gen Builders transitioning to AM5 with future-proof features
- Overclockers & Streamers demanding reliable power and cooling
- Wireless Users needing Wi‑Fi 6E, Bluetooth 5.3, and high-speed USB-C
Buy MSI MAG B650 Tomahawk WiFi Gaming ATX Motherboard AM5, DDR5 | PCIe 4.0, Wi‑Fi 6E, 2.5G LAN, USB-C Gen2x2 Online Today.
