MSI MAG B550M Mortar Max WiFi mATX Motherboard AM4, DDR4 | PCIe 4.0, Dual M.2, Wi‑Fi 6E, 2.5G LAN
MSI MAG B550M Mortar Max WiFi mATX is a micro-ATX motherboard designed for AMD Ryzen 3000/4000/5000 processors. Comes with DDR4 OC support, dual Gen4 M.2 slots, Wi‑Fi 6E, Bluetooth 5.2, and 2.5G LAN—perfect for compact gaming and creator builds.
Original price was: ₹16,146.00.₹15,765.00Current price is: ₹15,765.00.
Out of stock
Out of stock
20
People watching this product now!
Payment Methods:
Description

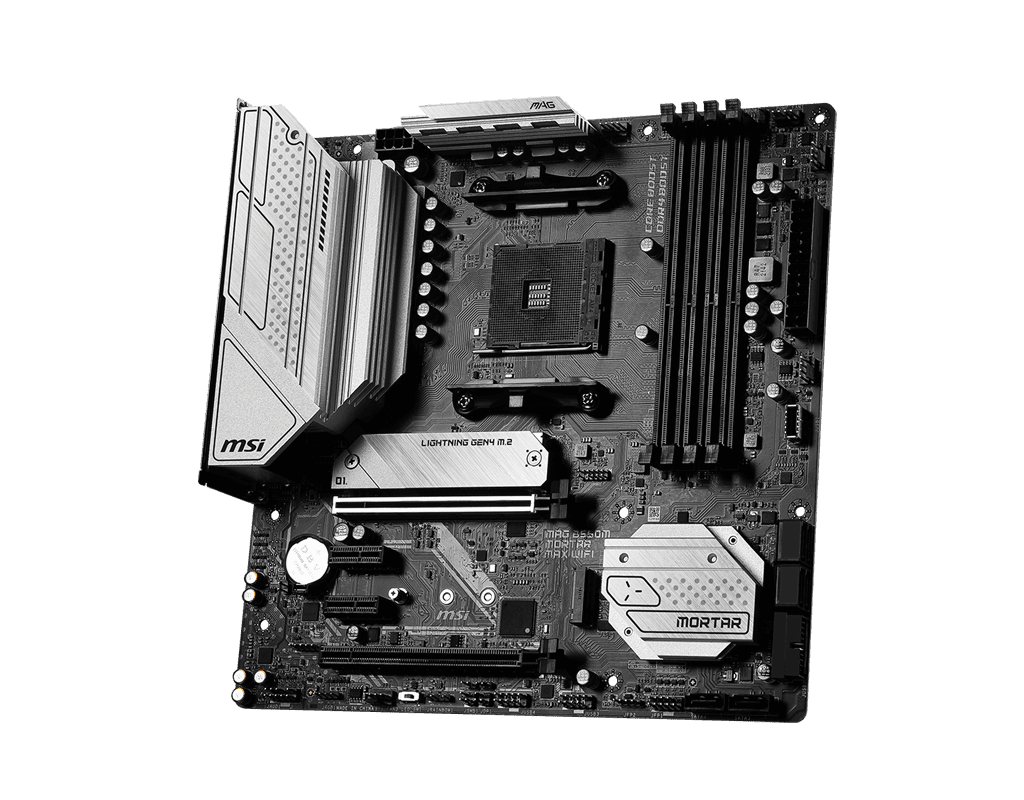

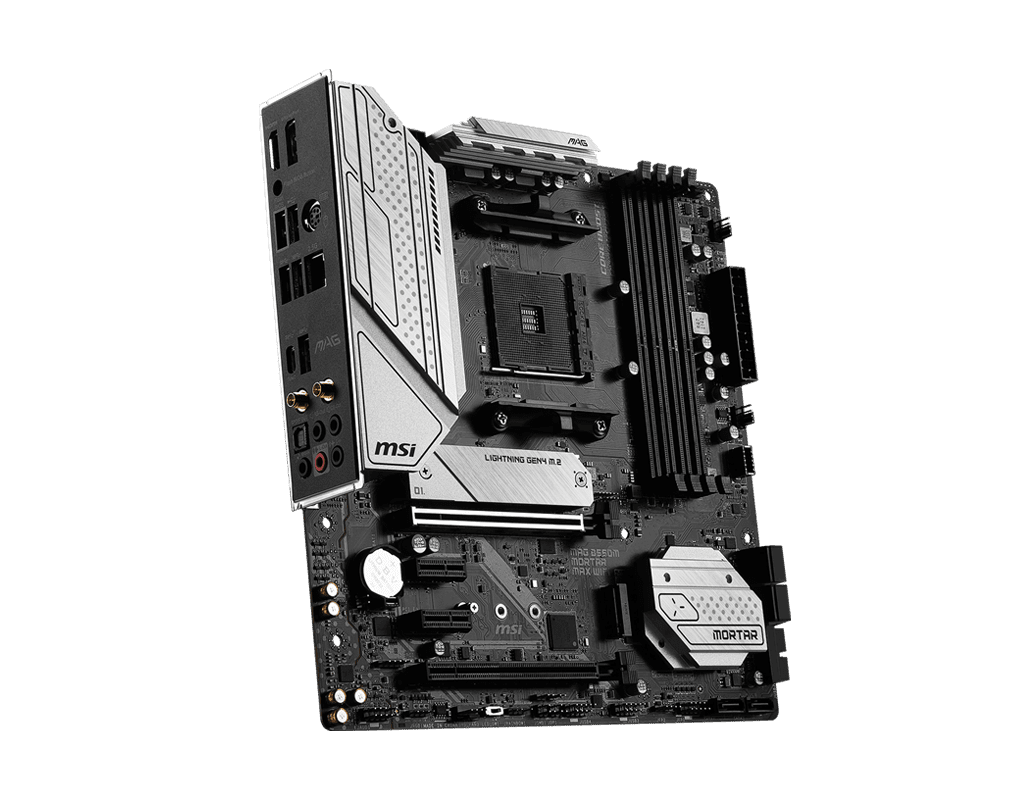

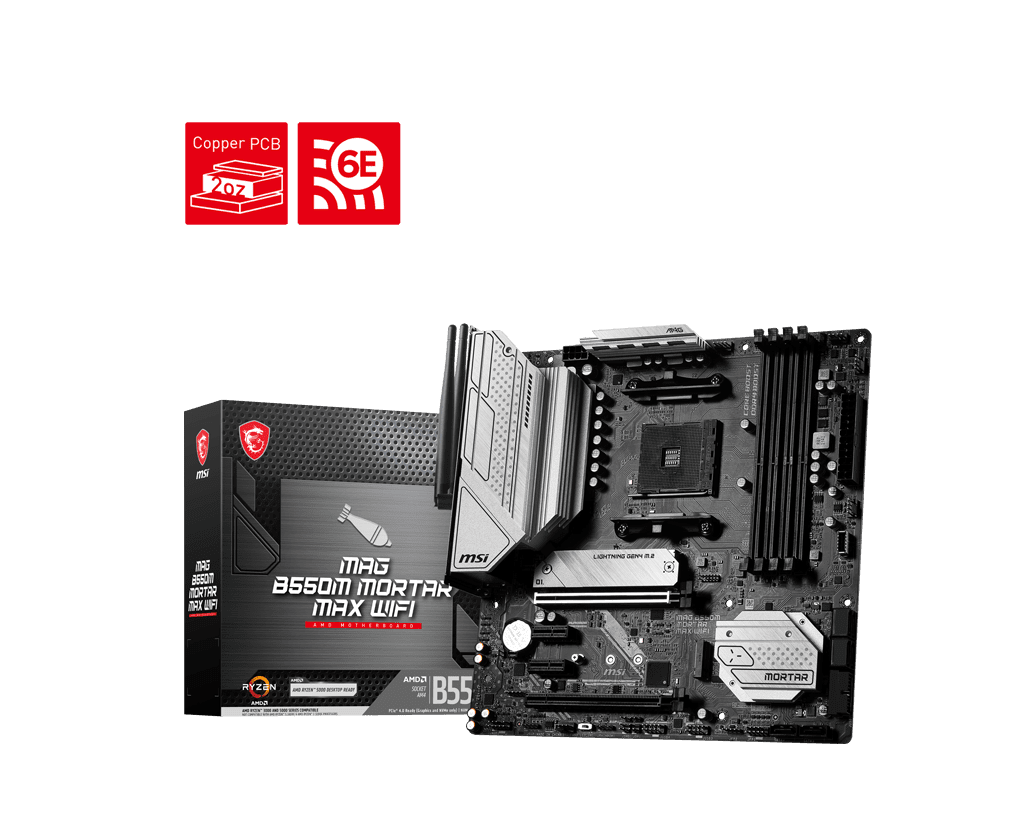

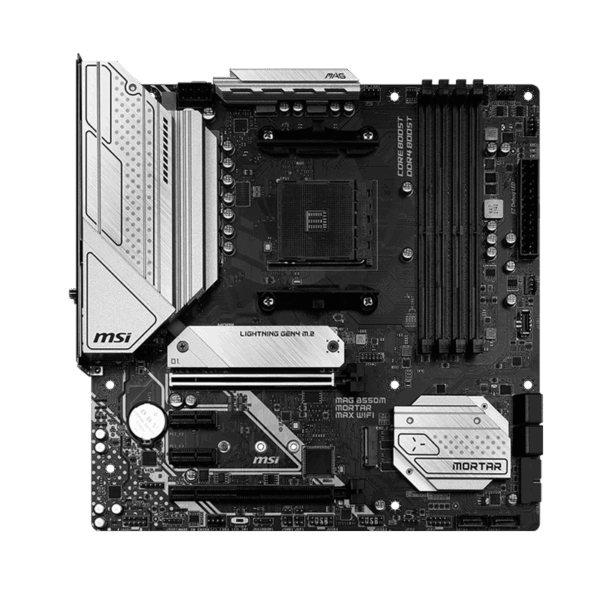

About MSI MAG B550M Mortar Max WiFi mATX Motherboard AM4
A micro-ATX motherboard designed for performance-driven gamers and creators seeking premium features in a small package is the MSI MAG B550M Mortar Max WiFi. It supports Ryzen 3000 (apart from 3200G/3400G), 4000 G-Series, and 5000 series processors and is based on AMD’s B550 chipset and AM4 socket. With up to 128 GB of DDR4 memory that can be overclocked to 5100 MHz, this board allows for seamless gaming, streaming, and multitasking. Long-lasting durability is ensured by the efficient power design and premium components used in the compact layout.
One of the Mortar Max’s two M.2 slots supports PCIe 4.0 x4 for blazingly fast Gen4 NVMe SSDs, while the other offers PCIe Gen3 speeds, which are perfect for balancing speed and capacity. Four SATA ports are also available for conventional storage devices. With 2.5G LAN, Wi-Fi 6E for fast wireless performance, and Bluetooth 5.2 for contemporary device connectivity, networking is at the highest level. While additional PCIe 3.0 slots provide expansion flexibility, the primary PCIe 4.0 x16 slot with Steel Armor safely supports the newest GPUs.
Extended heatsinks, M.2 Shield Frozr, and 6-layer PCB with thickened copper are examples of thermal solutions that provide the best possible heat dissipation even under load. A high-end 7.1-channel codec manages the audio, providing rich audio for video production or gaming.

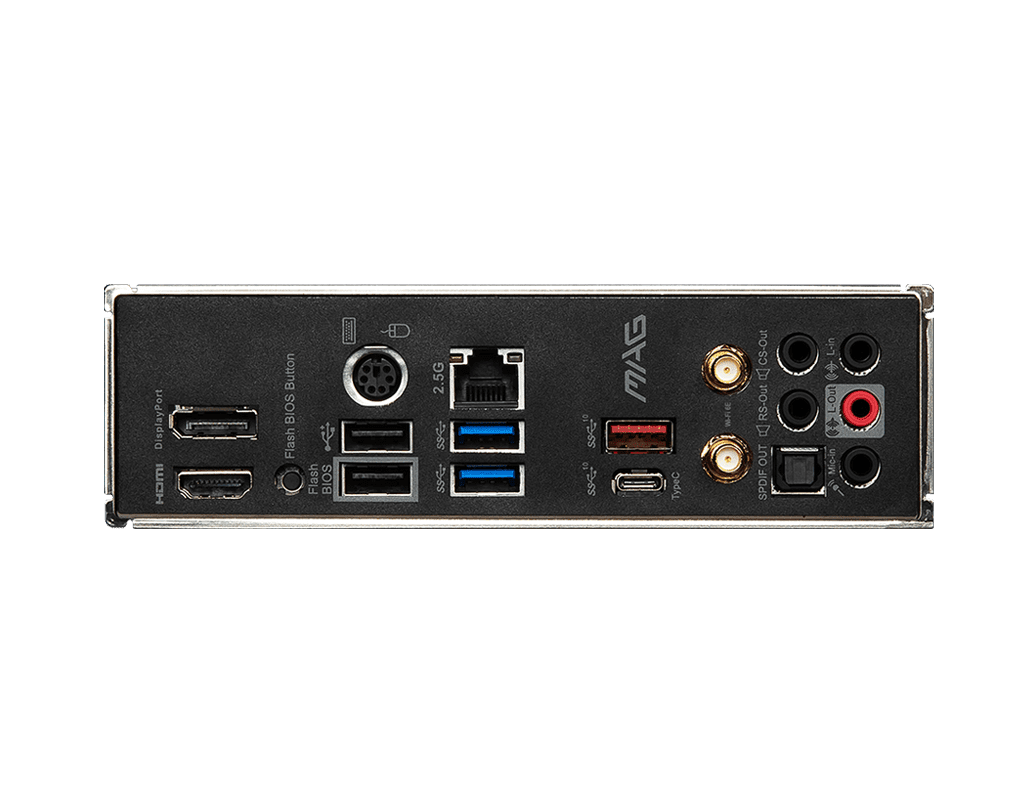

Installation and upgrades are made easier by build-friendly features like the Flash BIOS Button, EZ Debug LEDs, and the pre-installed I/O shield. The B550M Mortar Max WiFi is perfect for people who want performance without going all ATX because of its powerful specs in a small package.
Features of the MSI MAG B550M Mortar Max WiFi mATX Motherboard AM4
| Feature | Specification |
|---|---|
| Chipset / Socket | AMD B550 / AM4 |
| CPU Compatibility | Ryzen 3000 / 4000 G-Series / 5000 Series |
| Form Factor | micro‑ATX (mATX) |
| Memory Support | 4× DDR4 DIMM, up to 128 GB, 5100 MHz (OC) |
| Power Design | 8 2 1 VRM with Core Boost and Digital PWM |
| PCIe Expansion | 1× PCIe 4.0 x16 (Steel Armor), 1× PCIe 3.0 x1 |
| M.2 Slots | 2× M.2 (1× Gen4 x4, 1× Gen3 x4), M.2 Shield Frozr |
| SATA Ports | 4× SATA 6 Gb/s |
| Networking | 2.5G LAN, Wi‑Fi 6E, Bluetooth 5.2 |
| Audio | 7.1 Channel High-Definition Audio |
| Cooling Design | Extended heatsinks, 6-layer PCB, thermal pads |
| Build Tools | Flash BIOS Button, EZ Debug LEDs, RGB headers |
Ideally Best For
- Compact Gaming Rigs with Ryzen 5000 CPUs
- Content Creators who need fast memory and NVMe storage
- Wireless-Focused Users leveraging Wi‑Fi 6E and Bluetooth 5.2
- Efficient Builders want full-size performance in a smaller case
- Overclocking Beginners exploring stable OC with quality VRMs
