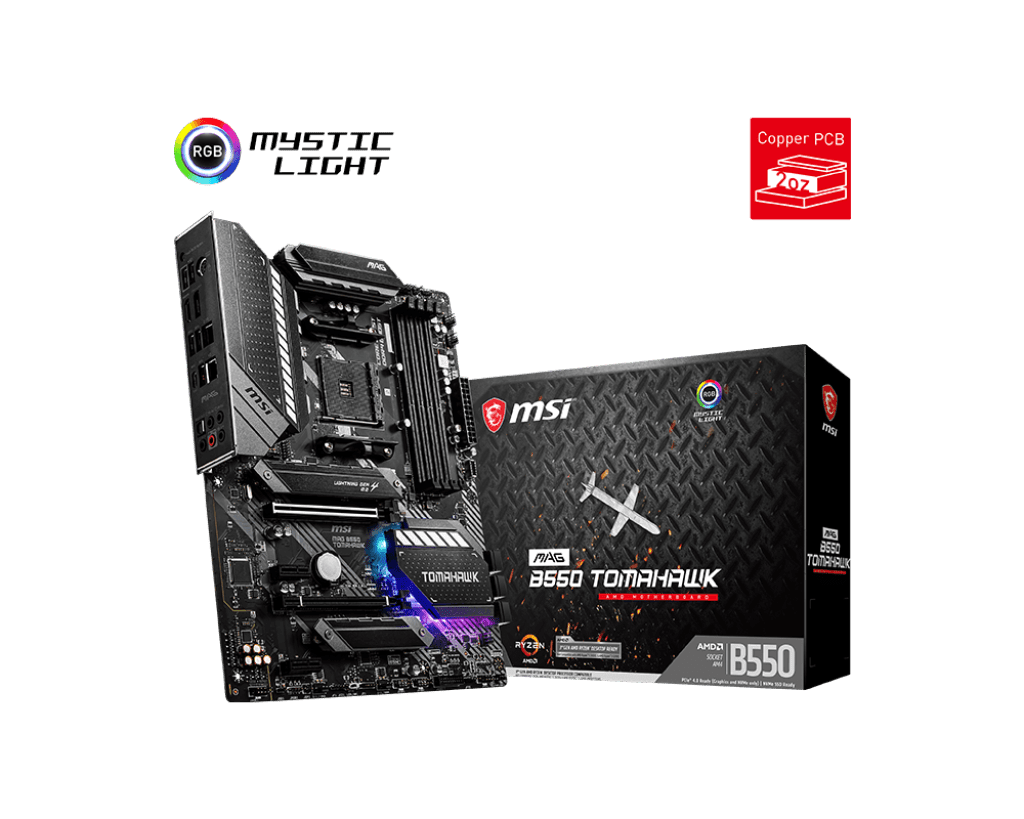

About MSI MAG B550 Tomahawk ATX Motherboard AM4

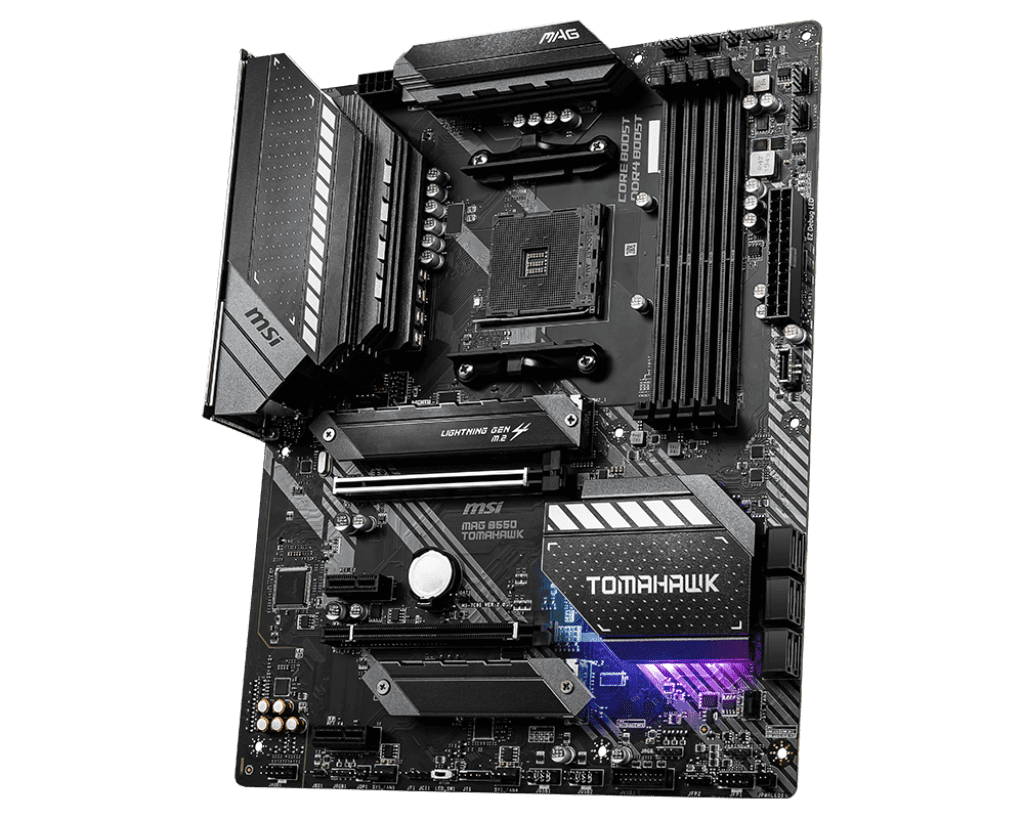

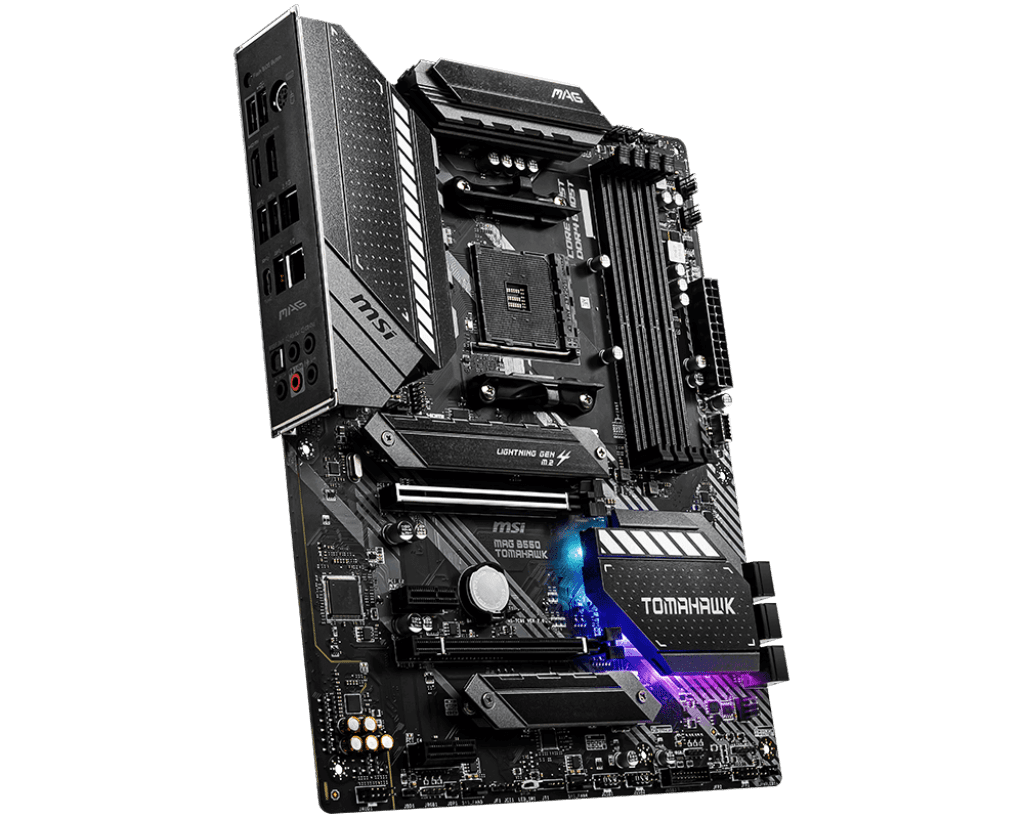

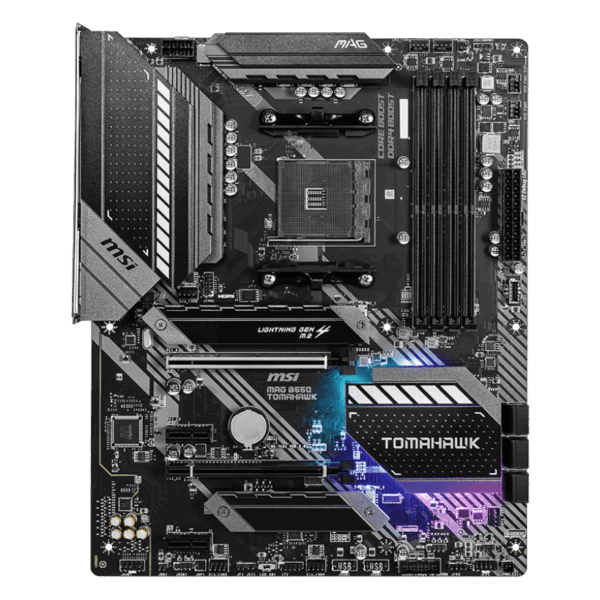

A tried-and-true ATX motherboard designed for gamers and builders who require performance, thermal stability, and future-ready support is the MSI MAG B550 Tomahawk. It is compatible with Ryzen 3000 (apart from 3200G/3400G), 4000 G-Series, and 5000 series CPUs on the AM4 platform, and it is based on AMD’s B550 chipset.
With speeds of up to 5100+ MHz (OC) and support for up to 128 GB of DDR4 RAM, this board is perfect for multitasking, gaming, and memory-intensive tasks. It has two PCIe x16 slots, the main one of which supports PCIe 4.0 (when a Ryzen 3000 or later CPU is being used), guaranteeing complete compatibility with contemporary GPUs. Six SATA 6 Gb/s ports for conventional drives and two M.2 slots—one with Gen4 speeds and thermal shielding—are included for storage.
Realtek 2.5G LAN and an extra Gigabit LAN port manage networking, providing you with extremely low latency and redundancy in network connections. Realtek’s high-end 7.1-channel codec, which features isolated circuitry and premium capacitors for immersive sound output, powers audio.
With large extended heatsinks, premium thermal pads, and a 6-layer PCB with 2 ounces of copper for steady power delivery, cooling is yet another area of strength. Features like the Flash BIOS Button, EZ Debug LEDs, and an integrated I/O shield will be valued by builders. The MSI MAG B550 Tomahawk offers the speed, robustness, and adaptability required to push your system to its limits, whether you’re building a professional workstation or a potent gaming PC.
Features of the MSI MAG B550 Tomahawk ATX Motherboard AM4
Feature | Specification |
---|---|
Chipset / Socket | AMD B550 / AM4 |
CPU Support | Ryzen 3000 / 4000 G-Series / 5000 Series |
Form Factor | ATX (305 x 244 mm) |
Memory Support | 4× DDR4 DIMMs, up to 128 GB, 5100+ MHz (OC) |
PCIe Slots | 1× PCIe 4.0 x16 (Steel Armor), 1× PCIe 3.0 x16, 2× PCIe 3.0 x1 |
Storage | 2× M.2 (1× Gen4, 1× Gen3), 6× SATA 6 Gb/s |
Networking | 1× 2.5G LAN, 1× Gigabit LAN |
Audio | Realtek ALC1200, 7.1-Channel HD Audio |

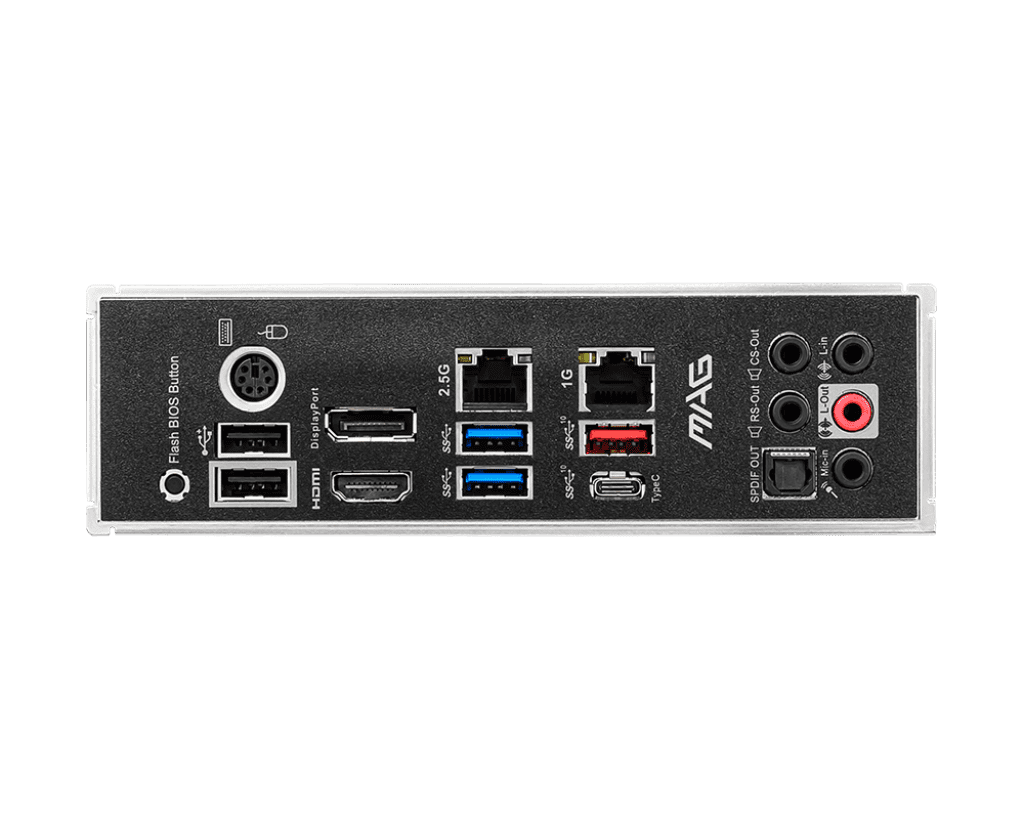

USB Ports | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
Cooling Design | Extended VRM & chipset heatsinks, M.2 Shield Frozr, 6‑layer PCB |
Build-Friendly Tools | Flash BIOS Button, EZ Debug LEDs, RGB headers |
Ideally Best For
- Serious Gamers need a PCIe 4.0 GPU and Gen4 SSD support
- Content Creators & Streamers with high memory and storage needs
- Pro Builders requiring dual LAN and strong VRMs
- Overclockers looking for stable power delivery and thermal headroom
- Upgraders planning long-term performance without switching platforms
Buy MSI MAG B550 Tomahawk ATX Motherboard AM4, DDR4 | PCIe 4.0, Dual M.2, 2.5G LAN Online Today.
