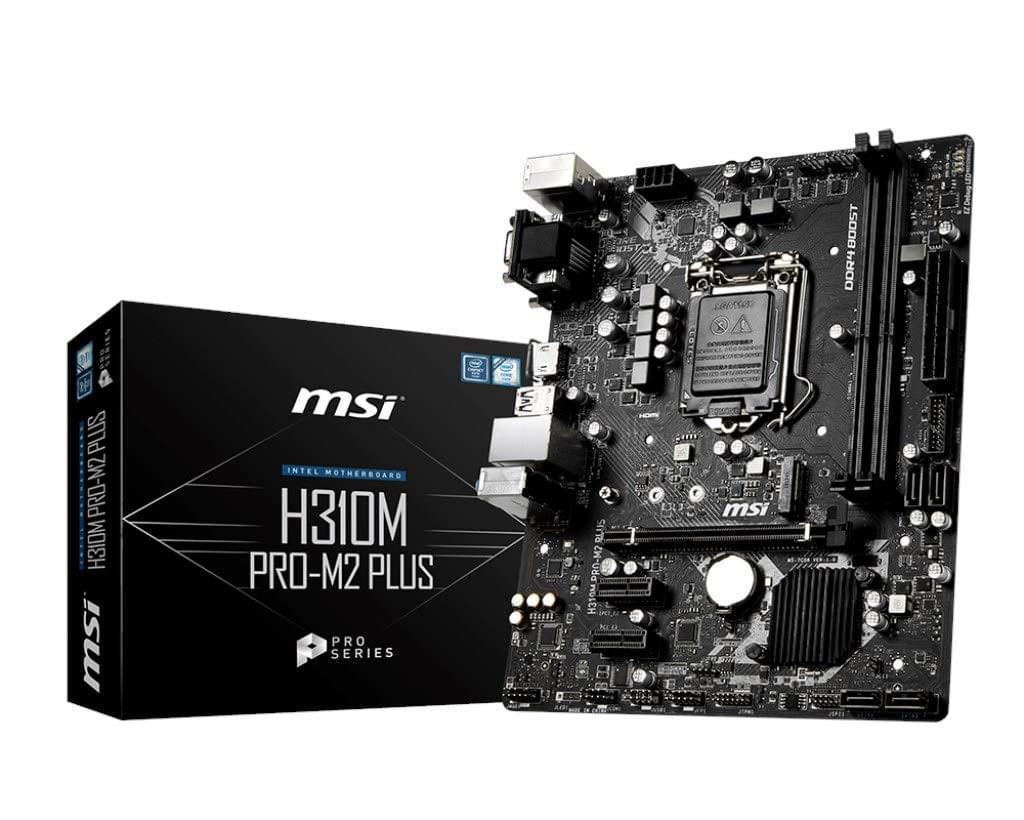

About MSI H310M PRO-M2 PLUS Motherboard
Broad Processor Compatibility: Built around the Intel LGA 1151 socket, this motherboard fully supports 8th and 9th Gen Intel Core processors. It provides consistent and reliable power delivery, making it an excellent choice for budget-friendly daily productivity, home entertainment setups, and casual computing.
Essential Storage and Memory: Equipped with an onboard M.2 slot that supports both NVMe and SATA drives, the motherboard allows for data transfer speeds up to 20 Gbps using a PCIe 2.0 x4 interface, drastically reducing system boot times. It also includes two DDR4 memory slots, allowing for up to 32GB of RAM to handle everyday multitasking smoothly.
Durable and Stable Operation: To maintain long-term system stability, the board features MSI’s Core Boost technology, which combines a premium layout and optimized power design for undistorted current delivery to the CPU. It also includes a reinforced PCIe Steel Slot to protect your graphics card against bending and electromagnetic interference.
Reliable Connectivity: The motherboard provides all the necessary connections for modern and legacy peripherals. It features an HDMI port, a DVI-D port, and a VGA port for flexible display options utilizing integrated graphics. You also get fast USB 3.1 Gen1 ports for quick data transfers and an Intel Gigabit LAN controller for a highly stable wired internet connection.
Specifications MSI H310M PRO-M2 PLUS Motherboard
| Specification | Details |
| Brand | MSI |
| Model | H310M PRO-M2 PLUS |
| CPU Socket | Intel LGA 1151 |
| Supported CPUs | 9th and 8th Gen Intel Core, Pentium Gold, and Celeron Processors |
| Chipset | Intel H310 |
| Form Factor | Micro-ATX (mATX) |
| Memory | 2x DDR4 DIMM Slots, Up to 32GB Max Capacity |
| Memory Speed | Up to 2666 MHz |
| Expansion Slots | 1x PCIe 3.0 x16, 2x PCIe 2.0 x1 |
| Storage | 1x M.2 (PCIe 2.0 x4 and SATA), 4x SATA 6Gb/s |
| Networking | Intel I219-V Gigabit LAN |
| Audio | Realtek ALC887 Codec, 7.1-Channel High Definition Audio |
| Rear I/O Ports | 1x HDMI, 1x DVI-D, 1x VGA, 2x USB 3.1 Gen1 Type-A, 4x USB 2.0, 1x LAN, 3x Audio Jacks, 1x PS/2 Combo |
