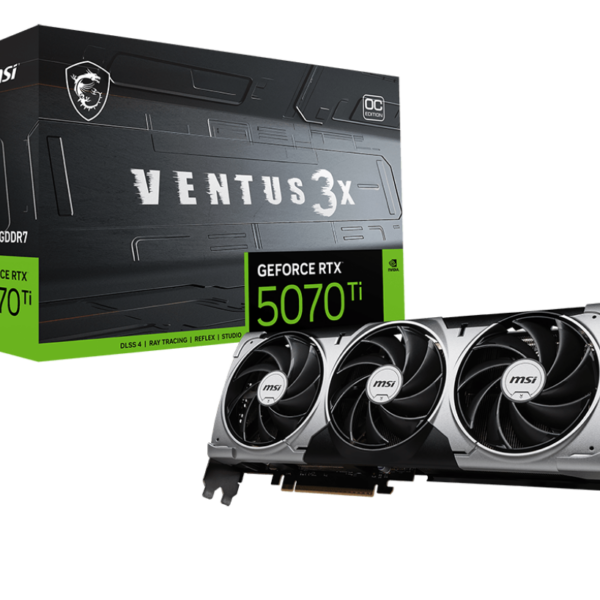

About MSI GeForce RTX 5070 Ti VENTUS 3X OC 16GB GDDR7 Graphics Card
The Essentials for Victory. The VENTUS series brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 5.0 and Airflow Control lets this card breeze through any task. Its industrial aesthetic, featuring a silver and black finish without RGB distractions, makes it suitable for professional workstations and stealth gaming builds alike.
SFF-Ready Enthusiast Certified Despite its triple-fan layout, this card is precision-engineered to meet NVIDIA’s “SFF-Ready Enthusiast” standard. With a length of 303mm and a 2.5-slot thickness, it is compatible with a wide range of compact chassis, allowing builders to pack high-end Blackwell performance into smaller spaces.

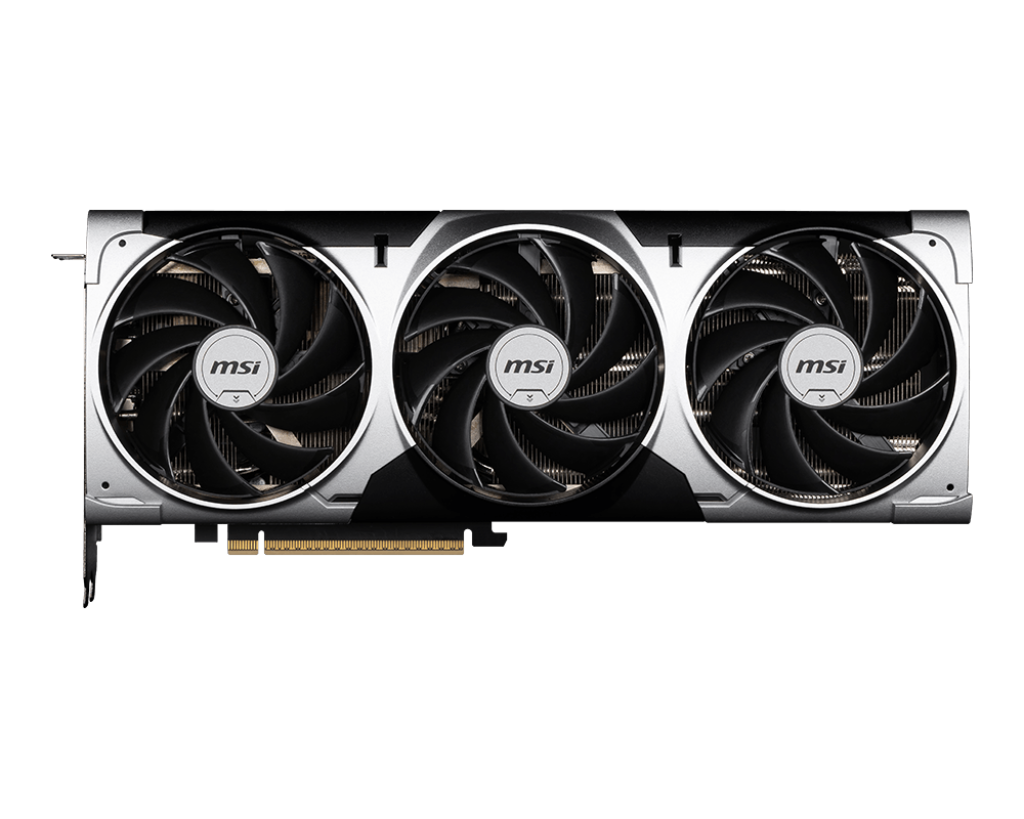

Proven Thermal Design The VENTUS 3X OC utilises three TORX 5.0 fans, where fan blades are linked by ring arcs to focus airflow and increase static pressure. The heat is managed by Core Pipes—precision-machined heat pipes that make maximum contact over the GPU and spread heat along the full length of the heatsink. Zero Frozr technology stops the fans completely when temperatures are low, eliminating fan noise during light workloads.
MSI GeForce RTX 5070 Ti VENTUS 3X OC 16GB GDDR7 Graphics Card Specifications:
| Graphics Engine | NVIDIA GeForce RTX 5070 Ti |
| Bus Standard | PCI Express 5.0 x16 |
| Video Memory | 16GB GDDR7 |
| Memory Interface | 256-bit |
| Core Clock | 2497 MHz (Extreme Performance) / 2482 MHz (Boost) |
| CUDA Cores | 8960 Units |
| Memory Speed | 28 Gbps |
| Cooling System | Ventus 3X (Triple TORX Fan 5.0) |

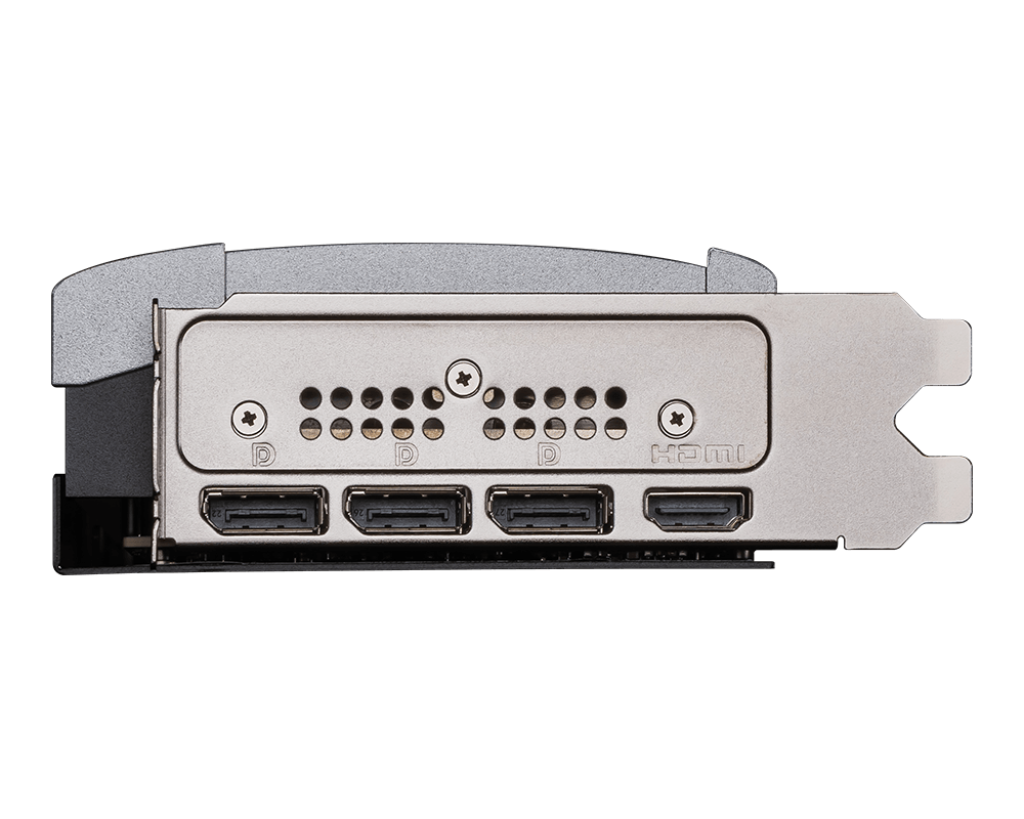

| Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Connectors | 1 x 16-pin (12V-2×6) |
| Recommended PSU | 750W |
| TDP | 300W |
| Card Dimensions | 303 x 121 x 49 mm (2.5-Slot SFF-Ready) |
| Feature Support | DLSS 4, Zero Frozr, Metal Backplate |
Key Features
-
16GB GDDR7 Memory: High-bandwidth memory for 4K textures and creative apps.
-
TORX Fan 5.0: Fan blades linked by ring arcs for focused airflow.
-
SFF-Ready Design: Fits compact builds with 303mm length.
-

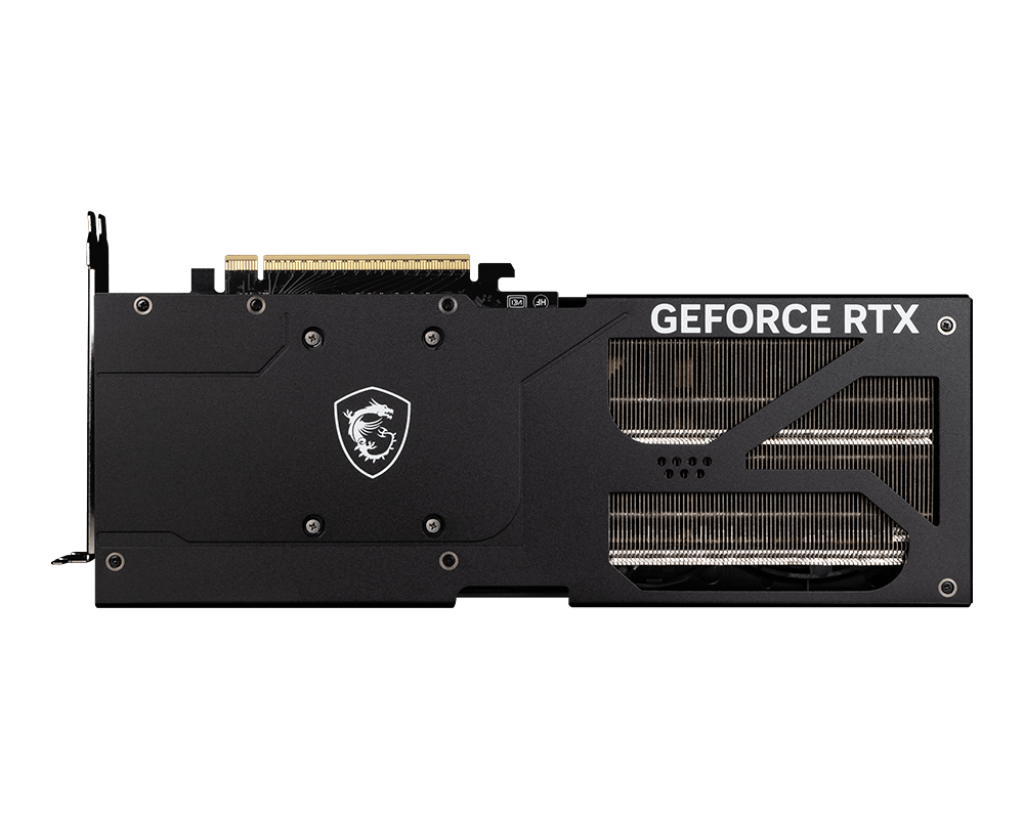

Metal Backplate: Sturdy reinforcement with flow-through ventilation.
-
Zero Frozr: Fans stop during low-load situations for silence.
