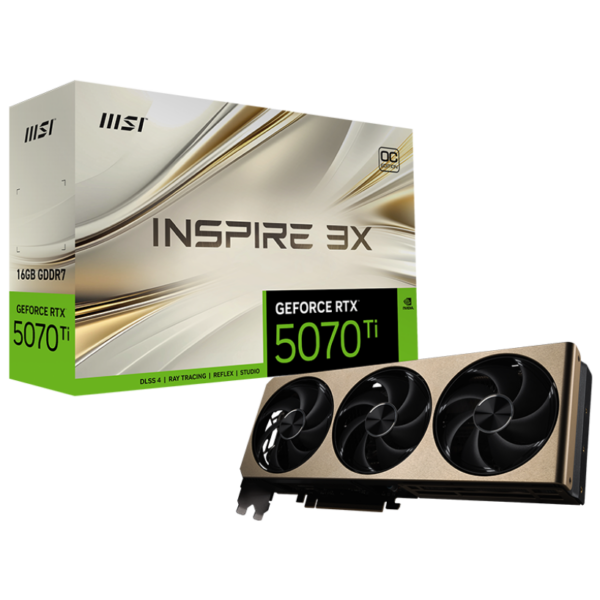

About MSI GeForce RTX 5070 Ti INSPIRE 3X OC PLUS 16GB GDDR7 Graphics Card
Compact Creativity (SFF-Ready) The “Inspire” series is a new addition to MSI’s lineup, specifically engineered to bridge the gap between high-performance gaming and compact creative workstations. With a length of just 288mm, it is significantly smaller than the GAMING TRIO or SUPRIM models, meeting NVIDIA’s “SFF-Ready Enthusiast” standard. This makes it the ideal choice for Micro-ATX builds or compact mid-towers where space is limited but performance cannot be compromised.
Blackwell Performance & GDDR7 Powered by the NVIDIA Blackwell architecture, this card features 8960 CUDA cores and 16GB of next-gen GDDR7 memory. This upgrade from GDDR6X provides a massive bandwidth increase (28 Gbps), ensuring smoother performance in high-resolution texture rendering, video editing, and complex AI workloads. It is fully optimised for DLSS 4 with Multi-Frame Generation, delivering high frame rates in the most demanding ray-traced games.
Efficient Inspire 3X Cooling Despite its smaller size, the card does not sacrifice thermal management. It utilises three STORMFORCE Fans, which feature claw-textured blades and a circular arc design to maximise airflow while minimising noise. A nickel-plated copper baseplate rapidly captures heat from the GPU and memory, transferring it to square-shaped Core Pipes that dissipate heat efficiently through the heatsink. Zero Frozr technology ensures the fans stop completely during light tasks for a silent environment.
MSI GeForce RTX 5070 Ti INSPIRE 3X OC PLUS 16GB GDDR7 Graphics Card Specifications:
| Graphics Engine | NVIDIA GeForce RTX 5070 Ti |
| Bus Standard | PCI Express 5.0 x16 |
| Video Memory | 16GB GDDR7 (Note: 50-series uses GDDR7, not GDDR6X) |
| Memory Interface | 256-bit |
| Core Clock | 2497 MHz (Extreme Performance) / 2482 MHz (Boost) |
| CUDA Cores | 8960 Units |
| Memory Speed | 28 Gbps |
| Cooling System | Inspire 3X (Triple STORMFORCE Fans) |
| Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Connectors | 1 x 16-pin (12V-2×6) |
| Recommended PSU | 750W |
| TDP | 300W |
| Card Dimensions | 288 x 112 x 50 mm (SFF-Ready Enthusiast) |
| Feature Support | DLSS 4, Ray Tracing, Metal Backplate |
Key Features
-
16GB GDDR7 Memory: Latest memory standard for superior bandwidth and AI speed.
-
SFF-Ready Design: Ultra-compact 288mm length fits small form factor cases.
-
STORMFORCE Fans: Unique claw-blade design for high-pressure, low-noise cooling.
-
Copper Baseplate: Maximises heat transfer from the powerful Blackwell GPU.
-
DLSS 4 Support: Next-gen AI Frame Generation for 4K gaming.
