About MSI GeForce RTX 5070 12G SHADOW 2X OC GDDR7
Blackwell Performance in a Compact Form: The MSI RTX 5070 Shadow 2X OC features the entire might of the Blackwell technology in a package small enough to fit in a dual-fan form factor. It boasts a staggering 12GB of GDDR7 memory, ensuring a huge jump in overall bandwidth compared to its predecessors and playing back demanding 1440p graphics with ease. This graphics card is completely “SFF Ready” and only needs a space of 231mm to fit into a Mini-ITX and Micro-ATX system.

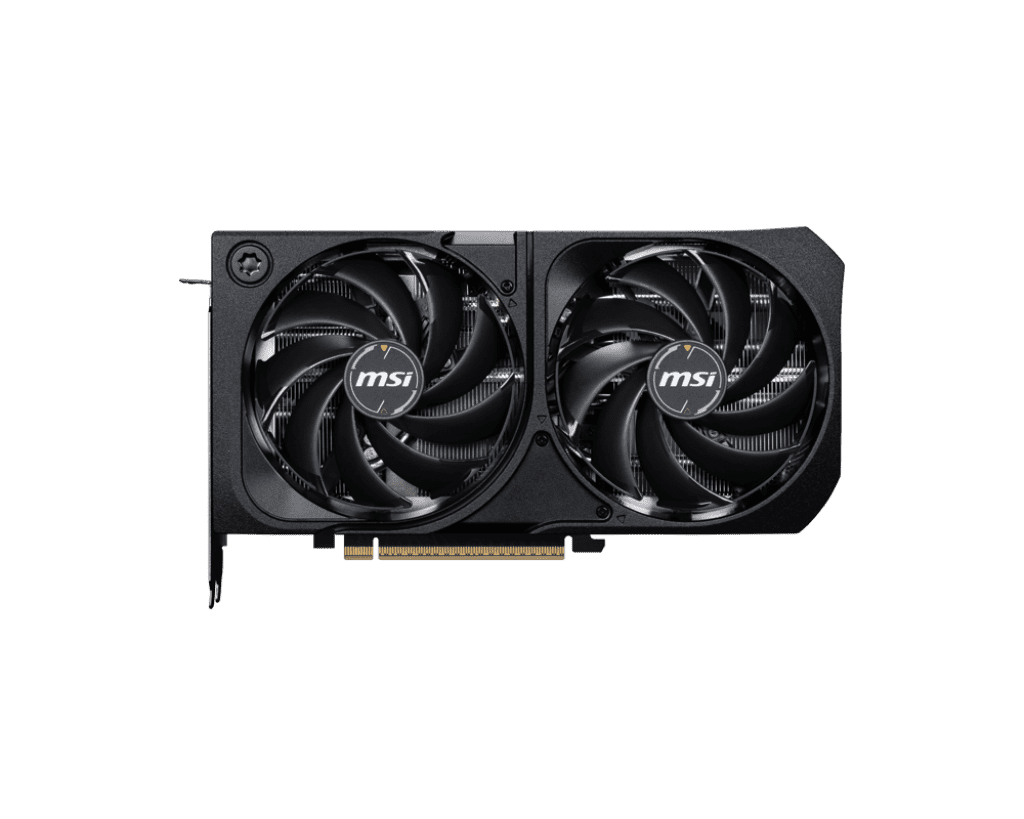

Advanced Shadow 2X Cooling: Although it is compact, the Shadow 2X keeps cool under pressure is made possible by MSI’s TORX Fan 5.0. The fans are interconnected with ring arcs that help to focus air on the heat sink. The cooling system further consists of a nickel-plated copper heat sink base and core pipes that are precision-crafted for optimal contact with the NVIDIA AMP K Extreme core for effective heat dissipation.
DLSS 4 & Future-Proof Features: Featuring 4th Gen Ray Tracing Cores and 5th Gen Tensor Cores, this graphics card is future-proof for the gaming industry. It comes with support for DLSS 4, featuring Multi-Frame Generation that will supposedly double the frame rates in supported games and retain flawless image quality. It also comes with the latest connectivity options for the DisplayPort 2.1b standard, enabling you to connect next-gen high-refresh-rate displays with 4K and beyond capabilities.
MSI GeForce RTX 5070 12G SHADOW 2X OC Specifications:
| Feature | Specification |
| Graphics Engine | NVIDIA® GeForce RTX™ 5070 |
| Bus Standard | PCI Express 5.0 |
| Video Memory | 12GB GDDR7 |
| Memory Interface | 192-bit |
| Core Clock |
Boost: 2542 MHz Extreme Performance: 2557 MHz (via MSI Center) |
| CUDA Cores | 6144 |
| Memory Speed | 28 Gbps |
| Cooling System | Shadow 2X Dual Fan (TORX 5.0) |

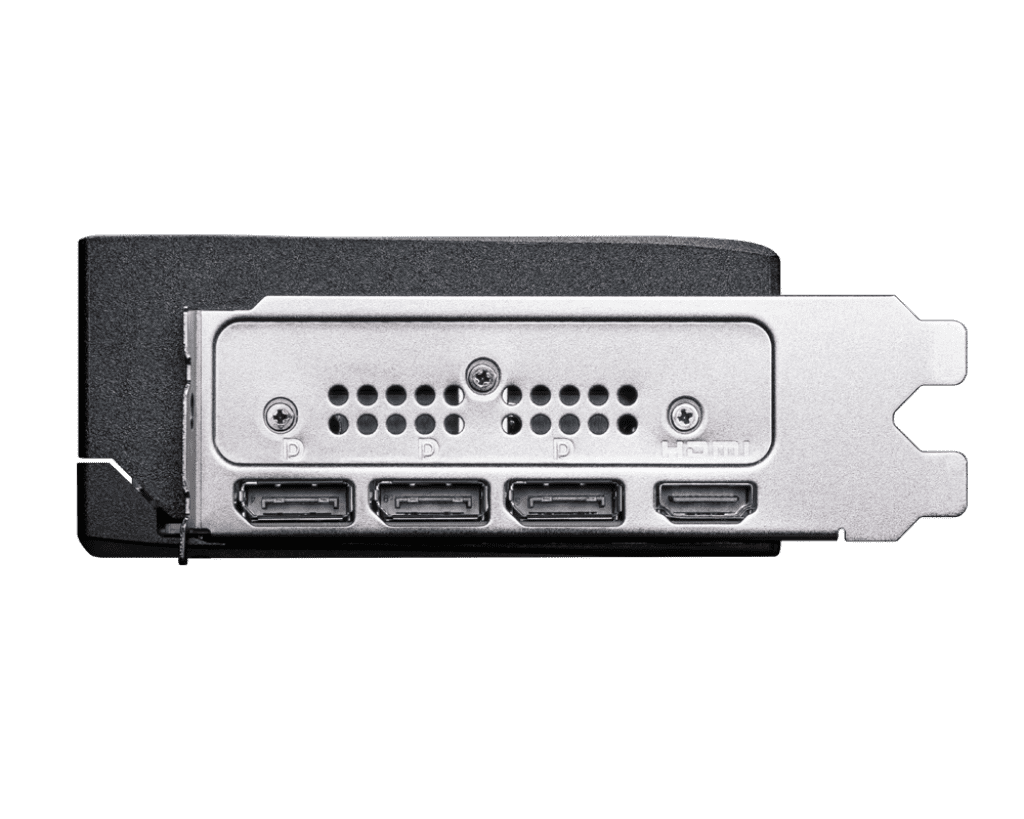

| Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Consumption | 250W |
| Power Connectors | 1 x 16-pin (12V-2×6) |
| Recommended PSU | 650W |
| Card Dimensions | 231 x 126 x 50 mm (SFF-Ready) |
| Feature Support | DLSS 4, Ray Tracing, NVIDIA Reflex |
Key Features
- 12GB GDDR7 Memory: High-speed video memory for seamless 1440p gaming and creative work.
- SFF-Ready Design: Compact 231mm length fits perfectly in small form factor builds.
- Factory Overclocked: Tuned for higher boost clocks out of the box.
- Zero Frozr: Fans completely stop during low-load situations for absolute silence.

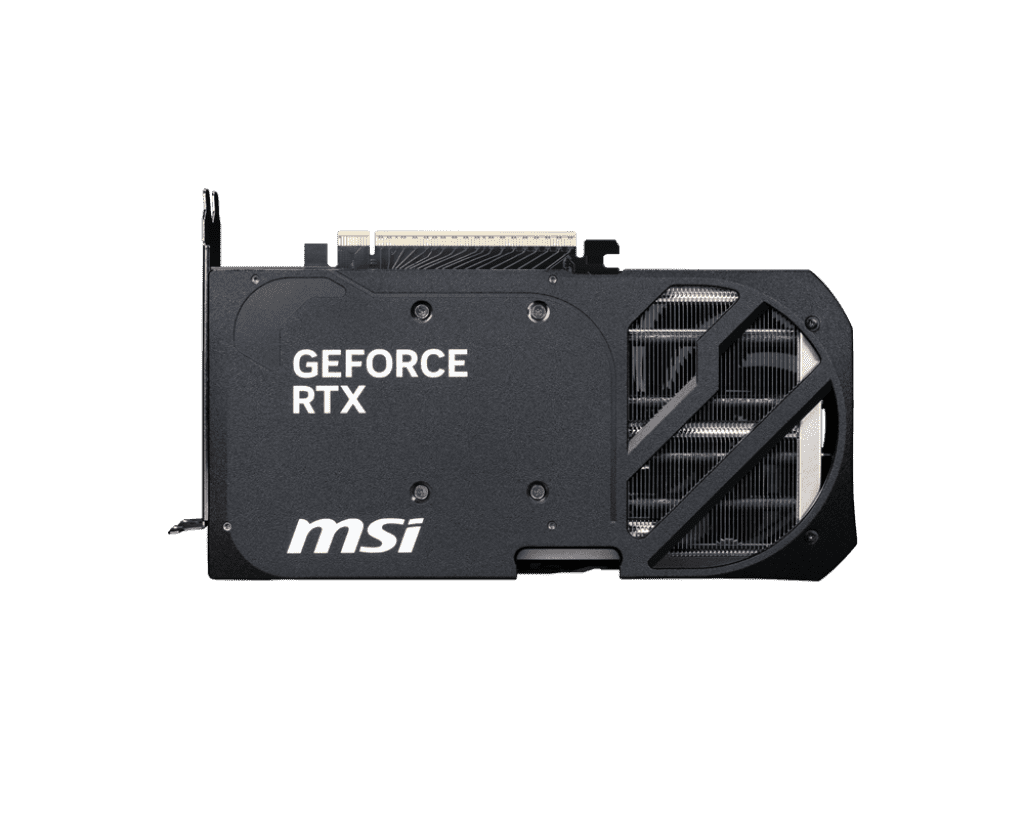

- Reinforced Backplate: A sturdy backplate with flow-through ventilation strengthens the card and improves heat dissipation.
