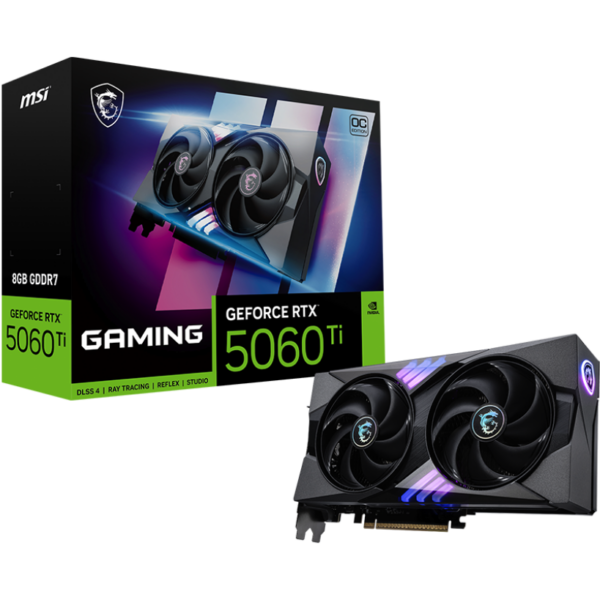

About MSI GeForce RTX 5060 Ti GAMING OC 8G GDDR7 Graphics Card
Next-Gen GDDR7 Performance Upgrading from the GDDR6 memory of the 40-series, the RTX 5060 Ti GAMING OC utilizes 8GB of GDDR7 memory. This cutting-edge VRAM standard delivers 28 Gbps speeds, providing the massive bandwidth required for high-fidelity textures and smoother performance in modern titles. Powered by the NVIDIA Blackwell architecture, it fully supports DLSS 4, enabling AI Multi-Frame Generation for a massive FPS boost in supported games.
TWIN FROZR 10 Cooling System This card features MSI’s most advanced dual-fan thermal design: TWIN FROZR 10. It employs two STORMFORCE fans, which use claw-textured blades and a circular arc design to maximize static pressure while minimizing noise. A nickel-plated copper baseplate rapidly captures heat from the GPU and memory, transferring it to square-shaped Core Pipes that run through the heatsink for efficient dissipation.
Signature GAMING Aesthetics The card sports the iconic MSI GAMING look with bold lines and integrated Mystic Light RGB on the side logo and shroud, which can be synchronized with other MSI components. A sturdy metal backplate not only reinforces the card to prevent bending but also features flow-through ventilation to allow hot air to escape, ensuring your system stays cool and stable during marathon gaming sessions.
MSI GeForce RTX 5060 Ti GAMING OC 8G GDDR7 Graphics Card Specifications:
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti |
| Bus Standard | PCI Express 5.0 x16 (uses x8) |
| Video Memory | 8GB GDDR7 |
| Memory Interface | 128-bit |
| Core Clock | 2647 MHz (Boost) / 2662 MHz (Extreme Performance via MSI Center) |
| CUDA Cores | 4608 Units |
| Memory Speed | 28 Gbps |
| Cooling System | TWIN FROZR 10 (Dual STORMFORCE Fans) |
| Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Connectors | 1 x 16-pin (12V-2×6) |
| Recommended PSU | 600W |
| TDP | 180W |
| Card Dimensions | 247 x 135 x 51 mm (2.5-Slot) |
| Feature Support | DLSS 4, Ray Tracing, Mystic Light RGB |
Key Features
-
8GB GDDR7 Memory: Significant bandwidth upgrade over GDDR6.
-
TWIN FROZR 10: Premium dual-fan cooling with STORMFORCE technology.
-
Factory Overclock: Boost clock increased to 2647 MHz for extra performance.
-
Mystic Light RGB: Customizable lighting effects via MSI Centre.
-
Zero Frozr: Fans stop completely during light loads for absolute silence.
