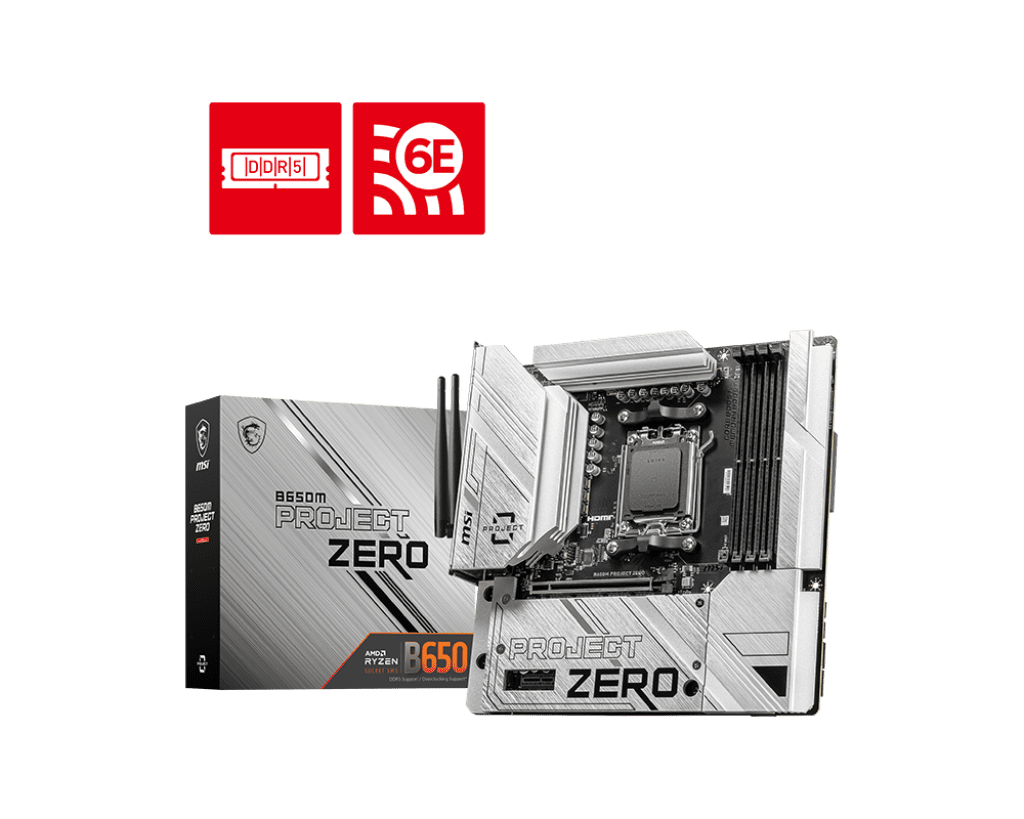

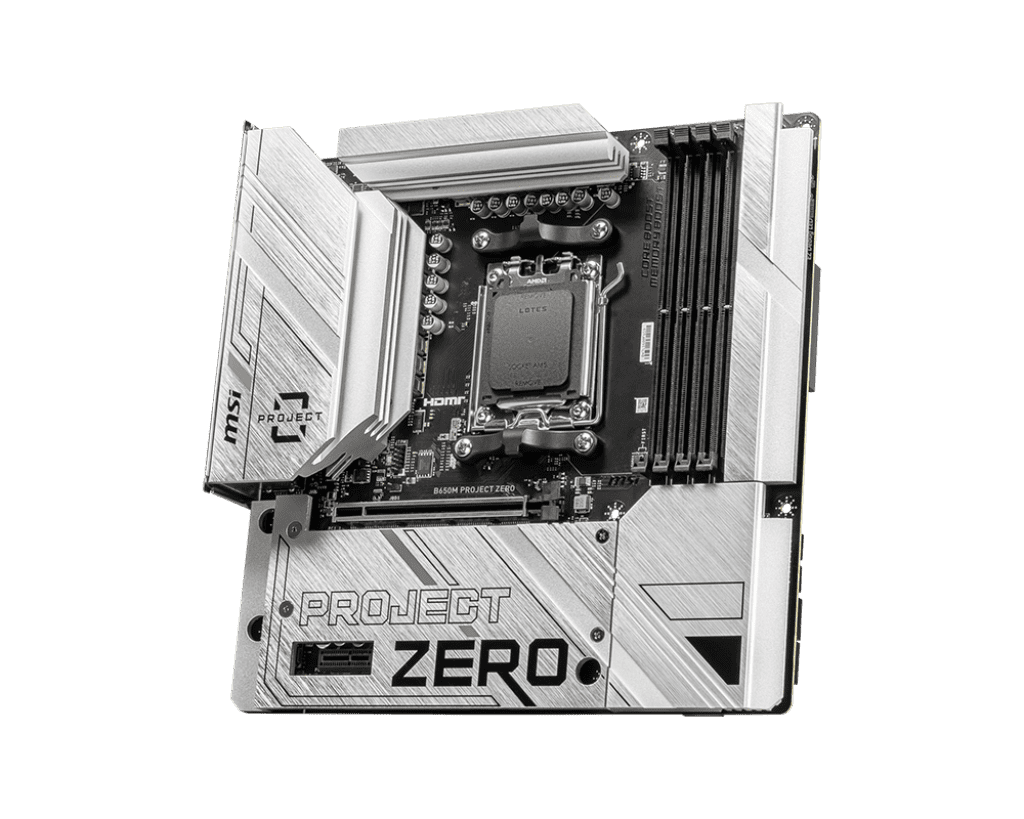

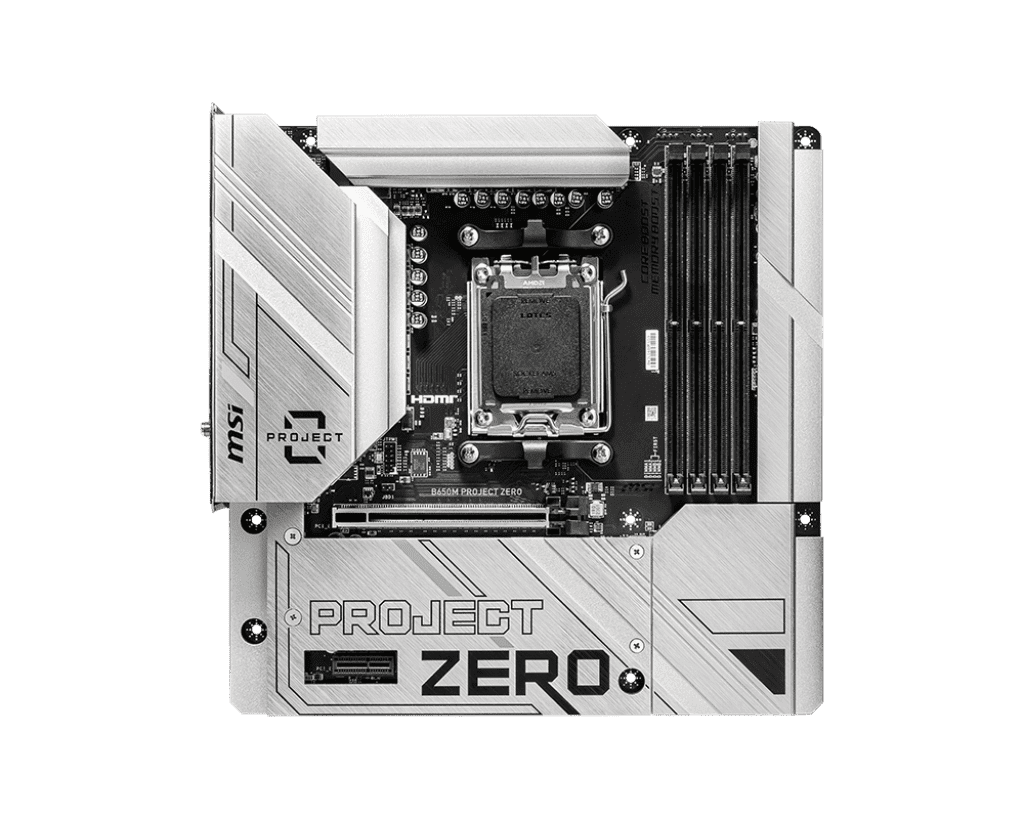

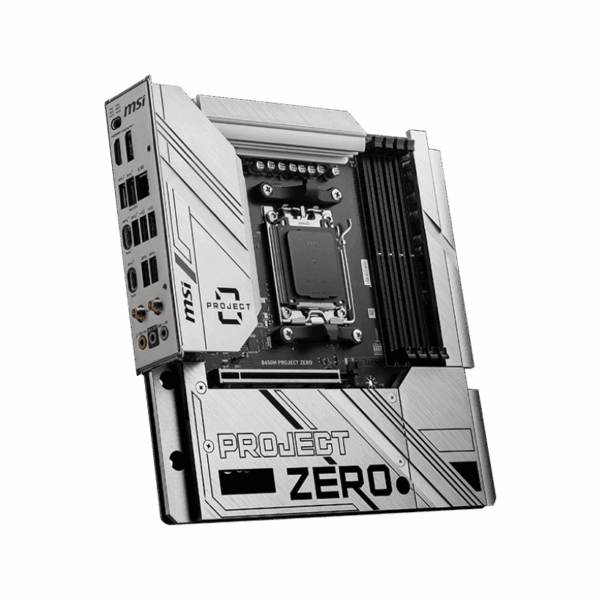

About MSI B650M Project Zero mATX Motherboard AM5
Designed for AMD’s AM5 platform, the MSI B650M Project Zero is a stylish and potent micro-ATX motherboard. It integrates cutting-edge performance features into a small package, supporting processors from the Ryzen 7000 series and beyond. It has two DDR5 DIMM slots and can accommodate up to 128 GB of high-speed memory that is overclocked above 7800 MHz, providing outstanding responsiveness for multitasking, gaming, and creating content.

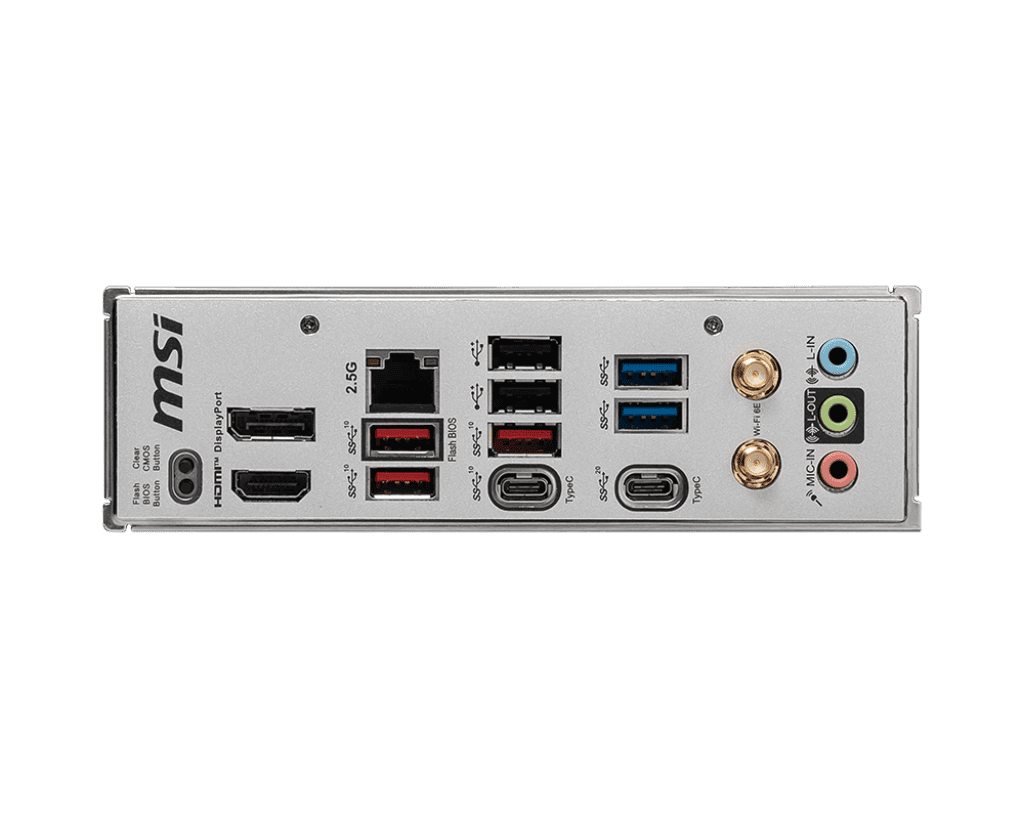

Dual PCIe 4.0 x4 M.2 slots allow for lightning-fast storage, and four SATA 6 Gb/s ports allow for a variety of SSD and HDD configurations. High-end graphics cards are safely accommodated in the steel-reinforced built-in PCIe 4.0 x16 slot. In addition to several USB 3.2 Gen2 and Gen1 ports (including USB-C), connectivity features include 2.5G Ethernet for wired speed, guaranteeing flexible connectivity for contemporary peripherals.
With its extended heatsinks, MOSFET thermal pads, and fan/pump headers, the thermal design is exceptional and perfect for any air or AIO-cooled setup. Stable overclocking is guaranteed by MSI’s Core Boost, and troubleshooting is made simple by a Flash BIOS button and diagnostic LEDs.
The MSI B650M Project Zero offers top-notch AM5 features, reliable performance, and future-proof expandability, whether you’re building a small gaming setup or a creative workstation.
Features of the MSI B650M Project Zero mATX Motherboard AM5
| Feature | Specification |
|---|---|
| Form Factor | micro‑ATX (226 × 243.8 mm) |
| Socket / Chipset | AMD AM5 / B650 |
| CPU Support | Ryzen 7000 and future AM5 CPUs |
| Memory Support | 2× DDR5 DIMMs, up to 128 GB, 7800 MHz OC |
| Expansion Slots | 1× PCIe 4.0 x16 (Steel Armor), 1× PCIe 3.0 x1 |
| M.2 Slots | 2× PCIe 4.0 x4 |
| SATA Ports | 4× SATA 6 Gb/s |
| Networking | 2.5G LAN |
| Audio | 7.1‑Channel HD Audio |
| Cooling Features | Extended heatsinks, thermal pads, and Core Boost |
| USB (Rear/Front) | Multiple USB 3.2 Gen2/Gen1 and USB‑C headers |
| BIOS & Diagnostics | EZ Debug LEDs, Flash BIOS Button |
Ideally Best For
- Compact Gaming Builds using Ryzen 7000-series CPUs
- Enthusiasts and Overclockers testing DDR5 in a small form factor
- Content Creators needing fast storage in a mini rig
- Modern Connectivity Users relying on USB‑C & USB 3.2
- DIY Builders seeking a reliable, future-ready board with breakout diagnostics
Buy MSI B650M Project Zero mATX Motherboard AM5, DDR5, PCIe 4.0 M.2, 2.5G LAN Online Today.
