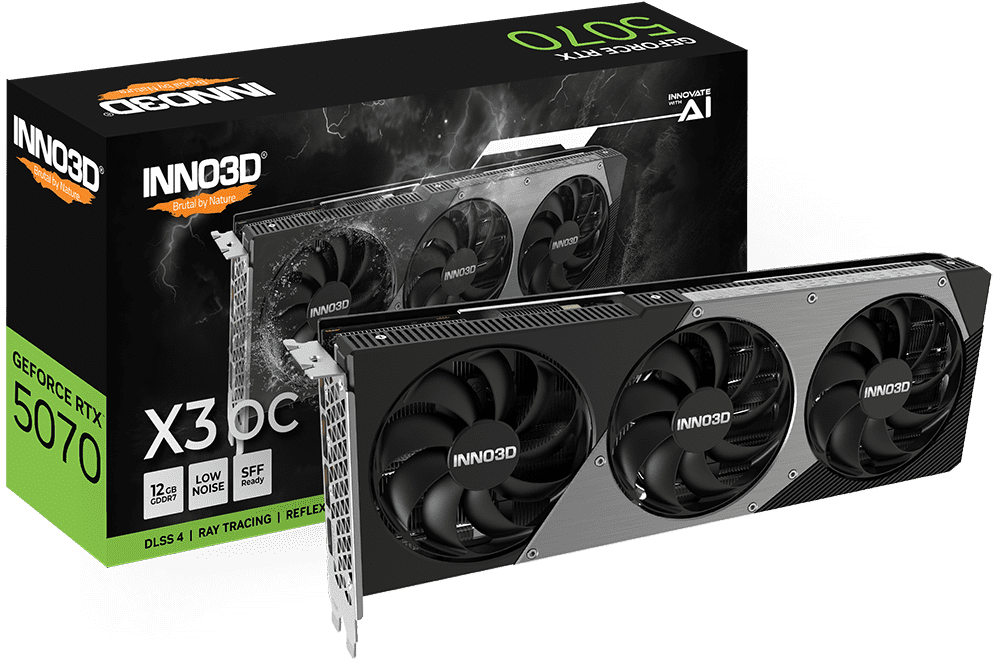

About INNO3D GeForce RTX 5070 X3 OC 12GB GDDR7 Graphics Card

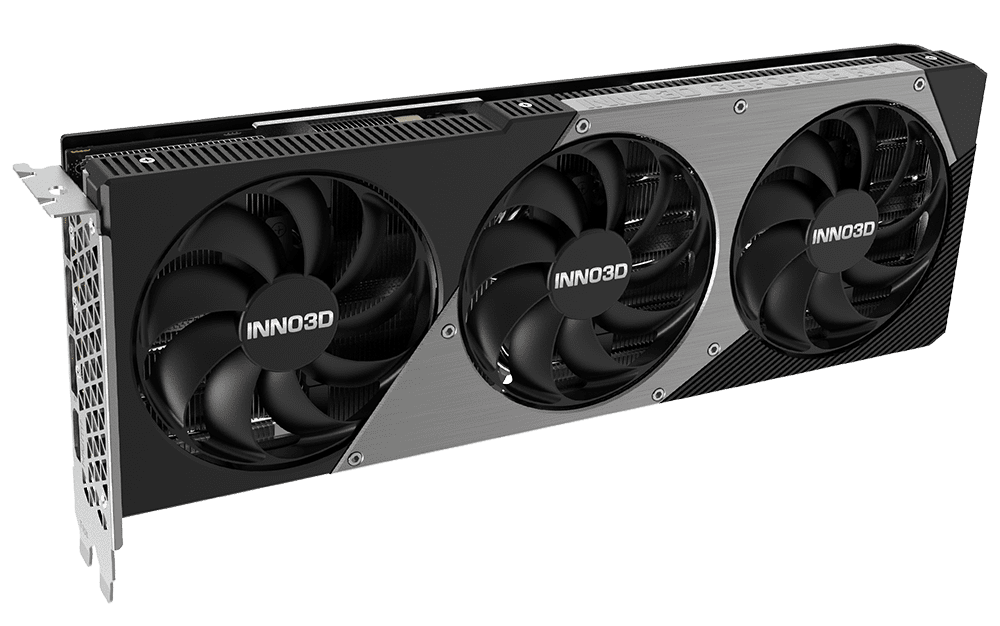

Streamlined X3 Cooling The INNO3D X3 OC distinguishes itself with a refined physical profile. While many triple-fan cards occupy 2.5 or 3 slots, this model maintains a strict 2-slot (41mm) thickness. This allows for better airflow in multi-card setups or tighter cases. The cooling solution features three 88mm scythe fan blades, designed to maximize air pressure while keeping noise levels remarkably low.
Next-Gen Blackwell & GDDR7 Built on the cutting-edge NVIDIA Blackwell architecture, this card offers a significant leap in efficiency and speed. With 6144 CUDA cores and 12GB of GDDR7 memory, it handles high-resolution textures and complex geometry with ease. It is fully optimized for DLSS 4, enabling AI Frame Generation for high FPS, and supports DLSS 3.5 Ray Reconstruction to deliver the sharpest, most realistic lighting effects in ray-traced games.
Robust Build Quality Under the hood, a large copper base covers the GPU completely, transferring heat rapidly to a high-density aluminium heatsink via composite heat pipes. The card is reinforced with a full-length metal backplate that not only adds structural rigidity to prevent sagging but also features ventilation openings to allow hot air to escape, further improving thermal performance.
INNO3D GeForce RTX 5070 X3 OC 12GB GDDR7 Graphics Card Specifications:
| Graphics Engine | NVIDIA GeForce RTX 5070 |
| Bus Standard | PCI Express 5.0 x16 |
| Video Memory | 12GB GDDR7 |
| Memory Interface | 192-bit |
| Core Clock | 2542 MHz (Boost) |
| CUDA Cores | 6144 |
| Memory Speed | 28 Gbps |
| Cooling System | X3 Triple Fan (88mm Scythe Blades) |
| Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Connectors | 1 x 16-pin (12V-2×6) |
| Recommended PSU | 650W |
| TDP | 250W |
| Card Dimensions | 300 x 116 x 41 mm (2-Slot) |
| Feature Support | DLSS 4, DLSS 3.5 Ray Reconstruction, Reflex |
Key Features
-
12GB GDDR7 Memory: Ultra-fast 28 Gbps memory for smooth 1440p gaming.
-
Slim 2-Slot Design: 41mm thickness ensures compatibility with more cases.
-
X3 Triple Fan: Three 88mm scythe fans for superior cooling coverage.
-
DLSS 4 & 3.5 Support: Latest AI tech for Frame Generation and Ray Reconstruction.
-
Full Metal Backplate: Protects PCB and assists with heat dissipation.
