About HYTE X50 Air Desktop Cabinet
| Specification | Details |
|---|---|
| Form Factor | ATX Mid-Tower |
| Volume | 63 L |
| Dimensions (H × L × W) | 485 mm × 510 mm × 255 mm |
| Chassis Material | 1 mm thick Steel, ABS plastic |
| Side Panel / Window | Full-coverage micro-mesh (for Air) |
| Motherboard Support | E-ATX (up to 10.6″) / ATX / mATX / ITX |
| Power Supply (PSU) Support | Up to 223 mm length |
| GPU (Graphics Card) Clearance | Up to 430 mm length, 160 mm height |
| CPU Cooler Height Clearance | Up to 170 mm |
| Fan Support | Side: 3 × 120 mm; Front: 3 × (120 mm or 140 mm); Bottom: 3 × 120 mm (up to 32 mm thick) |
| Radiator Support | Side: up to 360 mm (70 mm thick); Front: up to 360 mm (105 mm thick); Rear: 120 mm |
| Storage | 2 × 2.5″ drives, 1 × 3.5″ drive |
| Expansion Slots | 7 horizontal full-size PCIe slots |
| Front I/O | 1 × USB 3.2 Gen 2×2 Type-C, 2 × USB 3.2 Gen 1 Type-A, 3.5 mm audio combo jack, mechanical power switch with LED |
| Dust Filters | Bottom (magnetic) |
| Feet Style | Contemporary feet (on Air / mesh variants) |
| Warranty | 4 years |
| Available Colors | Snow White, Pitch Black, Wild Cherry, Taro Milk, Strawberry Milk, Matcha Milk |

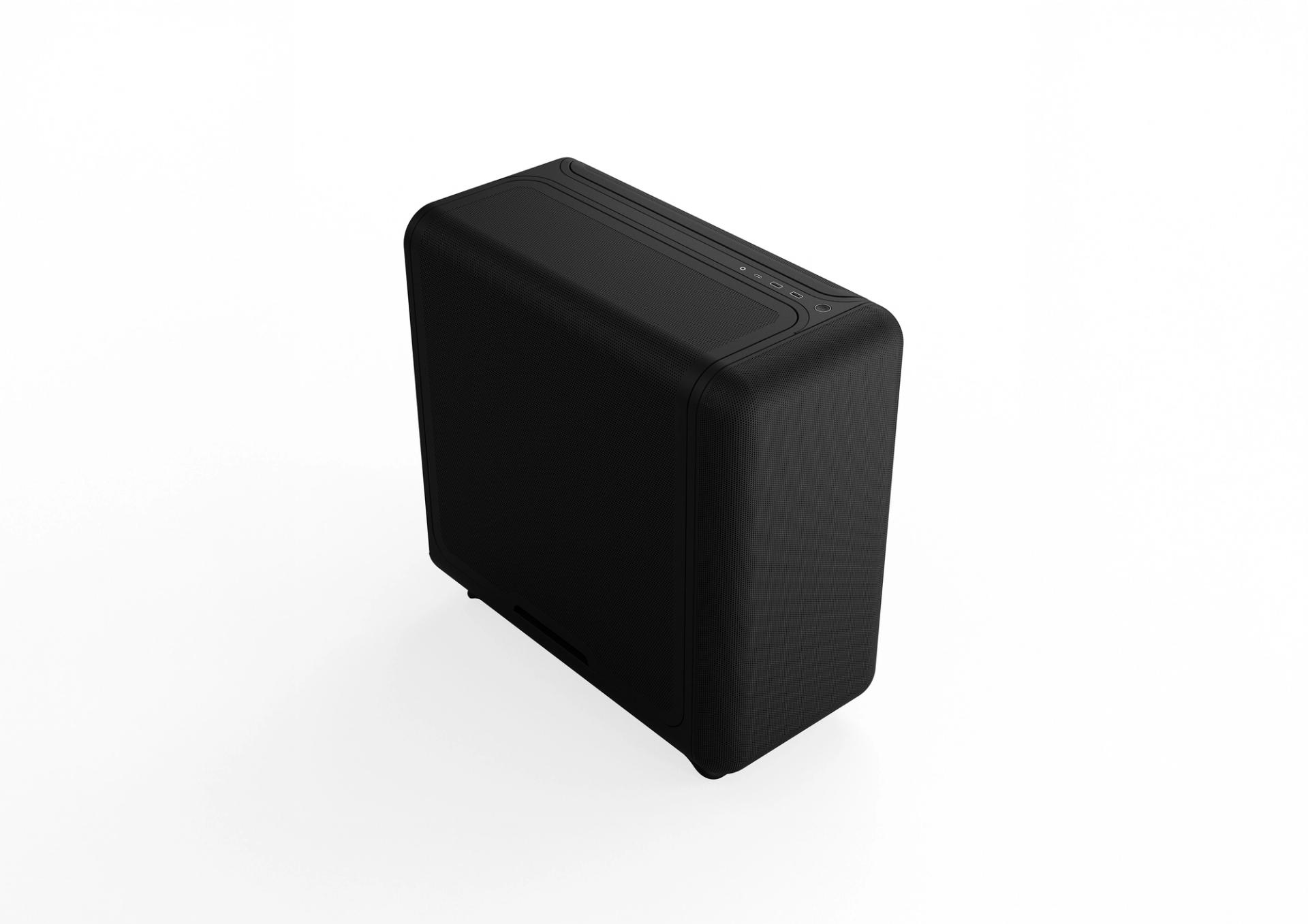

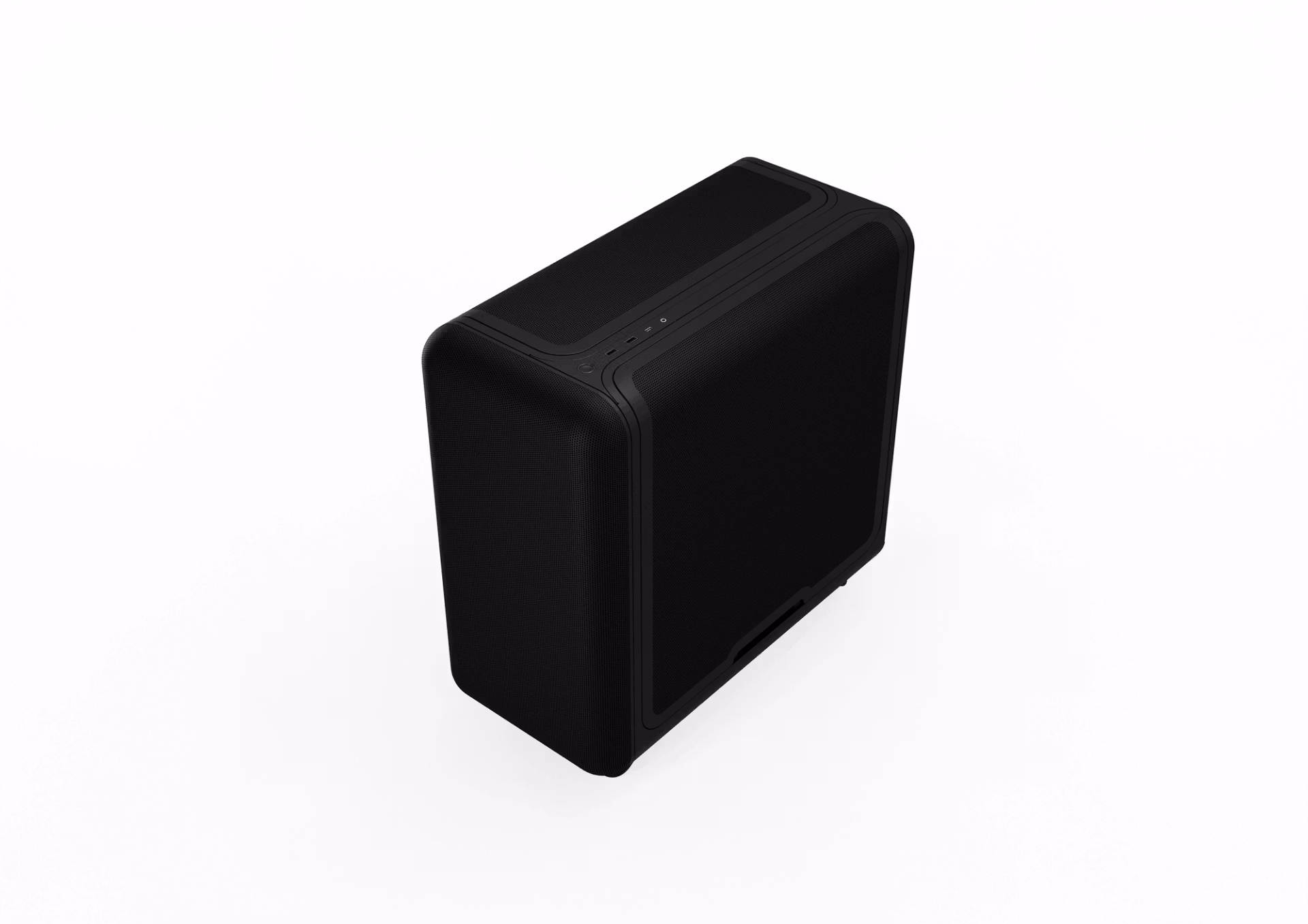

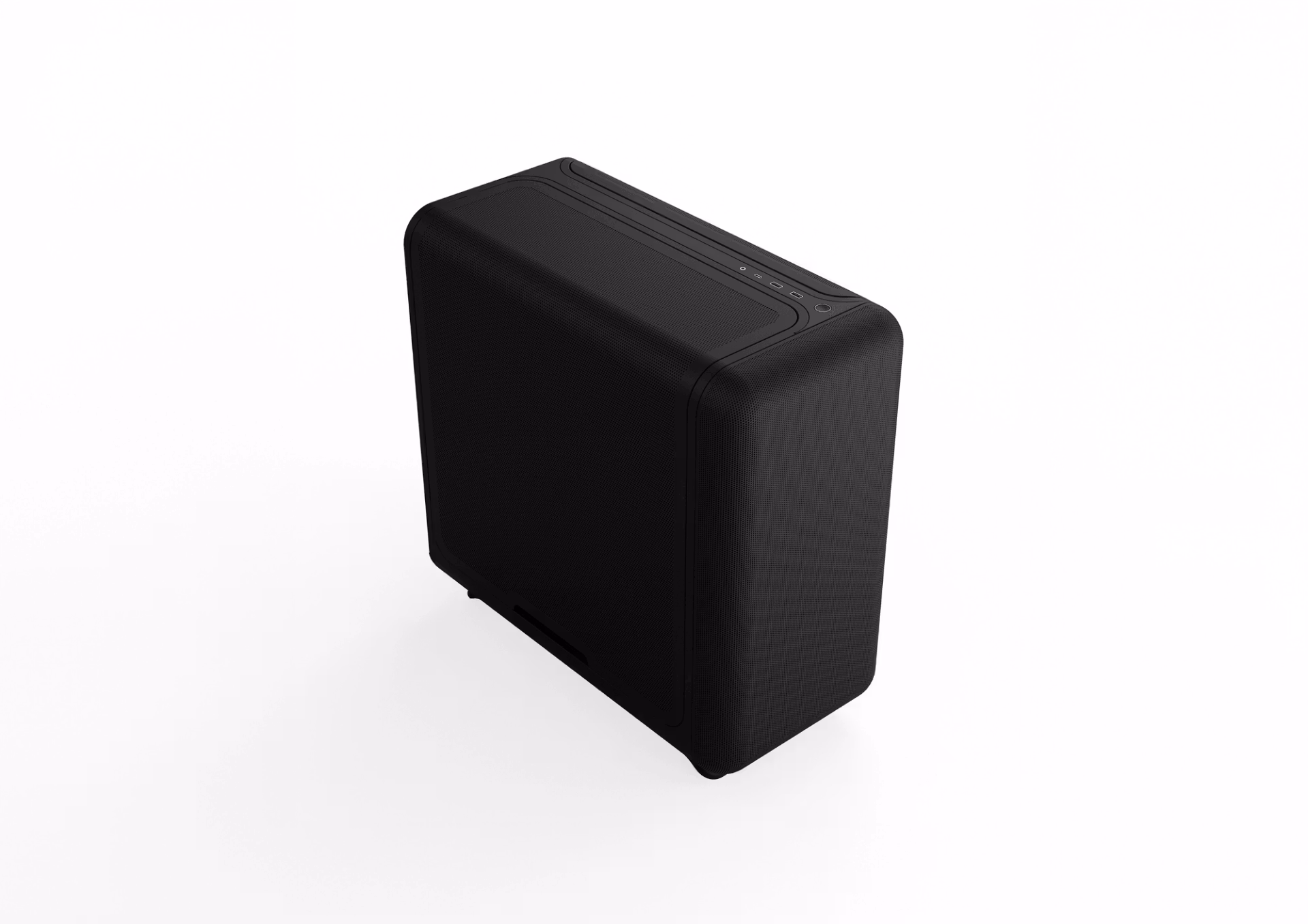

At its core, the HYTE X50 Air Desktop Cabinet is built on a 63-liter frame, measuring 485 mm tall, 510 mm long, and 255 mm wide.
This footprint provides ample room for large graphics cards and power supplies, while maintaining a compact feel that works well on most desks or in multi-case environments.
The combination of 1 mm-thick steel and ABS plastic delivers a sturdy structure without excessive weight.

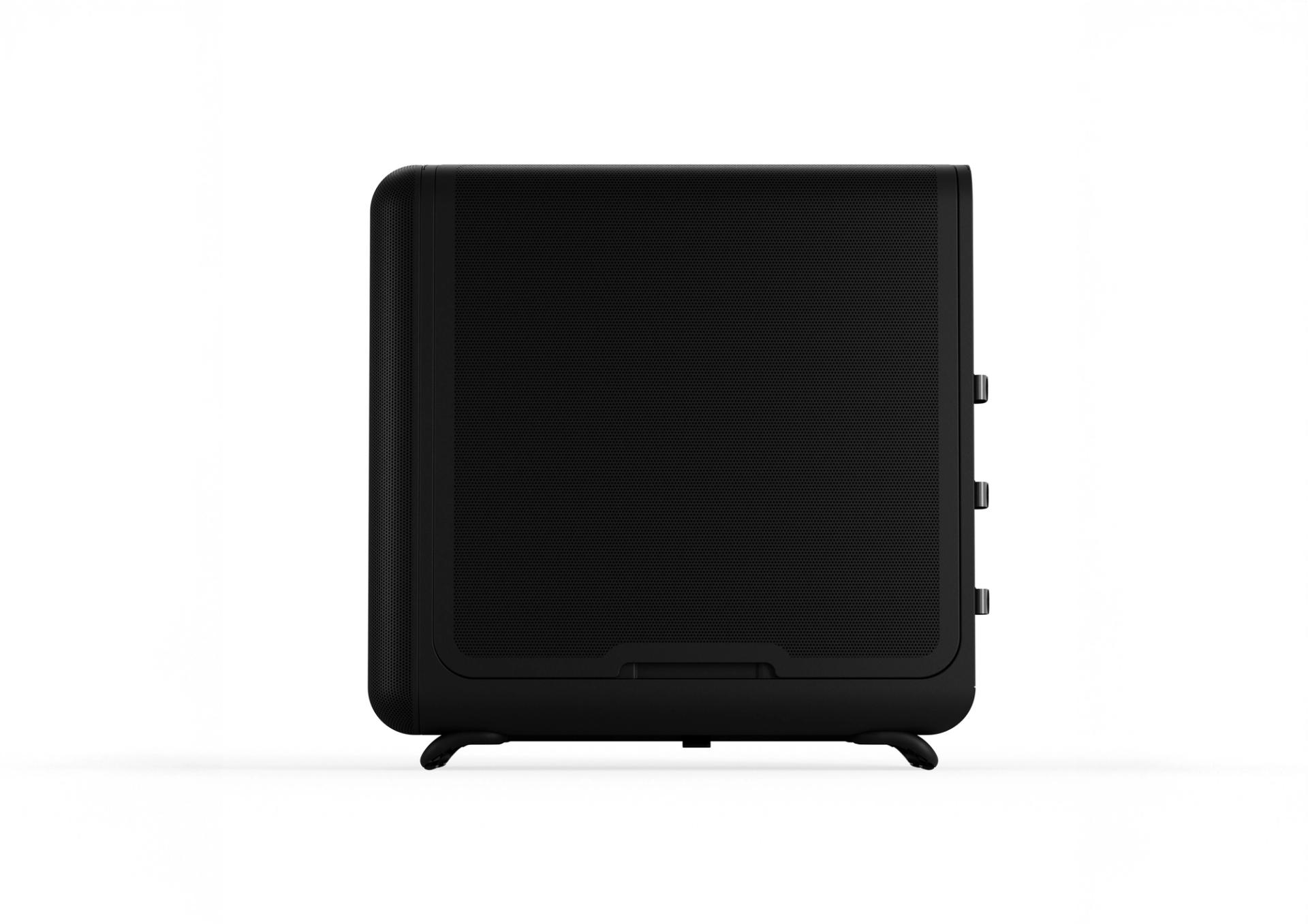

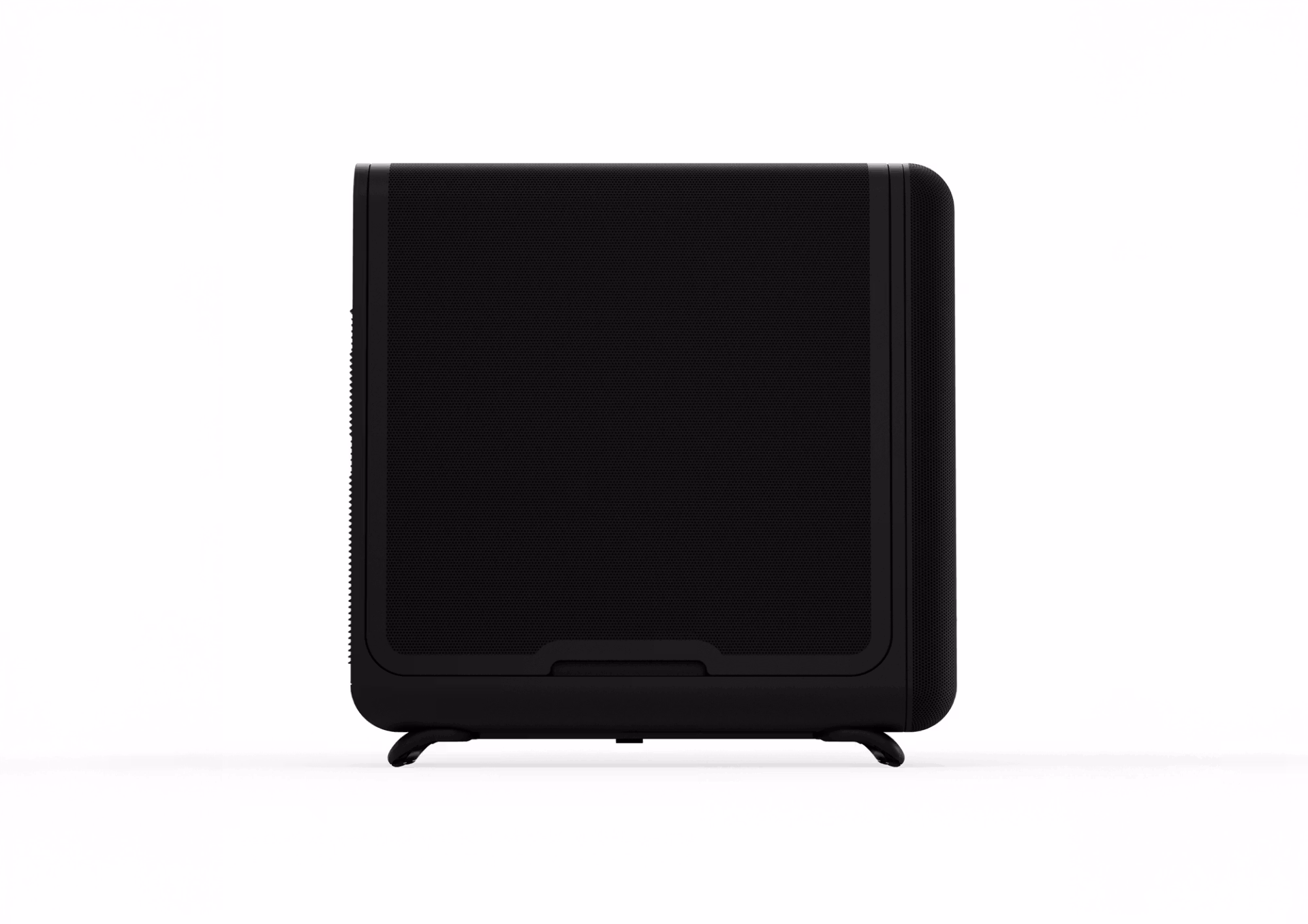

Rather than a glass side panel, the Air version uses a micro-mesh design for full coverage.
This design forms a highly efficient intake path, allowing cool air to flow freely into the chassis with minimal impedance.
The mesh design helps strike an ideal balance — bringing in airflow for critical components like the CPU and GPU, while keeping noise levels manageable.

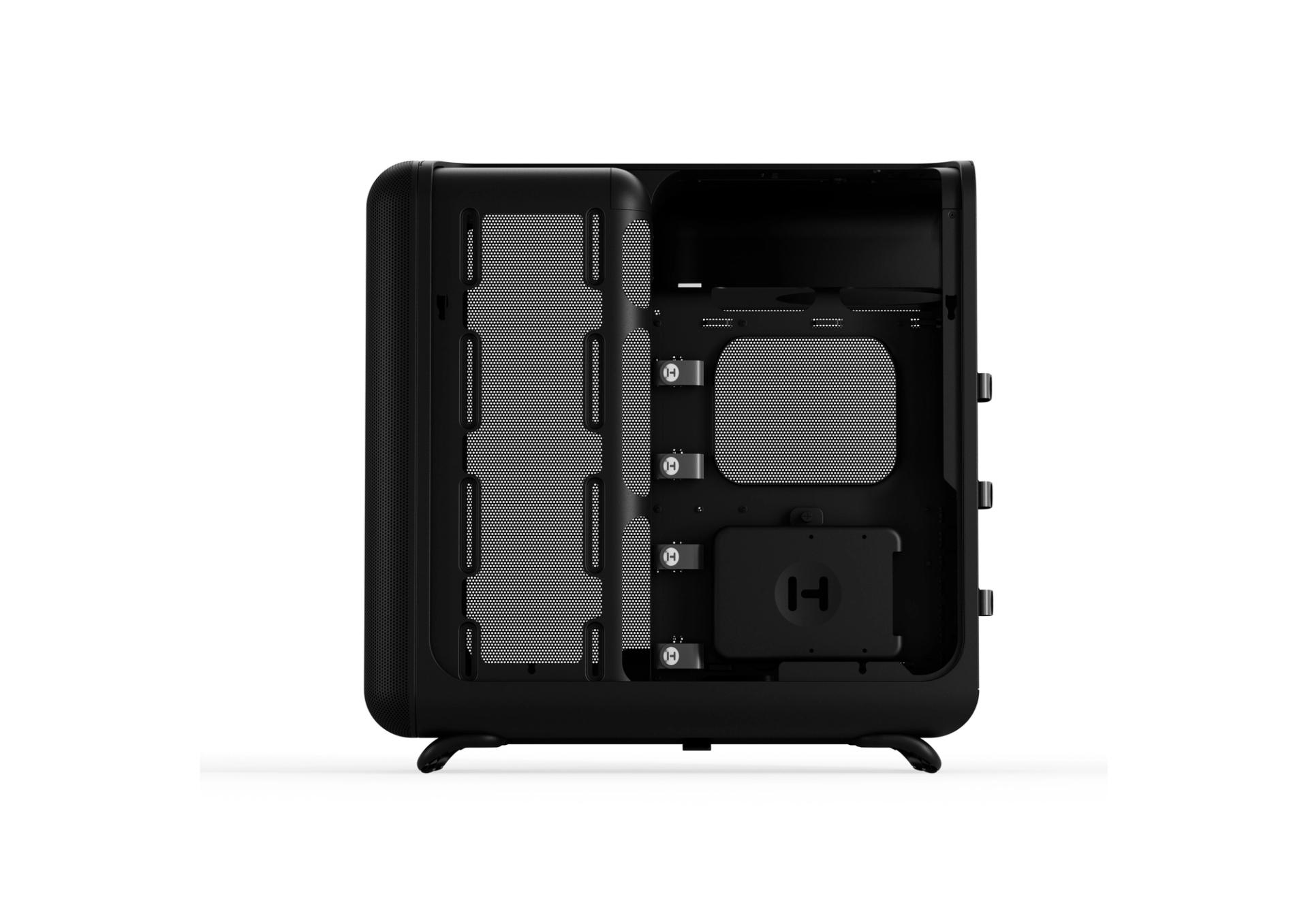

Internally, the HYTE Air Series ATX Mid Tower Cabinet supports E-ATX motherboards (up to 10.6″), as well as standard ATX, mATX, and ITX boards.
This flexibility enables a wide range of build options, from maximally specced workstations to compact gaming rigs.
The power supply bay supports units up to 223 mm in length, giving space for high-wattage PSUs or modular units.
GPU clearance is generous: cards up to 430 mm in length and 160 mm in height fit comfortably.
This means even the largest modern graphics cards can be accommodated, giving builders freedom to select high-end GPUs without worrying about tight fits.
For CPU cooling, the HYTE Gaming Desktop Cabinet supports coolers up to 170 mm tall — enough for many high-performance air coolers or compact AIOs.
Cooling flexibility is a real strength of the HYTE X50 Air Desktop Cabinet.
HYTE X50 Air Desktop Cabinet supports three 120 mm fans on the side, three 120 mm or 140 mm fans up front, and three 120 mm fans at the bottom (with up to 32 mm thickness).
For radiator-cooled builds, users can mount up to a 360 mm radiator on the front (up to 105 mm thick) or side (up to 70 mm thick), plus a 120 mm radiator in the rear.
These options provide robust support for liquid cooling configurations or high airflow air-cooling setups.
Storage is handled cleanly with support for two 2.5″ drives and one 3.5″ drive — a solid mix that’s ideal for SSD + mass storage.
The case also has seven horizontal expansion slots for full-size PCIe cards.

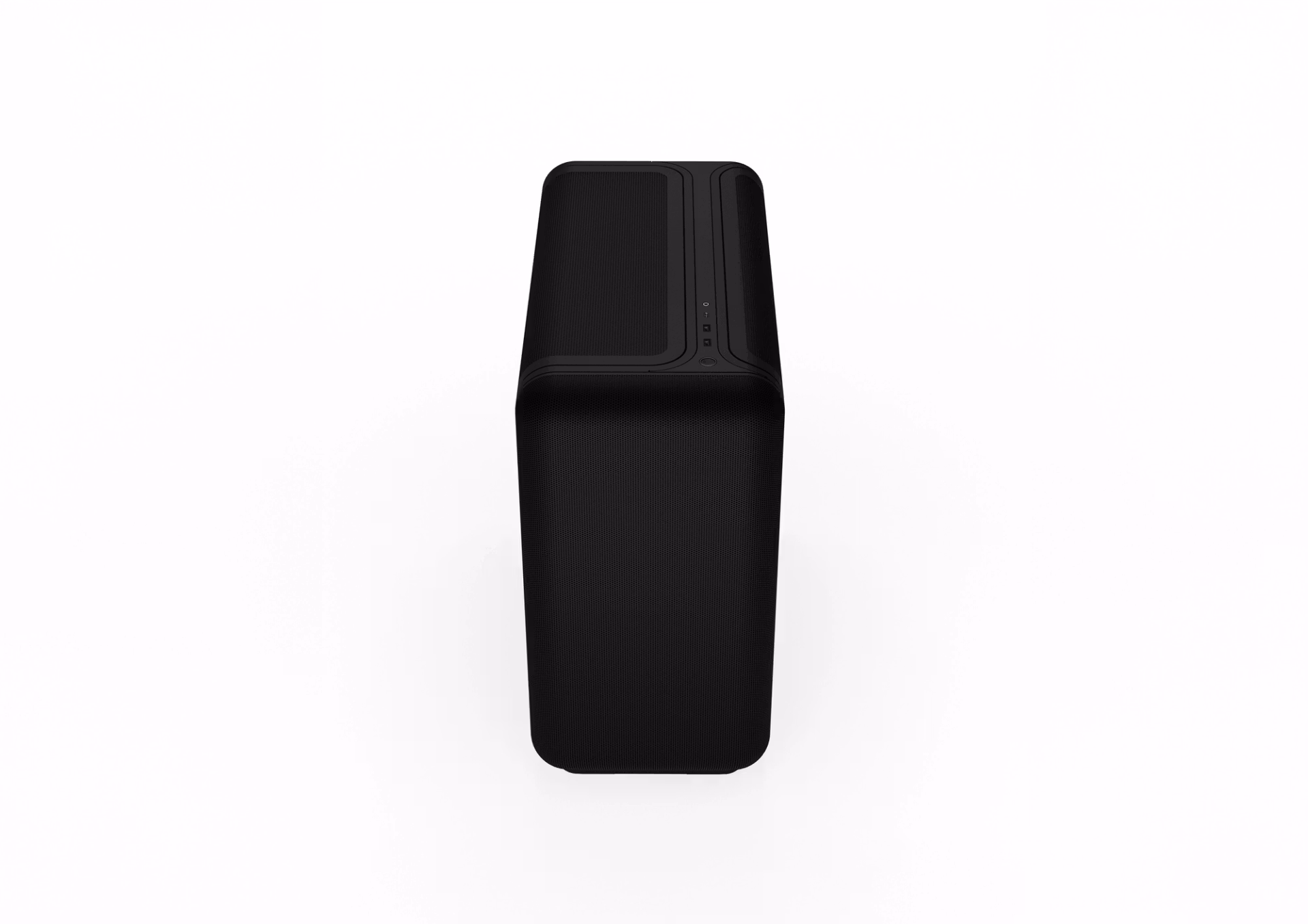

On the front I/O, the HYTE X50 Air Desktop Cabinet offers modern connectivity: one USB 3.2 Gen 2×2 Type-C port, two USB 3.2 Gen 1 Type-A ports, and a 3.5 mm audio jack.
Powering on the system is done via a tactile mechanical power switch with an LED — satisfying to use and visually distinctive.
To maintain cleanliness, the HYTE Black Air Series Desktop Cabinet includes a magnetic dust filter on the bottom.
This makes it easy to access and clean, helping prevent dust buildup in the intake area.

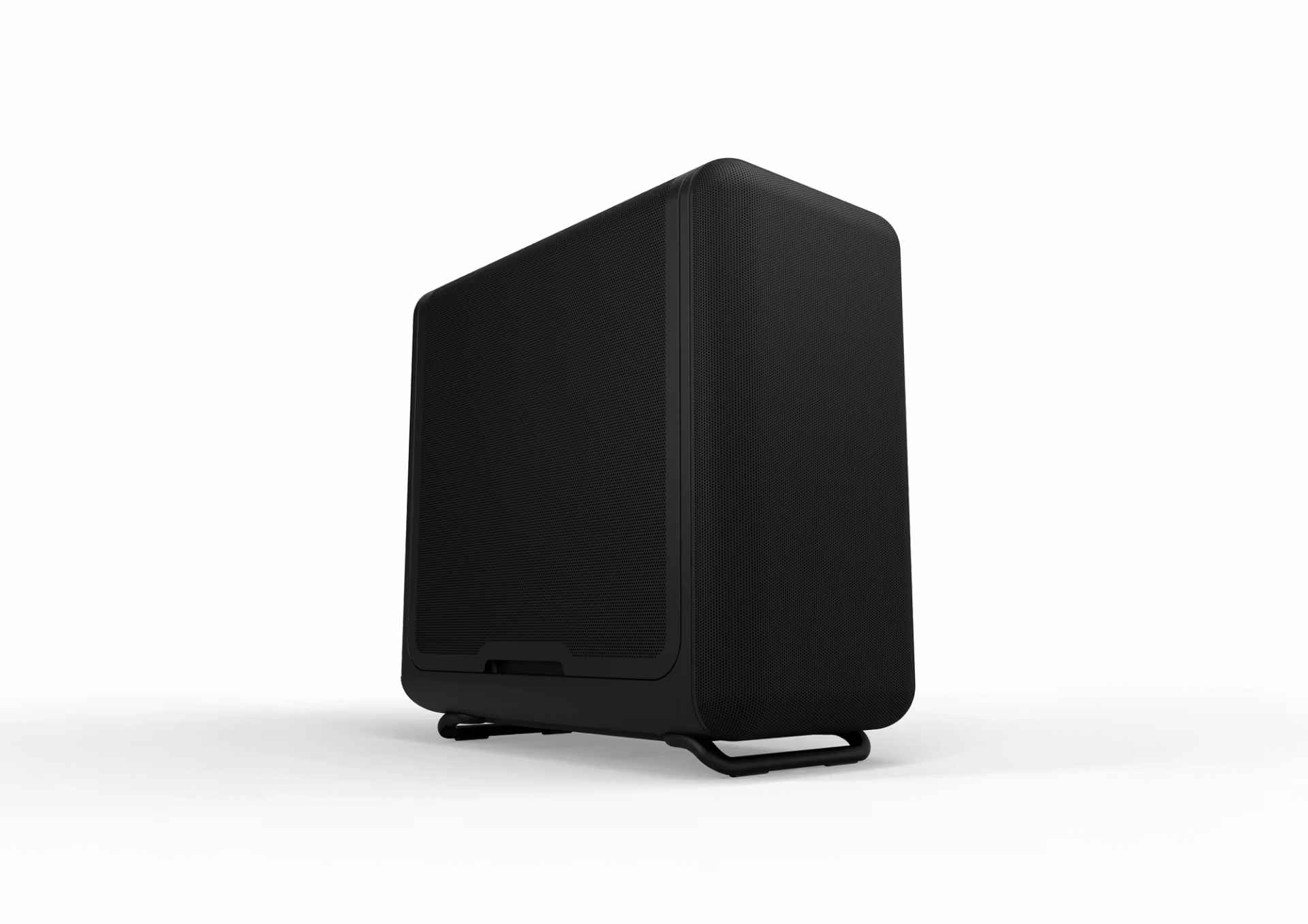

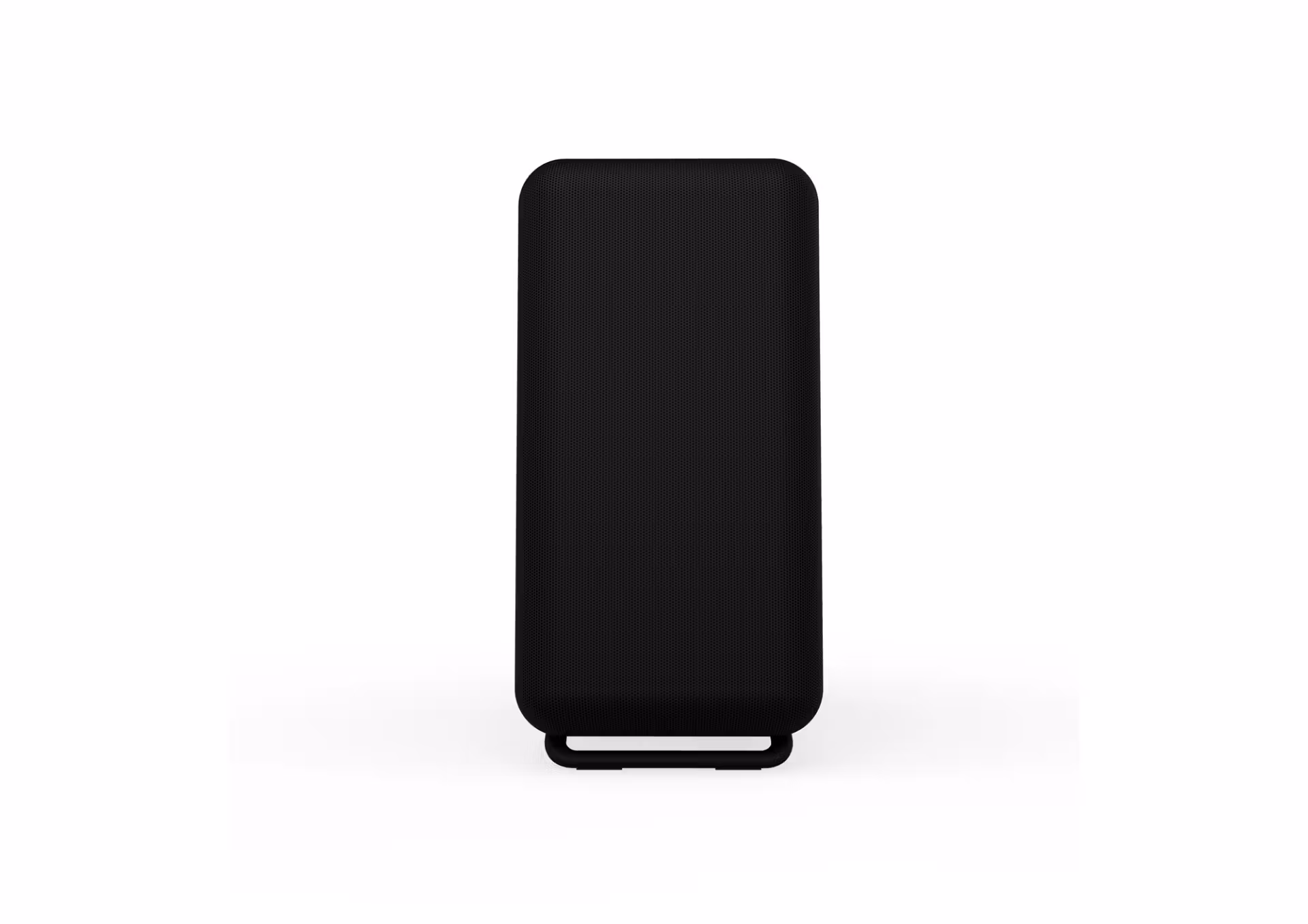

The HYTE X50 Air Desktop Cabinet sits on contemporary feet that contribute to its rounded, modern aesthetic while also lifting it slightly for airflow.
Depending on the color variant, different foot styles may be used (e.g., paw feet in some colors).
HYTE backs the HYTE X50 Air Desktop Cabinet with a four-year warranty, underscoring its confidence in build quality and durability.
Meanwhile, the design supports a broad palette of color options: Snow White, Pitch Black, Wild Cherry, Taro Milk, Strawberry Milk, and Matcha Milk — allowing users to personalize their setup in style.
The HYTE X50 Air Desktop Cabinet is an elegant yet highly functional chassis.
It combines airflow-focused design, premium materials, and excellent component compatibility.
Whether you’re building a workstation, gaming rig, or a visually themed system, the HYTE X50 Air Desktop Cabinet offers the flexibility and performance to support ambitious builds without compromise.
