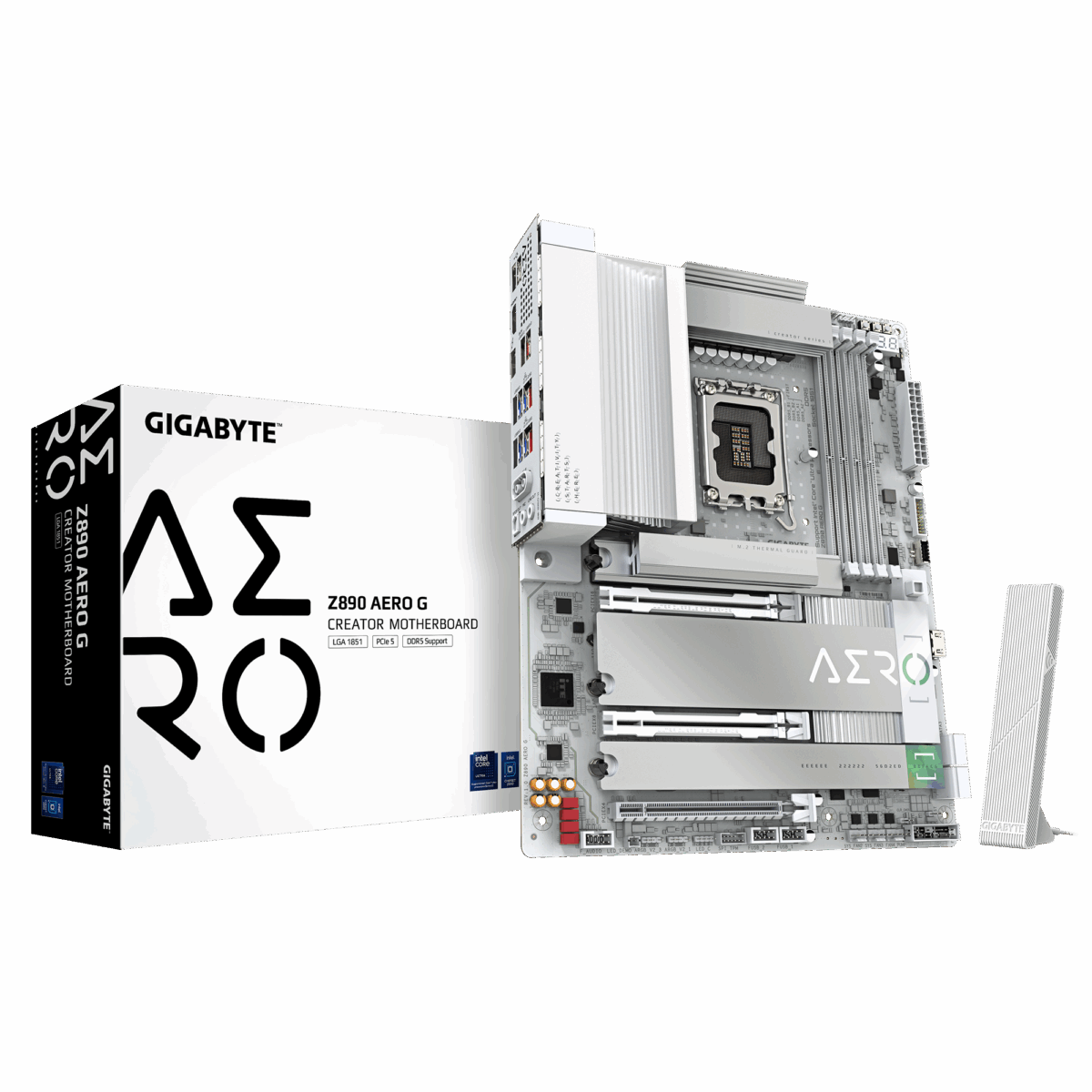

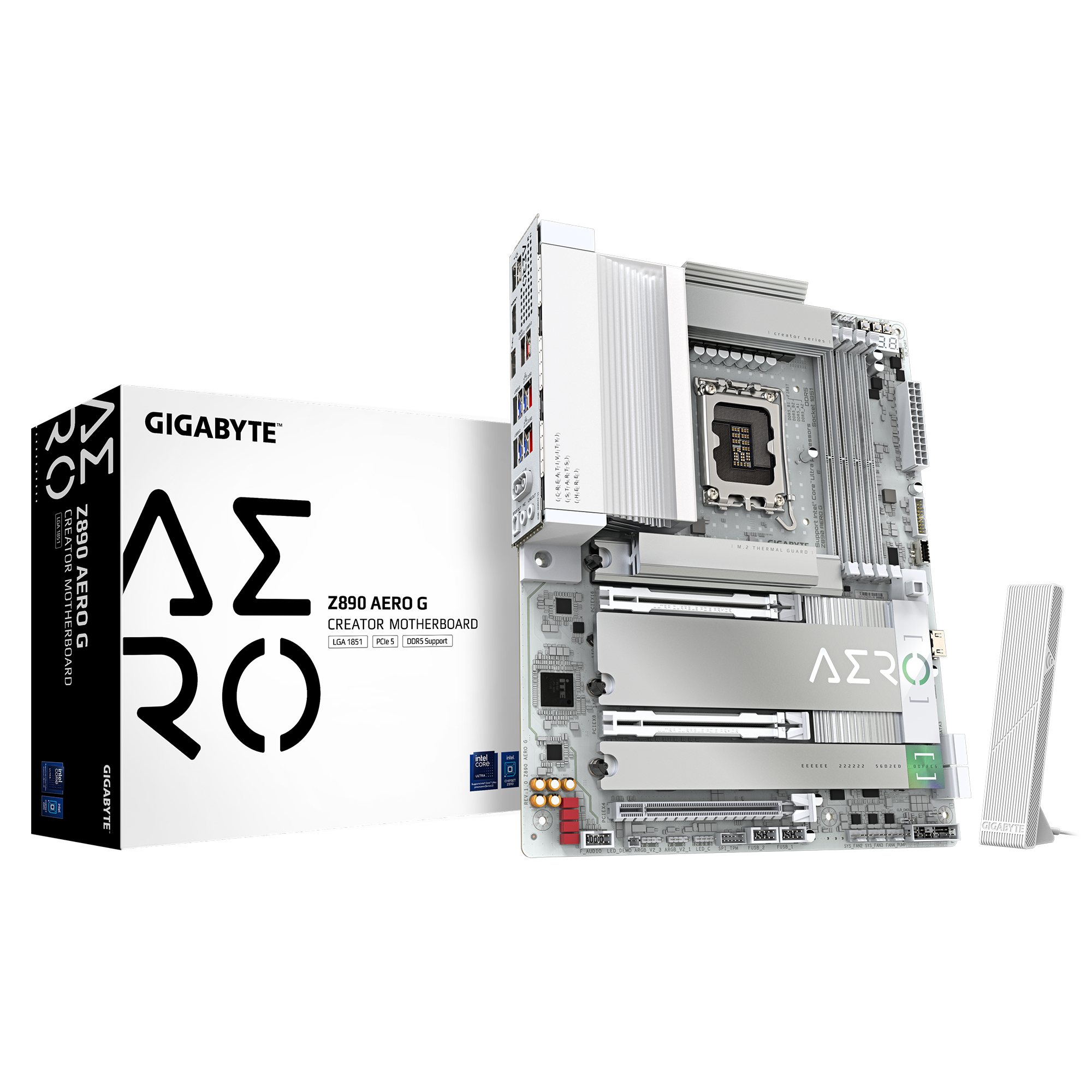

About Gigabyte Z890 AERO G White Motherboard
| Specification | Details |
|---|---|
| CPU Support | Intel Core Ultra Series 2 CPUs, using socket LGA 1851 |
| Chipset | Intel Z890 |
| Form Factor & Dimensions | ATX board layout (approx. 305 mm × 244 mm) |
| Memory | • 4 × DDR5 DIMM slots (dual channel) • Supports DDR5-5600 as base; many overclocked speeds (DDR5-6000 / 6200 / 6400 / etc.) • Maximum memory 256 GB |
| Power / VRM | 16+1+2 Twin Digital VRM design; “80A Smart Power Stage”; premium chokes & capacitors; solid pin 24-pin ATX + CPU power connectors |
| Storage | • 5 × M.2 sockets (including one PCIe 5.0 ×4 M.2) • 4 × SATA 6 Gb/s ports • RAID support for SATA / M.2 (various modes) |
| Expansion / PCIe Slots | • 2 × PCIe 5.0 ×16 (one runs full ×16, the other ×8 when both populated) • 1 × PCIe 4.0 ×4 slot • Reinforced / durable PCIe armor / PCIe UD Slot X for strength |
| Back-Panel I/O / Connectivity | • Thunderbolt 4 / USB-C with DisplayPort Alt / data/power possibilities • Front USB-C 20Gb/s header • HDMI, Sensor Panel Link (HDMI) • Multiple USB3.x / USB2.0 ports • Optical S/PDIF audio output • Dual 2.5GbE LAN |
| Wireless / Networking | Integrated WiFi 7 (802.11be) plus Directional Ultra-high Gain Antenna; Bluetooth latest version (5.4) |
| Audio | Realtek ALC1220 codec, plus audiophile grade capacitors (WIMA etc.), 7.1 channel support |
| Thermals & Cooling | VRM Thermal Armor Advanced; M.2 Thermal Guards (L & Ext.); reinforced IO shield; good heatpipe / heatsink design |
| DIY / Build Friendly Features | EZ-Latch mechanisms for PCIe & M.2 slots; WiFi EZ-Plug; Q-Flash Plus; EZ-Debug Zone; Sensor Panel Link; RGB + ARGB headers; tool-less installation aids |
| Other Features | RGB Fusion lighting control; BIOS enhancements for memory (XMP, overclocking support); high durability in components; premium packaging / finishes |
