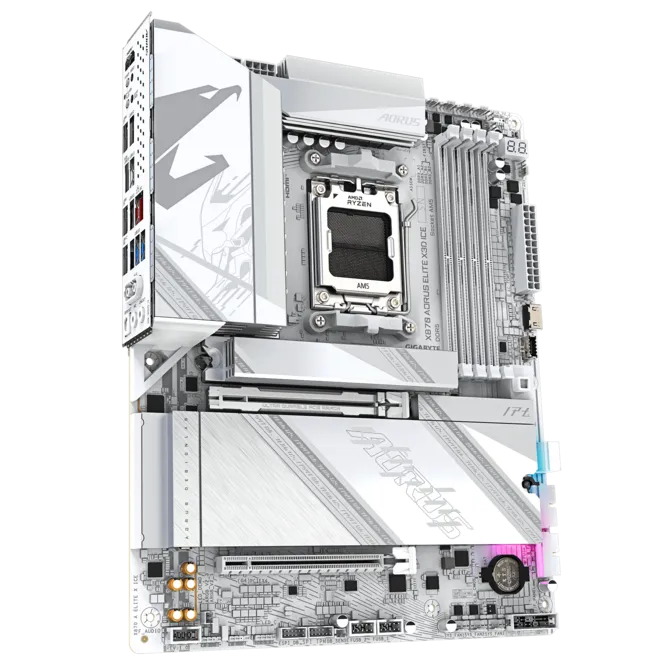

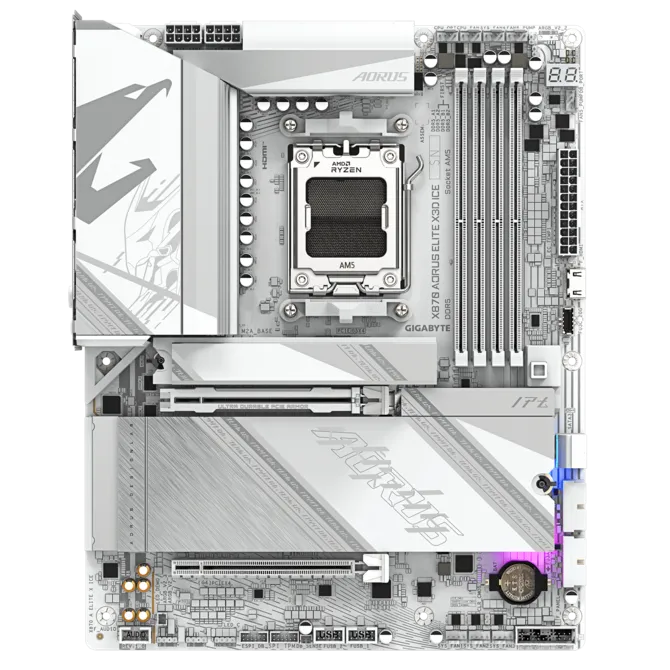

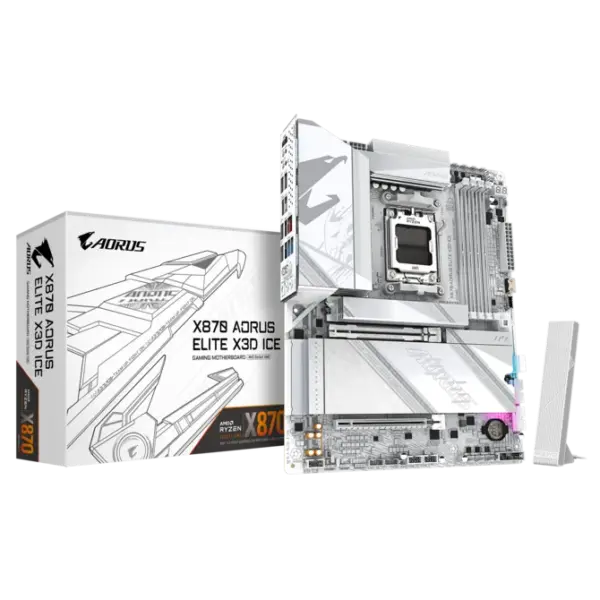

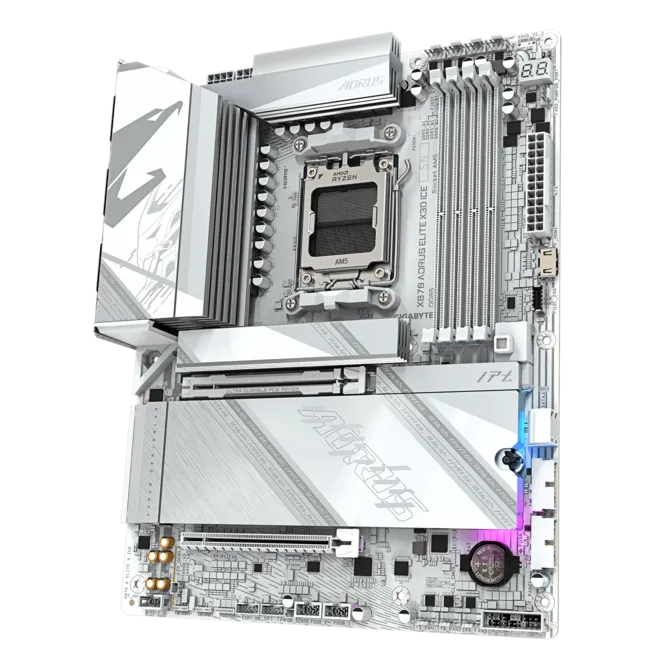

About the Gigabyte X870 Aorus Elite X3D ICE Motherboard
| Category | Detailed Specification |
|---|---|
| Chipset | AMD X870 high-performance chipset designed for gaming, productivity, and enthusiast computing workloads with support for PCIe 5.0 and next-generation connectivity technologies. |
| CPU Socket | AM5 socket supporting AMD Ryzen 7000, 8000, and 9000 Series processors with improved power delivery and optimized compatibility for gaming and professional workloads. |
| Form Factor | ATX form factor measuring approximately 305mm x 244mm, offering excellent expandability and compatibility with most mid-tower and full-tower PC cases. |
| VRM Design | 16+2+2 Twin Digital VRM with premium chokes and capacitors ensures stable voltage delivery, improving performance consistency, overclocking stability, and long-term durability. |
| Memory Support | Supports DDR5 memory modules with four DIMM slots, dual channel configuration, and maximum capacity up to 256GB for high-performance multitasking. |
| Memory Technology | Advanced memory optimization technologies enhance DDR5 stability, efficiency, and compatibility for high-speed RAM configurations and gaming workloads. |
| PCIe Expansion | Includes PCIe 5.0 x16 slot for GPUs and PCIe 4.0 slot for additional expansion cards, ensuring compatibility with modern graphics cards and add-in devices. |
| Storage Support | Features four M.2 slots including PCIe 5.0 and PCIe 4.0 interfaces plus SATA III ports for flexible storage configurations with SSD and HDD support. |
| RAID Support | Supports RAID 0, 1, 5, and 10 configurations providing improved performance, redundancy, and data protection for professional and gaming applications. |
| Networking | Integrated 5GbE LAN ensures ultra-fast wired networking for gaming, streaming, and workstation use. |
| Wireless Connectivity | Includes Wi-Fi 7 and Bluetooth 5.4 delivering ultra-fast wireless speeds, lower latency, and improved connectivity reliability. |
| USB Connectivity | Includes USB4 Type-C ports with speeds up to 40Gbps, USB 3.2 Gen2, and multiple USB ports for peripherals and high-speed storage. |
| Audio System | Realtek ALC1220-VB audio codec delivers high-quality 7.1-channel surround sound for immersive gaming and multimedia experience. |
| Cooling Support | Includes multiple fan headers, water pump headers, and temperature sensors for advanced cooling configurations. |
| Thermal Design | Advanced thermal armor and heat dissipation solutions maintain optimal temperatures under heavy workloads and gaming sessions. |
| RGB Support | Includes multiple RGB and ARGB headers for customizable lighting setups synchronized with system components. |
| BIOS | Uses UEFI AMI BIOS with large memory capacity and easy configuration interface. |
| Display Support | HDMI output allows use of integrated graphics for productivity, troubleshooting, and basic display use. |
| Power Connectors | Includes 24-pin ATX and dual 8-pin CPU connectors for stable power delivery. |
| Software Support | Includes system optimization, monitoring, and hardware control utilities for system tuning. |
Key features about the Gigabyte X870 Aorus Elite X3D ICE Motherboard
- Advanced AMD X870 Chipset Platform: The Gigabyte X870 Aorus Elite X3D ICE Motherboard uses the AMD X870 chipset, which is designed to support modern Ryzen processors and deliver improved system bandwidth, better PCIe lane distribution, and optimized performance for gaming and workstation applications. This chipset ensures long-term compatibility with future hardware upgrades and emerging technologies.
- Support for Latest Ryzen Processors: Gigabyte Aorus Series Desktop Motherboard supports AMD Ryzen 7000, 8000, and 9000 series CPUs, allowing users to build high-performance gaming systems or productivity workstations. This compatibility ensures excellent multi-core performance, faster processing speed, and improved efficiency for gaming, streaming, content creation, and heavy workloads.
- DDR5 Memory with High Capacity Support: The Gigabyte X870 Aorus Elite X3D ICE Motherboard supports DDR5 RAM with up to 256GB capacity, providing significantly higher bandwidth and efficiency compared to DDR4. DDR5 memory enhances multitasking performance, improves system responsiveness, and ensures smooth operation for demanding applications such as gaming, video editing, and simulation software.
- PCIe 5.0 Graphics Slot for Maximum GPU Performance: Gigabyte X870 Aorus Elite X3D ICE Motherboard includes a PCIe 5.0 x16 slot that delivers double the bandwidth of PCIe 4.0, allowing modern graphics cards to operate at their full performance potential. This ensures improved gaming frame rates, faster rendering, and enhanced performance in GPU-accelerated workloads like AI and 3D modeling.
- Multiple M.2 Slots for High-Speed Storage Expansion: The Gigabyte Aorus Elite White Desktop Motherboard provides four M.2 slots, allowing users to install multiple NVMe SSDs for faster storage performance. These slots enable extremely fast data transfer speeds, faster boot times, reduced game loading times, and improved productivity when handling large files and applications.
- USB4 Connectivity for High-Speed Data Transfer: USB4 support ensures ultra-fast data transfer speeds, making it ideal for external SSDs, docking stations, and modern peripherals. It also supports display output and high-power delivery, improving versatility and reducing the need for additional expansion cards.
- Wi-Fi 7 for Next-Generation Wireless Networking: The integrated Wi-Fi 7 module provides faster wireless speeds, lower latency, and improved stability compared to older Wi-Fi standards. This ensures better performance for online gaming, streaming, cloud computing, and wireless productivity environments without requiring additional adapters.
- High-Speed Ethernet Connectivity: The Gigabyte X870 Aorus Elite X3D ICE Motherboard includes high-speed Ethernet connectivity with support for up to 5 Gigabit speeds, providing reliable wired networking performance. This is essential for gaming, file transfers, streaming, and professional applications requiring stable and fast network connections.
- Premium Audio Quality with Realtek ALC1220-VB Codec: Gigabyte X870 Aorus Elite X3D ICE Motherboard features the Realtek ALC1220-VB audio codec, which delivers high-quality sound output with minimal distortion. This improves gaming immersion, enhances multimedia experiences, and ensures professional-quality audio performance for creators and audio enthusiasts.
- Robust Power Delivery System for Stable Performance: The Gigabyte X870 Aorus Elite X3D ICE Motherboard includes a strong power delivery system designed to support high-performance CPUs. This ensures stable operation, improved overclocking capability, and reliable performance during heavy workloads such as gaming, rendering, and video processing.
- Advanced Cooling Support and Fan Headers: Multiple fan and pump headers allow users to install air cooling or liquid cooling solutions. This ensures efficient heat dissipation, stable operation, and improved system lifespan, especially when running high-performance processors and graphics cards.
- USB and Peripheral Connectivity Options: Gigabyte 870 Series Desktop Motherboard includes multiple USB ports including USB4, USB 3.2 Gen 2, and USB 3.2 Gen 1, allowing users to connect various peripherals. This ensures compatibility with modern devices such as external drives, VR systems, and gaming accessories.
- ATX Form Factor for Maximum Expandability: The ATX form factor allows users to install multiple expansion cards, storage devices, and cooling solutions. This provides flexibility for gaming builds, workstation systems, and custom PC configurations.
- RAID Storage Support for Data Protection and Performance: The Gigabyte X870 Aorus Elite X3D ICE Motherboard supports RAID configurations including RAID 0, 1, 5, and 10, allowing users to improve storage performance, redundancy, and data protection. This is useful for professionals handling critical data and large projects.
- High-Quality PCB Design for Stability and Durability: The Gigabyte X870 Aorus Elite X3D ICE Motherboard uses high-quality PCB materials and construction techniques to improve durability, reduce electrical interference, and enhance performance stability under heavy workloads.
- Integrated Bluetooth 5.4 Support: Bluetooth 5.4 allows users to connect wireless devices such as keyboards, mice, headphones, and controllers with improved reliability and lower latency. This enhances convenience and usability.
- HDMI Output Support for Integrated Graphics: Gigabyte X870 Aorus Elite X3D ICE Motherboard includes HDMI output support, allowing users to use integrated graphics from Ryzen processors without requiring a dedicated graphics card. This is useful for office systems and troubleshooting.
- Multiple RGB Headers for Custom Lighting: RGB headers allow users to connect lighting accessories and customize system appearance. This improves system aesthetics and enables personalized PC builds.
- Reliable BIOS and Firmware System: The Gigabyte X870 Aorus Elite X3D ICE Motherboard includes a modern UEFI BIOS with advanced configuration options, ensuring easier system setup, tuning, and stability management.
- Ideal for Gaming, Content Creation, and Professional Workstations: This Gigabyte X870 Aorus Elite X3D ICE Motherboard is suitable for high-performance gaming systems, video editing workstations, and professional computing environments. Its advanced connectivity, memory support, and expansion capabilities ensure excellent long-term performance and upgrade potential.
