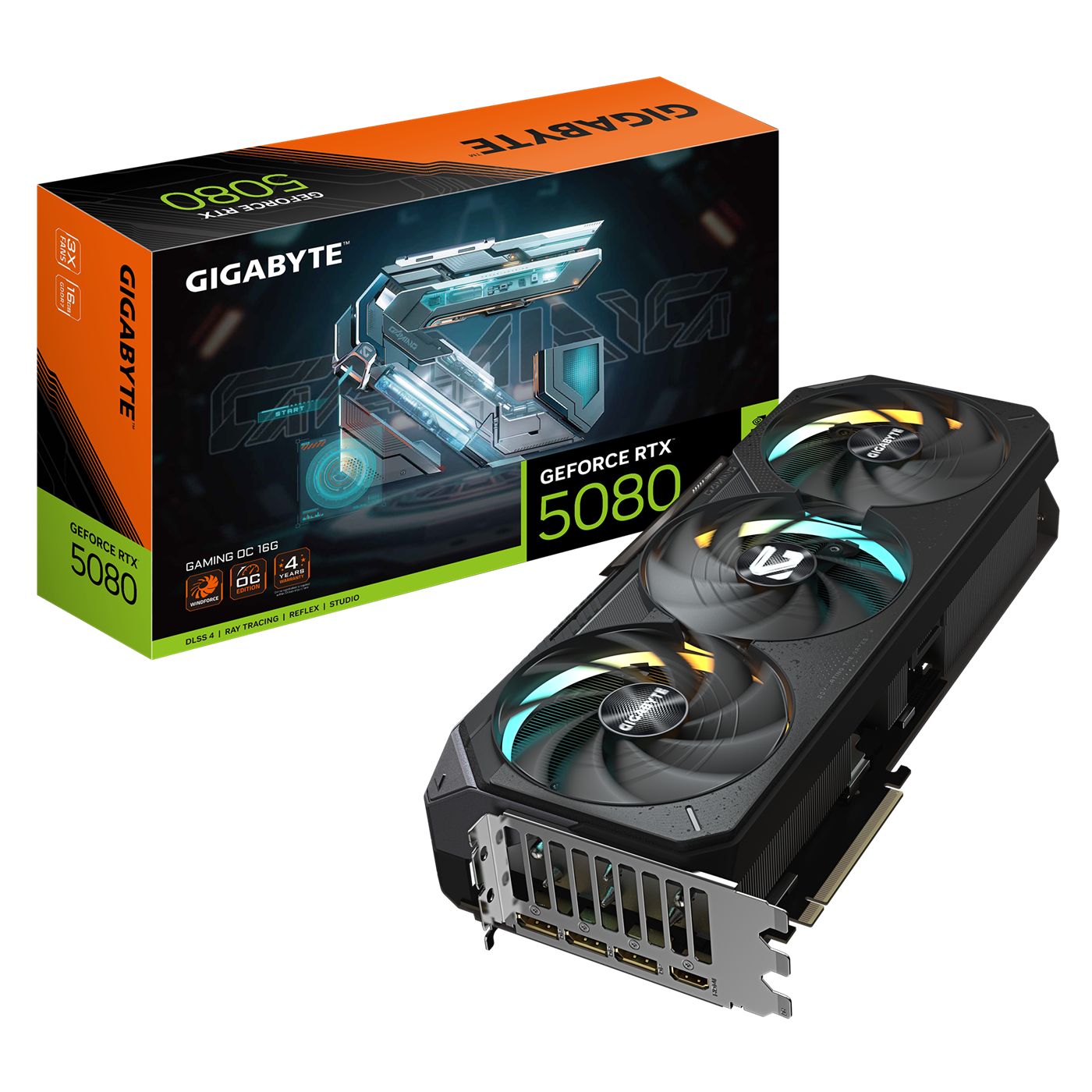

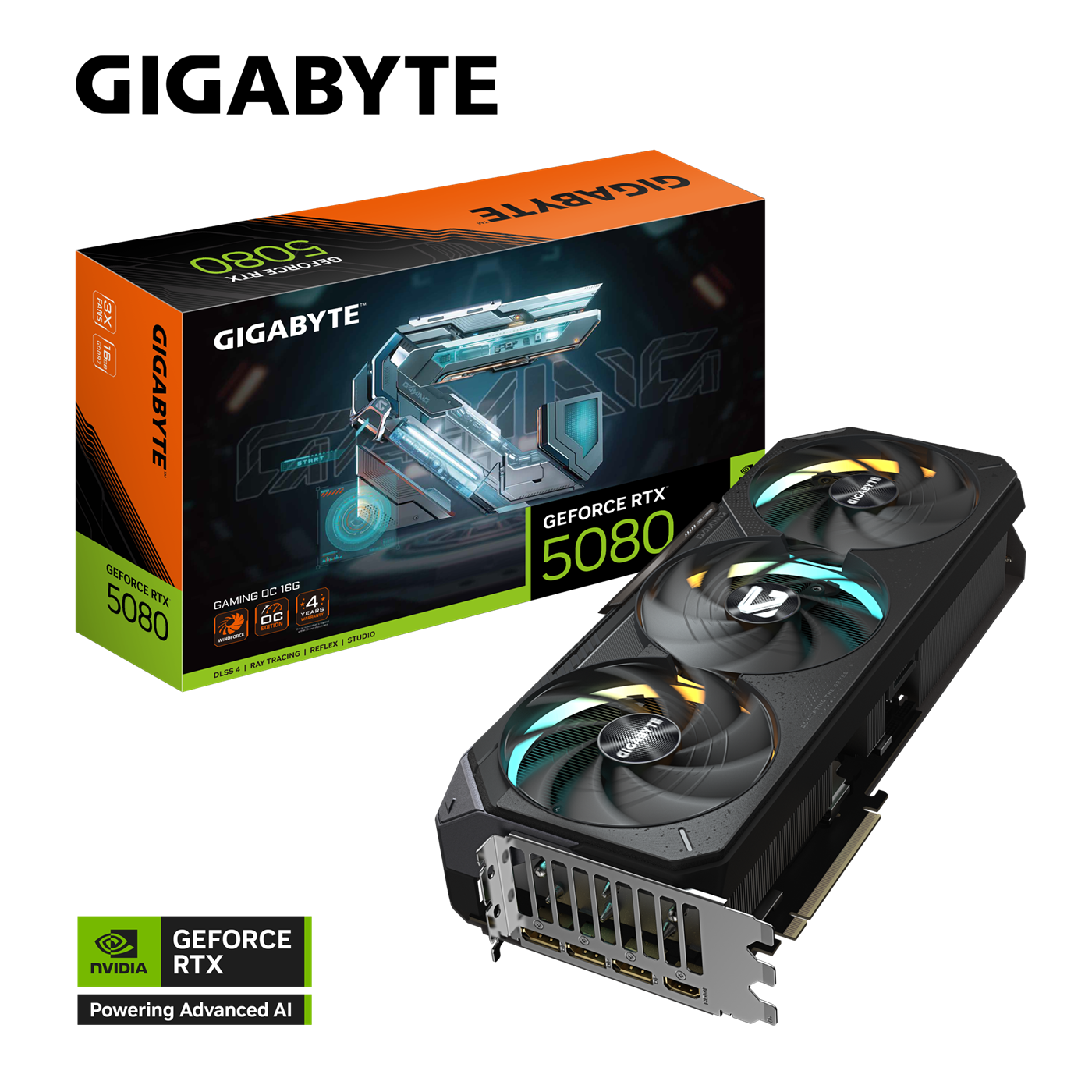

About Gigabyte GeForce RTX 5080 GAMING OC 16GB GDDR7 Graphics Card

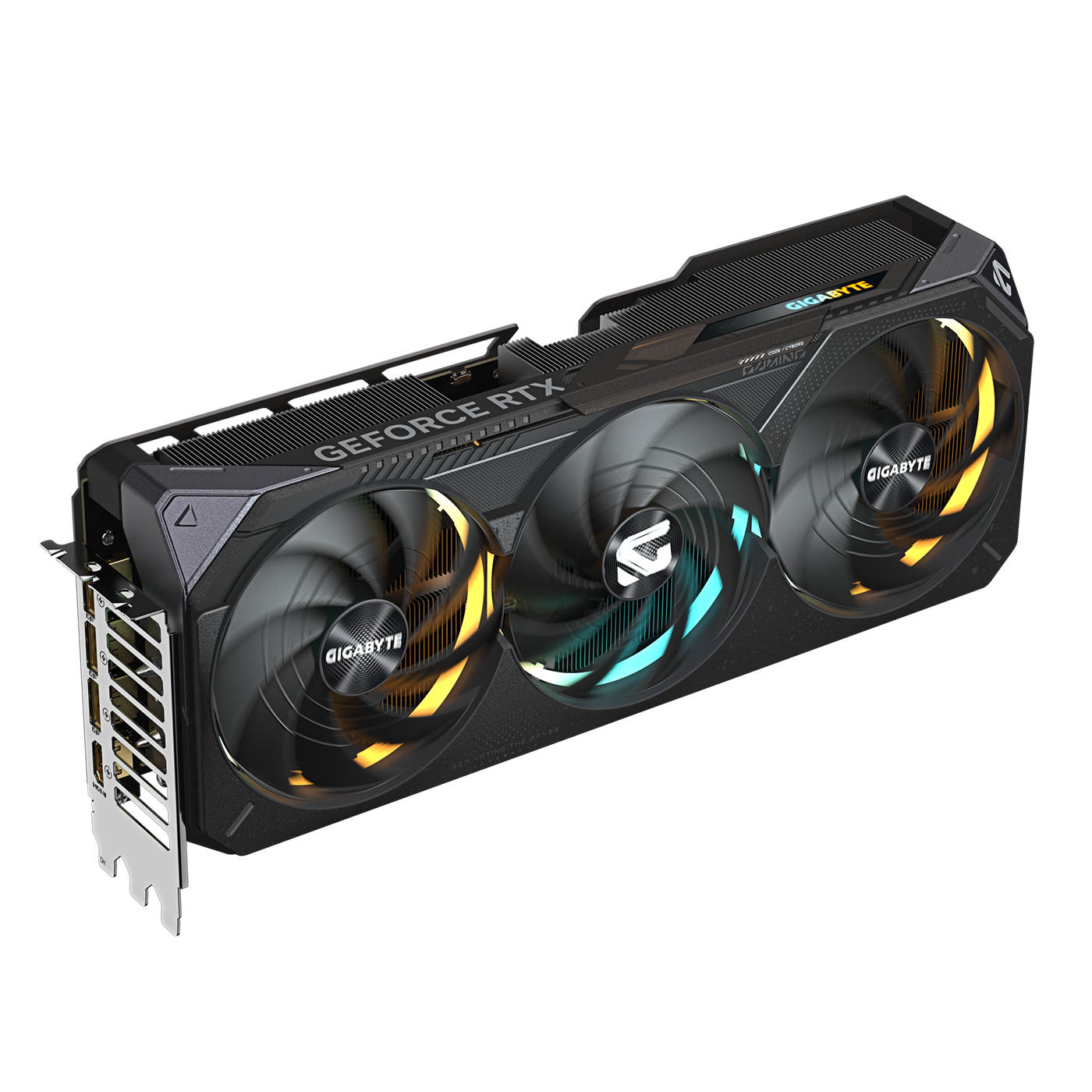

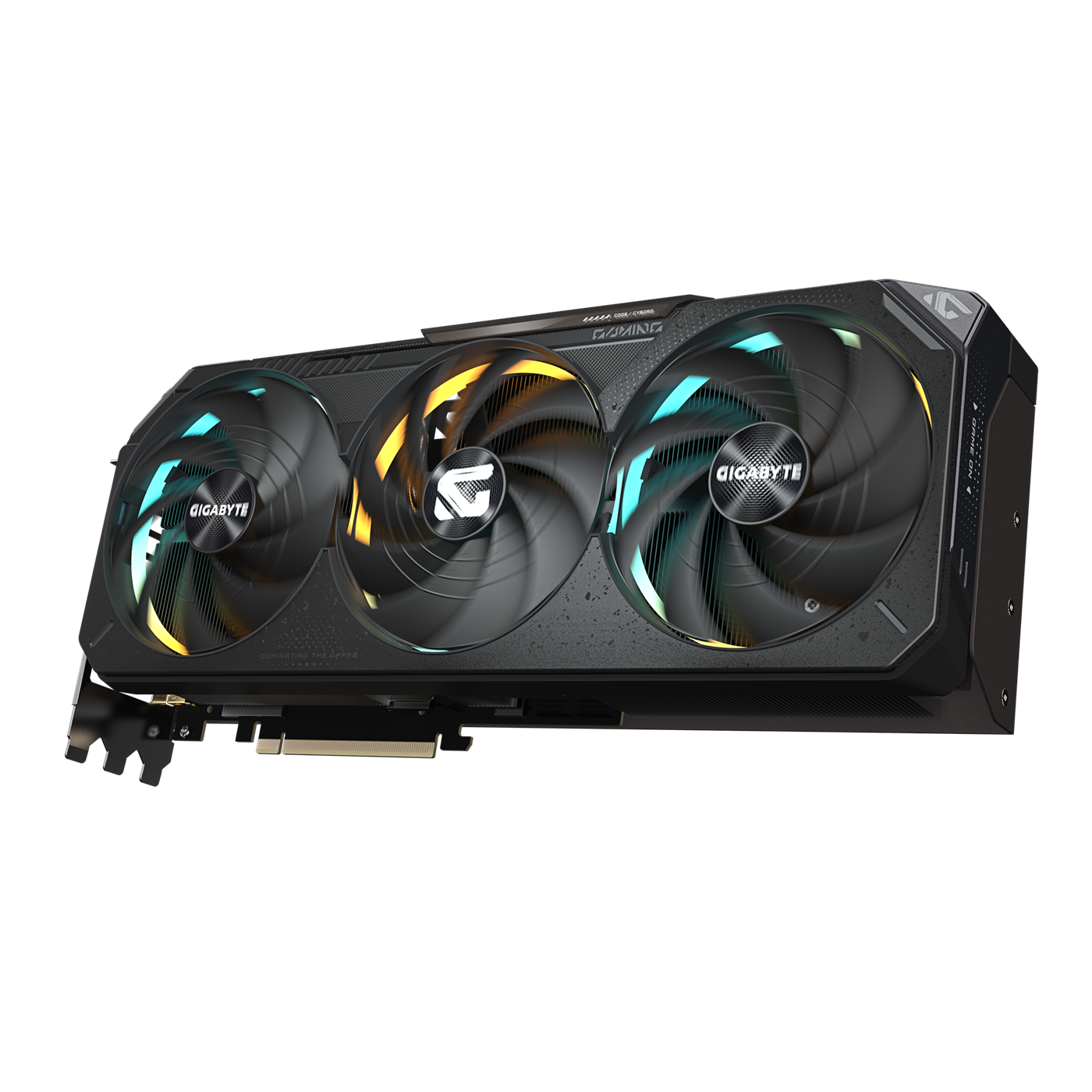

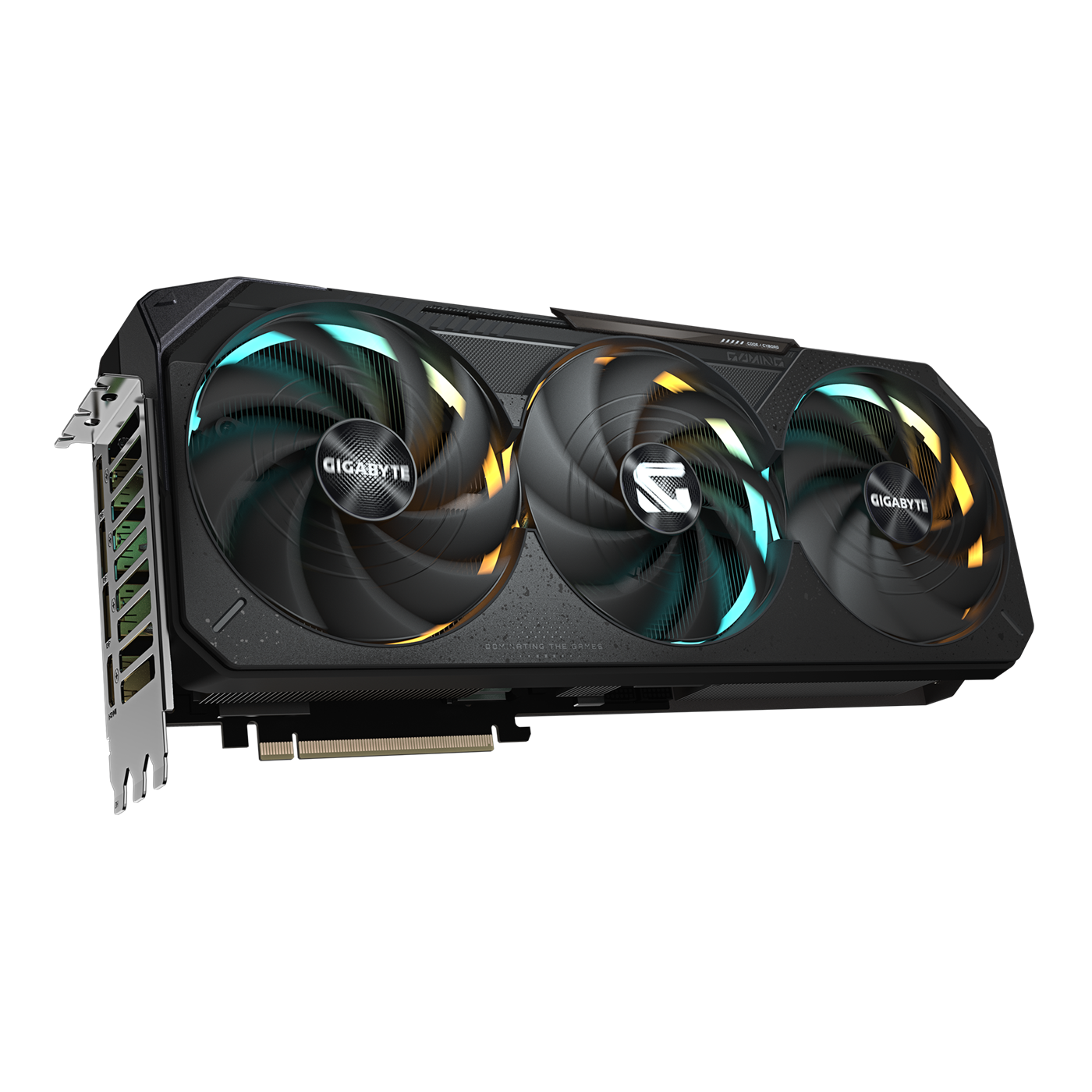

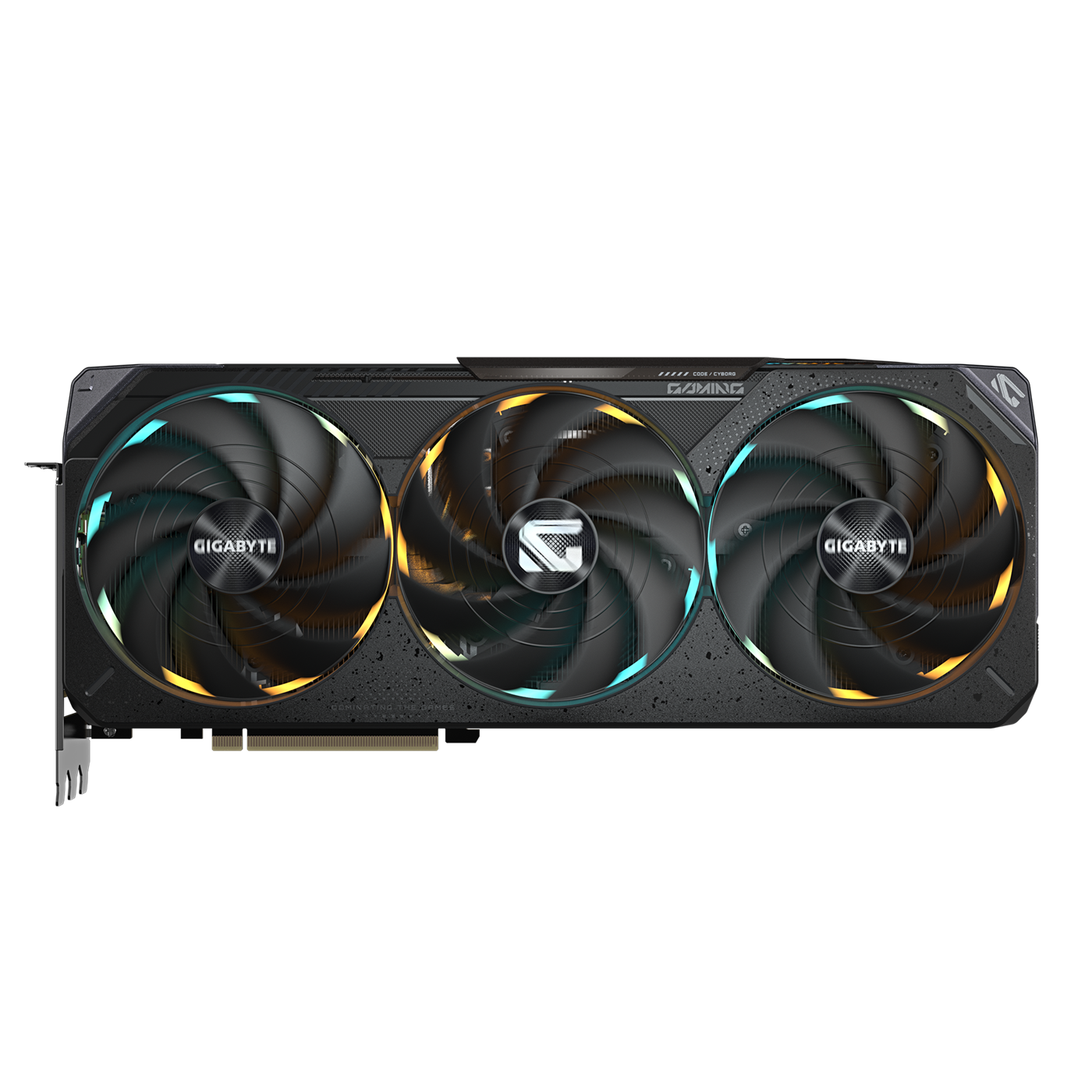

WINDFORCE Cooling & RGB Halo Unlike the standard “Windforce” model, the GAMING OC features a much larger 3.5-slot cooler equipped with RGB Halo lighting. This unique feature lights up the fan rings, creating a spinning “halo” effect that looks stunning in vertical or standard mounts. The cooling system uses three 110mm “Hawk” fans with graphene nano lubricant and alternate spinning technology to minimize turbulence and noise.

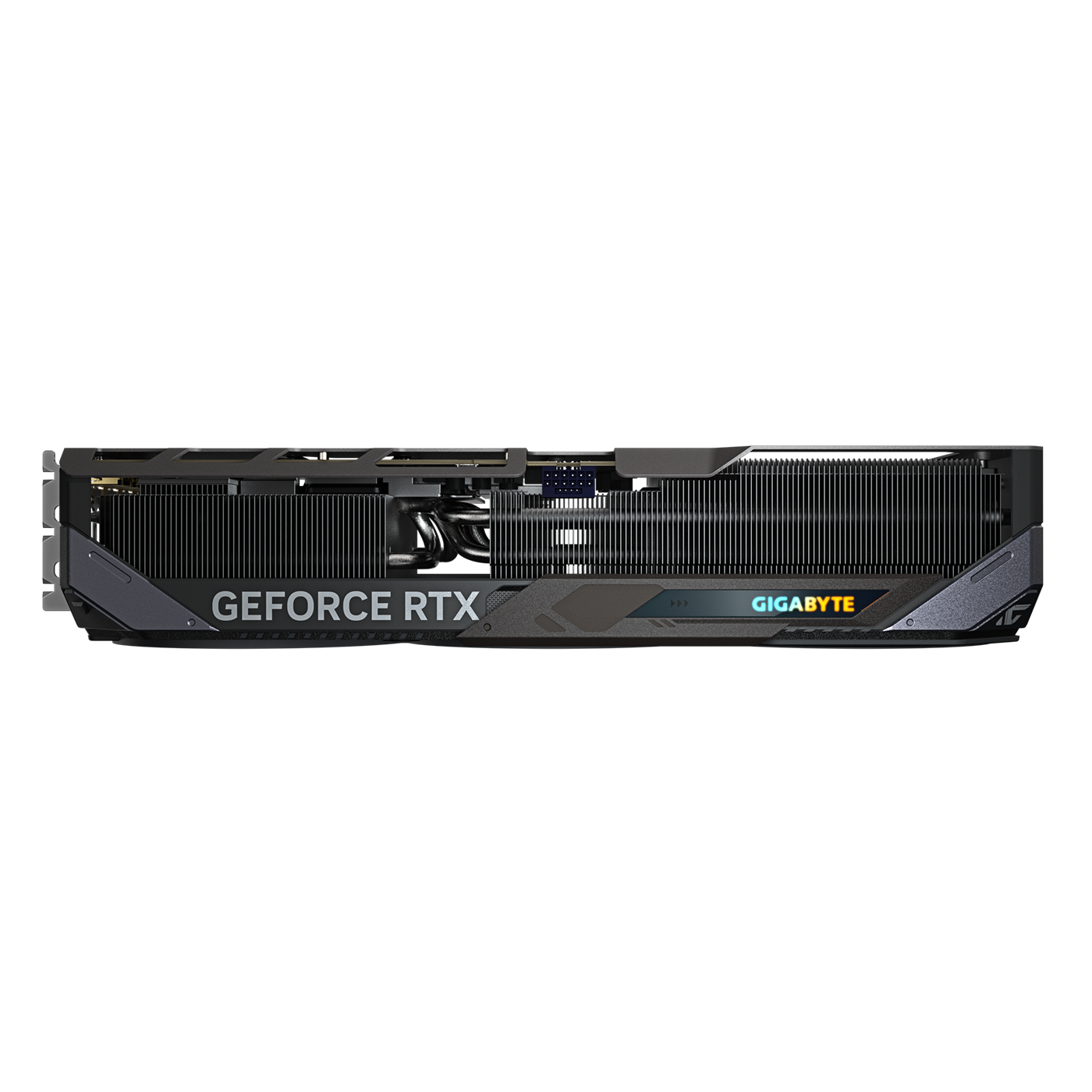

Massive Vapor Chamber To handle the factory overclock, the card employs a large Vapor Chamber that directly contacts the GPU and VRAM. This rapidly transfers heat into the composite copper heat pipes and the massive aluminum fin stack. The extended heatsink design features Screen Cooling, allowing air to flow completely through the back of the card for efficient heat dissipation.

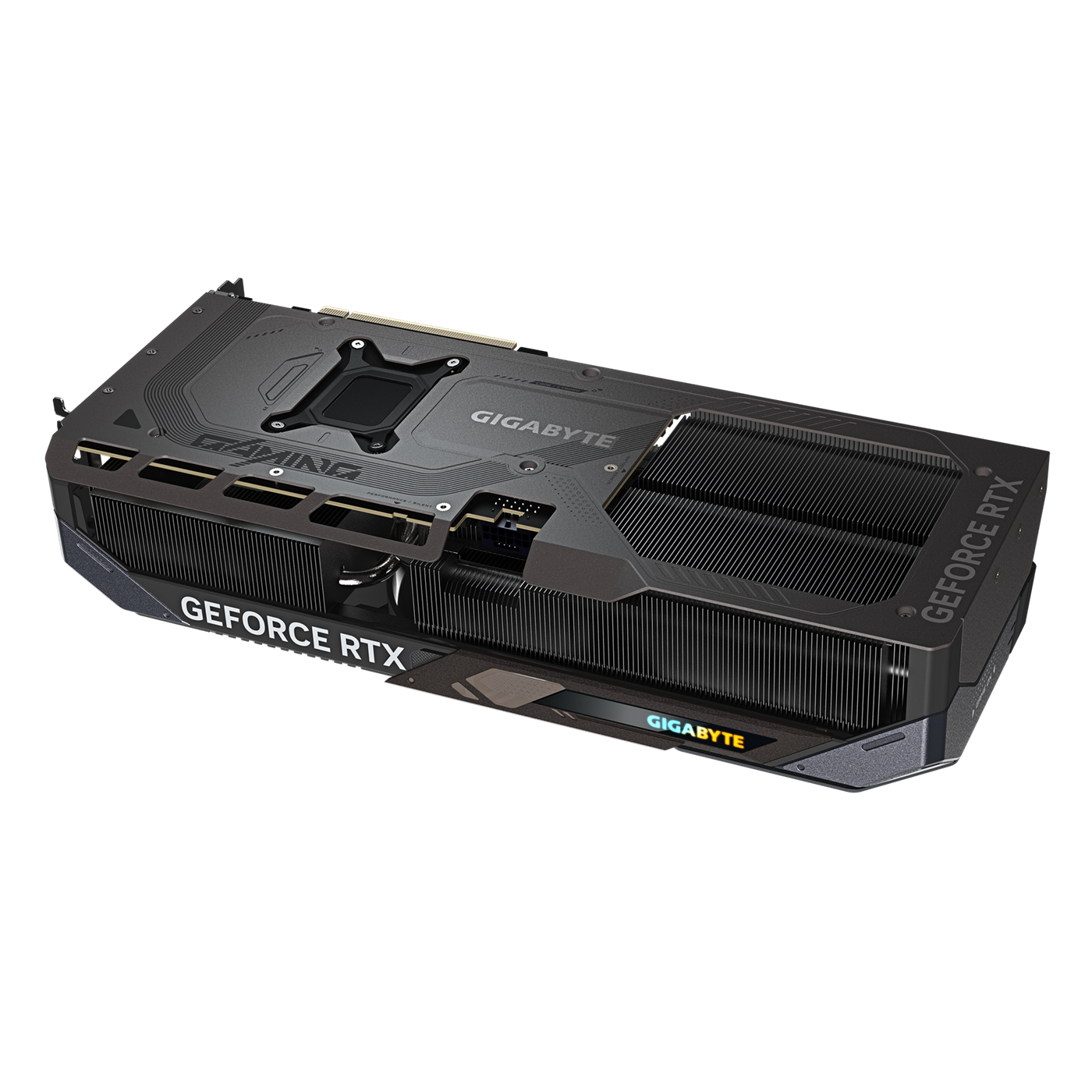

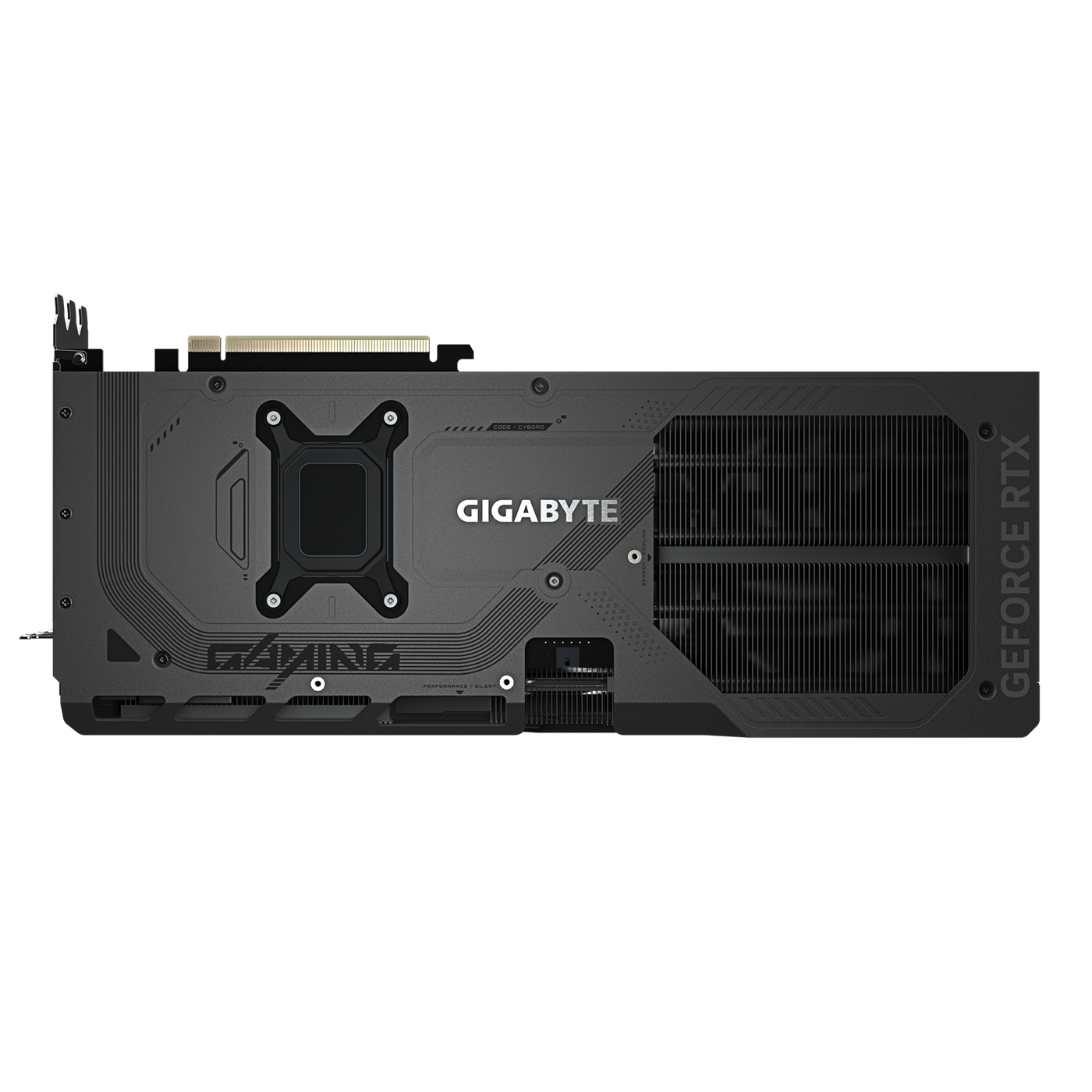

Durability & Dual BIOS The GAMING OC is built to last with a Protection Metal Backplate and an included Anti-Sag Bracket that mounts to your motherboard to support the card’s weight. It features a Dual BIOS switch, letting you toggle between “OC” mode for maximum fan speeds and “Silent” mode for quieter operation without needing any software. The card is also backed by a 4-year warranty (requires online registration).
Gigabyte GeForce RTX 5080 GAMING OC 16GB GDDR7 Graphics Card Specifications:
| Graphics Engine | NVIDIA GeForce RTX 5080 |
| Bus Standard | PCI Express 5.0 x16 |
| Video Memory | 16GB GDDR7 |
| Memory Interface | 256-bit |
| Core Clock | 2730 MHz (Reference: 2617 MHz) |
| CUDA Cores | 10,752 Units |
| Memory Speed | 30 Gbps |
| Cooling System | WINDFORCE (3x 110mm Hawk Fans) |

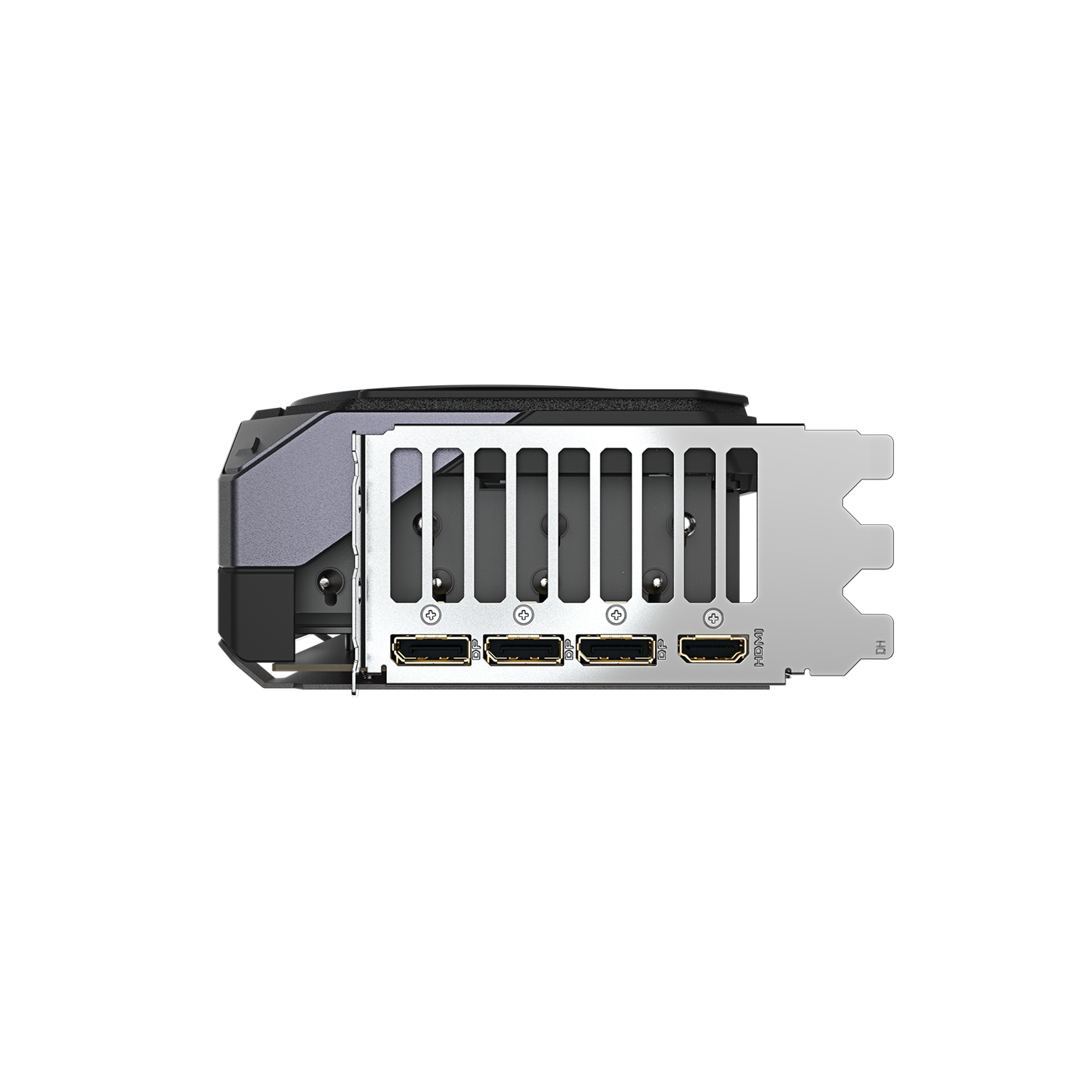

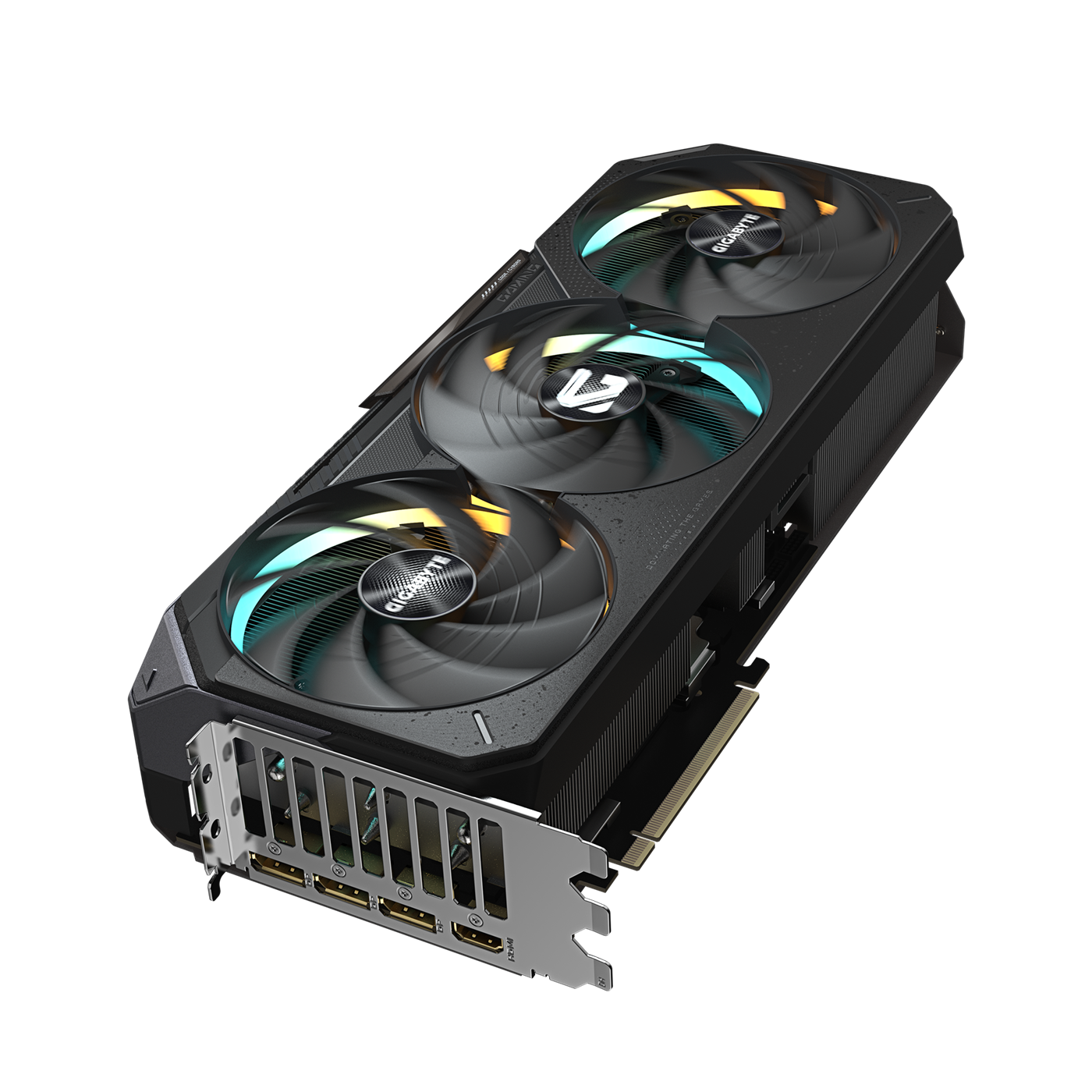

| Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Connectors | 1 x 16-pin (12V-2×6) |
| Recommended PSU | 850W |
| TDP | 360W |
| Card Dimensions | 340 x 140 x 70 mm (3.5-Slot) |
| Feature Support | DLSS 4, RGB Halo, Anti-Sag Bracket |
Key Features
-
16GB GDDR7 Memory: High-speed 30 Gbps memory for 4K textures.
-
Factory Overclock: Boost clock increased to 2730 MHz.
-
RGB Halo: Eye-catching ring lighting on the fans.
-
Vapor Chamber: Superior heat transfer for the 3.5-slot heatsink.
-
Dual BIOS: Physical switch for Performance or Silent profiles.
