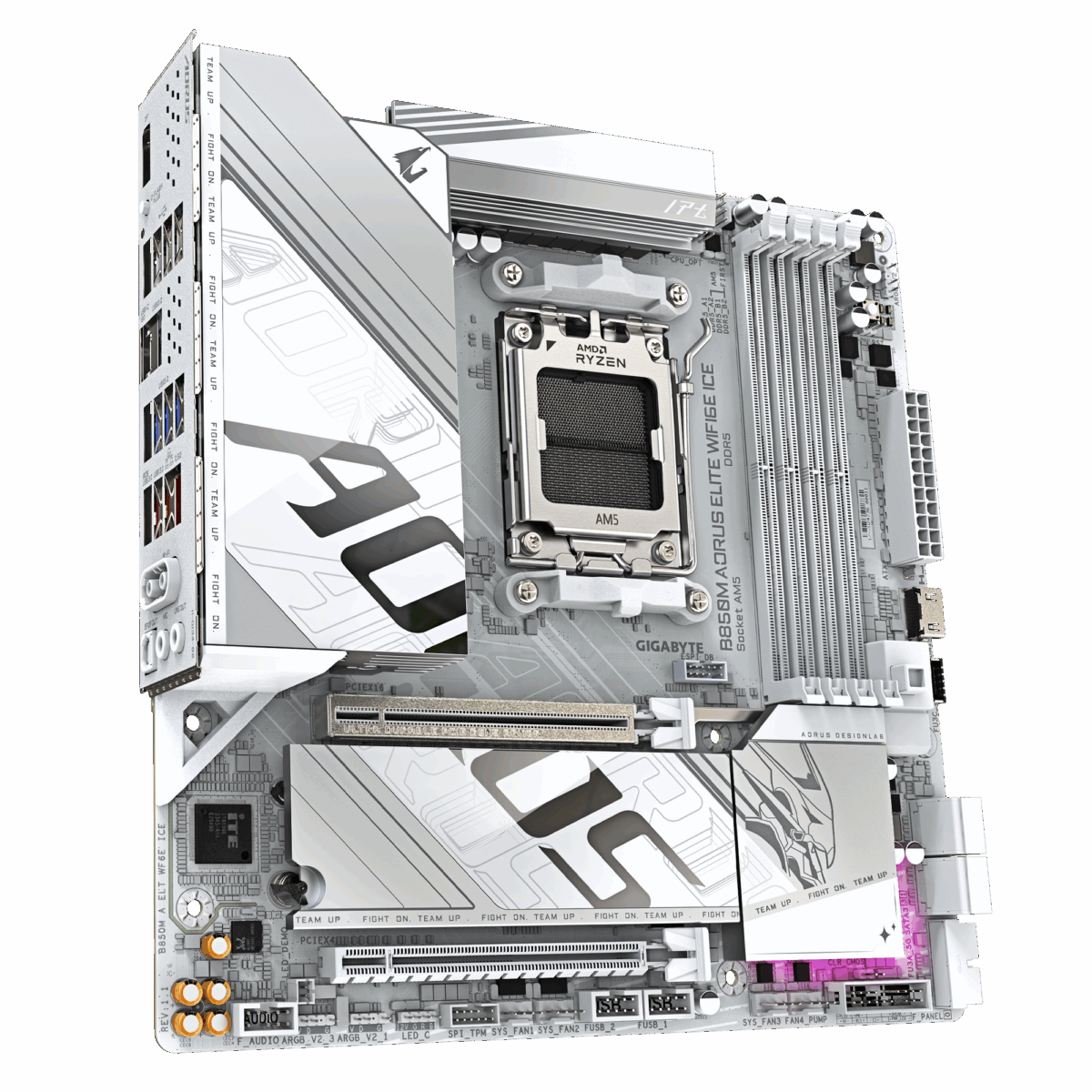

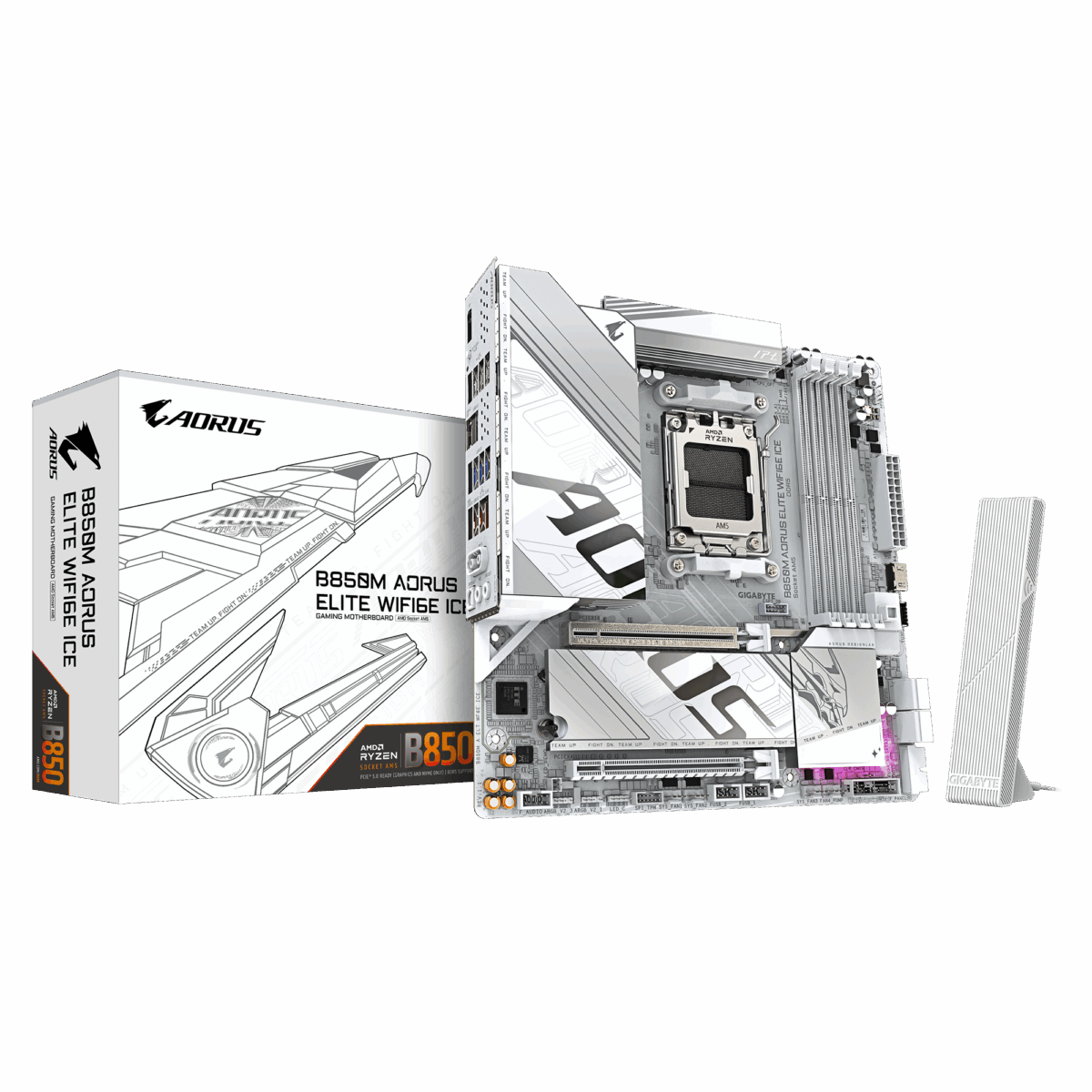

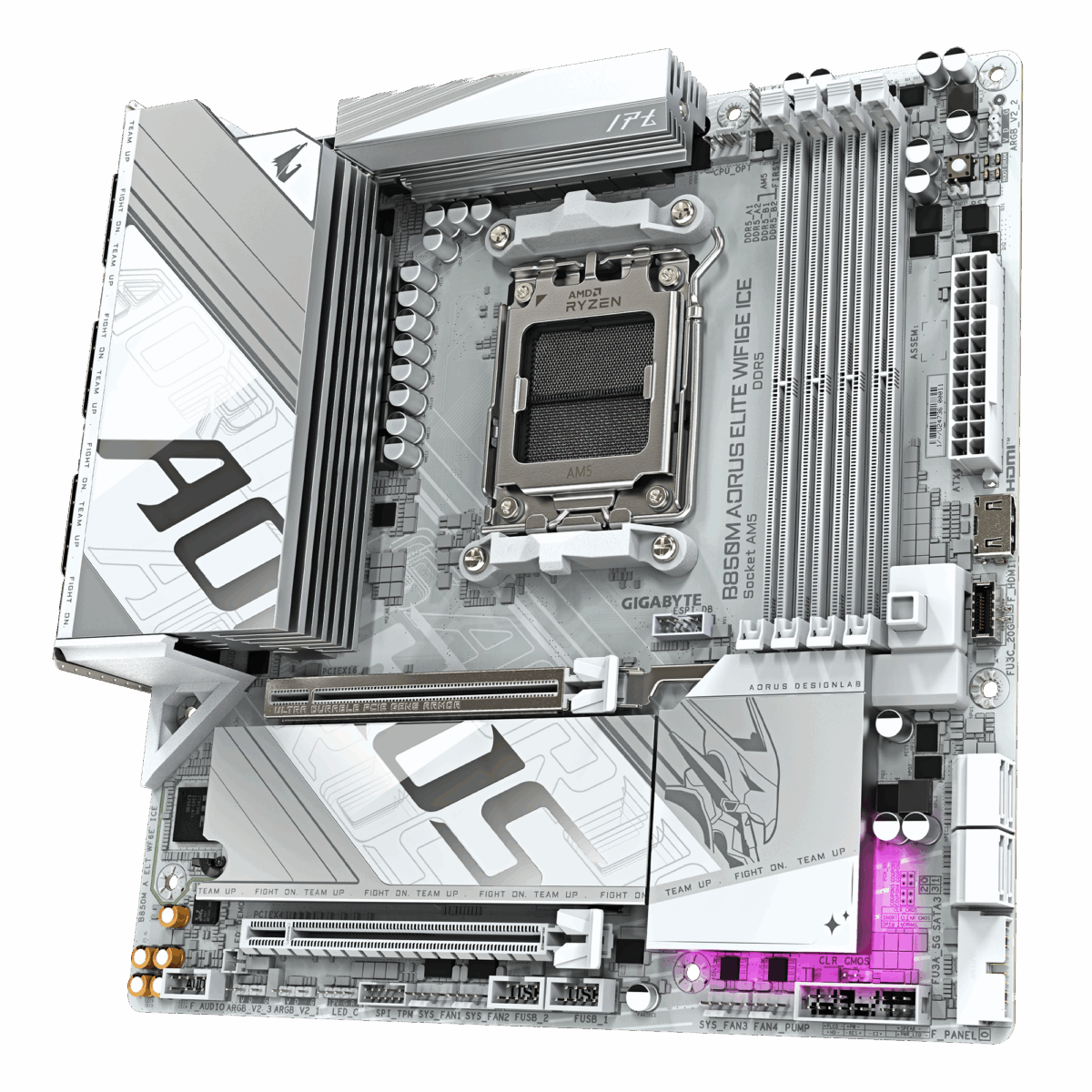

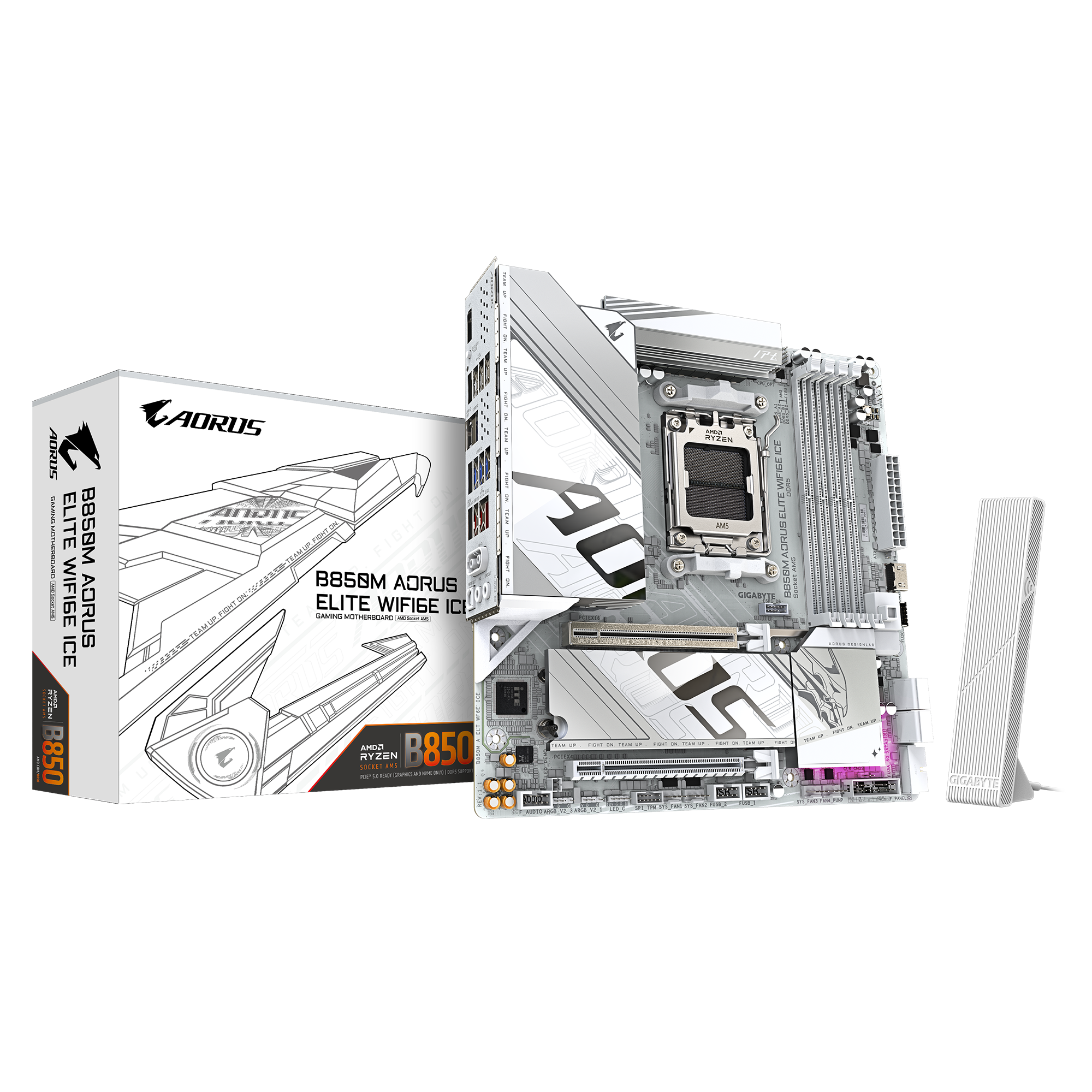

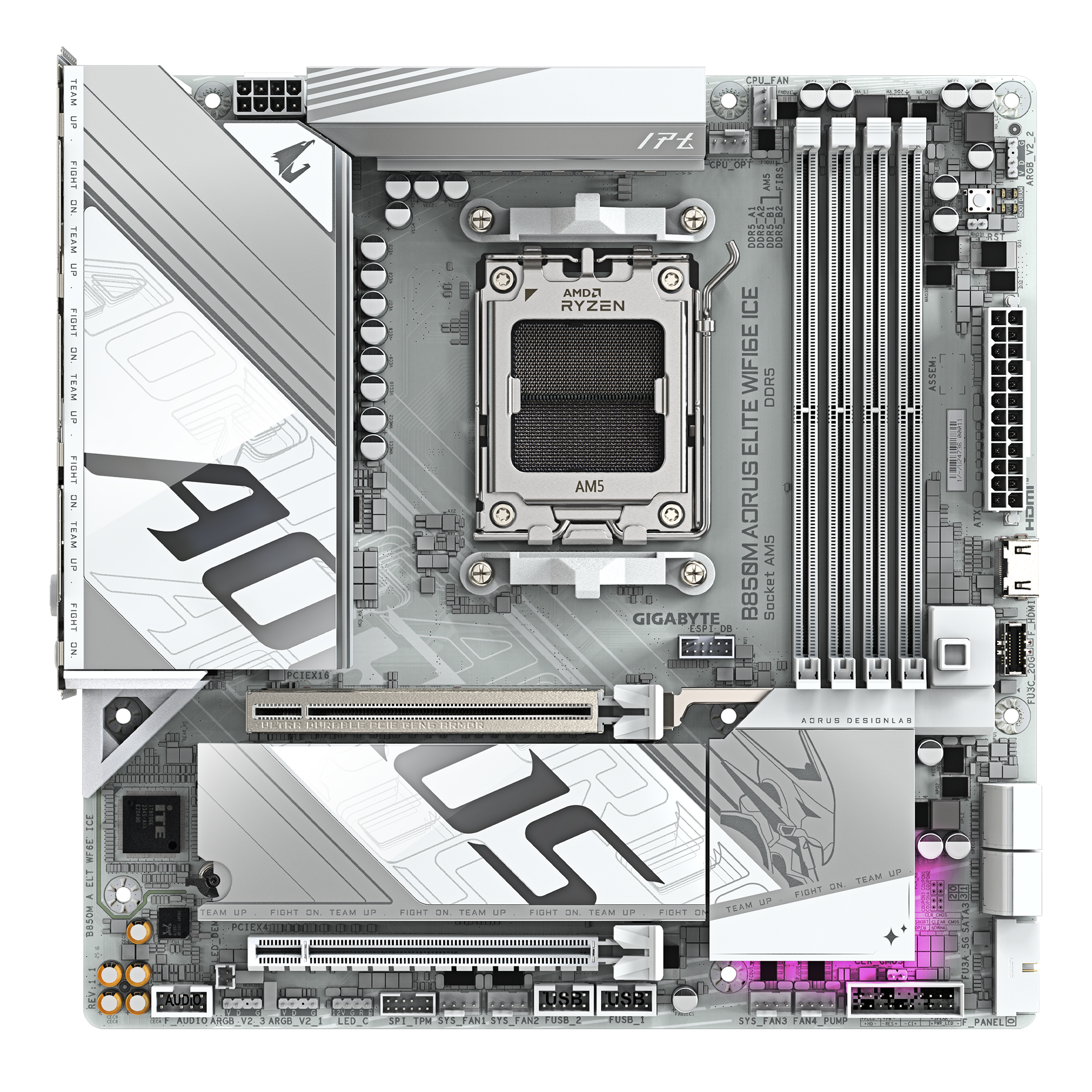

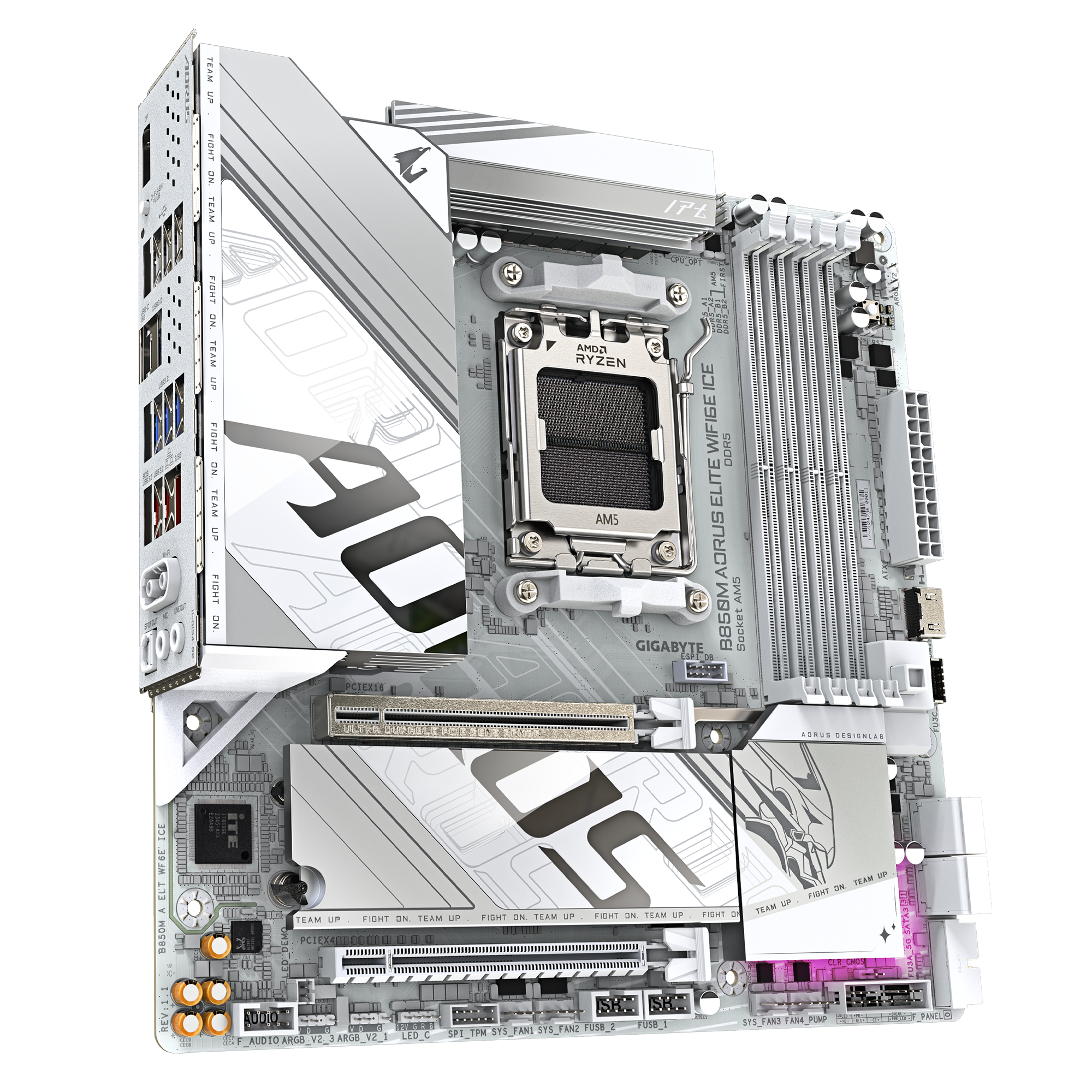

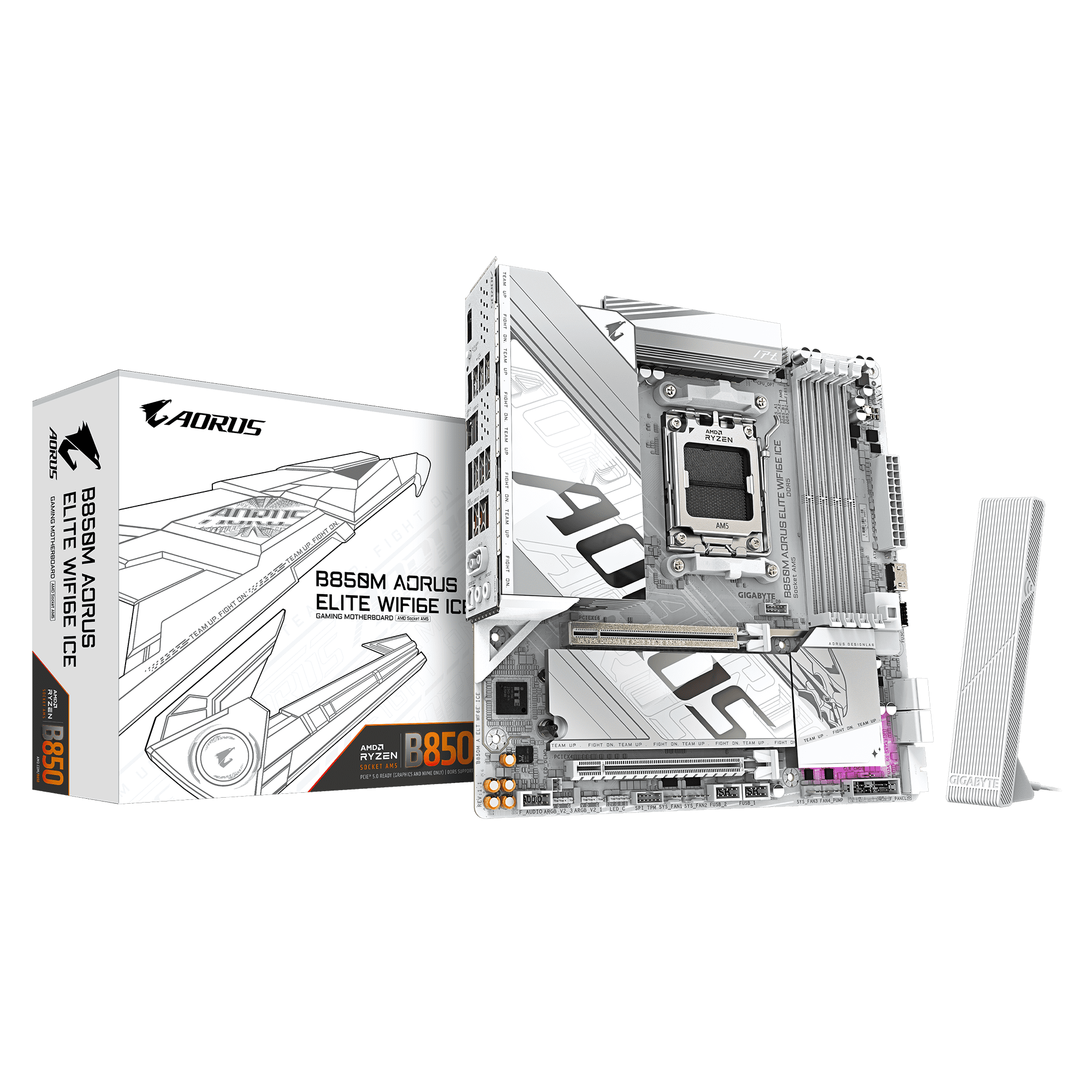

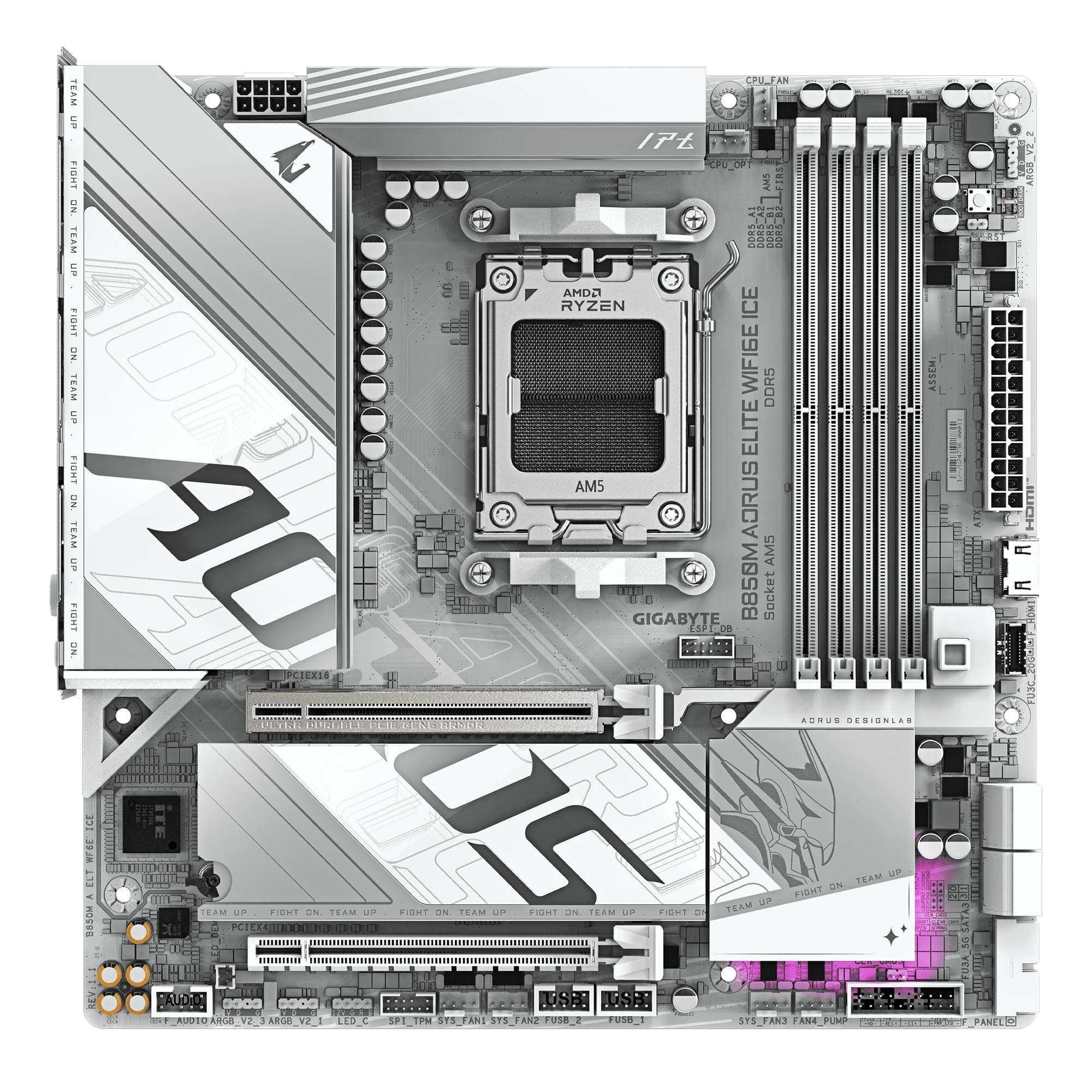

Gigabyte B850M Aorus Elite WiFi6E ICE Motherboard
Gigabyte B850M Aorus Elite WiFi6E ICE AMD AM5 LGA 1718 Motherboard, mATX, DDR5, 2X M.2, PCIe 5.0, USB-C, WIFI6E, 2.5GbE LAN, EZ-Latch - Image 2
Gigabyte B850M Aorus Elite WiFi6E ICE AMD AM5 LGA 1718 Motherboard, mATX, DDR5, 2X M.2, PCIe 5.0, USB-C, WIFI6E, 2.5GbE LAN, EZ-Latch - Image 3
Gigabyte B850M Aorus Elite WiFi6E ICE AMD AM5 LGA 1718 Motherboard, mATX, DDR5, 2X M.2, PCIe 5.0, USB-C, WIFI6E, 2.5GbE LAN, EZ-Latch - Image 4
Gigabyte B850M Aorus Elite WiFi6E ICE AMD AM5 LGA 1718 Motherboard, mATX, DDR5, 2X M.2, PCIe 5.0, USB-C, WIFI6E, 2.5GbE LAN, EZ-Latch - Image 5
Gigabyte B850M Aorus Elite WiFi6E ICE AMD AM5 LGA 1718 Motherboard, mATX, DDR5, 2X M.2, PCIe 5.0, USB-C, WIFI6E, 2.5GbE LAN, EZ-Latch - Image 6

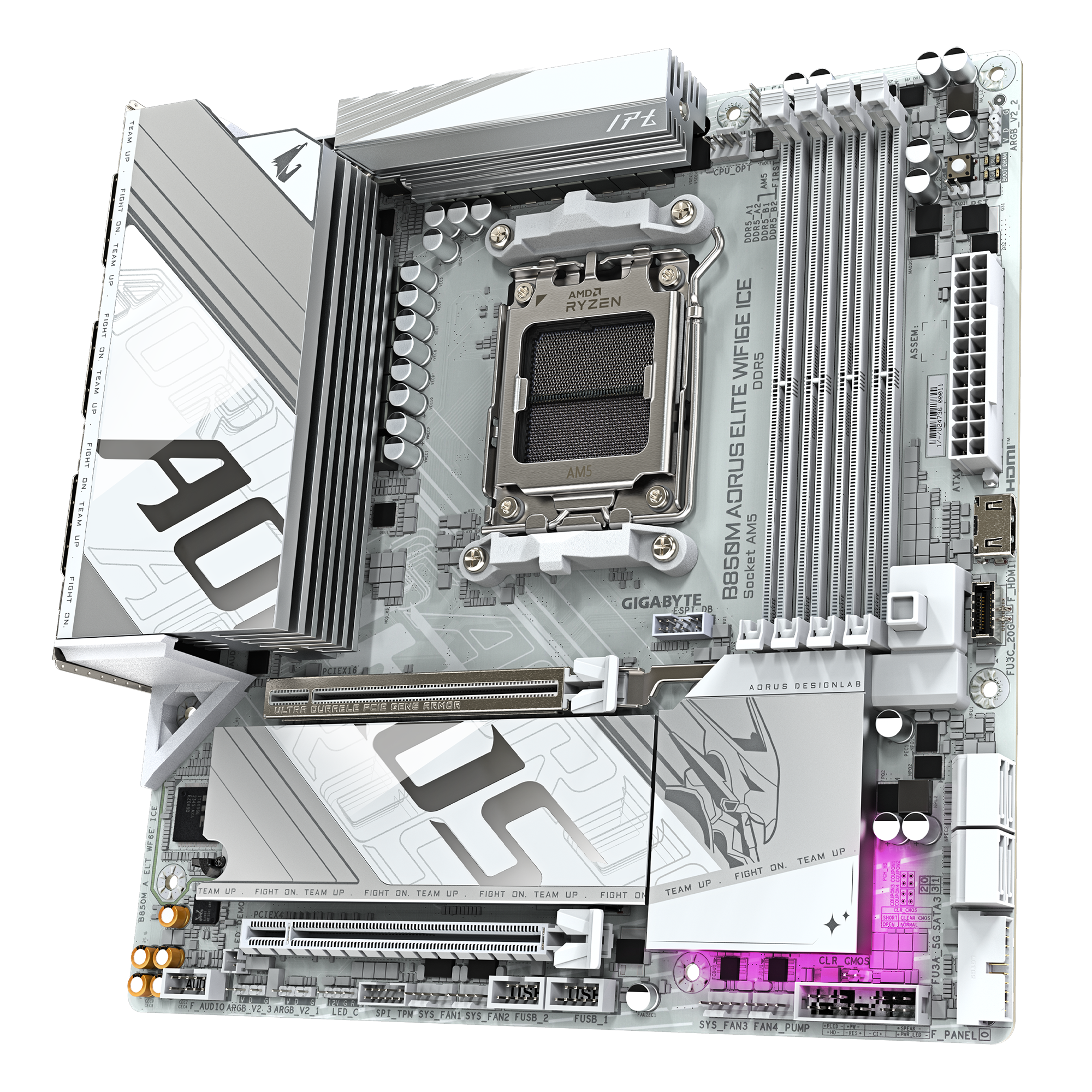

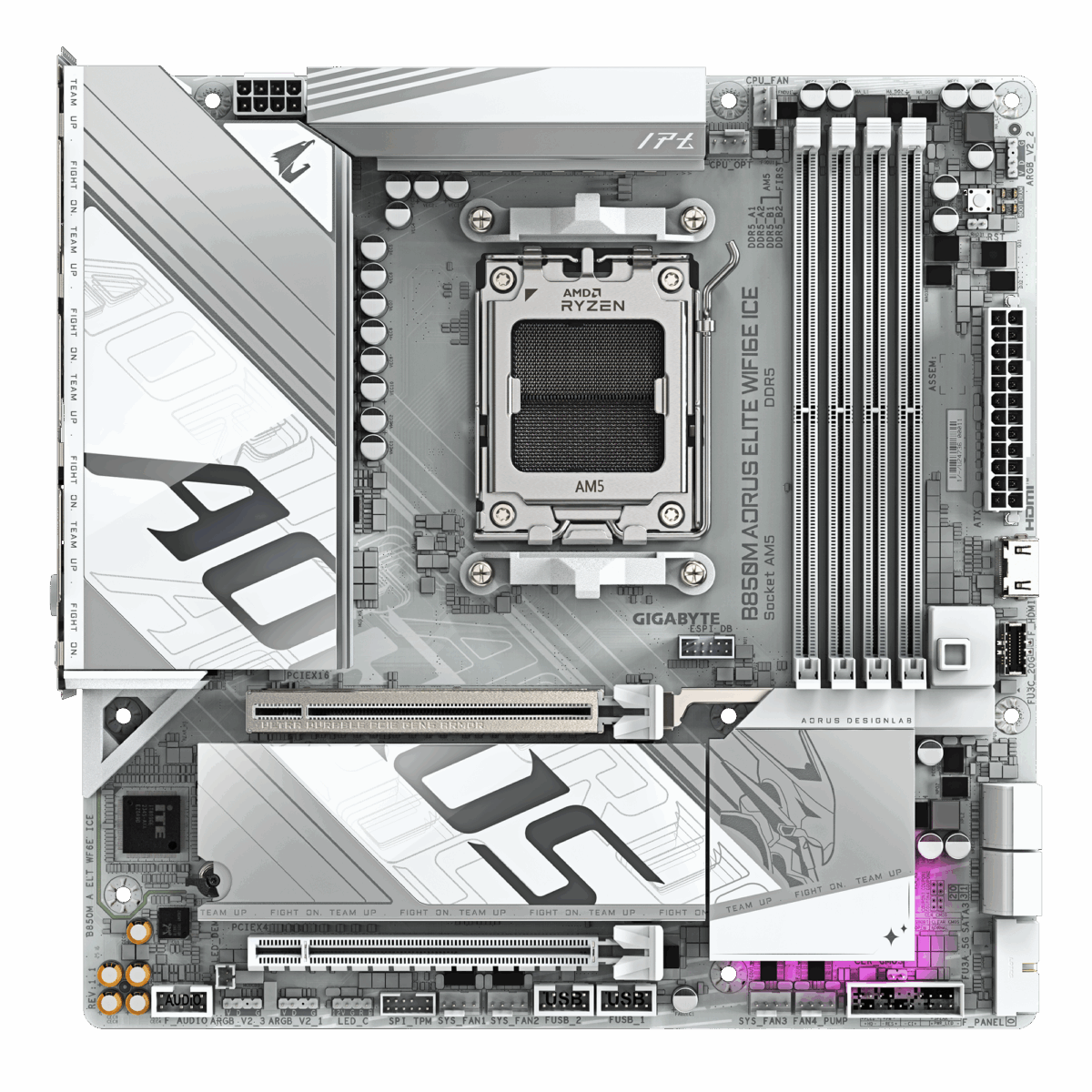

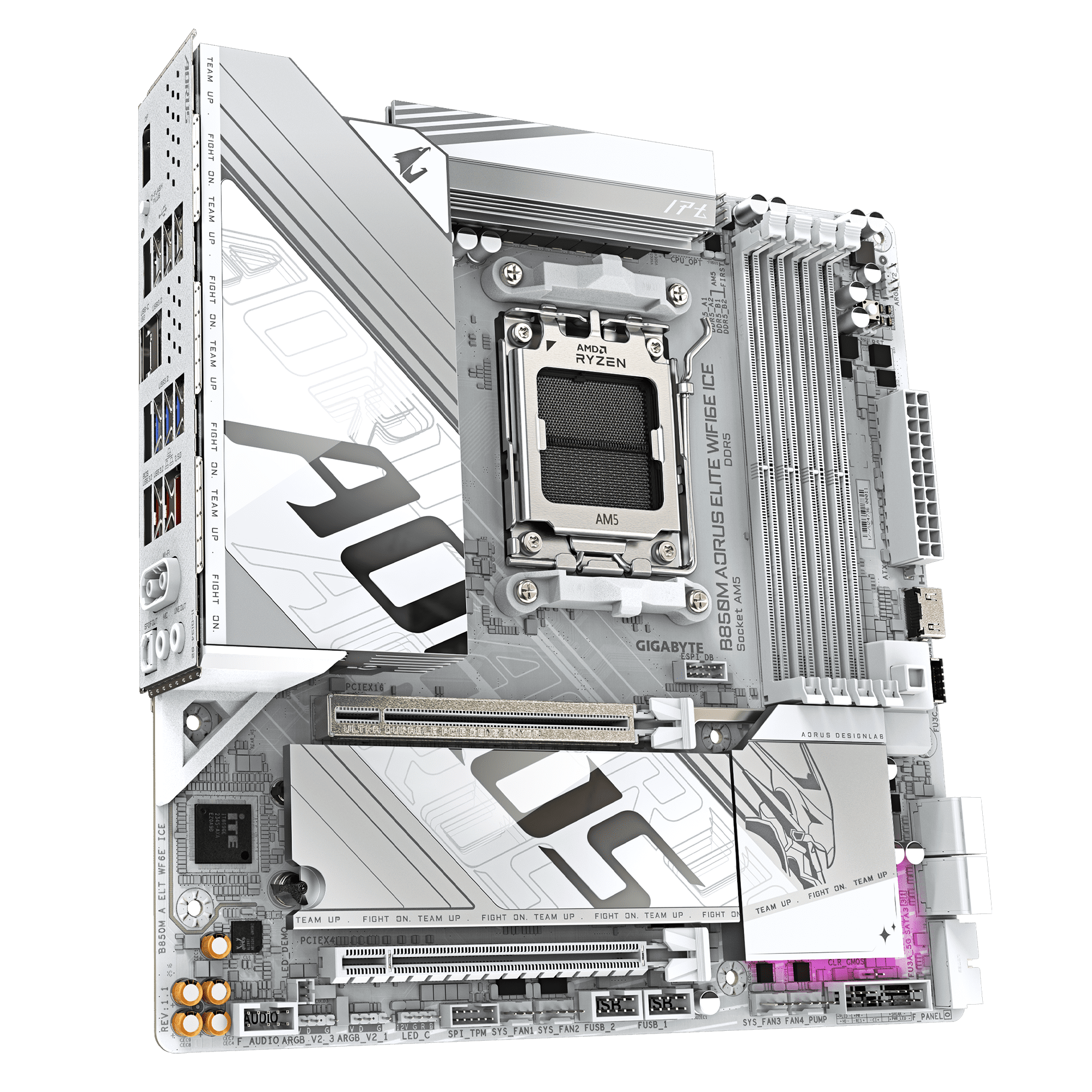

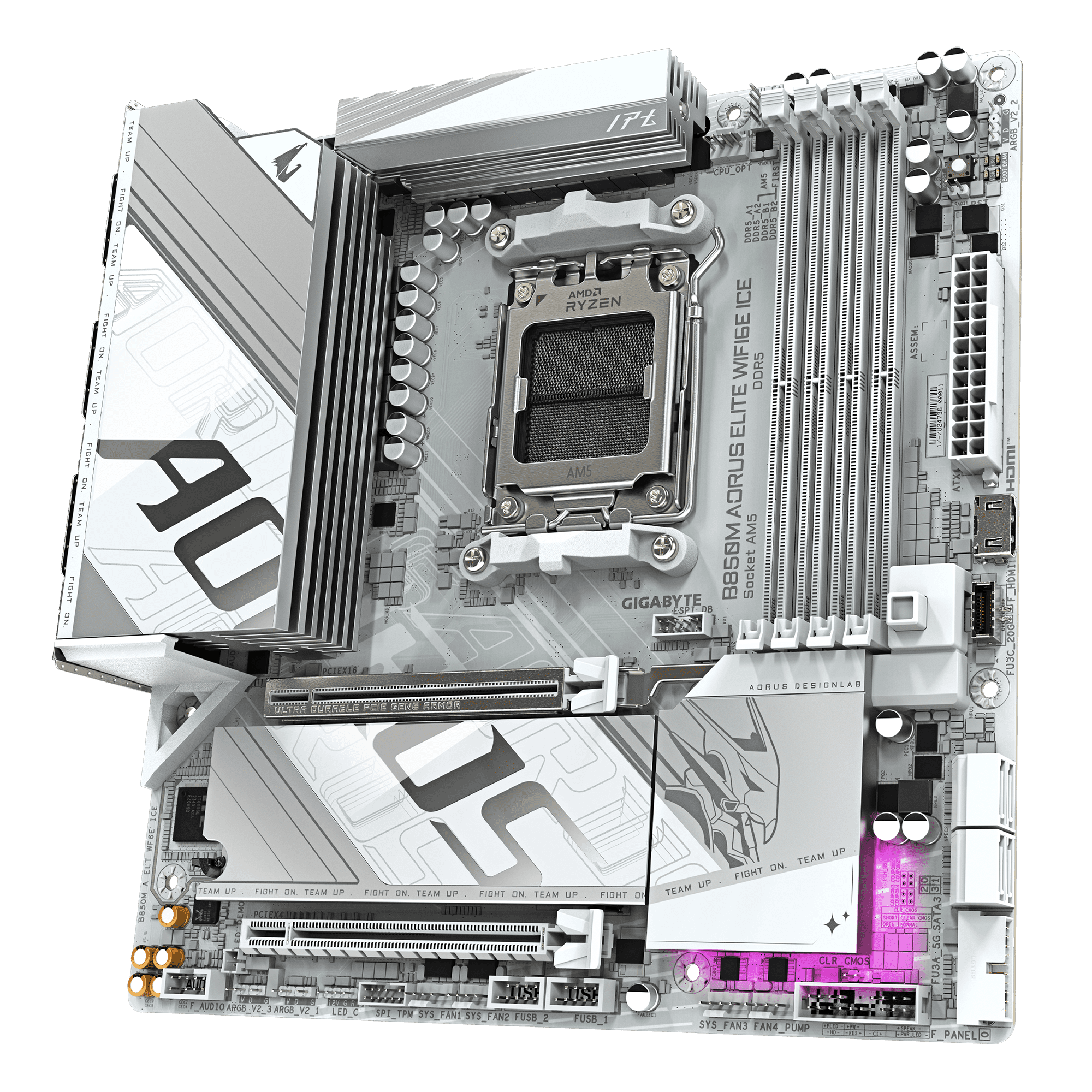

Gigabyte B850M Aorus Elite WiFi6E ICE AMD AM5 LGA 1718 Motherboard, mATX, DDR5, 2X M.2, PCIe 5.0, USB-C, WIFI6E, 2.5GbE LAN, EZ-Latch

The Gigabyte B850M Aorus Elite WiFi6E ICE is a Micro-ATX motherboard built on the AMD B850 chipset, intended to power Ryzen AM5 systems with strong connectivity and overclocking potential.

Specification Detail
Chipset / Socket AMD B850, Socket AM5
Memory 4 × DDR5 DIMM slots, supports DDR5 up to OC (e.g. up to ~8200 MT/s)
Expansion / PCIe 1 × PCIe 5.0 ×16 slot; additional PCIe 3.0 ×4 slot
Storage / M.2 / SATA 2 × M.2 slots (one supports PCIe 5.0 x4)
4 × SATA III (6 Gb/s) ports
Networking / Wireless WiFi 6E + Bluetooth (Realtek)
2.5 GbE LAN
Rear I/O / Video DisplayPort, HDMI, multiple USB (Gen1, Gen2, USB-C)
Form Factor / Size Micro-ATX (≈ 24.4 × 24.4 cm)

About the item:

  • PCIe 5.0 Support
    With a PCIe 5.0 ×16 slot, it is ready to handle next-generation graphics cards or expansion devices, giving more bandwidth headroom and futureproofing.

  • High-Speed Memory OC Potential
    Supports DDR5 overclocks (e.g. up to ~8200 MT/s in certain conditions), making it ideal for users seeking memory performance margins.

  • Integrated WiFi 6E + 2.5 GbE LAN
    Combines fast wireless connectivity and wired 2.5 GbE networking, providing robust options for gaming, streaming, and heavy network use.

  • EZ-Latch & DIY Enhancements
    Features like EZ-Latch for M.2 / PCIe / WiFi connectors help simplify installation and component swapping, especially in tight enclosures.

  • X3D Turbo Mode BIOS Feature
    A BIOS-level optimization mode that boosts non-X3D Ryzen CPU performance, aiming to narrow the gap with X3D models by optimizing latency and utilization.

The Gigabyte B850M Aorus Elite WiFi6E ICE Motherboard supports DDR5 memory (with OC headroom), PCIe 5.0 for future-ready graphics or storage, dual M.2 slots, and integrated WiFi 6E plus 2.5 GbE LAN for high bandwidth networking.

The Gigabyte B850M Aorus Elite WiFi6E ICE Motherboard also includes maker-friendly features like EZ-Latch for tool-less installations, thermal armor, and BIOS enhancements like X3D Turbo Mode. In a compact footprint, it balances performance, features, and flexibility for modern builds.

₹20,599.00

Add to compare
Add to wishlist
494 People watching this product now!

Payment Methods:

avika retails payment methods we have

Description

About Gigabyte B850M Aorus Elite WiFi6E ICE Motherboard

Component / Category Specification / Notes
CPU / Compatibility Socket AM5, supports Ryzen 7000, 8000, 9000 series (with BIOS support)
Chipset AMD B850
Memory / DIMMs 4 × DDR5 UDIMM slots
Supports base speeds like DDR5-4800, DDR5-5200, and overclocked speeds up to ~8200 MT/s (OC)
Maximum capacity: up to 256 GB (i.e. 4 × 64 GB)
Power / VRM Design Multi-phase VRM (e.g. “12 + 2 + 2” style digital / DrMOS configuration) for stable CPU / SoC / PCIe power delivery
Thermal armor, heatsinks, and heatpipe design for VRM cooling
Expansion / PCIe Slots 1 × PCIe 5.0 ×16 slot (for graphics)
1 × PCIe 3.0 ×4 slot
Storage / M.2 / SATA 2 × M.2 slots (one supports PCIe 5.0 x4, likely the primary slot)
4 × SATA III (6 Gb/s) ports, with RAID 0/1/5/10 support for SATA

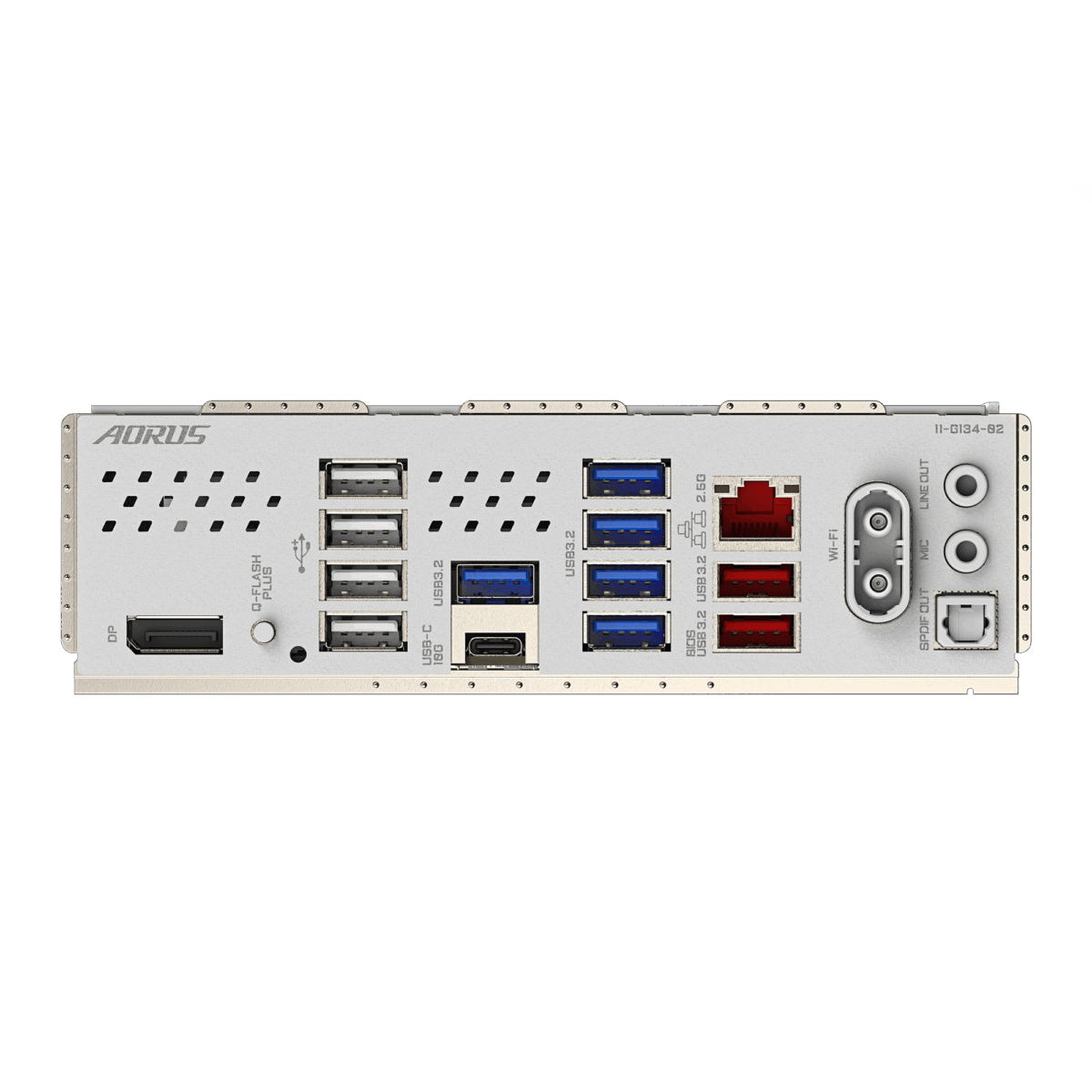

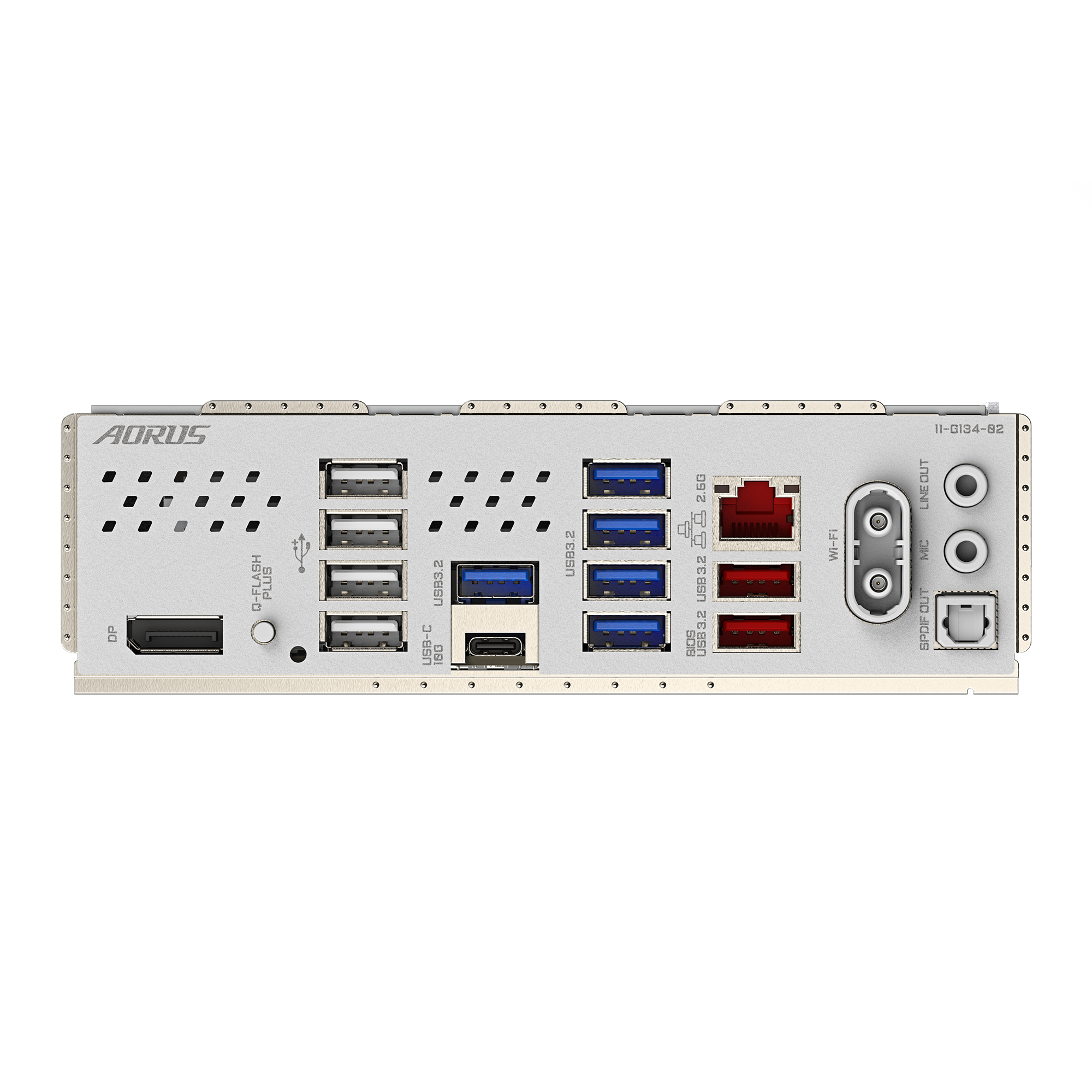

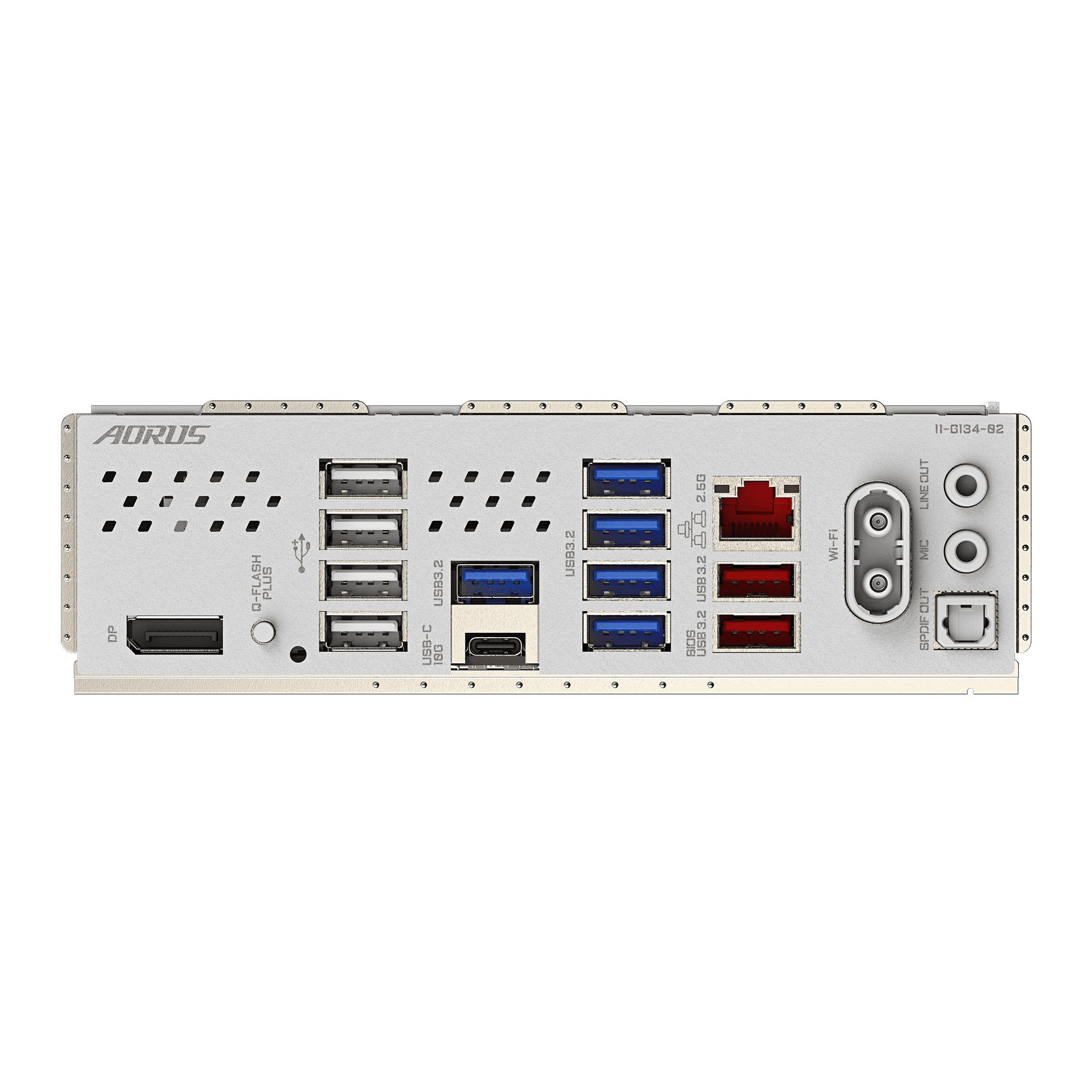

Onboard / Rear I/O Video outputs: DisplayPort 1.4, HDMI (spec version depends on CPU iGPU support)
USB: a mix of USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, including USB-C on rear I/O
Audio: Realtek audio codec, likely 7.1-channel support
Networking: 2.5 GbE LAN port (via Realtek)

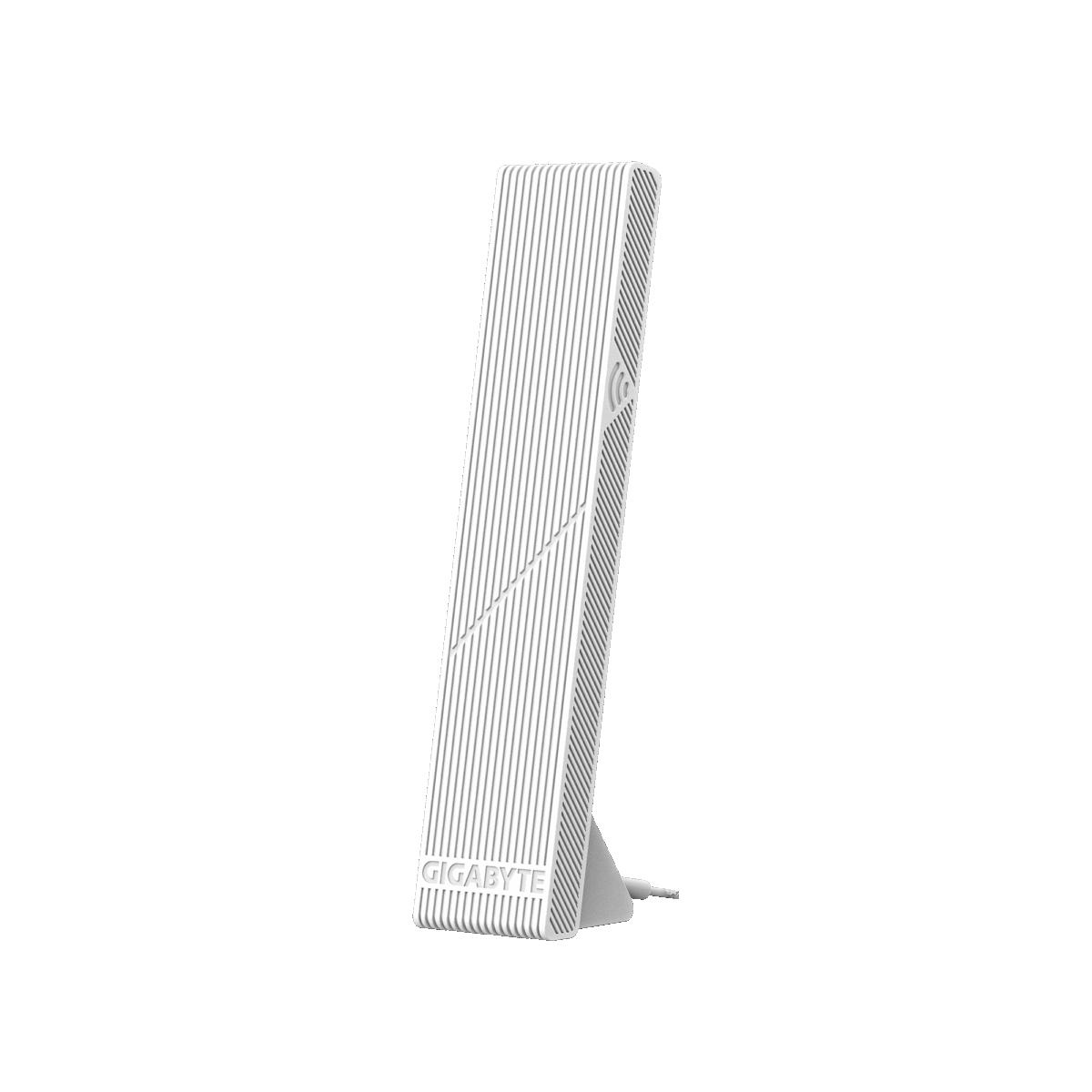

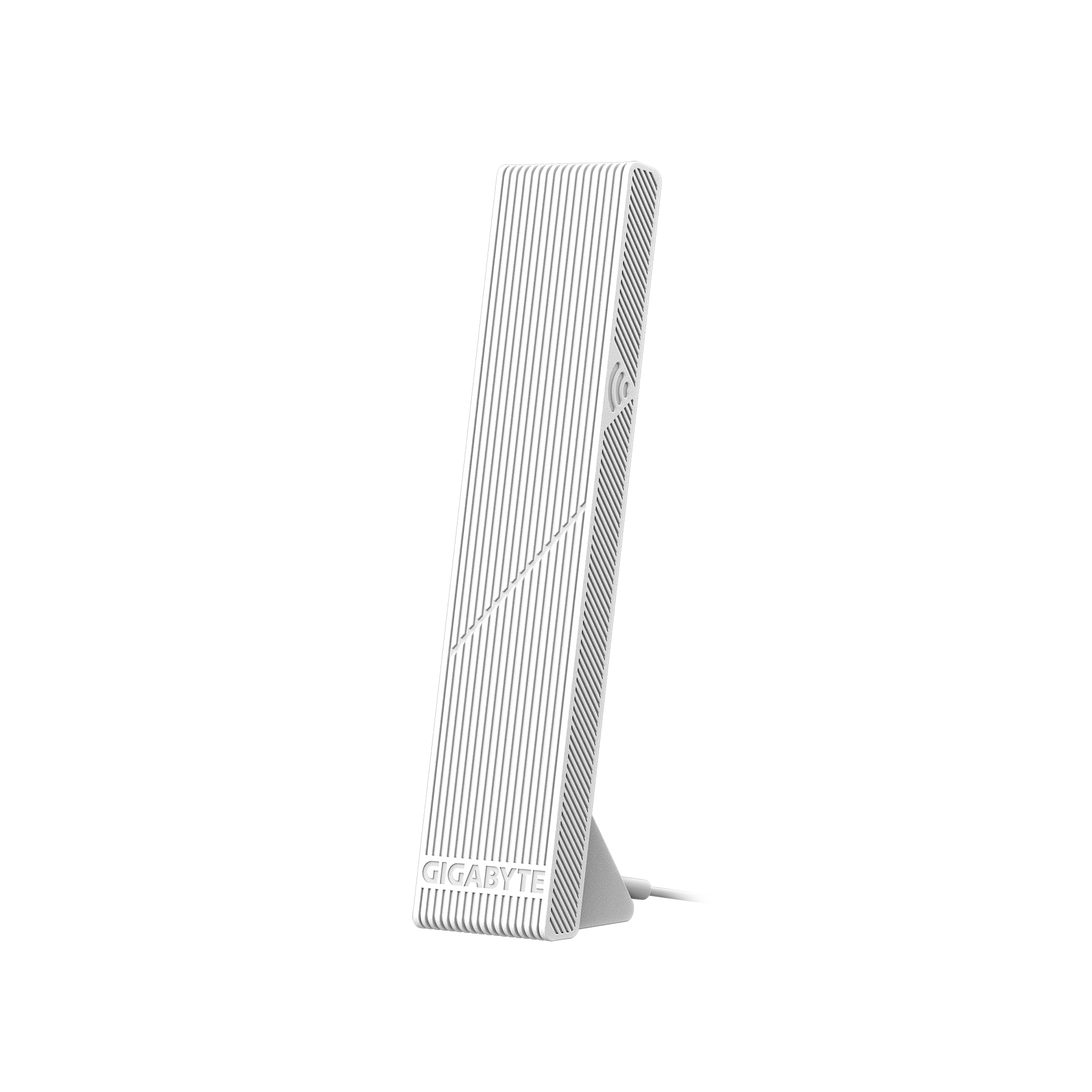

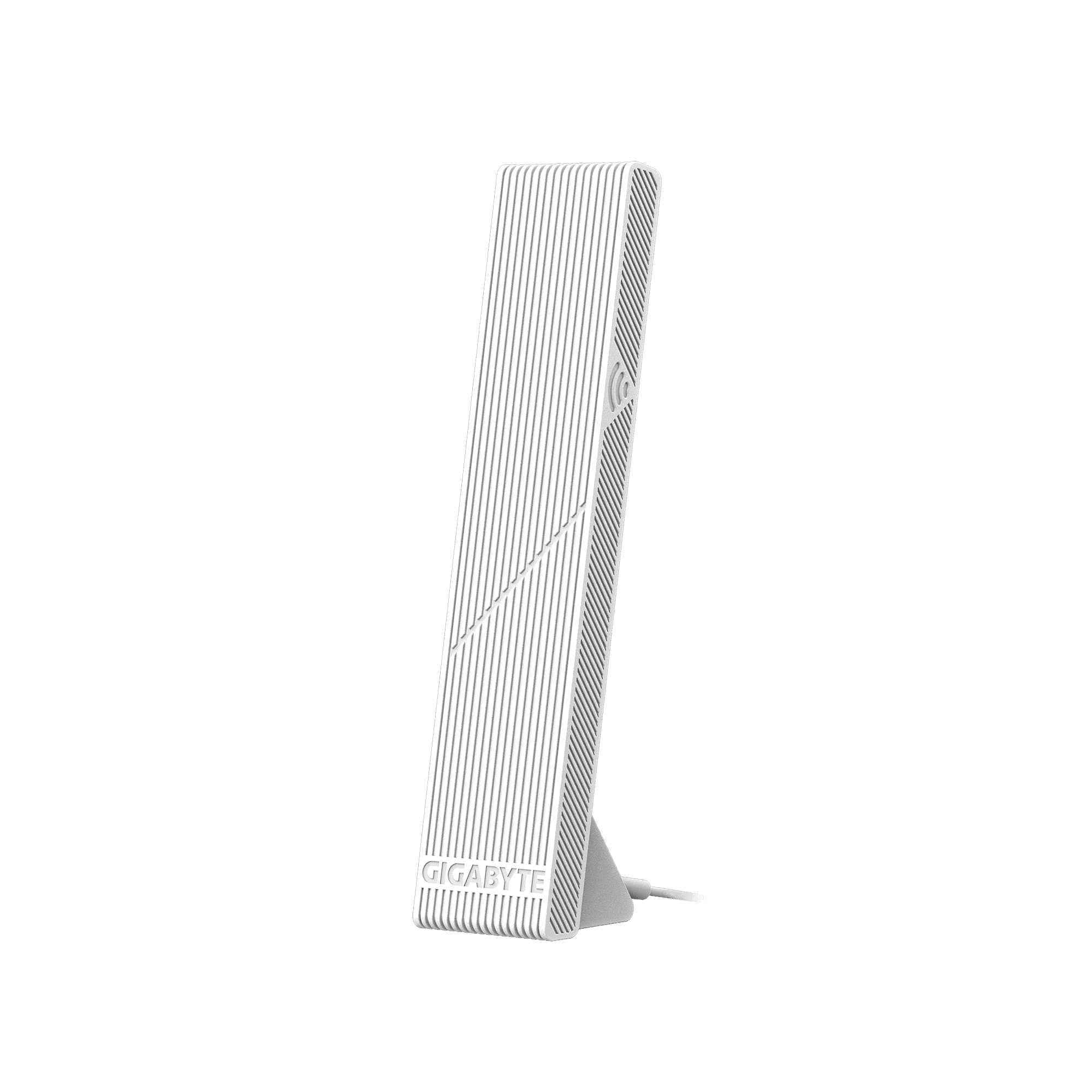

WiFi / Bluetooth: Integrated WiFi 6E (Realtek RTL8852 variant) & Bluetooth (e.g. BT 5.3)
Internal Headers / Connectors Fan headers (CPU, system fans, pump)
USB headers (USB 2.0, USB 3.2)
RGB / ARGB / LED headers, debug / front panel connectors etc.
BIOS / Firmware UEFI AMI BIOS, support for BIOS updates, EZ modes etc.
Features like “X3D Turbo Mode” for optimizing non-X3D Ryzen to perform closer to X3D models
Form Factor / Dimensions Micro-ATX board, dimensions approx 24.4 × 24.4 cm (9.6 × 9.6 in)
Other / Miscellaneous EZ-Latch / EZ installation features (for M.2, PCIe, WiFi EZ-Plug) to simplify assembly
Thermal guards, heat spreaders for M.2, robust build quality
High overclocking potential (within VRM and cooling constraints)
