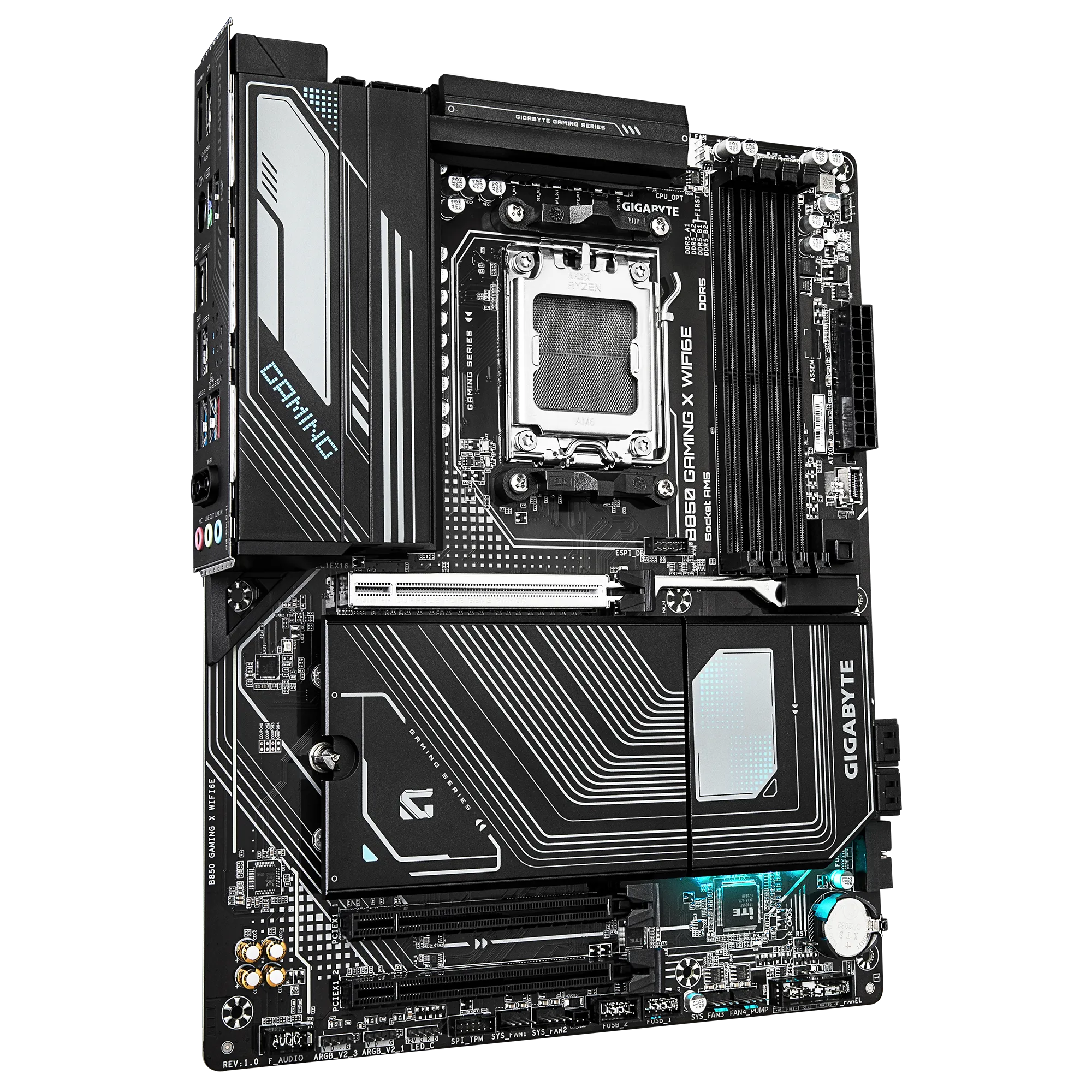

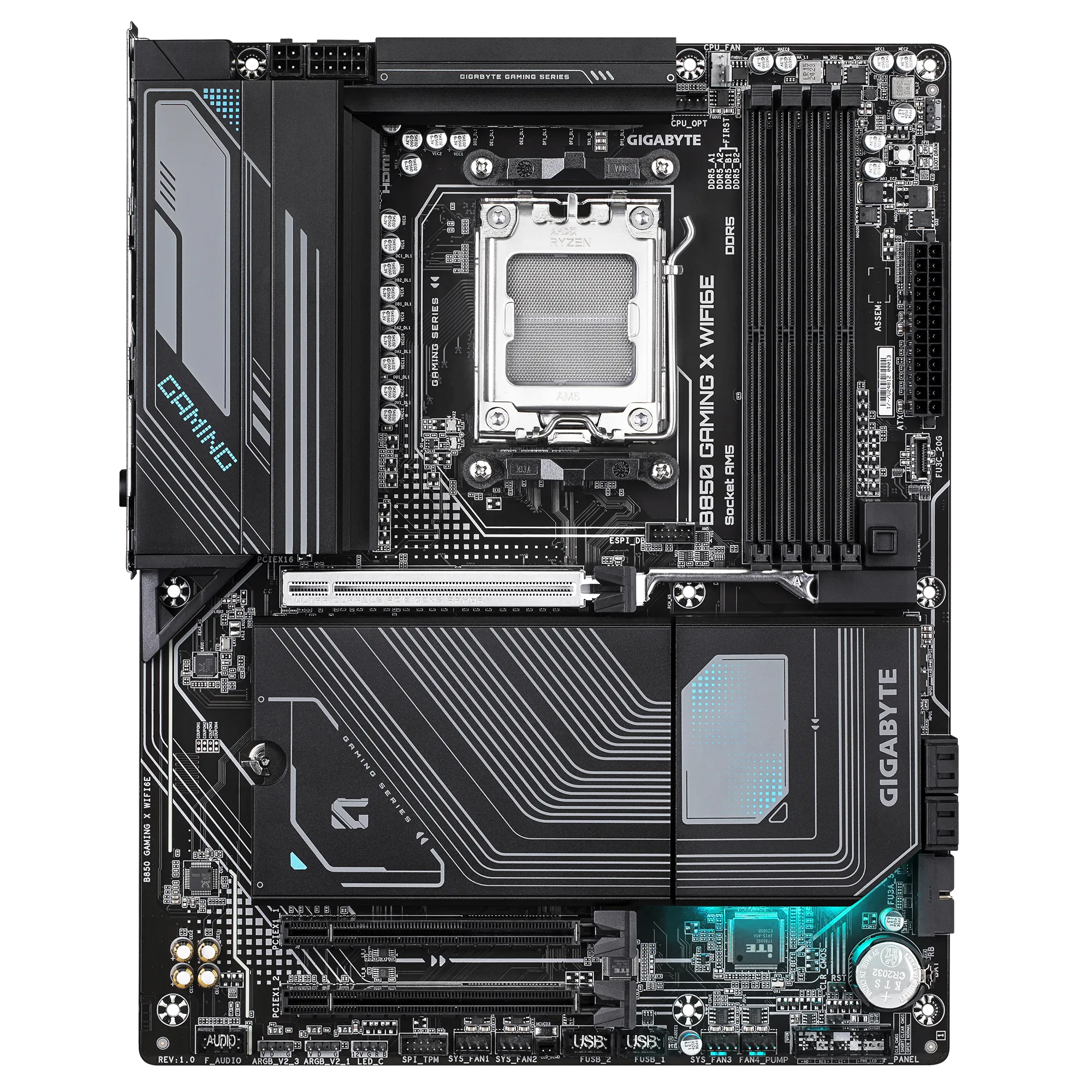

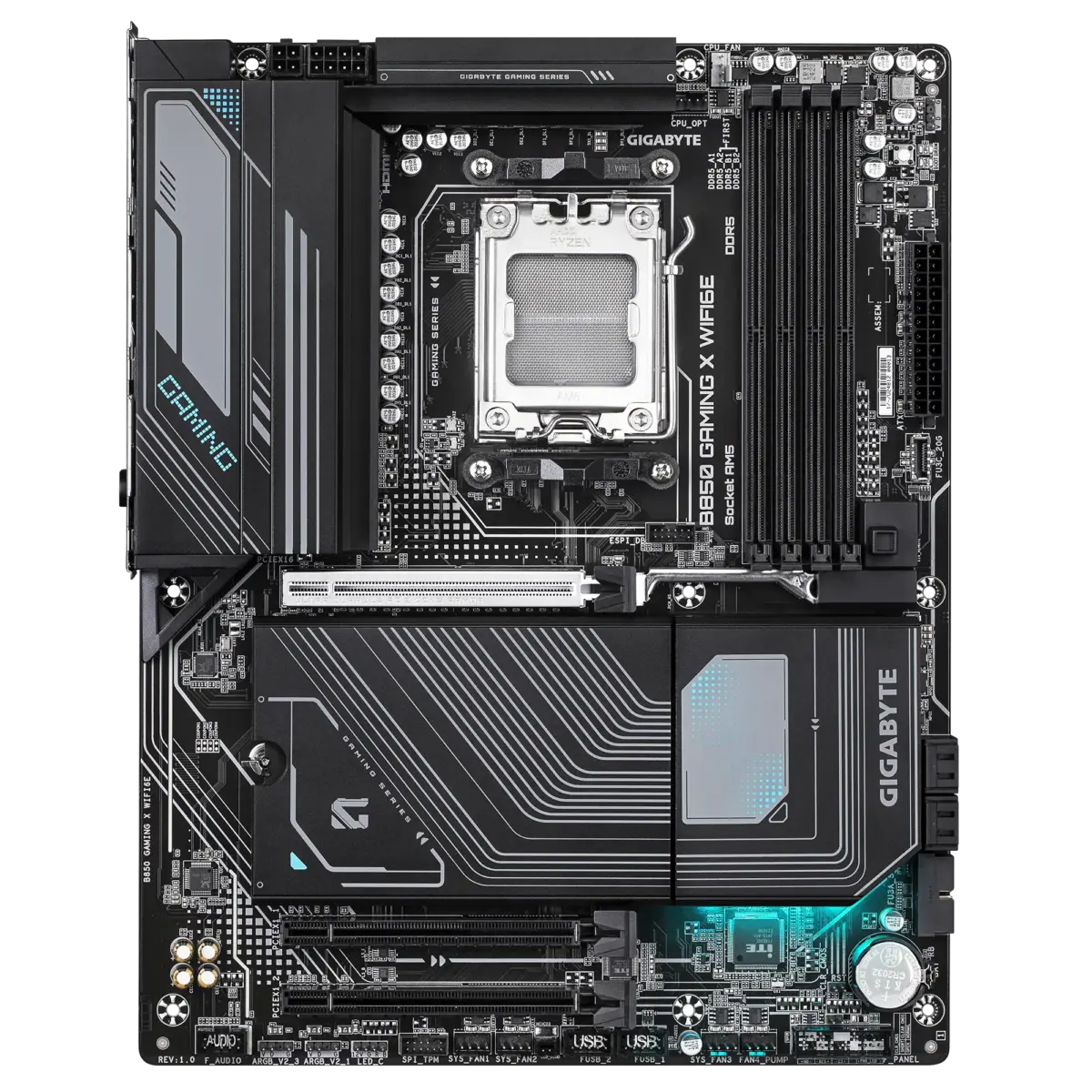

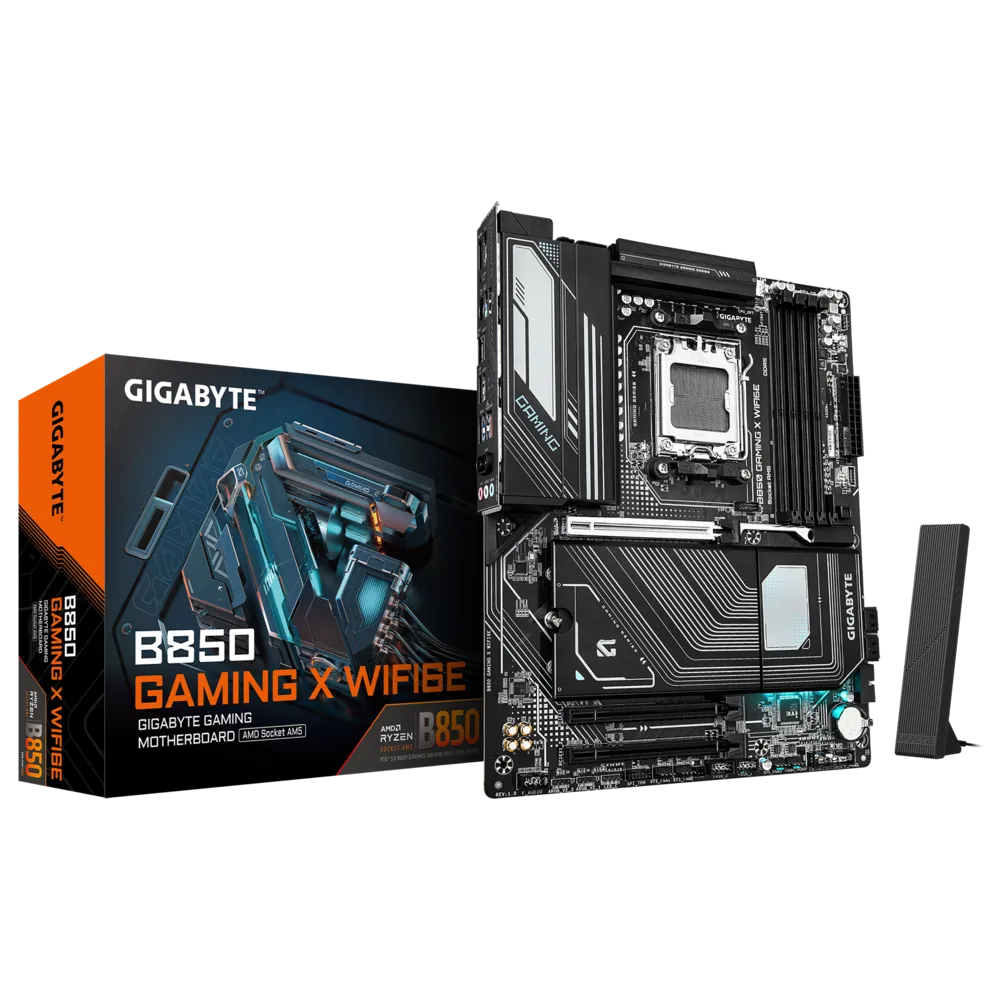

About Gigabyte B850 Gaming X WIFI6e Motherboard
| Specification Category | Details |
|---|---|
| Platform & Compatibility | AMD B850 chipset, AM5 socket supporting Ryzen 7000/8000/9000 series processors |
| Power & VRM Design | Digital “twin” 12+2+2 phases VRM (6+6+2) with DrMOS, 6-layer PCB, 2× copper layers |
| Memory | Dual-channel DDR5 via 4 DIMM slots, supports overclocking up to DDR5-8200 (OC) |
| Expansion Slots | 1 × PCIe 5.0 ×16 with UD Slot, 2 × PCIe 3.0 ×1 slots |
| Storage Interfaces | 3 × M.2 slots (1 PCIe 5.0, 2 PCIe 4.0), plus 4 × SATA 6 Gb/s ports |
| Cooling & Thermal | VRM Thermal Armor Advanced, M.2 Thermal Guard Ext., Smart Fan 6 with 6 fan headers and dual fan curve |
| Networking | Wi-Fi 6E with directional ultra-high-gain antenna (Wi-Fi EZ-Plug), Bluetooth 5.3, Realtek 2.5 GbE LAN |

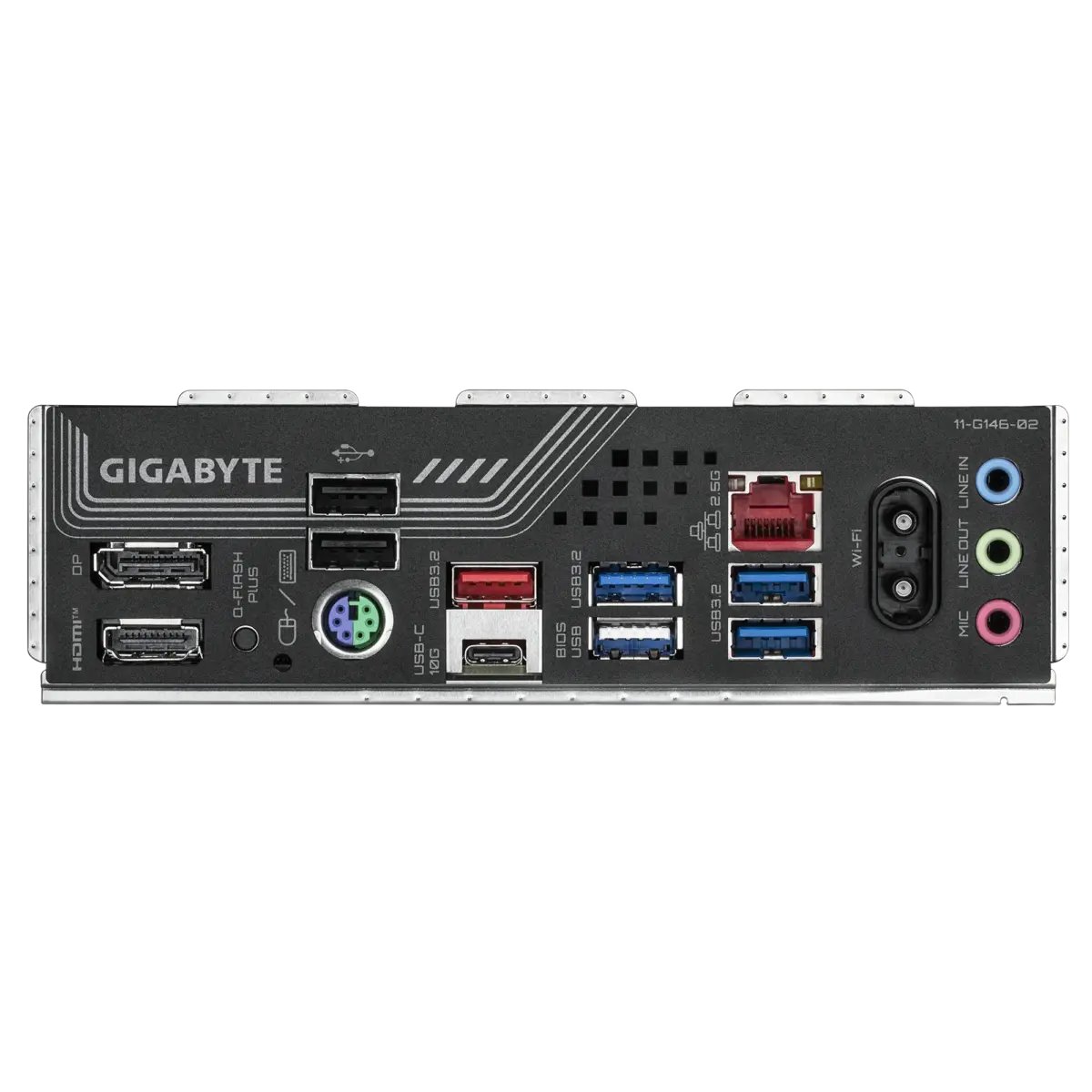

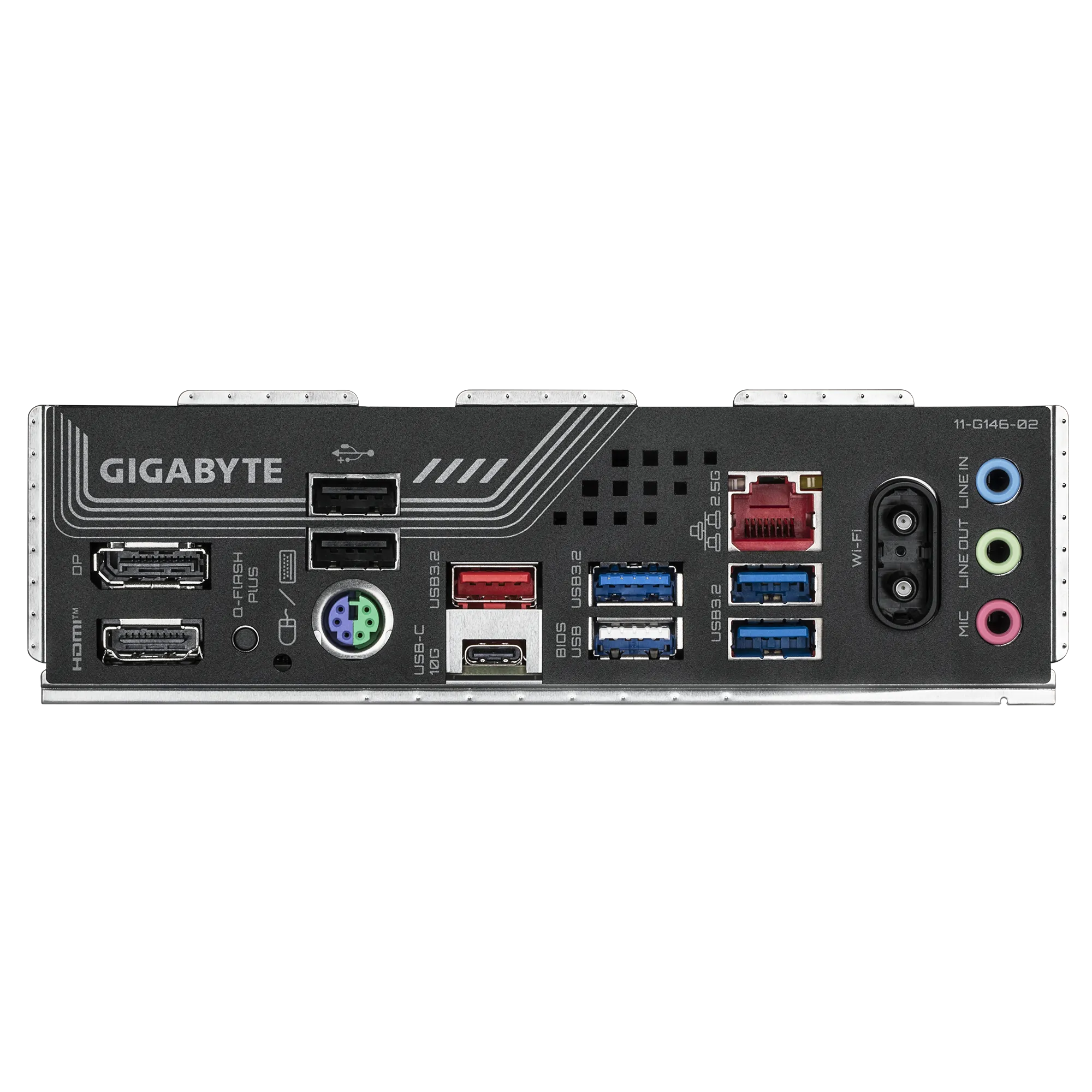

| USB & I/O | Front USB-C 3.2 Gen 2×2 header, rear USB-C Gen 2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0; DisplayPort & HDMI outputs; PS/2 ports |
| Audio | 8-channel HD Audio with high-end capacitors and audio noise guard |
| DIY Features | EZ-Latch Plus (PCIe/M.2), M.2 EZ-Latch Click, EZ-Debug Zone, Q-Flash Plus, BIOS with multi-theme and AIO fan control |
| Durability & Build | Ultra-Durable design; PCIe UD Slot with reinforced shielding, UD power connectors (solid pins) |
| Special Features | X3D Turbo Mode for enhanced gaming performance, D5 Bionic Corsa AI-enhanced DDR5 overclocking, DDR5 OC up to 8200 MT/s |
| Warranty | 5-year limited warranty |
