Gigabyte B760M Gaming WiFi6E Gen5 DDR5 Motherboard
Gigabyte B760M Gaming WiFi6E Gen5 DDR5 Intel LGA1700 Socket Motherboard - Image 2
Gigabyte B760M Gaming WiFi6E Gen5 DDR5 Intel LGA1700 Socket Motherboard - Image 3
Gigabyte B760M Gaming WiFi6E Gen5 DDR5 Intel LGA1700 Socket Motherboard - Image 4
Click to enlarge
Gigabyte B760M Gaming WiFi6E Gen5 DDR5 Motherboard
Gigabyte B760M Gaming WiFi6E Gen5 DDR5 Intel LGA1700 Socket Motherboard - Image 2
Gigabyte B760M Gaming WiFi6E Gen5 DDR5 Intel LGA1700 Socket Motherboard - Image 3
Gigabyte B760M Gaming WiFi6E Gen5 DDR5 Intel LGA1700 Socket Motherboard - Image 4

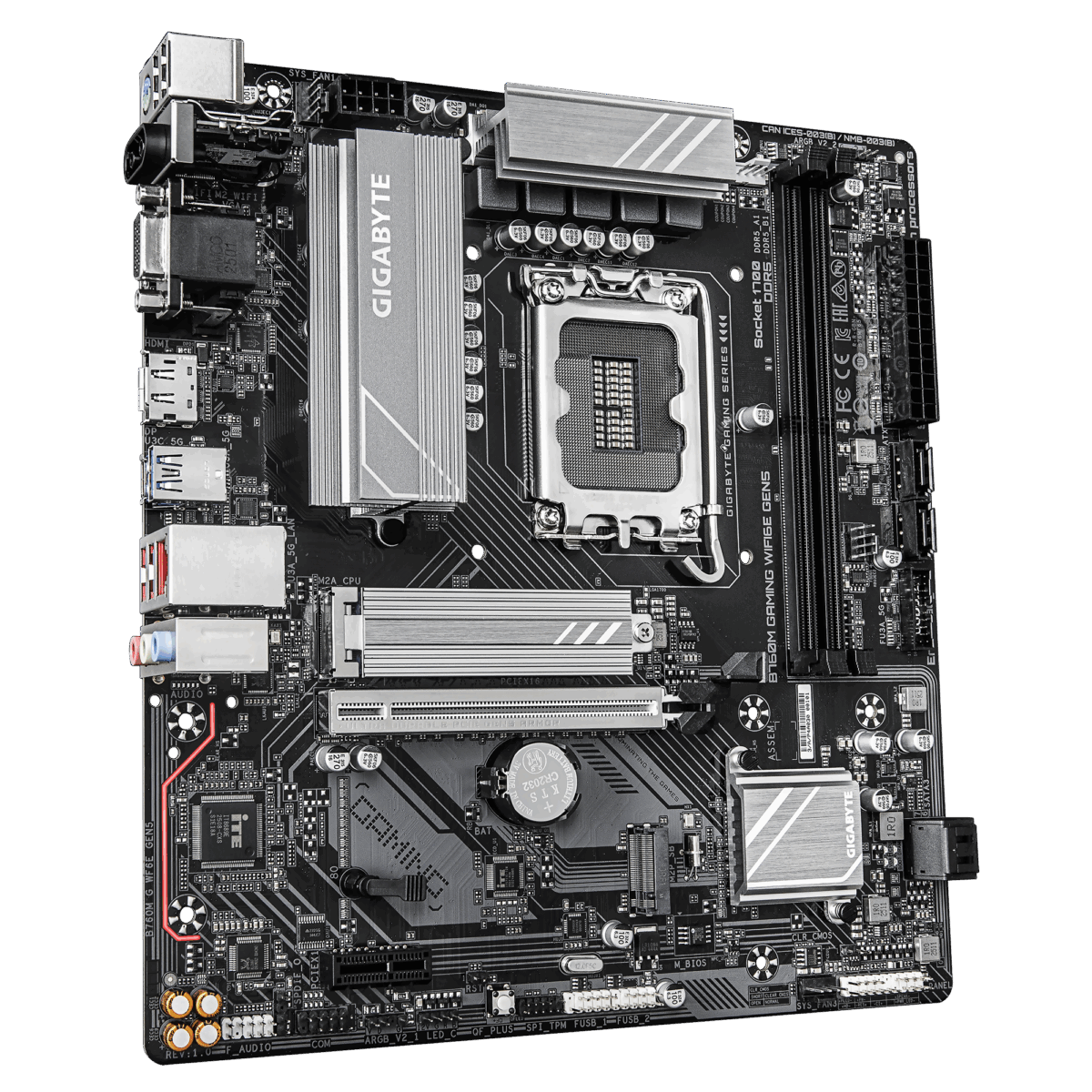

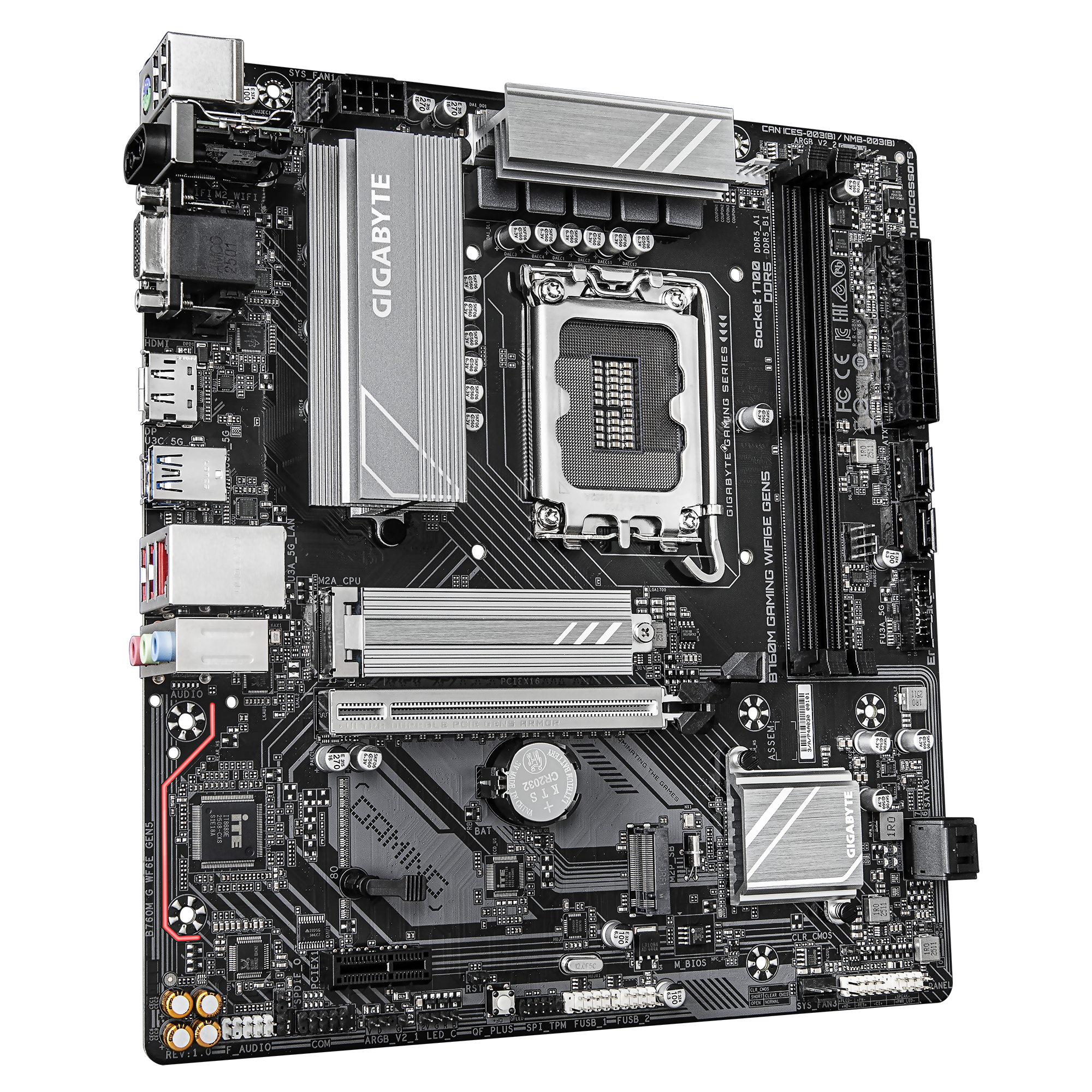

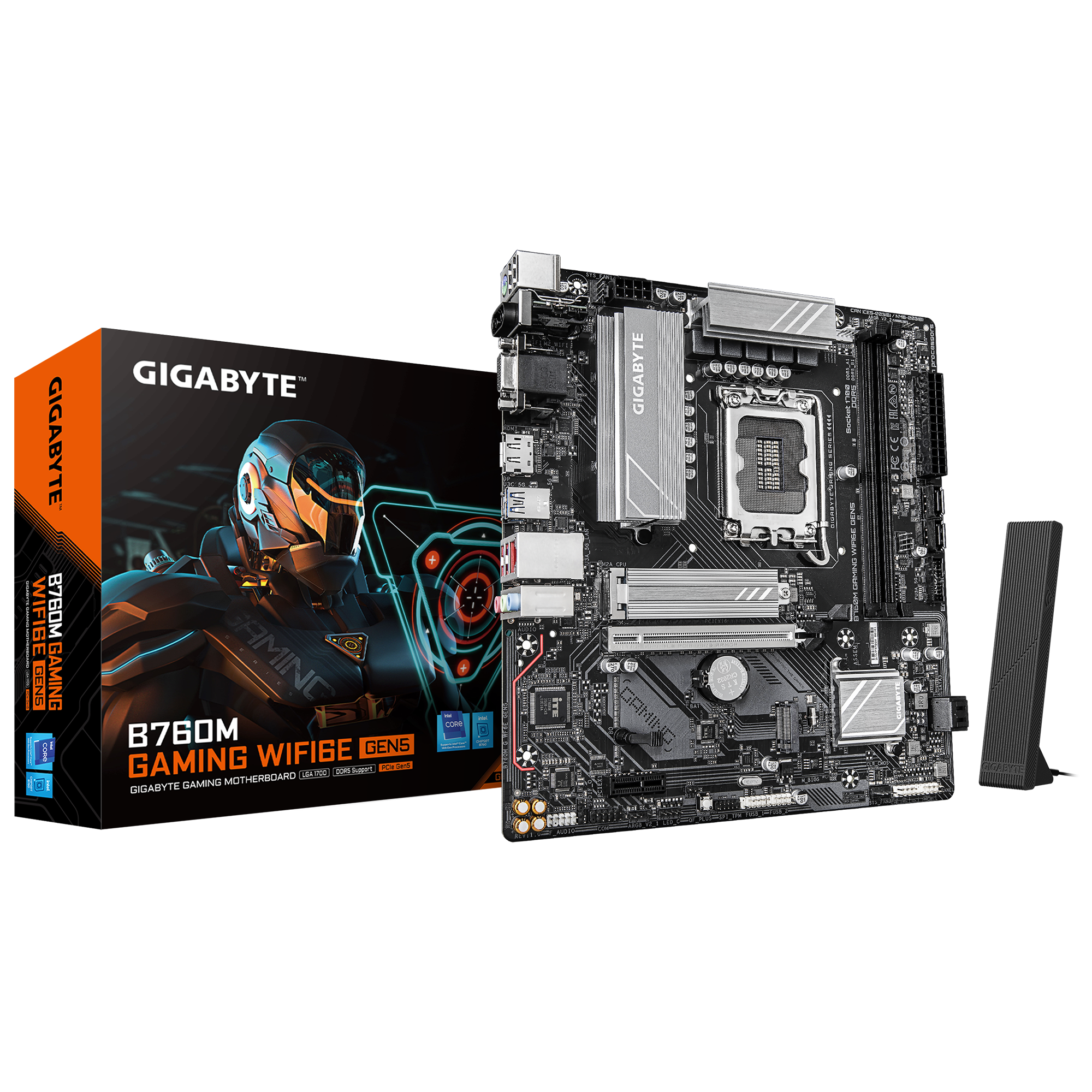

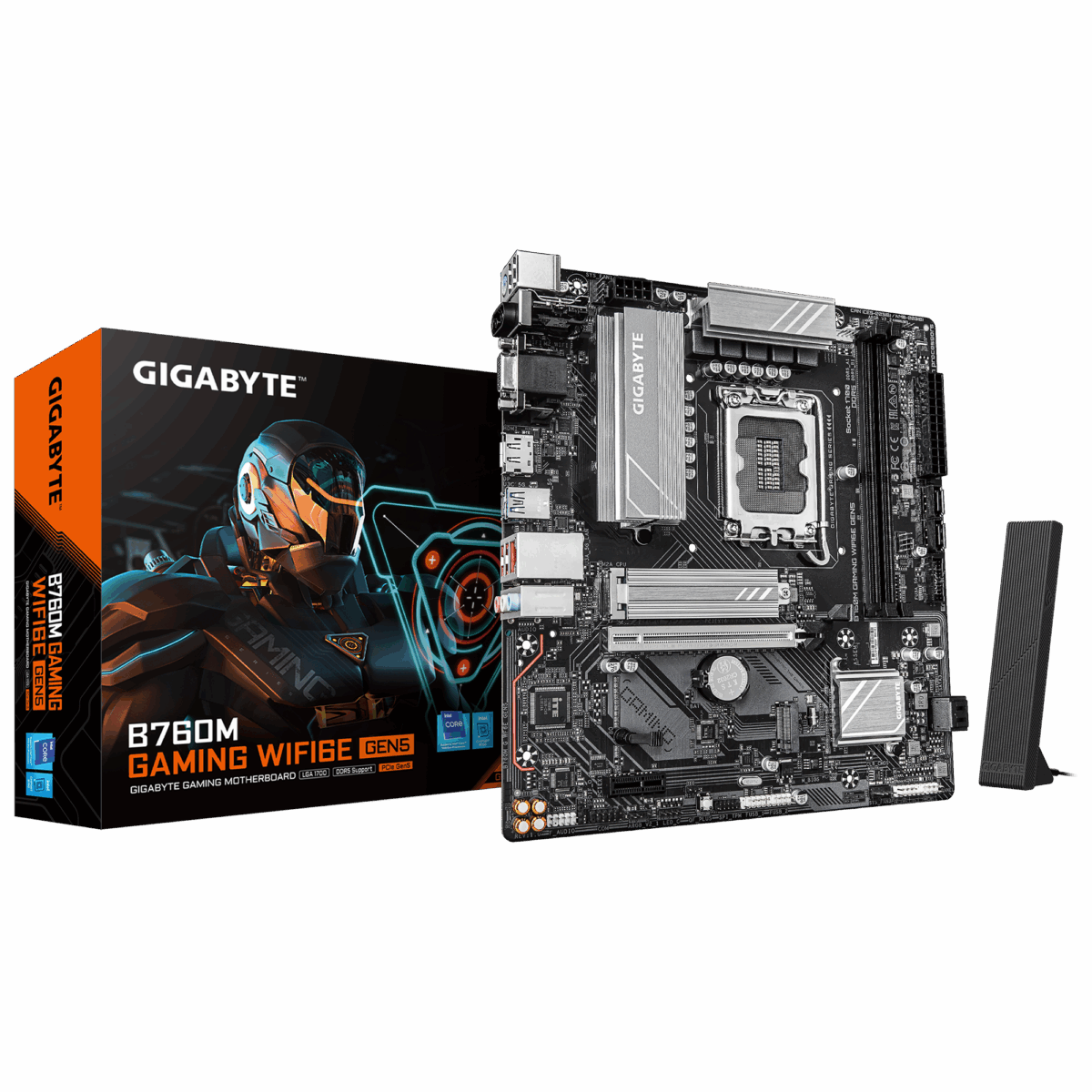

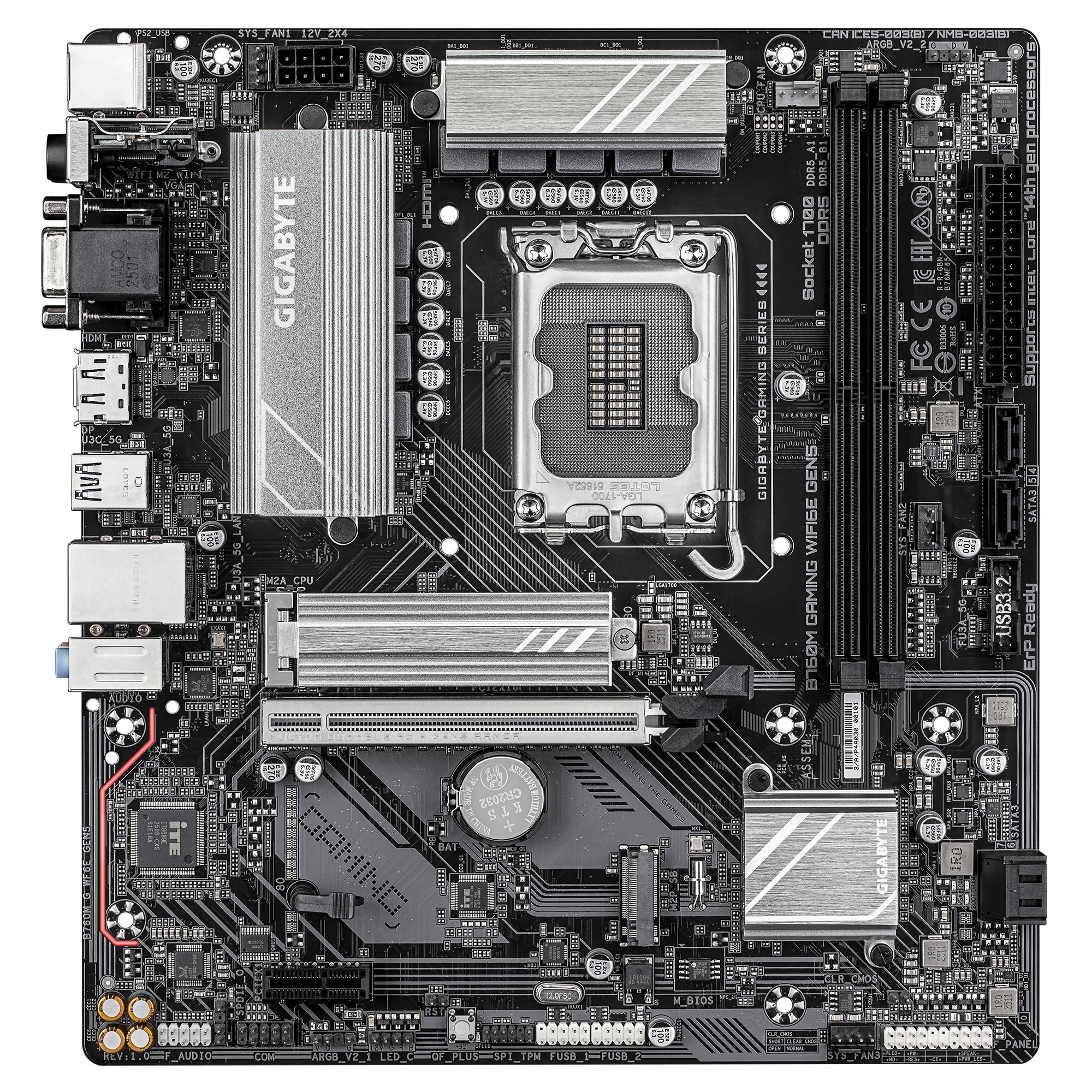

Gigabyte B760M Gaming WiFi6E Gen5 DDR5 Intel LGA1700 Socket Motherboard

Avail the all-new Gigabyte B760M Gaming WiFi6E Gen5 DDR5 Motherboard from Avika Retails at the best price. Best in-class features includes:

Spec Detail
CPU Support Intel 14th & 13th Gen CPUs
Memory Dual-Channel DDR5, 2 DIMMs
VRM Design 6+2+1 phases hybrid VRM
PCIe Slot 1× PCIe 5.0 x16 full-length slot
Network 2.5 GbE LAN + WiFi 6E

About the item:

  • PCIe 5.0 x16 full-length slot with reinforced UD Armor (EZ-Latch), ready for next-gen graphics cards.

  • WiFi 6E + 2.5 GbE LAN for fast wired & wireless networking

  • Hybrid 6+2+1 phase VRM design with premium components and thermal protection for stable power delivery.

  • Smart Fan 6 cooling plus thermal guards (for VRMs & M.2 slots) to manage heat and reduce throttling.

  • Q-Flash Plus & Digitial BIOS aids (like BIOS updates without major component install, DDR5 overclock/XMP support) for ease of setup.

₹11,350.00

Add to compare
Add to wishlist
16 People watching this product now!

Payment Methods:

avika retails payment methods we have

Description

About Gigabyte B760M Gaming WiFi6E Gen5 DDR5 Motherboard

Category Specification
Form Factor Micro-ATX
Chipset Intel B760
CPU Compatibility Intel 14th & 13th Gen Core Processors
Power & VRM 6+2+1 phase hybrid VRM design; premium chokes & capacitors
Memory 2 DIMMs, Dual-Channel DDR5; XMP support, overclocking headroom
PCIe / Expansion 1× PCIe 5.0 x16 slot (UD slot with reinforcement), 1× PCIe 3.0 x1 expansion slot
Storage 2× PCIe 4.0 x4 M.2 slots; SATA 6Gb/s ports (4)

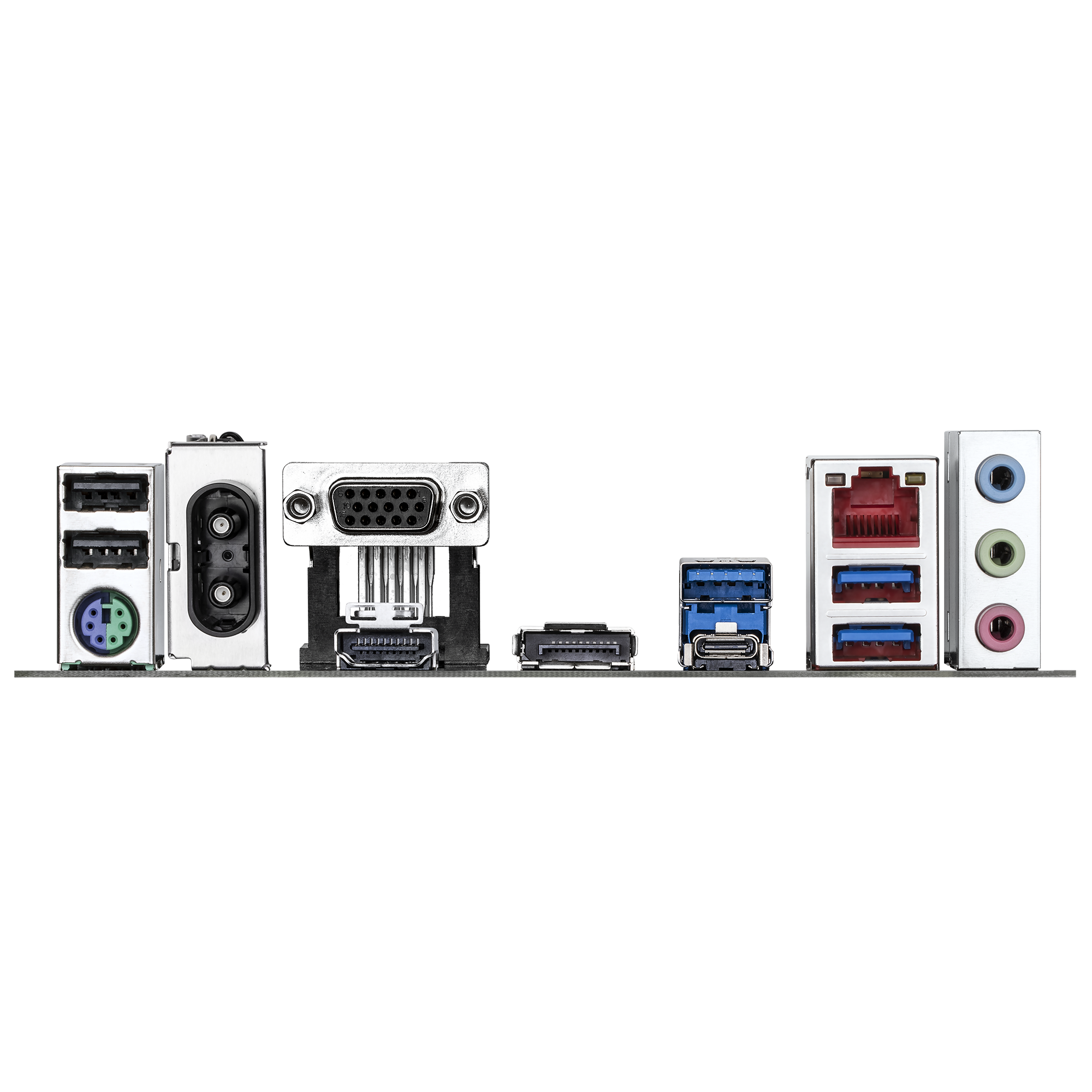

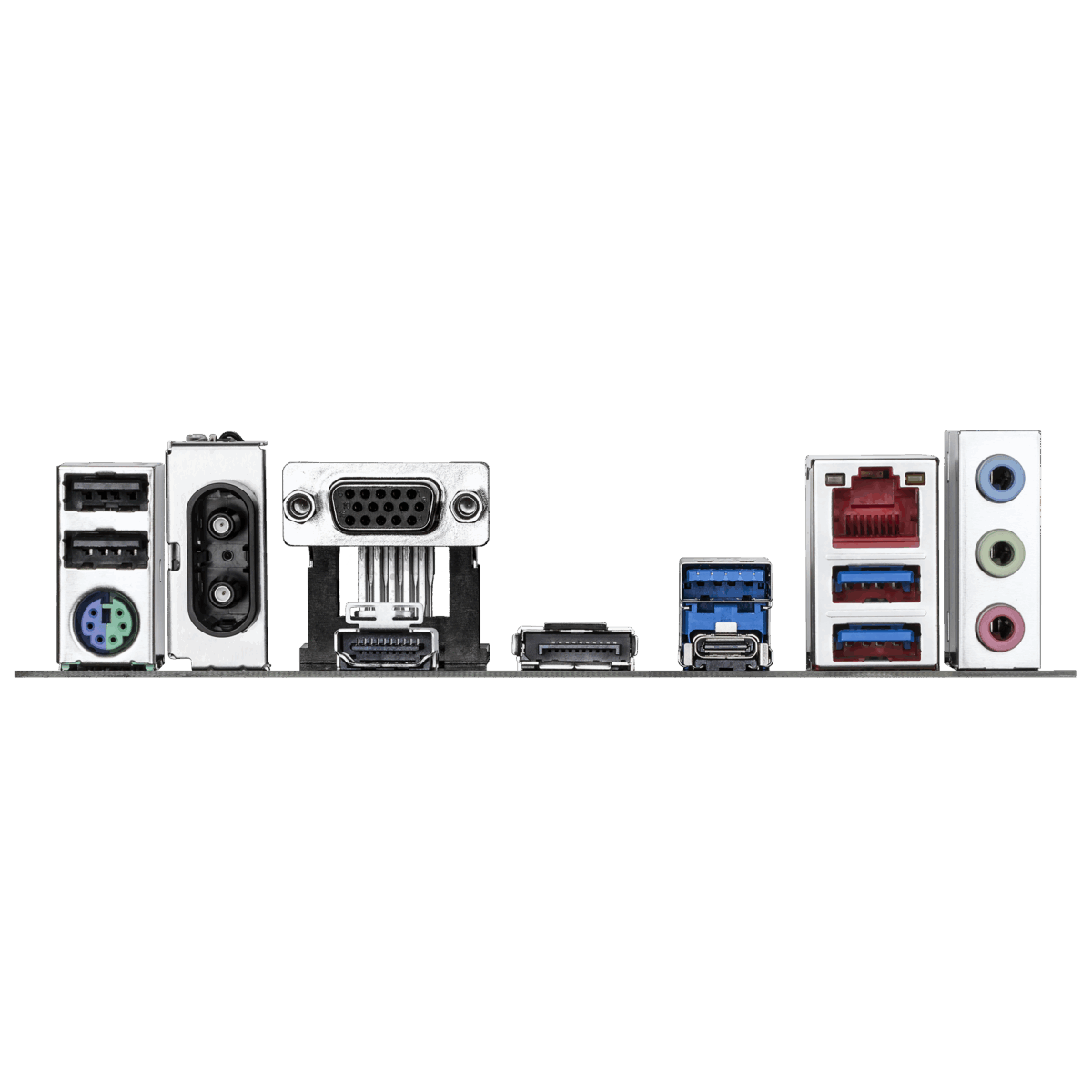

Rear I/O / Display Outputs 1× HDMI, 1× DisplayPort; multiple USB (Type-C, Gen1 etc.)
Networking 2.5 GbE LAN; WiFi 6E (802.11ax) wireless; antenna headers / WiFi EZ-Plug
Audio 8-channel HD Audio, high-end capacitors, audio components with noise shielding
Cooling / Thermal VRM Thermal Armor; M.2 Thermal Guards; Smart Fan 6 with multiple headers and fan stop feature
Additional Features PCIe EZ-Latch for the x16 slot; RGB Fusion (LED / ARGB headers); Q-Flash Plus for BIOS updates without CPU/GPU/RAM installed; UD power connector solid pins
  • CPU
    LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    (Go to GIGABYTE’s website for the latest CPU support list.)
    L3 cache varies with CPU
  • Chipset
    Intel® B760 Express Chipset
  • Memory
    Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      Support for Extreme Memory Profile (XMP) memory modules
      (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
    • Onboard Graphics
      Integrated Graphics Processor-Intel® HD Graphics support:
      – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
      – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support for native HDMI 2.1 TMDS compatible ports.- 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.)
      Support for up to triple-display at the same time
