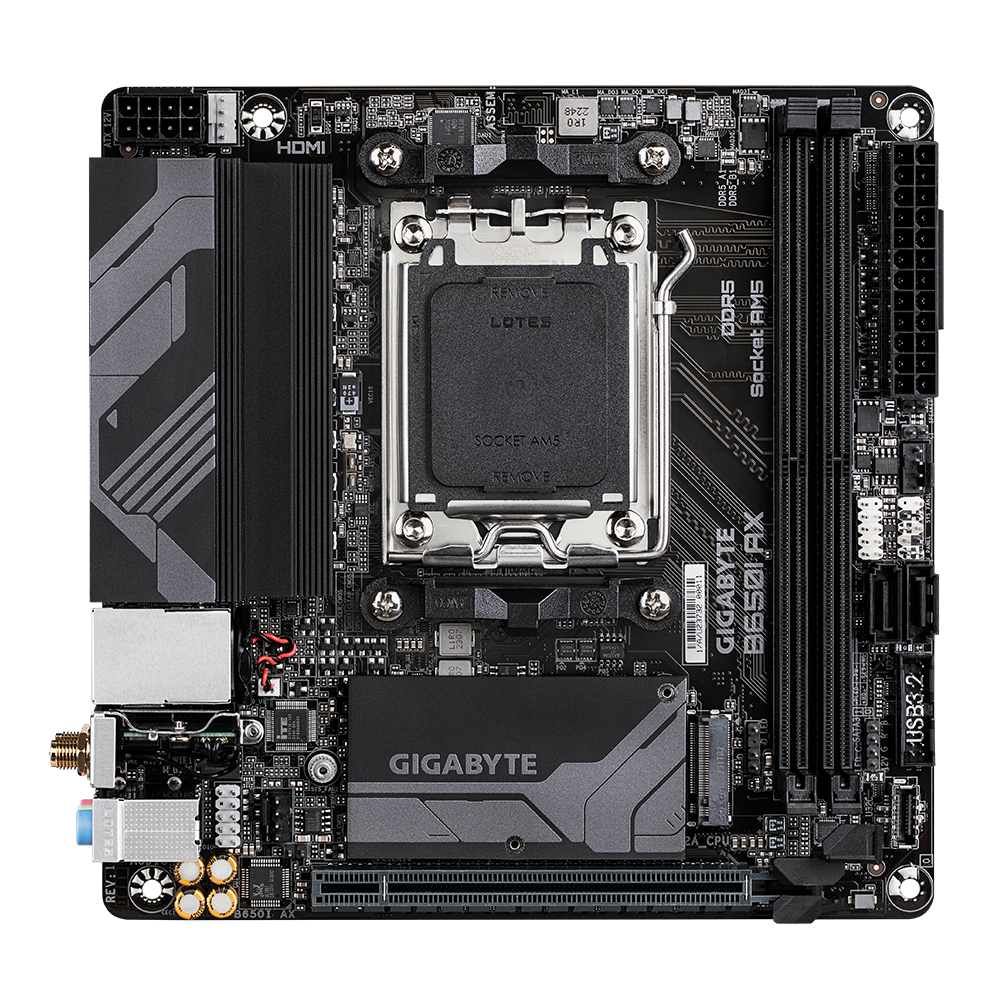

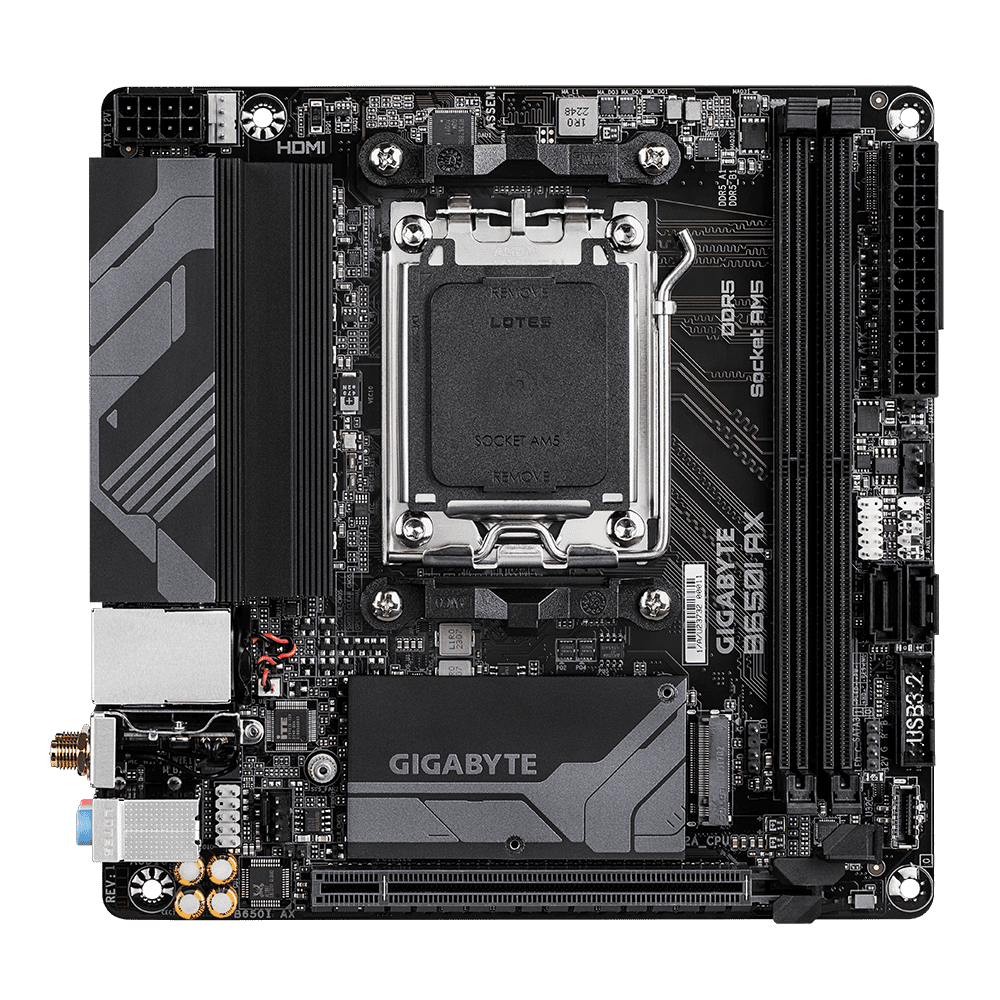

Gigabyte B650I AX Mini-ITX Motherboard – AM5 Socket, Ryzen 7000/8000/9000 Support, DDR5, PCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, HDMI/DP, Smart Fan 6, Q-Flash Plus - Image 2

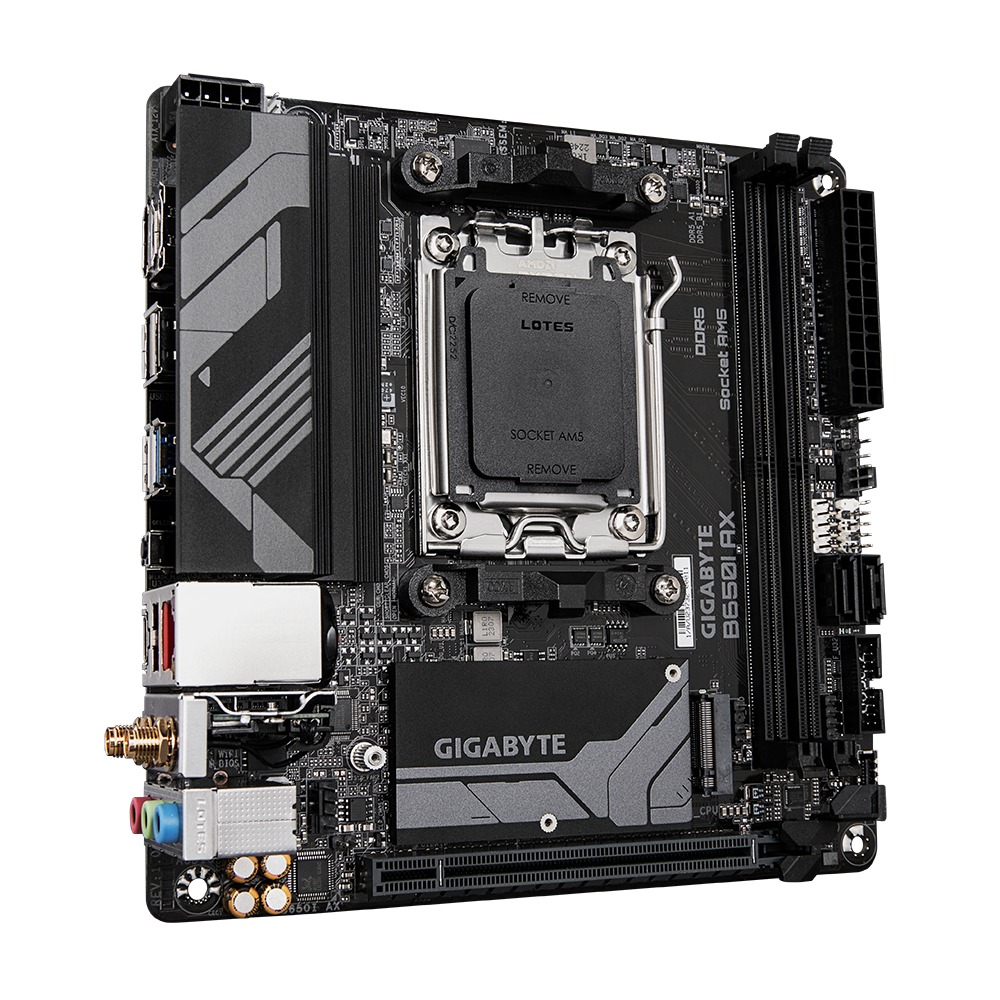

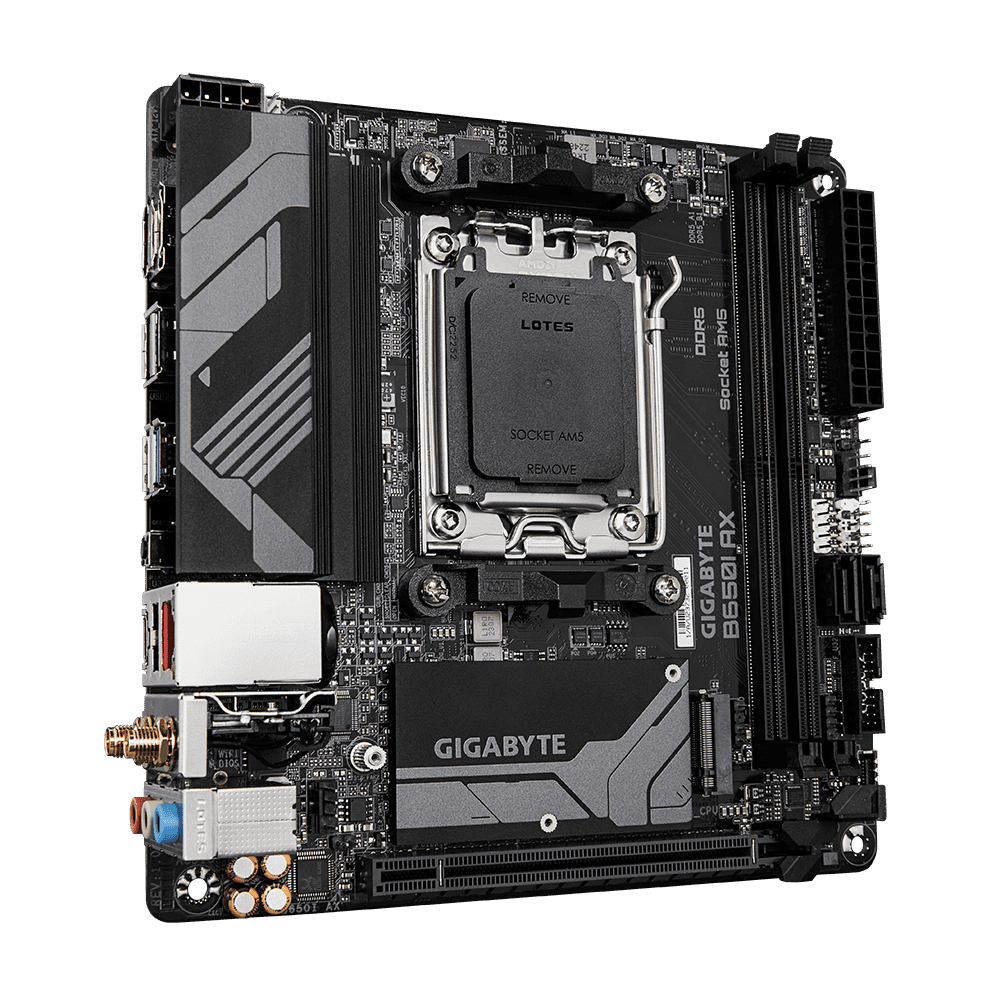

Gigabyte B650I AX Mini-ITX Motherboard – AM5 Socket, Ryzen 7000/8000/9000 Support, DDR5, PCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, HDMI/DP, Smart Fan 6, Q-Flash Plus - Image 3

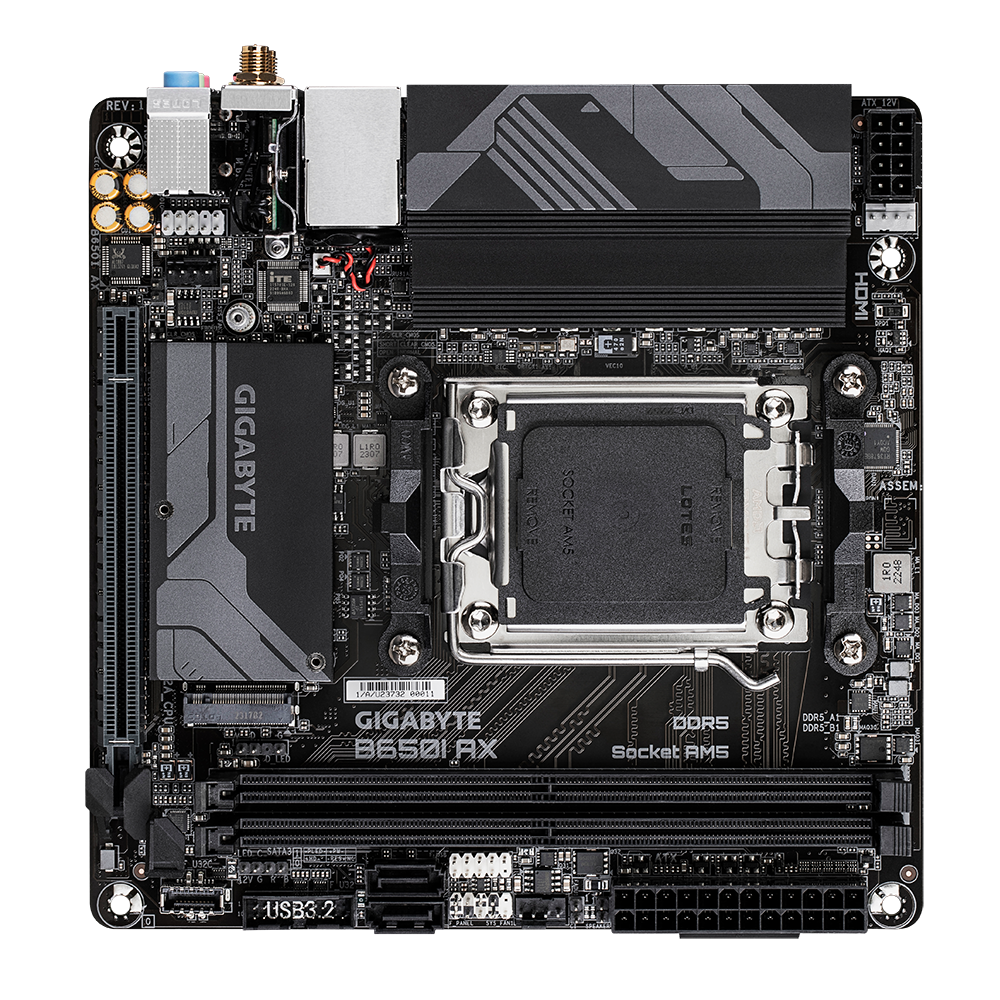

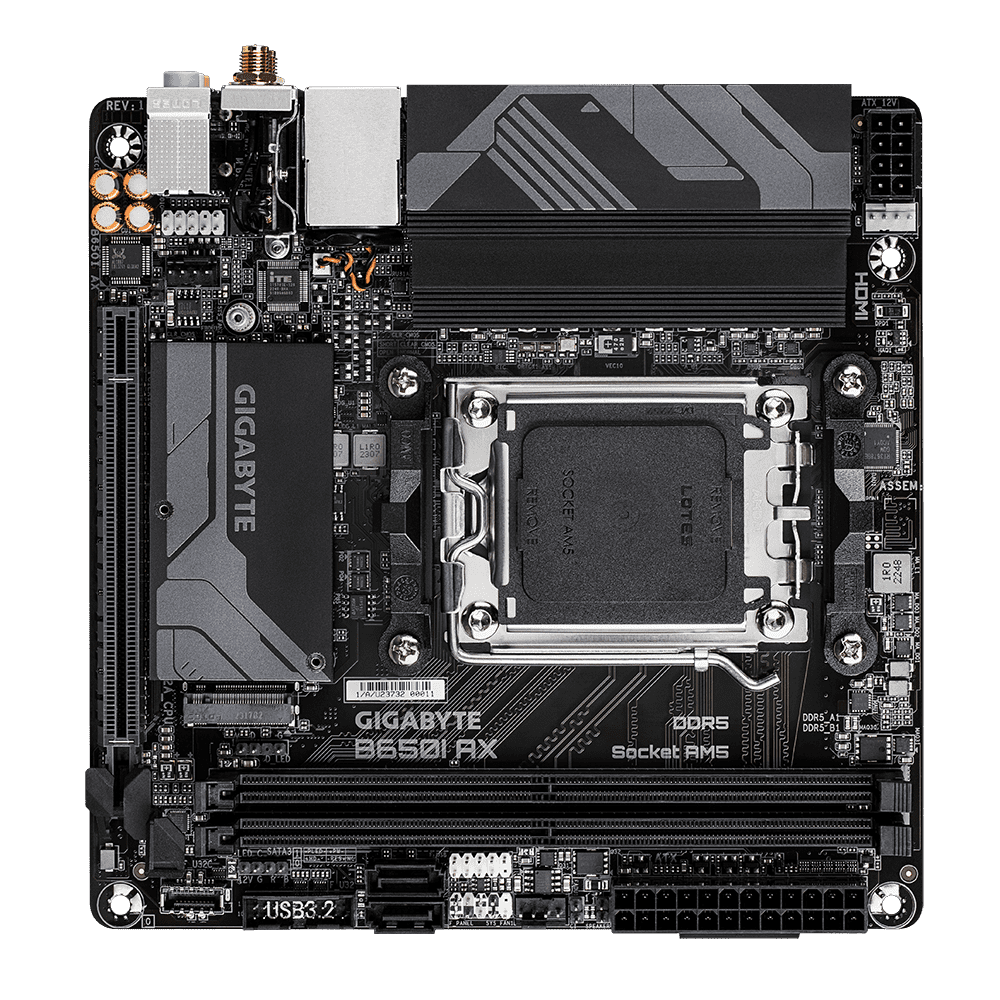

Gigabyte B650I AX Mini-ITX Motherboard – AM5 Socket, Ryzen 7000/8000/9000 Support, DDR5, PCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, HDMI/DP, Smart Fan 6, Q-Flash Plus - Image 4
Gigabyte B650I AX Mini-ITX Motherboard – AM5 Socket, Ryzen 7000/8000/9000 Support, DDR5, PCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, HDMI/DP, Smart Fan 6, Q-Flash Plus - Image 5

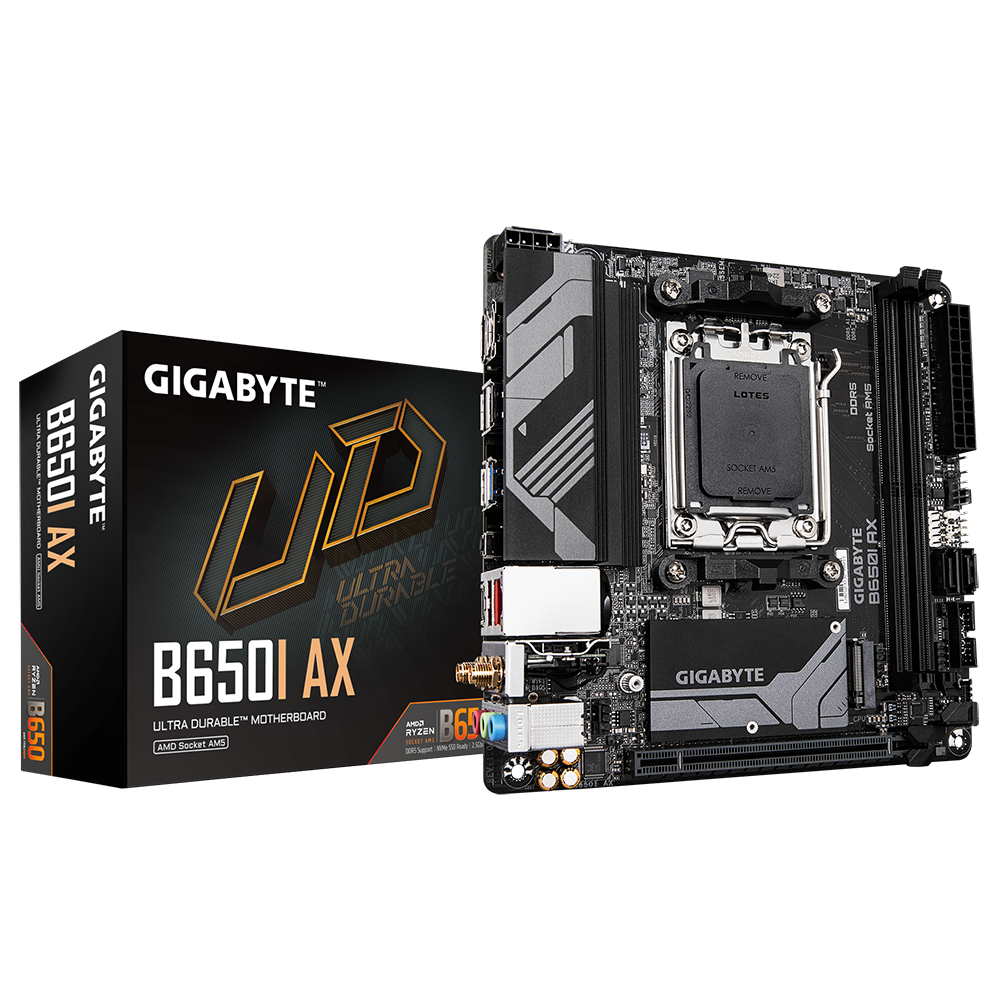

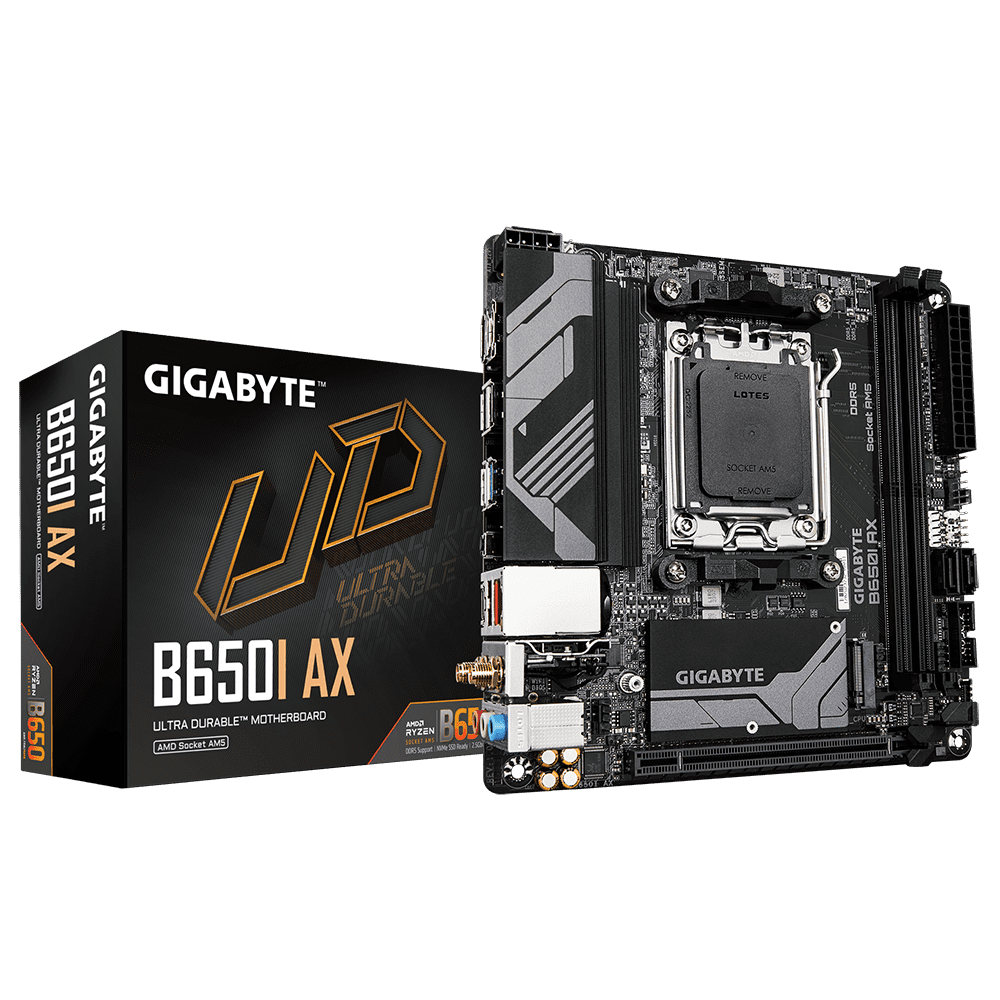

Gigabyte B650I AX Mini-ITX Motherboard – AM5 Socket, Ryzen 7000/8000/9000 Support, DDR5, PCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, HDMI/DP, Smart Fan 6, Q-Flash Plus

The Gigabyte B650I AX is a compact Mini-ITX motherboard built around the AMD B650 chipset, designed to support modern Ryzen processors in small form factor systems.

Specification Detail
Chipset / Socket AMD B650, Socket AM5
Memory 2 × DDR5 DIMM slots, up to DDR5-6400 (OC)
Storage / Expansion 1 × M.2 (PCIe 4.0 x4) slot
PCIe Slot 1 × PCIe 4.0 x16 slot (via EZ-Latch)
Networking Wi-Fi 6E + Bluetooth, 2.5GbE LAN
Rear I/O / Video 1 × HDMI 2.1, 1 × DisplayPort 1.4
Form Factor & Size Mini-ITX, 170 × 170 mm

About the item:

  • Compact but Feature-Rich
    Despite being a Mini-ITX board, it offers dual DDR5 support, PCIe 4.0, Wi-Fi 6E, and 2.5GbE networking, making it well suited for small yet capable gaming or productivity systems.

  • EZ-Latch PCIe Slot
    The EZ-Latch design makes it easier to install or remove a graphics card in tight ITX chassis without fighting the retention clip in cramped spaces.

  • BIOS Flash Without Components (Q-Flash Plus)
    You can update the BIOS even without a CPU, memory, or GPU installed — useful when upgrading or recovering systems.

  • Smart Fan 6 & Thermal Management
    The board supports multiple temperature sensors, hybrid fan headers, and a FAN STOP mode, helping manage cooling in tight cases more intelligently.

  • EXPO / XMP Memory Support & Overclocking Readiness
    It supports both AMD EXPO and Intel XMP memory profiles, allowing memory overclocking (e.g. to DDR5-6400+), giving users performance flexibility within the constraints of its VRM.

Despite its diminutive size, it packs many capabilities one expects from a full-sized board: dual DDR5 memory, PCIe 4.0 for high-speed NVMe storage, Wi-Fi 6E and 2.5 Gigabit Ethernet, and video outputs.

Its 5+2+1 digital VRM design enables stable power delivery for moderate CPUs while maintaining efficiency and thermal control.

With features like EZ-Latch for easier GPU removal and Q-Flash Plus for BIOS updates without hardware installed, it’s well suited for compact, upgradable AM5 builds.

₹18,290.00

Add to compare
Add to wishlist
593 People watching this product now!

Payment Methods:

avika retails payment methods we have

Description

About Gigabyte B650I AX Mini-ITX Motherboard

Component / Category Specification / Notes
CPU / Compatibility Socket AM5, supports AMD Ryzen 7000 / Ryzen 8000 / (with BIOS update) Ryzen 9000 series
Chipset AMD B650
Power & VRM 5 + 2 + 1 phase digital VRM design using DrMOS components
Memory 2 × DDR5 SMD DIMMs, supports EXPO & XMP, up to DDR5-6400 (OC) and up to 128 GB in some reports
Expansion / Slots 1 × PCIe 4.0 x16 slot (EZ-Latch quick release)
Storage / SATA / M.2 1 × M.2 (Socket 3, M key, supports PCIe 4.0 x4 / x2)
2 × SATA III (6 Gb/s) ports (RAID 0 / 1 support)

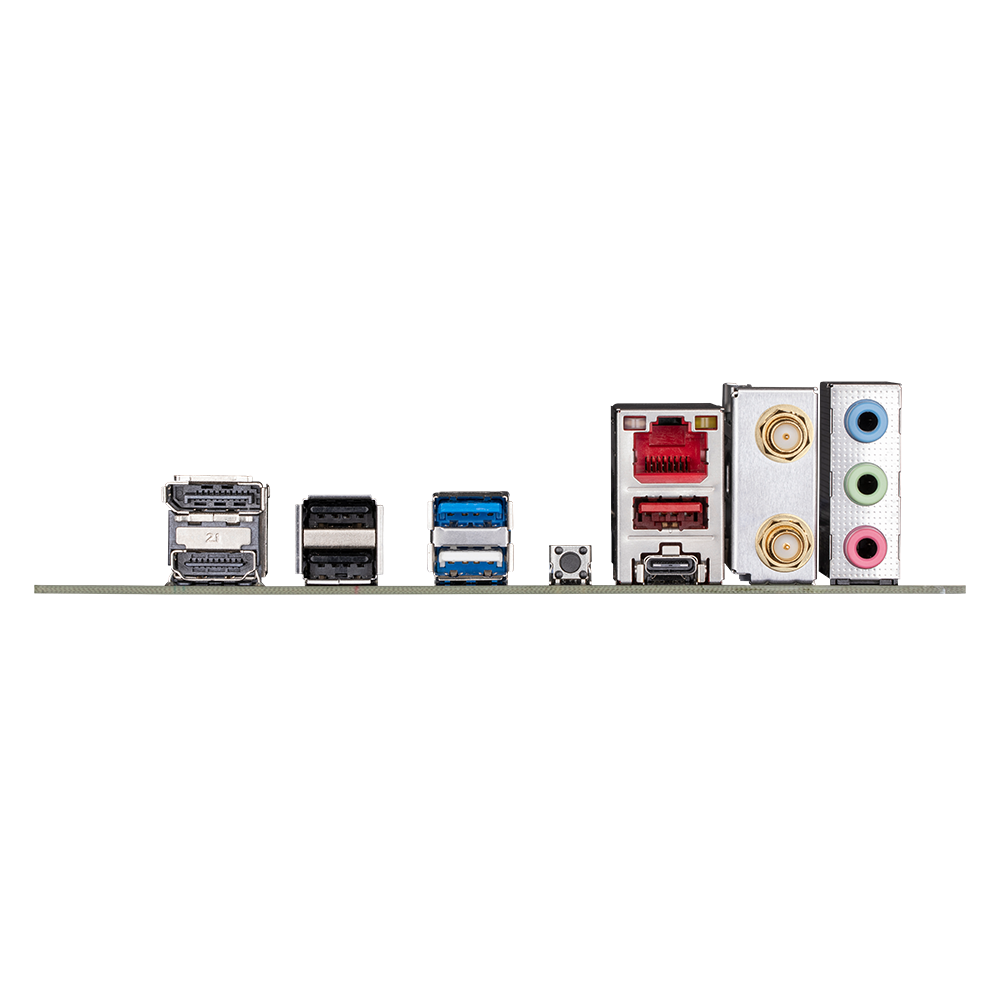

Rear I/O / Connectivity HDMI 2.1, DisplayPort 1.4 on board
USB: multiple USB ports including USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0, USB Type-C for rear & front headers
Network: Realtek 2.5GbE LAN chip
Wi-Fi / Bluetooth: Realtek RTL8852CE module supports Wi-Fi 6E and Bluetooth 5.3
Audio: Realtek ALC897 high definition codec
Q-Flash Plus Button on rear I/O allows BIOS updates without CPU/RAM/GPU installed
Fan / Cooling / Headers Smart Fan 6 support (multiple temperature sensors, hybrid fan headers with FAN STOP)
Internal headers: 3 PWM/DC fan headers, RGB/ARGB headers
Form Factor & Dimensions Mini-ITX, 170 × 170 mm
Other Features EZ-Latch GPU slot (quick release)
Support for BIOS updates via Q-Flash Plus without hardware installed
Support for EXPO & XMP memory profiles
Overclocking potential albeit limited by VRM design
Stable performance for mid-range Ryzen CPUs in small form factor builds
