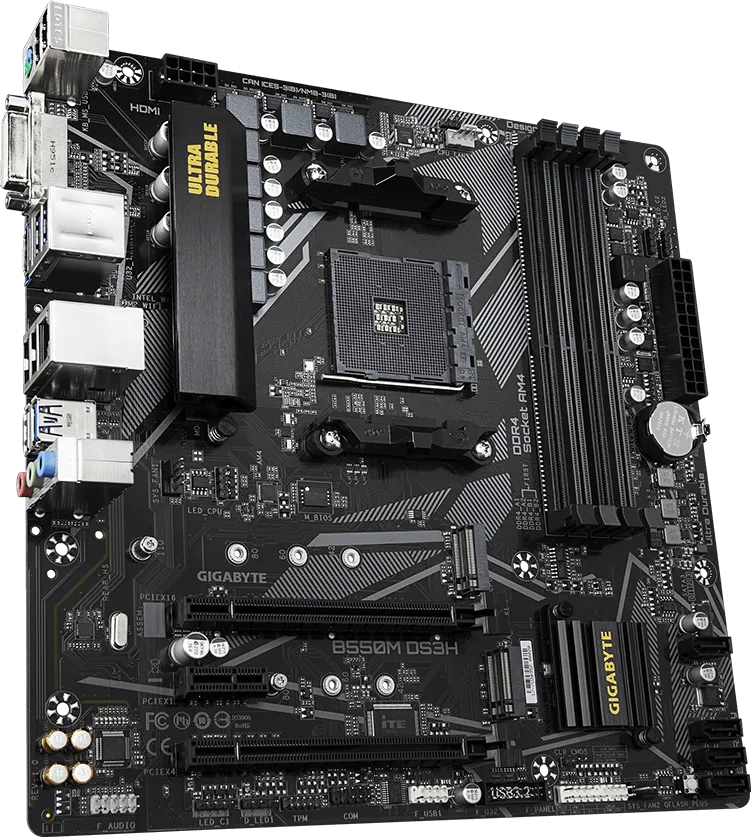

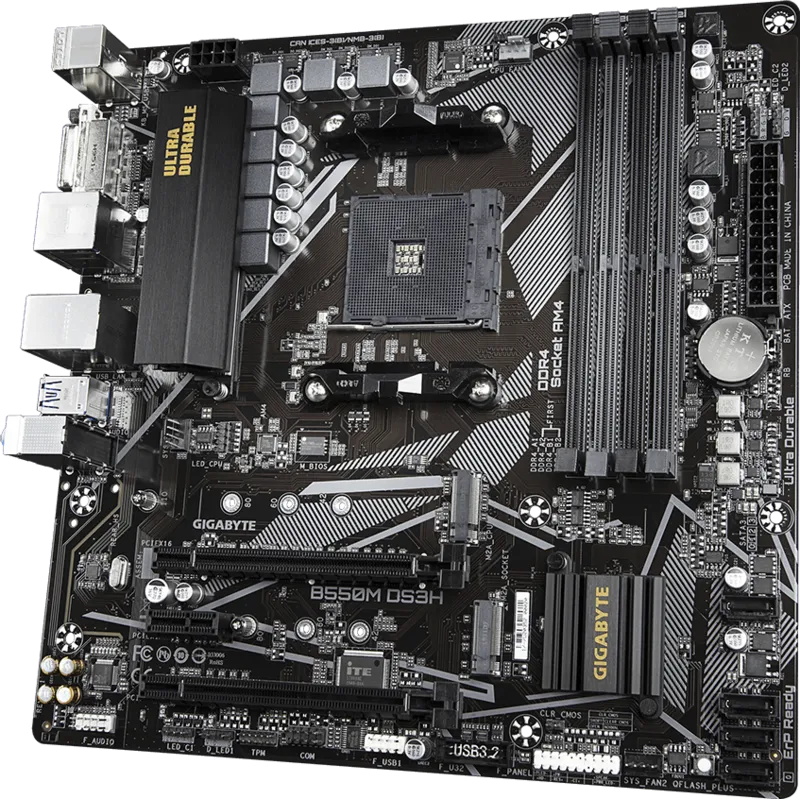

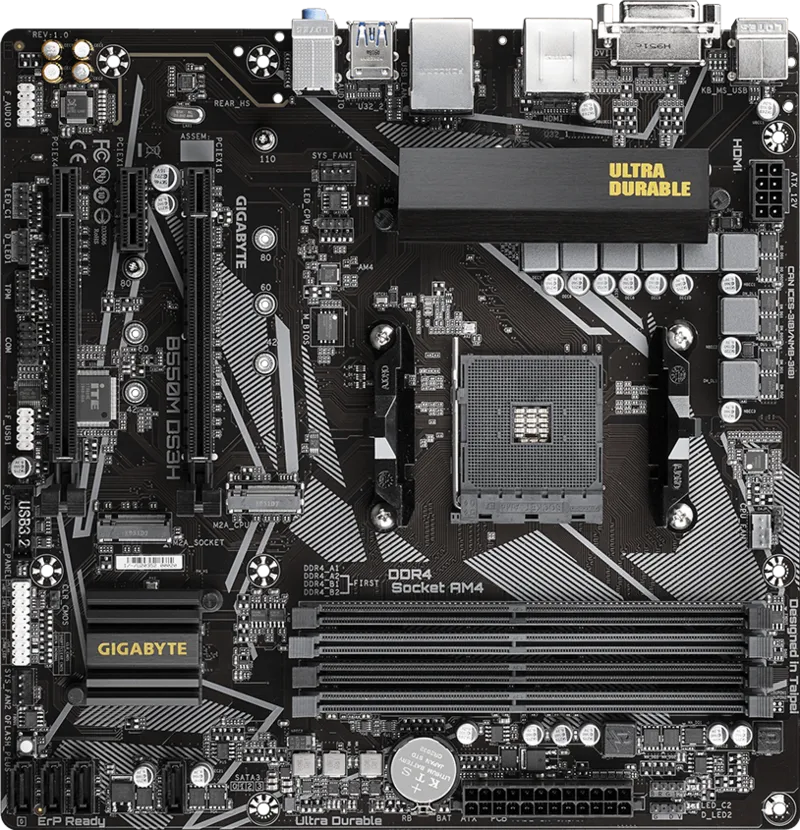

About the Gigabyte B550M DS3H Desktop Motherboard
| Category | Specification |
|---|---|
| Motherboard Model | Gigabyte B550M DS3H AMD Motherboard |
| CPU Support | AMD Socket AM4, Ryzen 3000/4000/5000 Series |
| Chipset | AMD B550 |
| Form Factor | Micro-ATX (24.4 × 24.4 cm) |
| Memory Configuration | 4× DDR4 DIMM sockets, dual-channel |
| Max Memory | Up to 128 GB DDR4 |
| Memory Speeds | Up to DDR4-4733+ (OC) support |
| PCIe Slots | 1× PCIe 4.0 x16, 1× PCIe 3.0 x4, 1× PCIe 3.0 x1 (via chipset) |
| M.2 Storage | 2× M.2 (PCIe 4.0/3.0 & PCIe 3.0 with SATA) |
| SATA Ports | 4× SATA 6 Gb/s |
| LAN | Realtek Gigabit Ethernet |
| Audio | Realtek HD Audio CODEC (7.1-channel) |

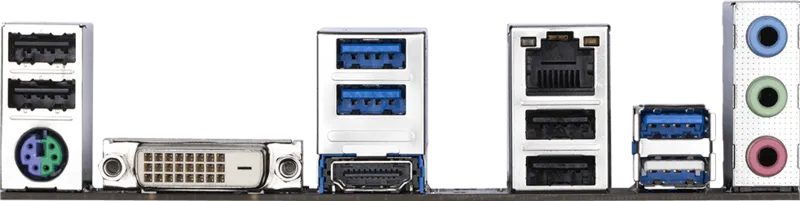

| Rear I/O Video | HDMI + DVI-D (DisplayPort on some revs) |
| USB (Rear) | USB 3.2 Gen1, USB 2.0 |
| Internal USB | USB 3.2 Gen1 & USB 2.0 headers |
| Fan Headers | Multiple fan headers with Smart Fan support |
| VRM Design | 5+3 Phase Digital VRM (some revs 6+2) |
| RGB Support | RGB Fusion 2.0 headers |
| BIOS Features | Q-Flash Plus (BIOS update without CPU/RAM) |
| AMD Tech Support | AMD StoreMI acceleration support |
| Cooling Features | Smart Fan 5 + FAN STOP, temperature sensors |
| Durability | Ultra Durable PCIe slot design |
Key feature about the Gigabyte B550M DS3H Desktop Motherboard
-
AM4 Platform: The Gigabyte DS3H AMD Series Motherboard supports AMD Ryzen CPUs for versatile performance.
-
B550 Chipset: Enables PCIe 4.0 support on GPU and storage.
-
Micro-ATX Layout: Compact board ideal for small builds.
-
4 DIMM Slots: The Gigabyte DS3H Series Desktop Motherboard offers memory slot of up to 128 GB DDR4.
-
Dual Channel Memory: Boosts bandwidth for gaming and apps.
-
PCIe 4.0 x16: High-speed GPU lane support.
-
Extra PCIe: PCIe 3.0 x4/x1 slots for expansion.
-
Dual M.2: Two M.2 slots support speedy NVMe storage.
-
SATA 6 Gb/s: Connects traditional HDDs/SSDs.
-
Realtek LAN: Stable wired network connectivity.
-
HD Audio: 7.1-channel onboard sound.
-
HDMI/DVI: Multiple display outputs for visuals.
-
USB Variety: Rear and internal USB headers.
-
Smart Fan Control: This offers the Gigabyte DS3H Gaming Desktop Motherboard for a fine-tune fan performance.
-
Q-Flash Plus: Update BIOS without CPU/RAM installed.
-
RGB Headers: Add addressable and RGB strips.
-
Durable PCIe Slot: Reinforced for heavy GPUs.
-
StoreMI Support: Accelerates HDD via SSD caching.
-
Efficient VRM: Stable power for CPU workload.
-
Gaming Ready: Balanced features for budget gaming rigs.
