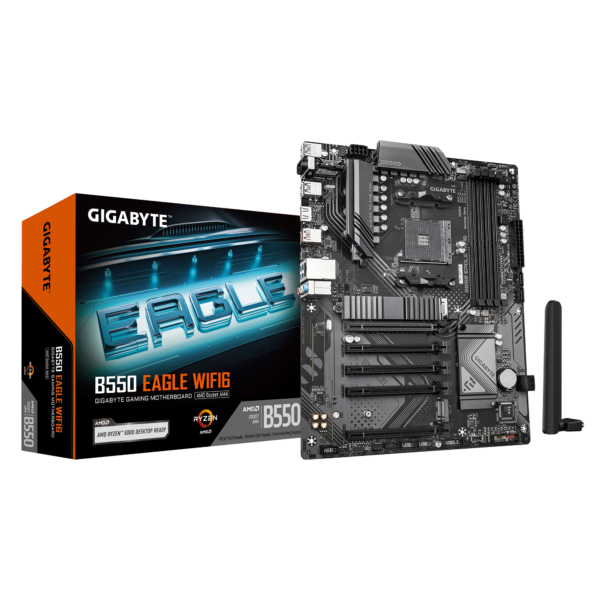

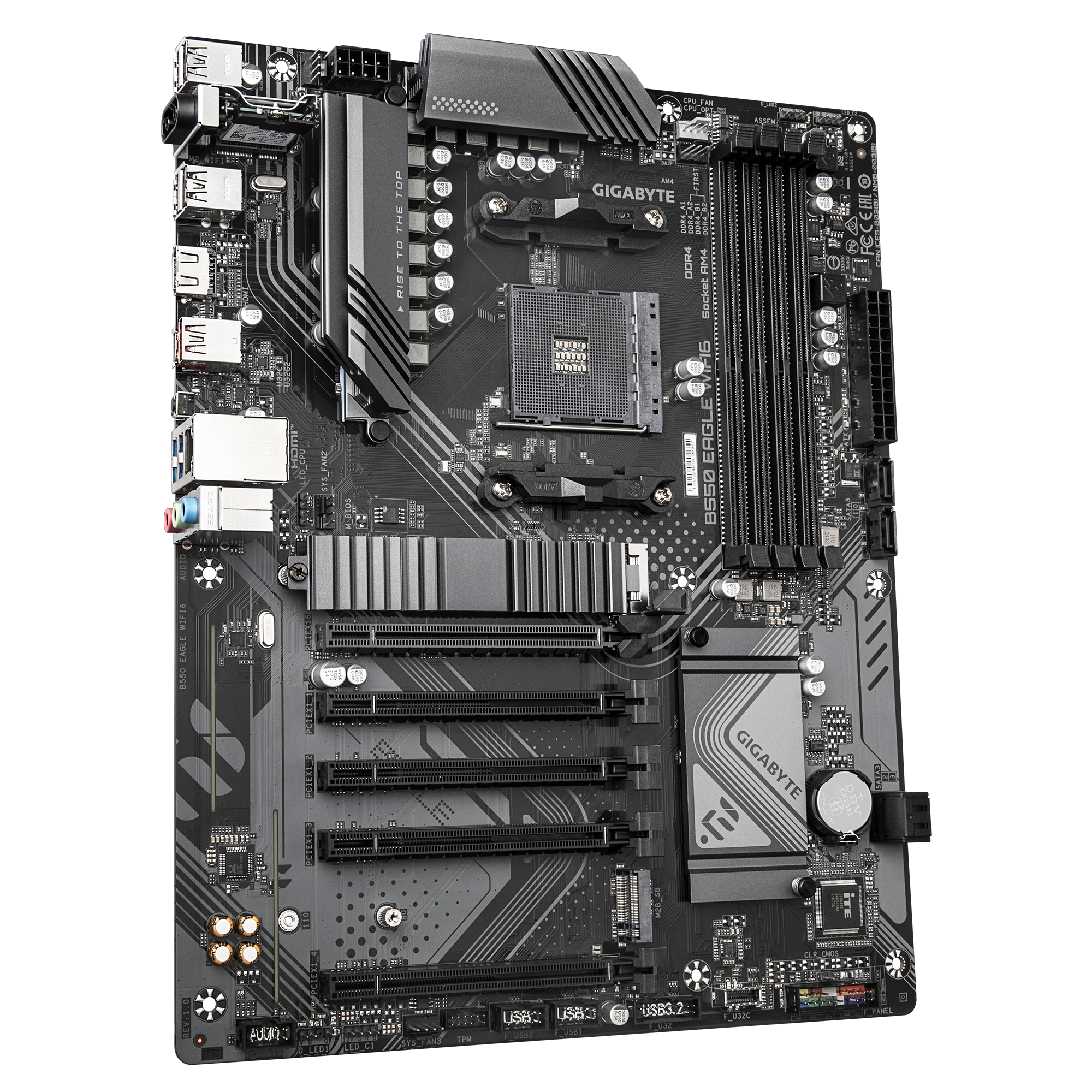

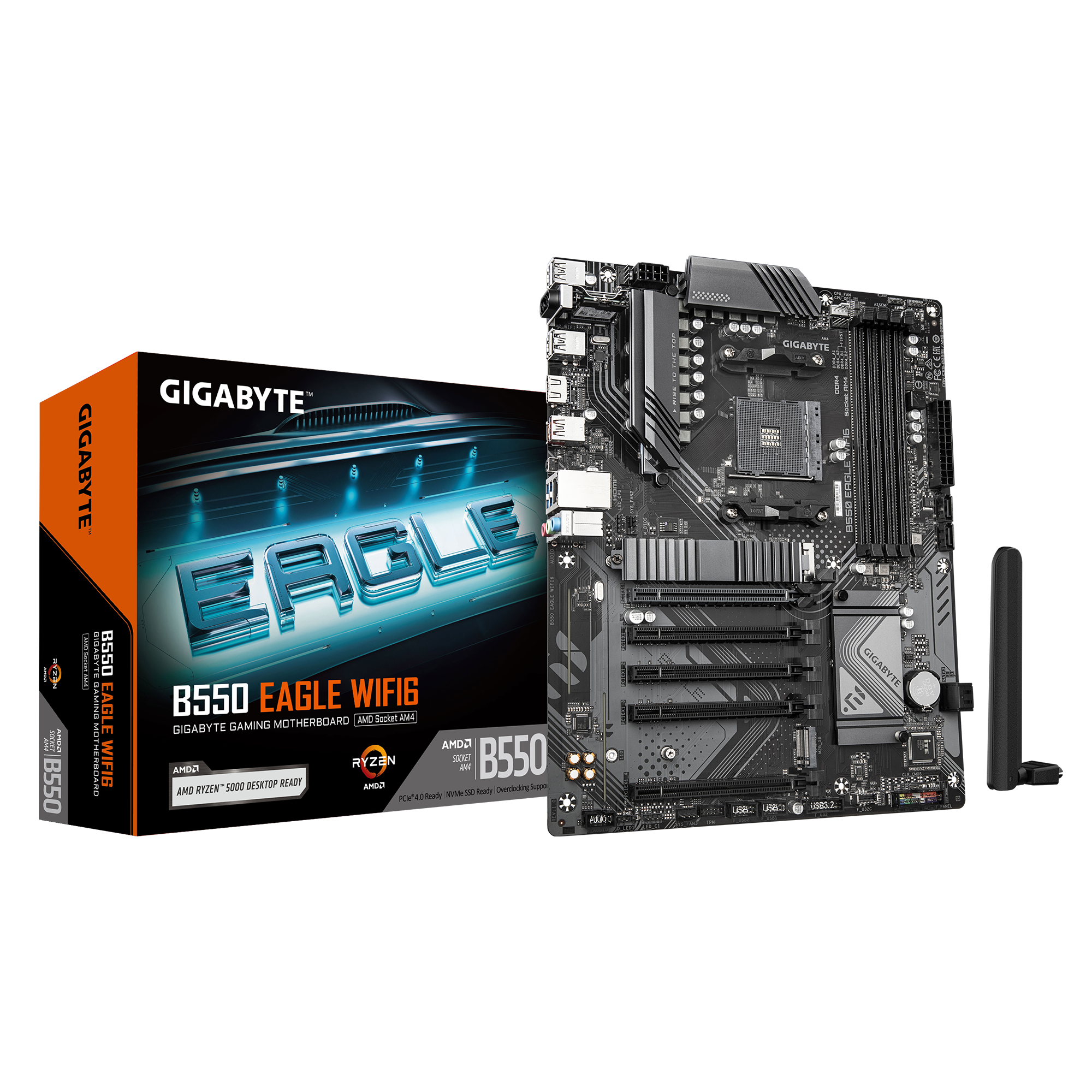

About the Gigabyte B550 Eagle WiFi6 Motherboard
| Category | Specification |
|---|---|
| CPU Support | AMD Ryzen 3000/4000/5000 Series (AM4) |
| Chipset | AMD B550 |
| Form Factor | ATX |
| Memory Configuration | 4 DIMM sockets, up to 128 GB DDR4 |
| Memory Speeds | Up to DDR4-3200+ (dependent on CPU) |
| Graphics Output | 1× HDMI supporting up to 4K@60 Hz |
| Audio | Realtek HD Audio, 7.1-channel |
| Wireless | Wi-Fi 6 (802.11ax) & Bluetooth 5.3 |
| LAN | Realtek 1 Gb Ethernet |
| PCIe Slots | 1× PCIe 4.0 x16, 4× PCIe 3.0 x1 |
| M.2 Slots | 1× PCIe 4.0, 1× PCIe 3.0 |
| SATA | 4× SATA 6 Gb/s |

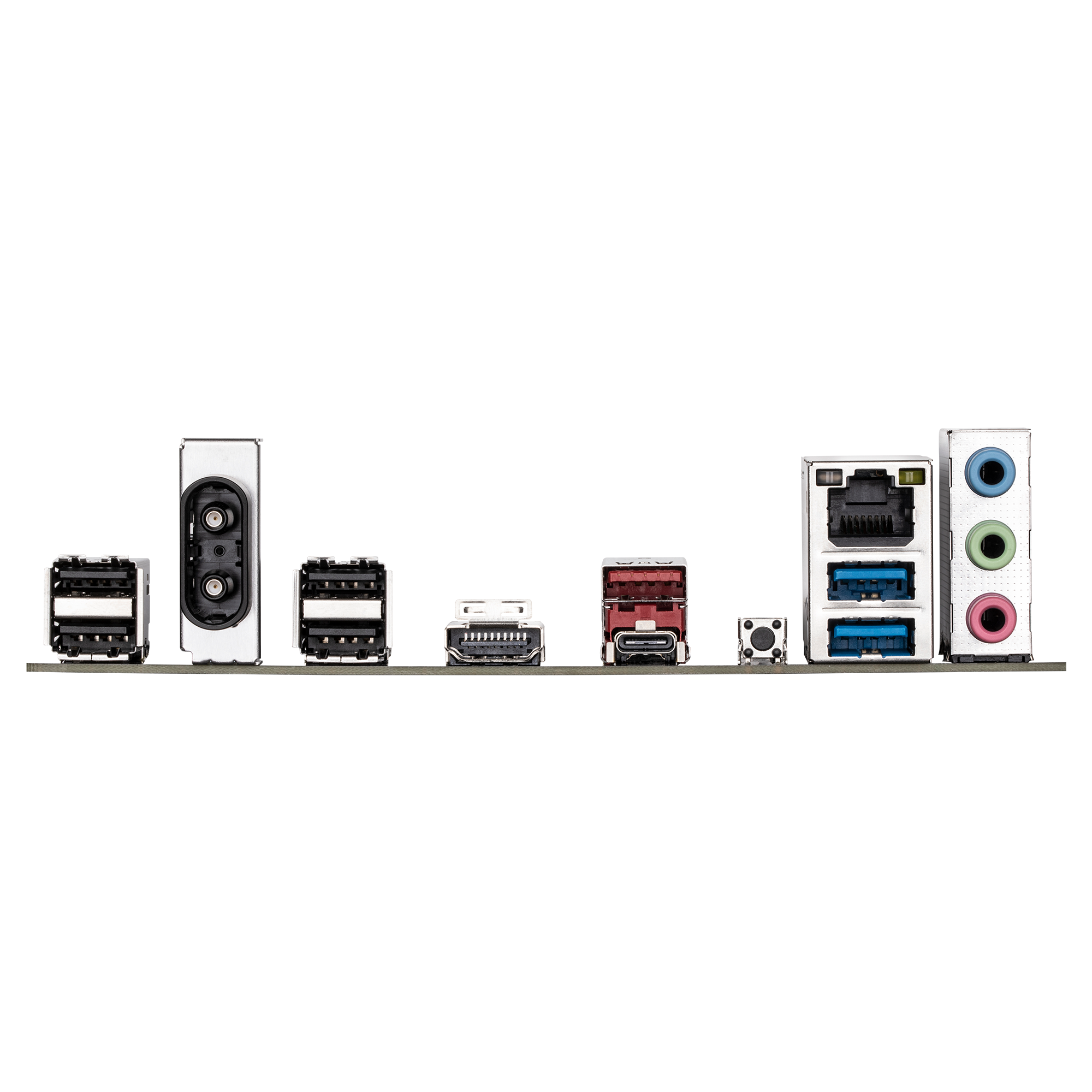

| USB (Rear) | USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0 |
| Internal USB Headers | Type-C & USB 2.0/3.2 headers |
| Fan Headers | Multiple PWM/DC fan headers with Smart Fan 6 |
| BIOS Flashback | Q-FLASH PLUS support |
| RGB Support | RGB Fusion headers |
| Thermal Features | VRM Thermal Armor and heatsinks |
| Special Build Features | EZ-Latch PCIe slot for easy GPU install |
Key feature about the Gigabyte B550 Eagle WiFi6 Motherboard
-
AM4 socket present in the Gigabyte Eagle Series Desktop Motherboard is for broad Ryzen CPU support delivers versatile performance.
-
AMD B550 chipset brings PCIe 4.0 speeds to storage and GPU.
-
Dual-channel DDR4 memory boosts multitasking and responsiveness.
-
Four DIMM slots support up to 128 GB memory.
-
The presence of an Integrated Wi-Fi 6 in the Gigabyte Eagle WiFi Desktop Motherboard helps to enhance wireless throughput & reliability.
-
Bluetooth 5.3 adds improved peripheral compatibility.
-
Realtek Gigabit LAN ensures stable wired networking.
-
HDMI output supports high-resolution displays.
-
Dual M.2 slots accommodate fast NVMe SSDs for storage.
-
SATA 6 Gb/s ports support traditional drives.
-
USB 3.2 Gen 2 and Type-C rear ports improve connectivity.
-
Multiple USB headers in the Gigabyte Eagle Series Gaming Motherboard is because of an added front panel flexibility.
-
Smart Fan 6 supports PWM/DC fans and custom curves.
-
VRM heatsinks and Thermal Armor enhance cooling.
-
RGB Fusion allows lighting customization.
-
EZ-Latch PCIe slot simplifies GPU installation.
-
Q-FLASH PLUS enables BIOS updates without CPU or RAM.
-
PCIe 4.0 x16 slot ensures high-bandwidth GPU support.
-
Audio codec provides immersive high-definition sound.
-
ATX form factor works in standard mid-towers for gaming builds.
