About Deepcool CG580 4F V2 White Cabinet
| Component / Feature | Specification / Details |
|---|---|
| Model / Variant | CG580 4F V2 White |
| Dimensions (L × W × H) | 437 × 235 × 501 mm |
| Net Weight | ~ 8.7 kg |
| Materials | ABS for plastic parts, SGCC steel chassis, dual tempered glass panels front & side |
| Motherboard Compatibility | ITX, Micro-ATX, ATX (supports rear-connector variants) |
| Drive Bays / Storage Support | 2 × 3.5″ HDD bays 2 × 2.5″ SSD bays |
| Expansion Slots | 7 expansion slots |
| Preinstalled Fans | Side intake: 3 × 120 mm PWM ARGB (reverse blade) Rear exhaust: 1 × 120 mm PWM ARGB |
| Fan Support / Locations | Top: up to 3 × 120 mm or 2 × 140 mm Side: 3 × 120 mm Rear: 1 × 120 mm / 1 × 140 mm Bottom: 1 × 120 mm (or 3.5″ HDD) PSU shroud: 2 × 120 mm |
| Radiator / Liquid Cooling Support | Top: 120 / 140 / 240 / 280 / 360 mm Side: 120 / 240 / 360 mm Rear: 120 / 140 mm |
| GPU Clearance | Up to 410 mm (but if side radiator + fan installed, effective clearance may reduce to ~ 262 mm) |
| CPU Cooler Height Clearance | Up to 176 mm |
| Power Supply Support | Standard ATX / PS2 style, up to ~ 210 mm length |
| Front I/O Ports | 2 × USB 3.0, 1 × USB Type-C (Gen2), Audio/Mic combo jack, power / reset / lighting buttons |
| Cable Management / Clearance | ~ 33 mm behind motherboard tray for routing cables |
| Dust Filtration | Magnetic filters or removable filters on top, bottom, and side intake areas |
| Visual / Glass Design | Panoramic glass — pillarless or minimal A-pillar between front and side panels for ~270° visibility |
| Cooling / Airflow Layout | Single-chamber “fishtank” layout: side intake + rear exhaust + optional top cooling |
| Lighting & Sync | Preinstalled ARGB fans, support for motherboard ARGB synchronization, lighting modes (e.g. starry, meteor) |
| Warranty & Quality | Standard manufacturer warranty (varies by region) |
In its white finish, this Deepcool CG580 4F V2 White Cabinet enhances visual impact by accentuating the ARGB lighting, tempered glass panels, and internal components.

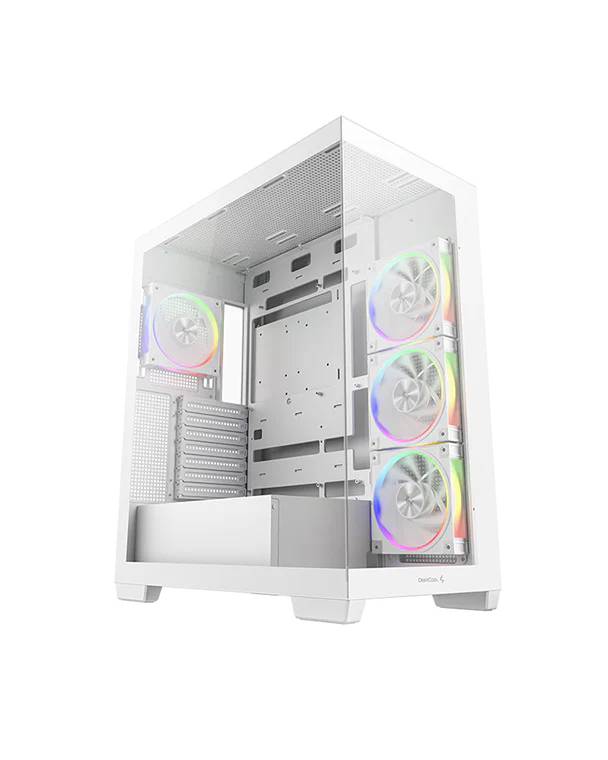

The panoramic glass design on the Deepcool CG580 4F V2 White Cabinet, with reduced or no central A-pillar, enables a sweeping 270° view of the build, making it ideal for showcase rigs where looks matter.

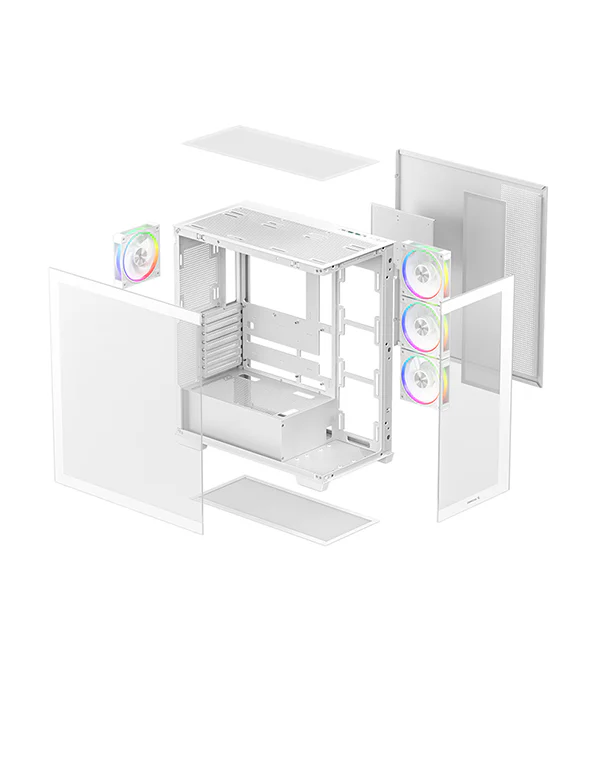

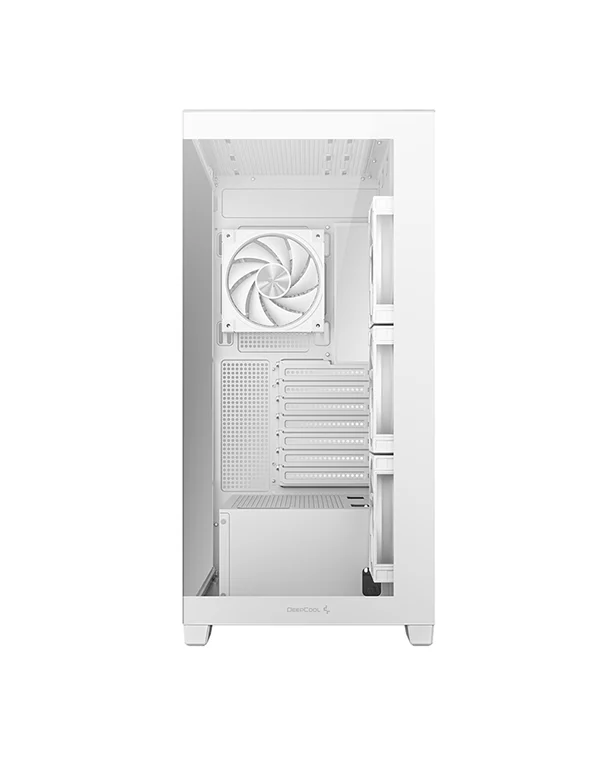

Inside, the Deepcool CG580 4F V2 White Cabinet follows a single-chamber “fishtank” architecture, arranging all components—motherboard, GPU, cooling, power, and storage—in one cohesive space.
This layout simplifies airflow and optimizes space utilization.

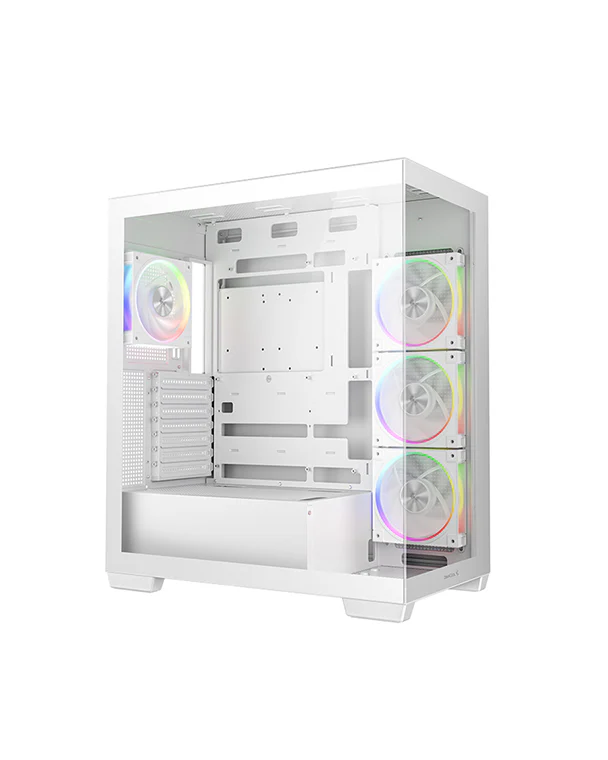

The Deepcool CG580 4F V2 White Cabinet comes preinstalled with four ARGB PWM fans (three reverse blade side intakes and one rear exhaust), giving builders effective cooling and lighting out of the box.
For users wanting further thermal flexibility, the CG580 V2 White supports radiators of up to 360 mm on both top and side, and 120/140 mm at the rear, allowing broad customization options for liquid cooling or enhanced air setups.
When it comes to component compatibility, the case supports motherboards from ITX up to ATX, with seven expansion slots. Storage options include two 3.5″ bays and two 2.5″ bays.
It accommodates GPUs up to 410 mm (though this may reduce to ~262 mm when a full side radiator is installed) and CPU coolers up to 176 mm tall. The PSU area fits standard ATX / PS2 units up to ~210 mm in length.
For ease of use, it features 33 mm behind-tray cable clearance and includes dust filters on top, bottom, and side intakes to reduce maintenance.

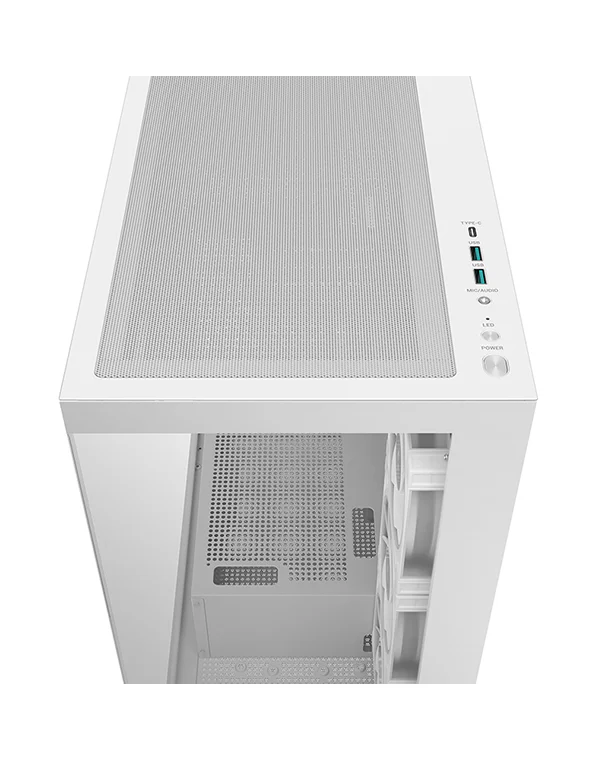

The front I/O panel integrates two USB 3.0 ports, one USB Type-C port, and audio/mic jacks—offering modern connectivity to match its cutting-edge aesthetics.
Overall, the Deepcool CG580 4F V2 White Cabinet is a compelling choice for those seeking a visually striking, feature-rich case that combines cooling flexibility with strong component support.
