![| **Parameter** | **FT9 SLIM (92 mm)** | **FT12 SLIM (120 mm)** | | ------------------- | --------------------------------------------------------------- | ------------------------------------------------ | | Dimensions | 92 × 92 × 15 mm ([es.deepcool.com][1]) | 120 × 120 × 15 mm ([DeepCool][2]) | | Net Weight | 76 g ([Novelty Computech][3]) | 210 g ([Novelty Computech][4]) | | Speed Range | 500 ± 200 RPM → up to ~2,950 RPM ([es.deepcool.com][1]) | 500 ± 200 RPM → up to ~1,850 RPM ([DeepCool][2]) | | Airflow | ~31.18 CFM ([es.deepcool.com][1]) | ~58.9 CFM ([DeepCool][2]) | | Static Pressure | 4.8 mmAq ([tr.deepcool.com][5]) | 2.42 mmAq ([DeepCool][2]) | | Noise Level | ≤ 23.2 dB(A) ([DataBlitz][6]) | ≤ 25.6 dB(A) ([DeepCool][2]) | | Rated Voltage | 12 V DC ([DataBlitz][6]) | 12 V DC ([DeepCool][2]) | | Rated Current | 0.15 A – 0.45 A (max) ([es.deepcool.com][1]) | 0.15 A – 0.70 A (max) ([Novelty Computech][4]) | | Power Consumption | ~5.4 W ([QuanPulse][7]) | ~8.4 W ([DeepCool][2]) | | Bearing | Fluid Dynamic Bearing (FDB) ([tr.deepcool.com][5]) | Fluid Dynamic Bearing ([DeepCool][2]) | | Vibration Reduction | Full-coverage rubber pads on all corners ([es.deepcool.com][1]) | | | Warranty | 3-year limited (for SLIM models) ([TechPowerUp][8]) | | [1]: https://es.deepcool.com/products/Cooling/fans/FT9-SLIM-92mm-Slim-Profile-fan/2024/18101.shtml?utm_source=chatgpt.com "FT9 SLIM - DeepCool" [2]: https://www.deepcool.com/products/Cooling/fans/FT12-SLIM-120mm-Slim-Profile-fan/2024/18088.shtml?utm_source=chatgpt.com "FT12 SLIM - DeepCool" [3]: https://noveltycomputech.com/products/deepcool-ft9-slim?utm_source=chatgpt.com "DeepCool FT9 SLIM – Novelty Computech" [4]: https://noveltycomputech.com/products/deepcool-ft12-slim?utm_source=chatgpt.com "DeepCool FT12 SLIM – Novelty Computech" [5]: https://tr.deepcool.com/products/Cooling/fans/FT9-SLIM-92mm-Slim-Profile-fan/2024/18113.shtml?utm_source=chatgpt.com "FT9 SLIM - DeepCool" [6]: https://ecommerce.datablitz.com.ph/products/deepcool-ft9-slim-high-performance-92mm-thin-profile-pwm-fan-black-r-ft9slim-bkwpn1-g?utm_source=chatgpt.com "DeepCool FT9 Slim High-Performance 92mm Thin-Profile PWM Fan (Black) (R-FT9SLIM-BKWPN1-G)" [7]: https://quanpulse.com/products/cfd-ft9-slim?utm_source=chatgpt.com "DeepCool FT9 SLIM High-Performance Thin-Profile PWM 92mm Fan, 15mm Sli – QuanPulse" [8]: https://www.techpowerup.com/317600/deepcool-introduces-ft-fan-series-at-ces?utm_source=chatgpt.com "DeepCool Introduces FT Fan Series at CES | TechPowerUp"](https://avikaretails.com/wp-content/uploads/2025/11/Deepcool-FT-SLIM-Series-Desktop-Cooler-Fan-600x600.webp)

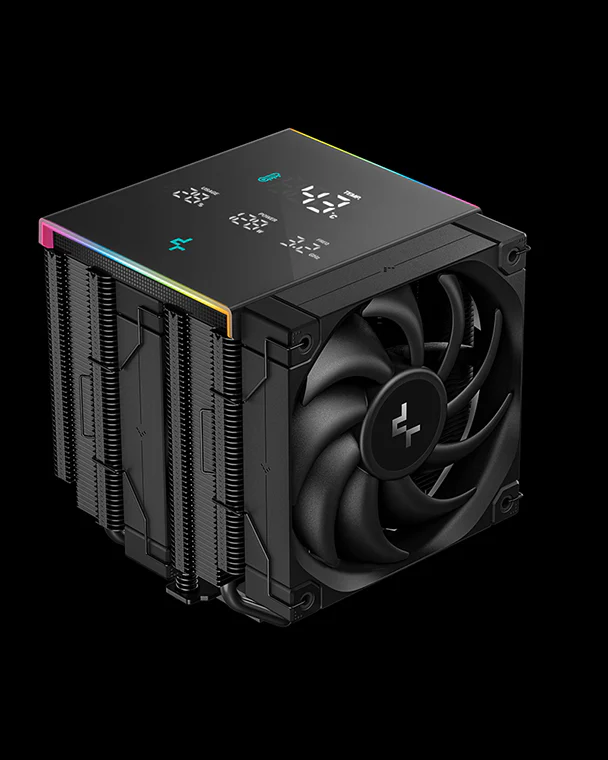

About Deepcool AK620 Digital Pro ARGB Black Desktop Air Cooler
| Category | Specification |
|---|---|
| Model | AK620 DIGITAL PRO |
| Product Type | Dual-tower CPU air cooler with digital display |
| Physical Dimensions | 129 × 138 × 163 mm (L × W × H) |
| Heatsink Dimensions | 127 × 110 × 154 mm |
| Net Weight | 1,491 g |
| Heat Pipes | 6 × 6 mm (copper) |
| Cold Plate | Nickel-plated cold plate (Core Touch Technology 2.0) |
| Fan(s) | 2 × FT12 SE, 120 × 120 × 25 mm |
| Fan Speed | 500 – 1,750 RPM ± 10% |
| Airflow | 60.89 CFM |
| Static Pressure | 2.91 mmAq |
| Noise Level | ≤ 25 dB(A) |
| Connector (Fan) | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Rated Fan Voltage | 12 VDC |
| Rated Fan Current | 0.25 A |
| Fan Power Consumption | 3 W |
| LED Type | Addressable RGB (ARGB) |
| LED Connector | 3-pin (+5V-D-G) + 9-pin USB 2.0 |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 5.55 W |
| Display | Multi-line digital screen; shows CPU temperature, usage, wattage, and frequency |
| Display Interface | Controlled via DeepCool software, requires USB 2.0 header |
| Visual Temperature Alerts | Green (< 80 °C), Orange (80–90 °C), Red (> 90 °C, with flashing) |

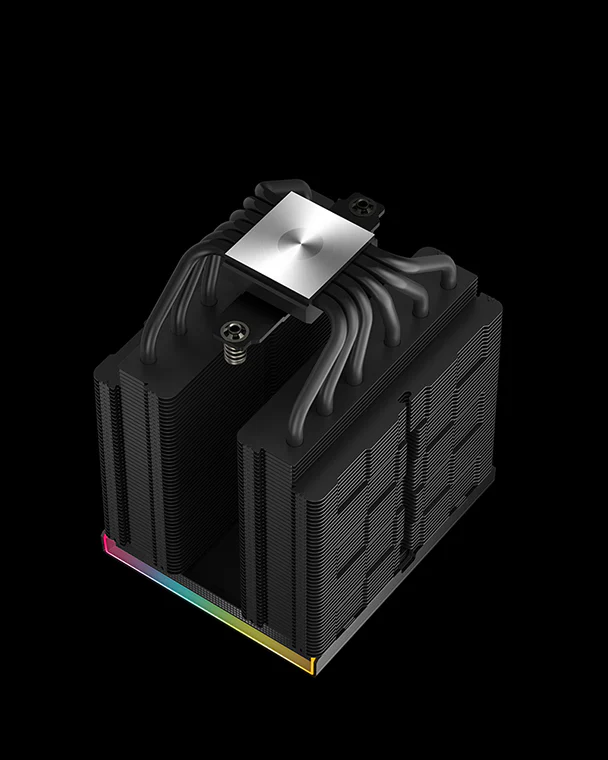

| Cooling Technology | Core Touch Technology 2.0 for optimized heatpipe layout and better thermal transfer |
| Design Theme | “Zero Dark” all-black design, dual-tower heatsink |
| Mounting / Installation | Magnetic top panel with pogo pin & pad for “simplified mounting” |
| Supported CPU Sockets | Intel: LGA2066 / 2011-v3 / 2011 / 1851 / 1700 / 1200 / 1151 / 1150 / 1155; AMD: AM5 / AM4 |
| Warranty | 3 years (according to some sources) |

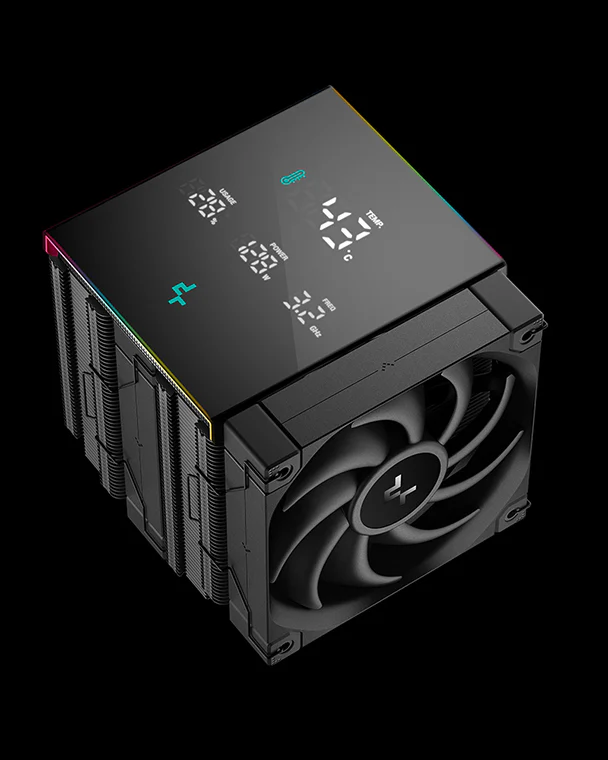

A multi-line digital display on the top panel brings real-time insights into your system: CPU temperature, usage, power draw, and frequency are all laid out clearly.
This screen isn’t just informative — Deepcool AK Series Black Desktop Air Cooler also has a visual temperature alert system, shifting colors from green to orange and red as temperatures climb, helping you keep tabs on thermals at a glance.

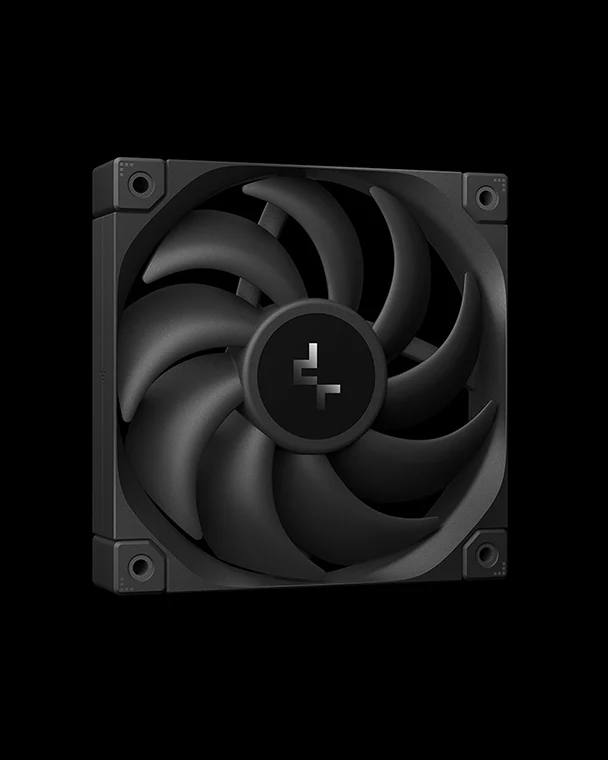

For airflow, the Deepcool AK620 Digital Pro ARGB Black Desktop Cooler uses two FT12 SE 120 mm PWM fans.
The Deepcool AK Series Digital ARGB Air Cooler strike a balance between performance and acoustics, spinning between 500–1,750 RPM while keeping noise levels under or equal to 25 dB(A).
Their fluid dynamic bearings ensure smooth and reliable operation over the long term.
Aesthetic-wise, subtle ARGB lighting strips run along the edges of the top panel, providing customizable illumination that can sync with your motherboard’s RGB setup without overwhelming the entire build.
Meanwhile, the all-black “Zero Dark” design gives the cooler a sleek, stealthy presence.
Installation of the Deepcool 120mm ARGB Black Air Cooler is made easier with a redesigned magnetic top panel that uses pogo pins for quick contact, reducing the complexity of setup.
The mounting hardware supports a wide range of sockets — from Intel’s LGA2066, 2011, 1700, 1200, to AMD’s AM4 and AM5 — making it compatible with both legacy and modern platforms.
Overall, the Deepcool AK620 Digital Pro is a feature-rich air cooler that delivers strong thermal performance, practical system monitoring, low-noise operation, and stylish but understated ARGB lighting — all in a rugged, premium build.
