About Corsair Chassis 3500X RGB White Cabinet
| Specification Category | Detail / Value |
|---|---|
| Case Size / Form Factor | Mid-Tower |
| Supported Motherboards | Mini-ITX, Micro-ATX, ATX, E-ATX (305 × 277 mm) |
| Dimensions (H × W × D) | 506 mm × 240 mm × 460 mm |
| Materials | Steel chassis; tempered-glass front & side panels |
| Side / Front Panels | Wraparound tempered-glass (removable) |
| Internal Drive Bays | 2 × 3.5″ HDD, 2 × 2.5″ SSD |
| PSU Support / PSU Length | ATX PSU, max length ~180 mm |
| Maximum GPU Length | Up to 425 mm |
| Maximum CPU Cooler Height | Up to 170 mm |
| Expansion Slots | 7 horizontal (or 4 vertical) + vertical GPU mount support |
| Fan Support (Maximum) | Top: up to 3×120 mm or 2×140 mm Side: up to 3×120 mm or 2×140 mm Bottom: up to 3×120 mm or 1×140 mm Rear: 1×120 mm PSU-area fans supported via mounting points |
| Radiator Support | Up to 360 mm — side or top; also 240/280 mm, 120/140 mm where applicable |
| Front I/O Ports | 1 × USB 3.2 Gen 2 Type-C, 2 × USB 3.2 Gen 1 Type-A, Audio in/out (combo) jack, Power & Reset buttons |
| Case Weight | ~10.54 kg |
| PSU Mount Location | Bottom-mounted ATX PSU |
| Cooling & Liquid Cooling Ready | Supports liquid coolers (H60, H100, H115, H150 series) and has strong airflow / fan mounting flexibility |
| Compatibility with Reverse-Connector Motherboards | Yes — supports reverse-connector motherboards such as certain models from ASUS, MSI, etc. |

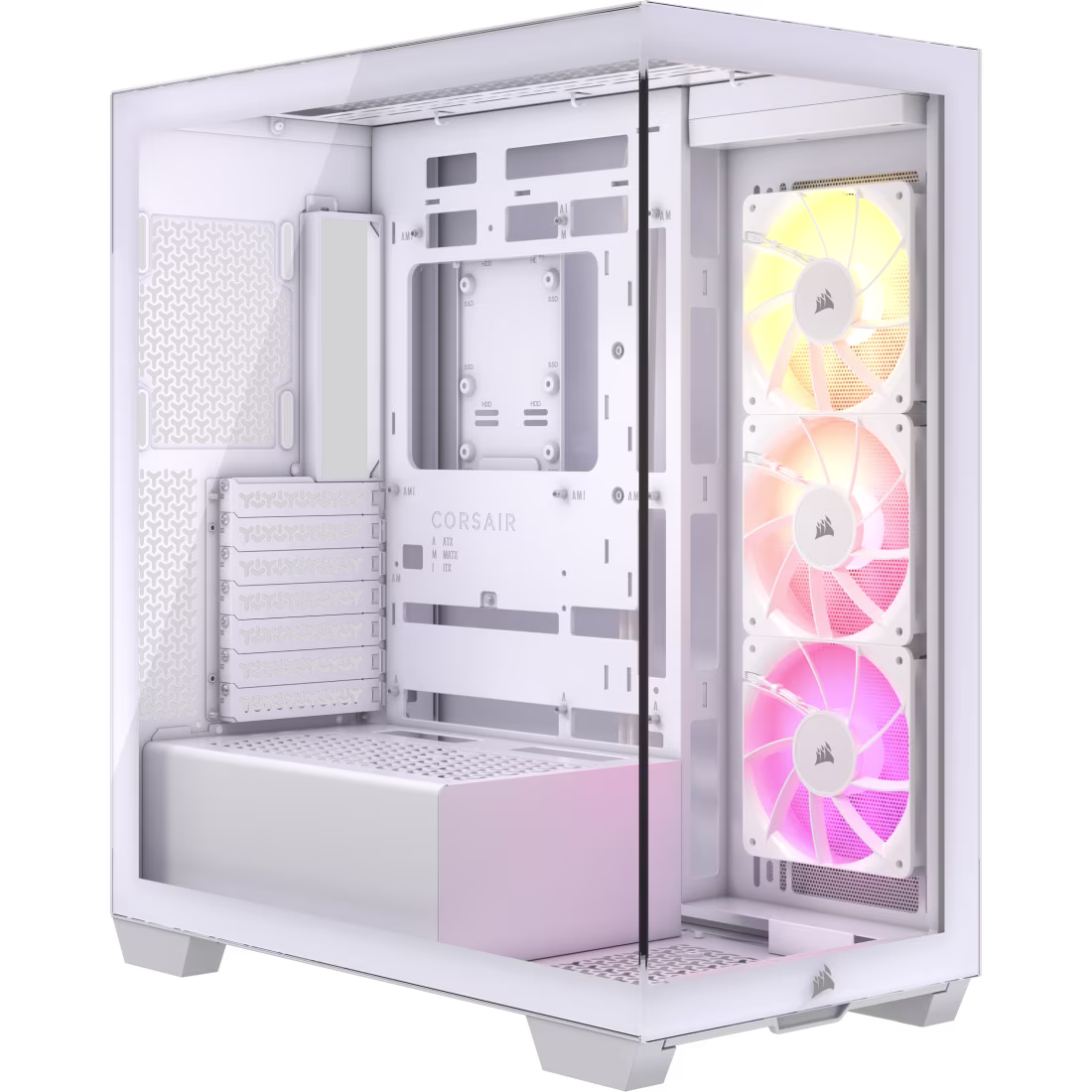

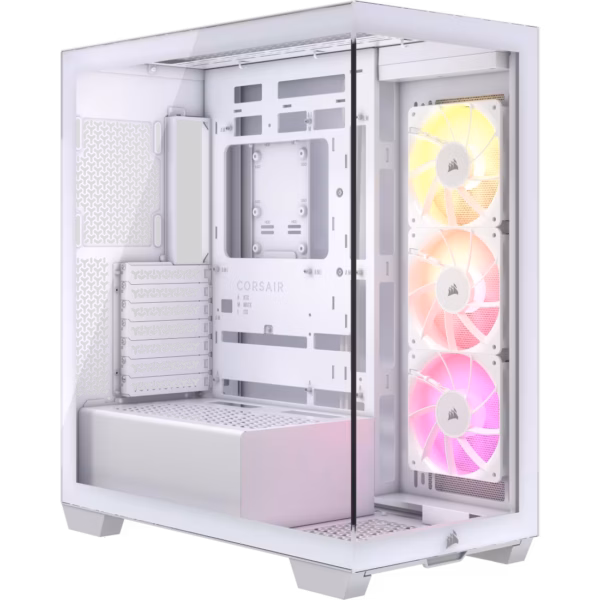

At first glance, what stands out is its wrap-around tempered-glass front and side panels.
The glass gives a panoramic view of your internal build, ideal for RGB-lit components, custom cooling loops, or simply a clean, modern interior.

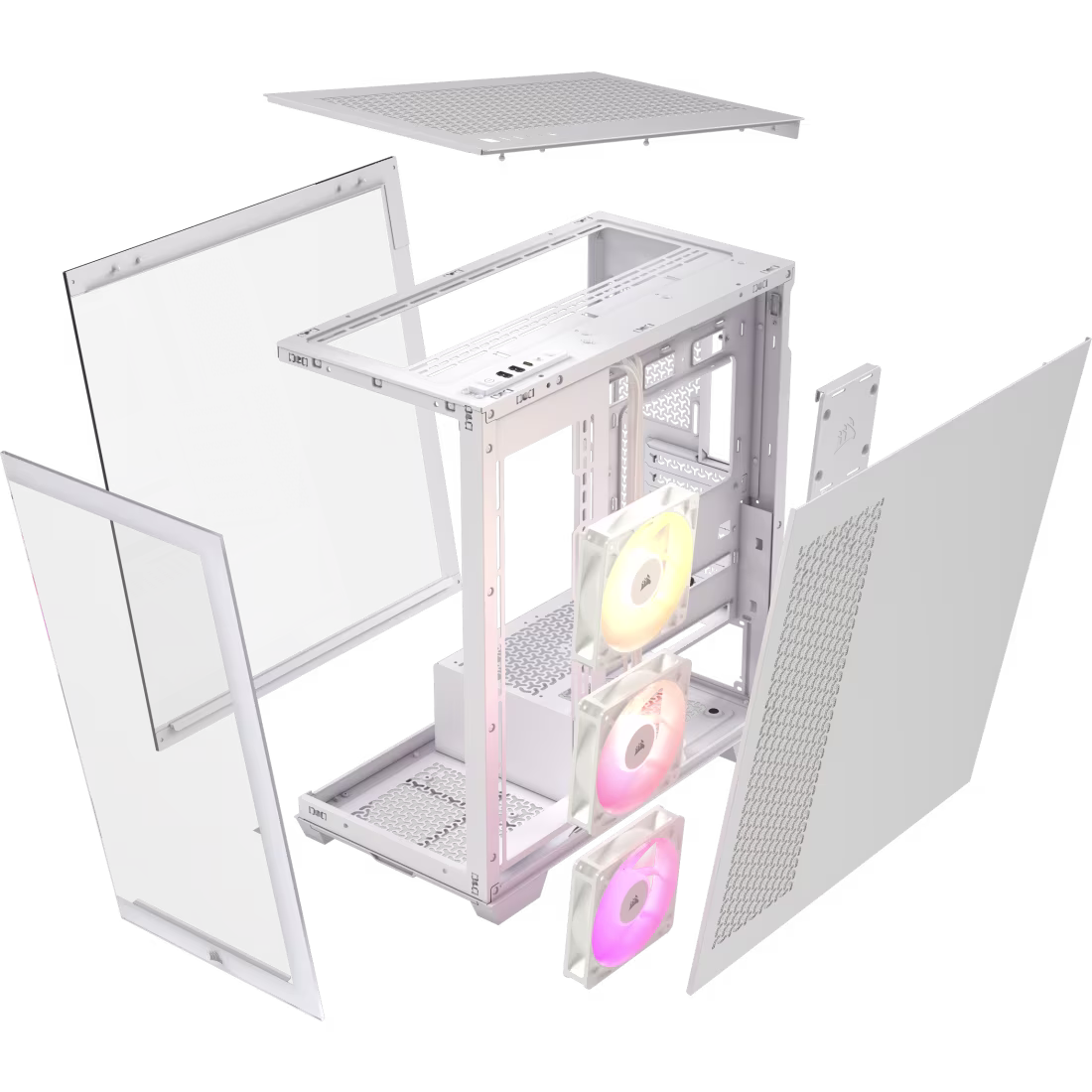

These panels are also removable, which makes installing or upgrading components easier — a thoughtful touch for builders who like to tinker or gradually upgrade.

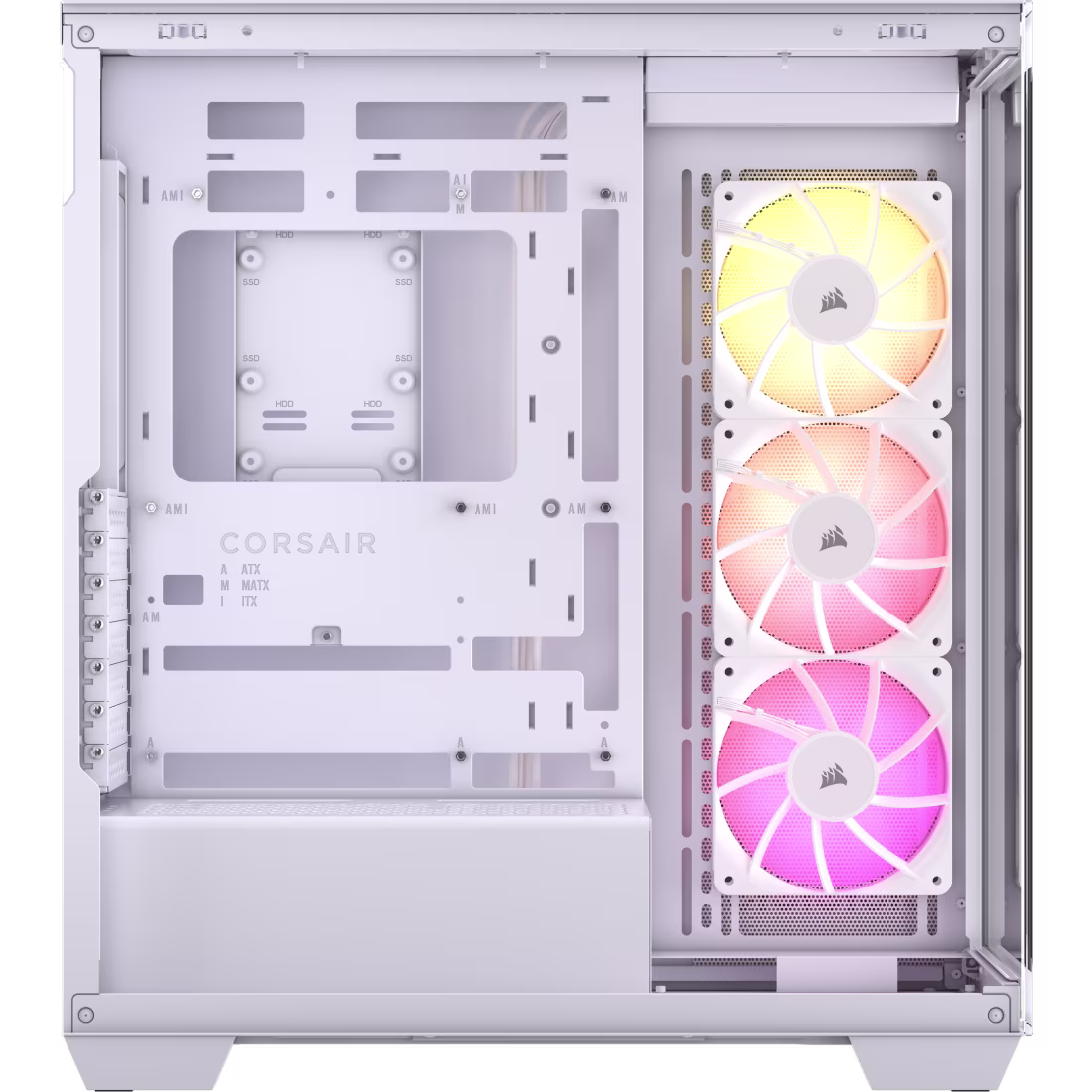

Inside, the 3500X doesn’t compromise on space.

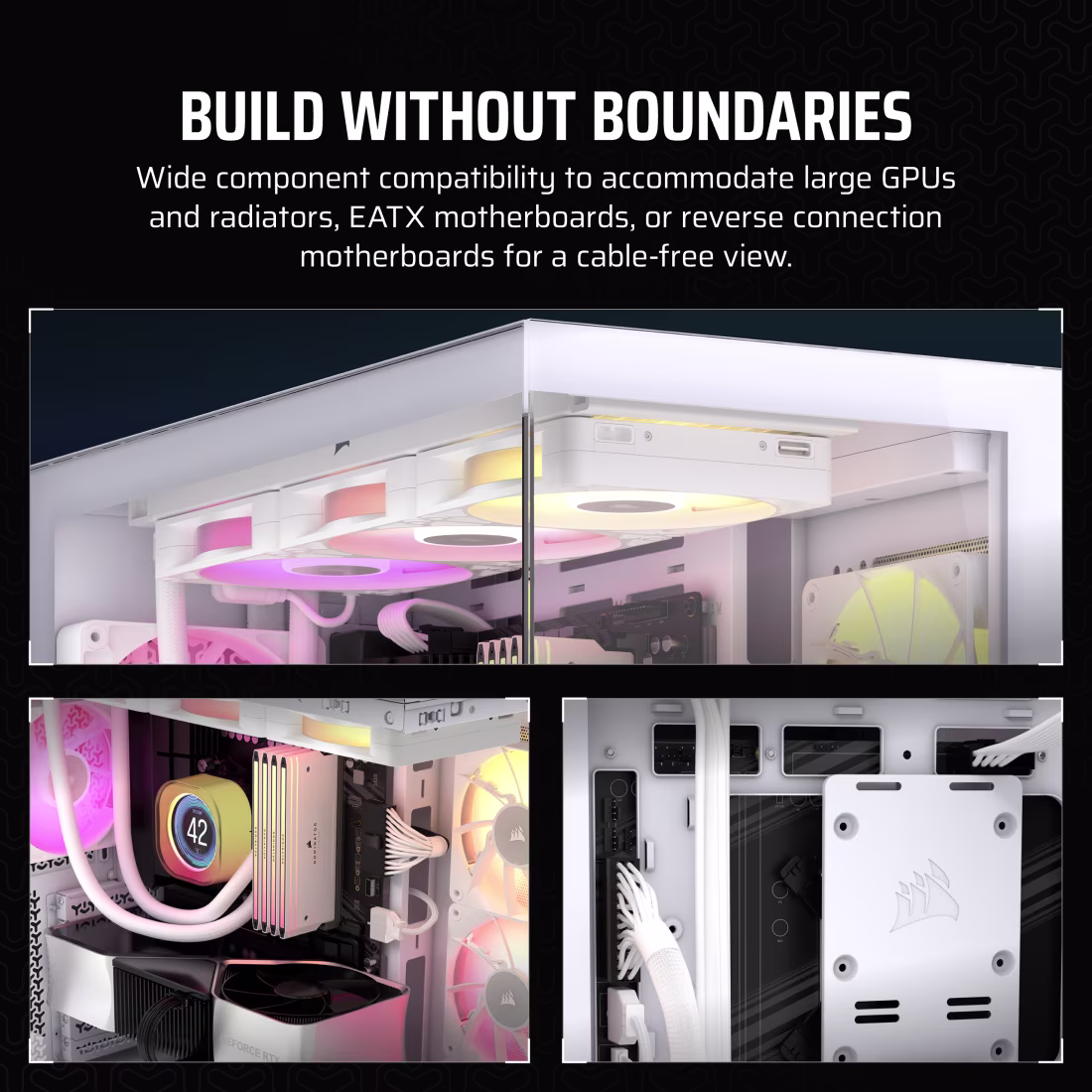

It supports a wide range of motherboards — from Mini-ITX to E-ATX — so whether you’re going compact or full-size, you’re covered.
The case accepts GPUs up to 425 mm, giving more than enough clearance for even the longest modern graphics cards.
CPU coolers up to 170 mm in height and ATX PSUs up to 180 mm long are also supported, meaning you can comfortably fit powerful air-cooled rigs or AIO / custom liquid-cooled setups.

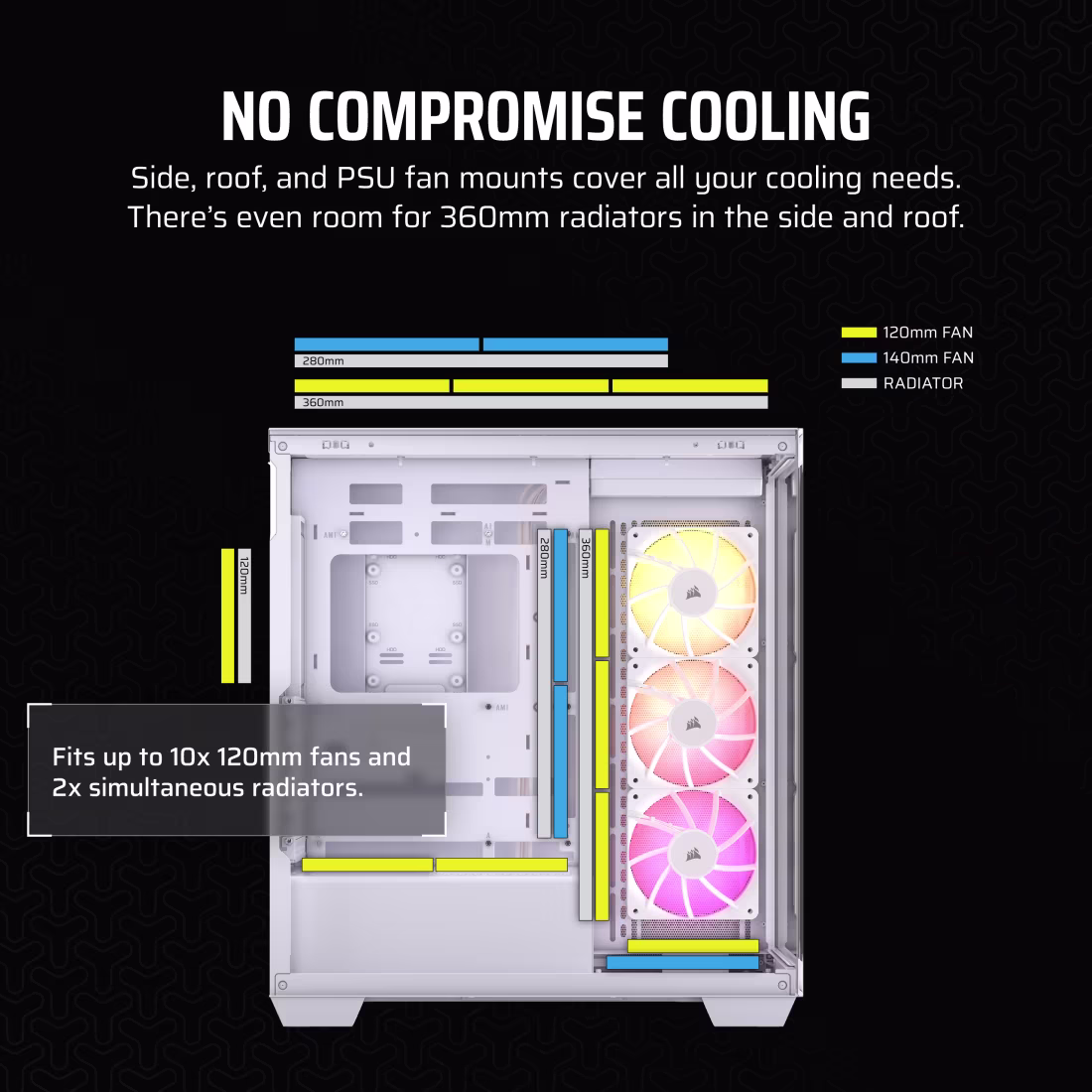

Cooling flexibility is a major strength.

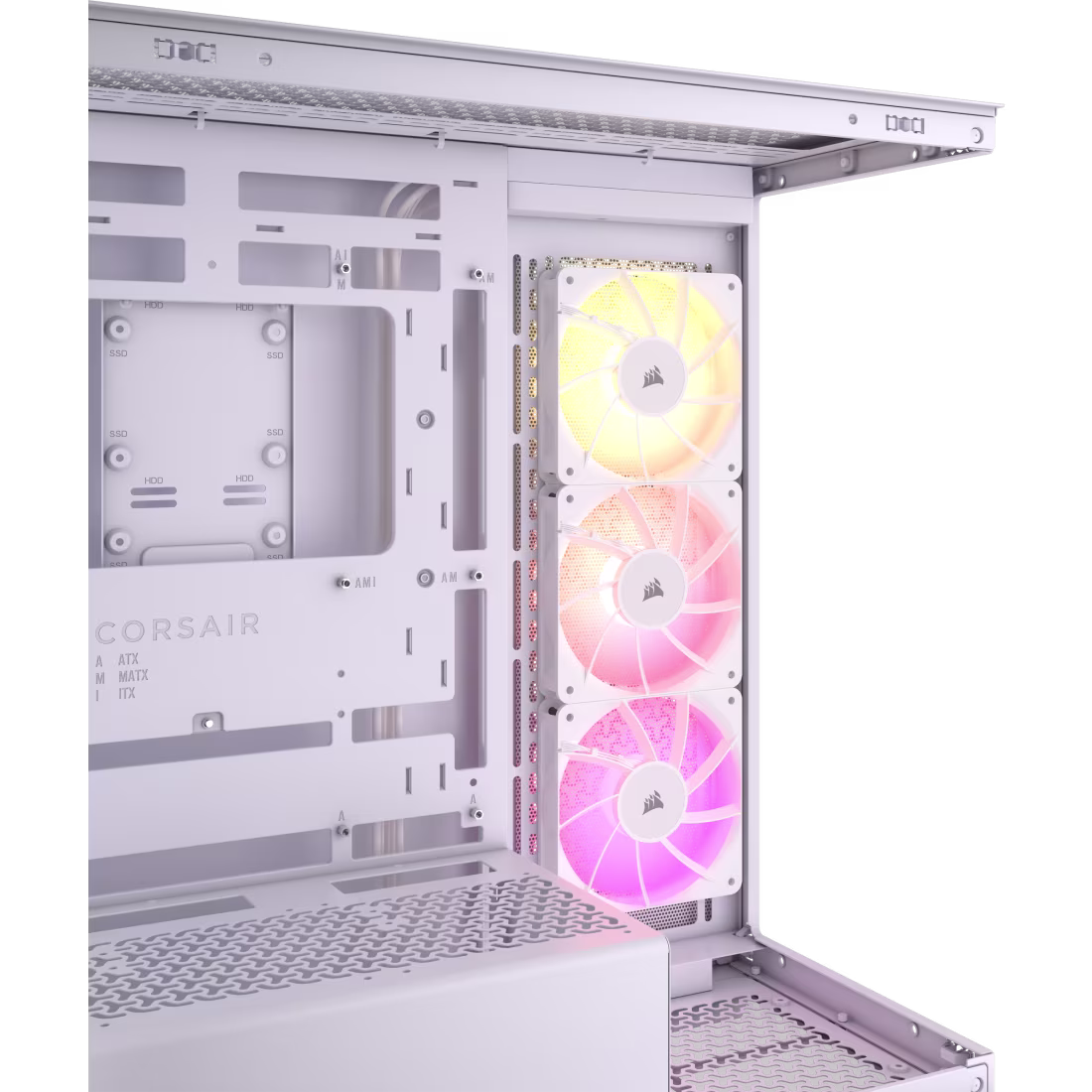

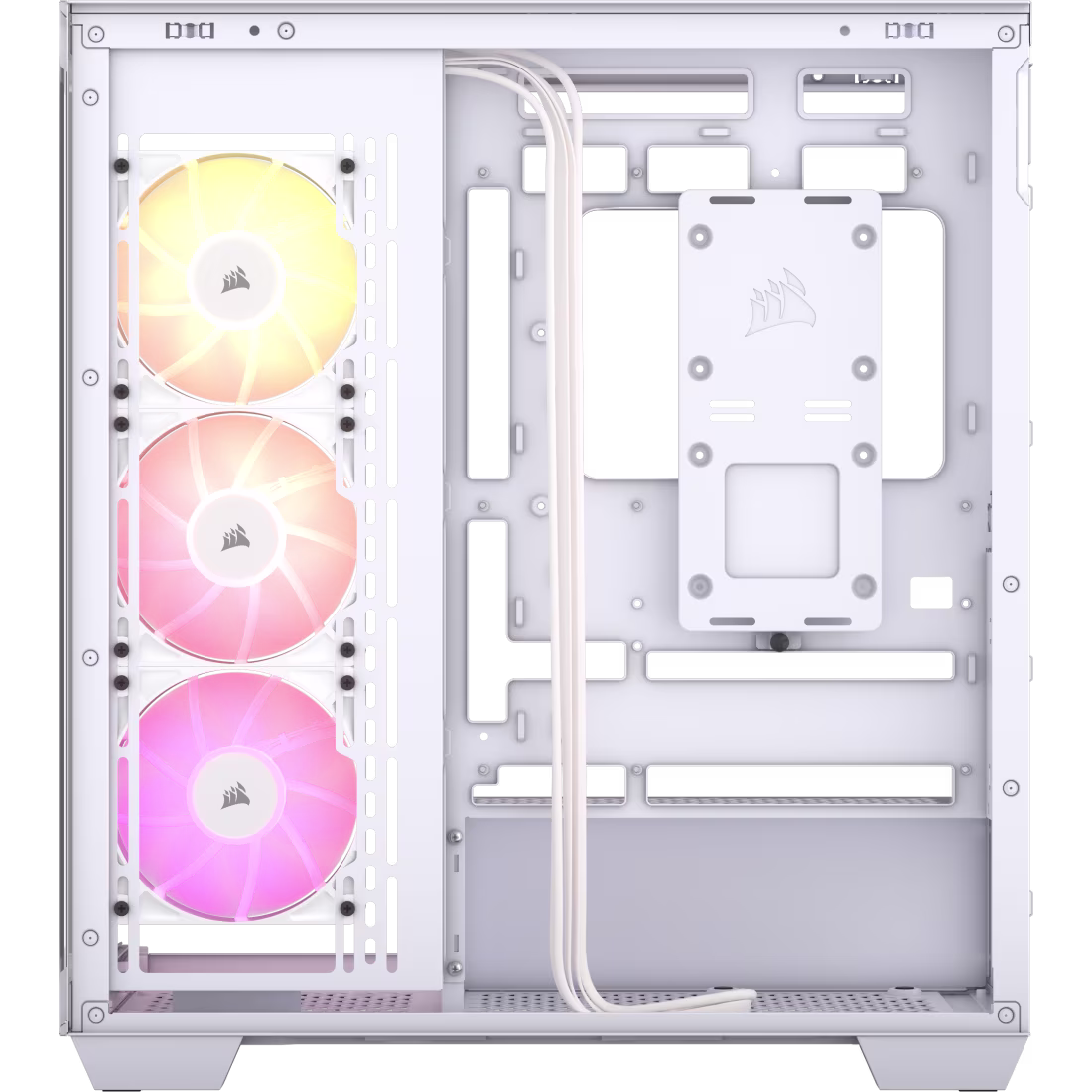

The 3500X ships with three pre-installed RS120 ARGB 120 mm fans, providing decent default airflow and lighting.
But beyond that, there are mounting points for many more fans — top, side, bottom, and rear — and support for large radiators: up to 360 mm in either side or roof mounts.
This makes it viable for advanced liquid-cooling loops or heavy-duty air-cooled builds under load.
Storage-wise, the case offers room for 2 × 3.5″ HDDs and 2 × 2.5″ SSDs internally — enough for a balanced mix of mass storage and fast solid-state storage.
For expansion, there are 7 horizontal expansion slots, but the case also supports vertical GPU mounting, giving builders the option to showcase their graphics card vertically (with a riser cable).

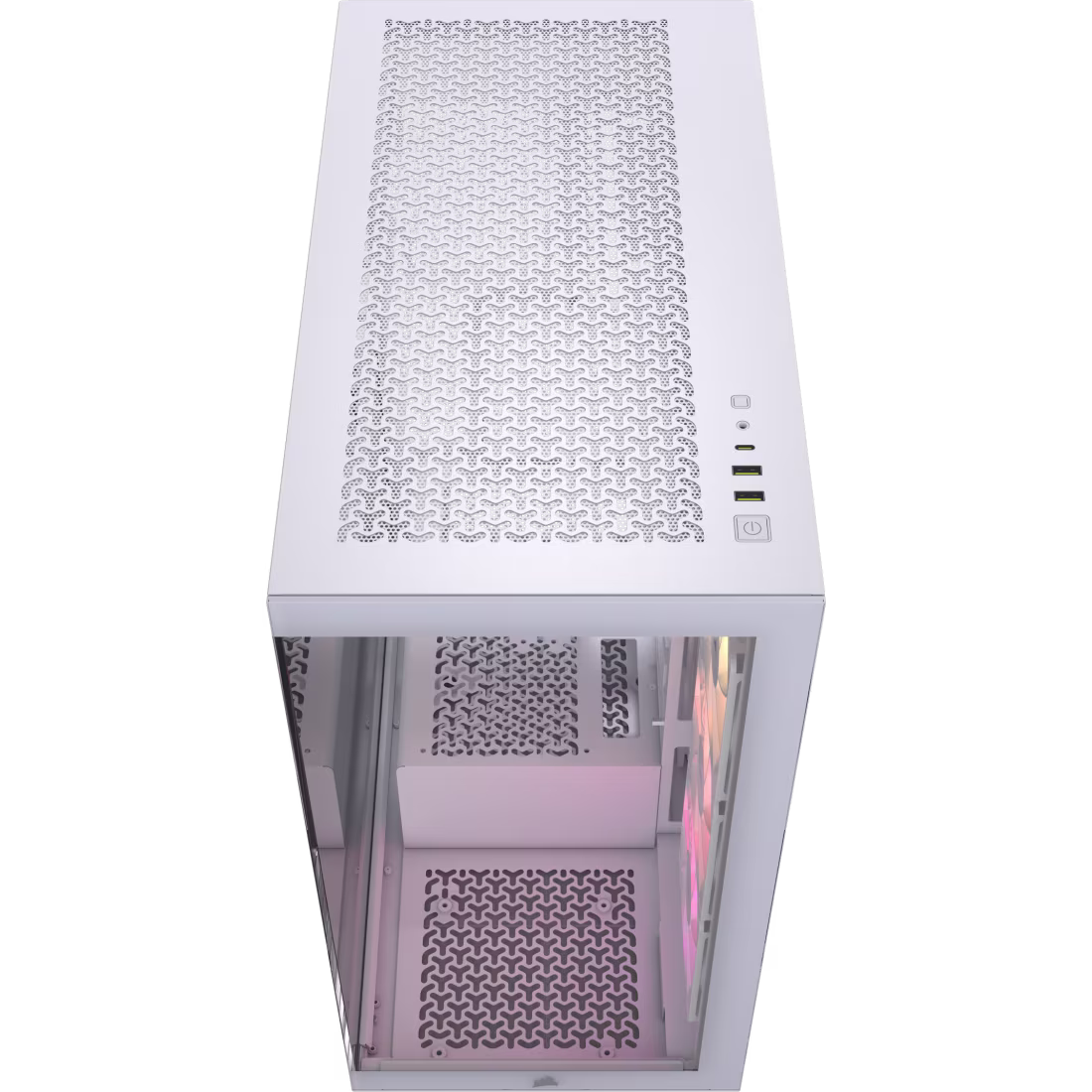

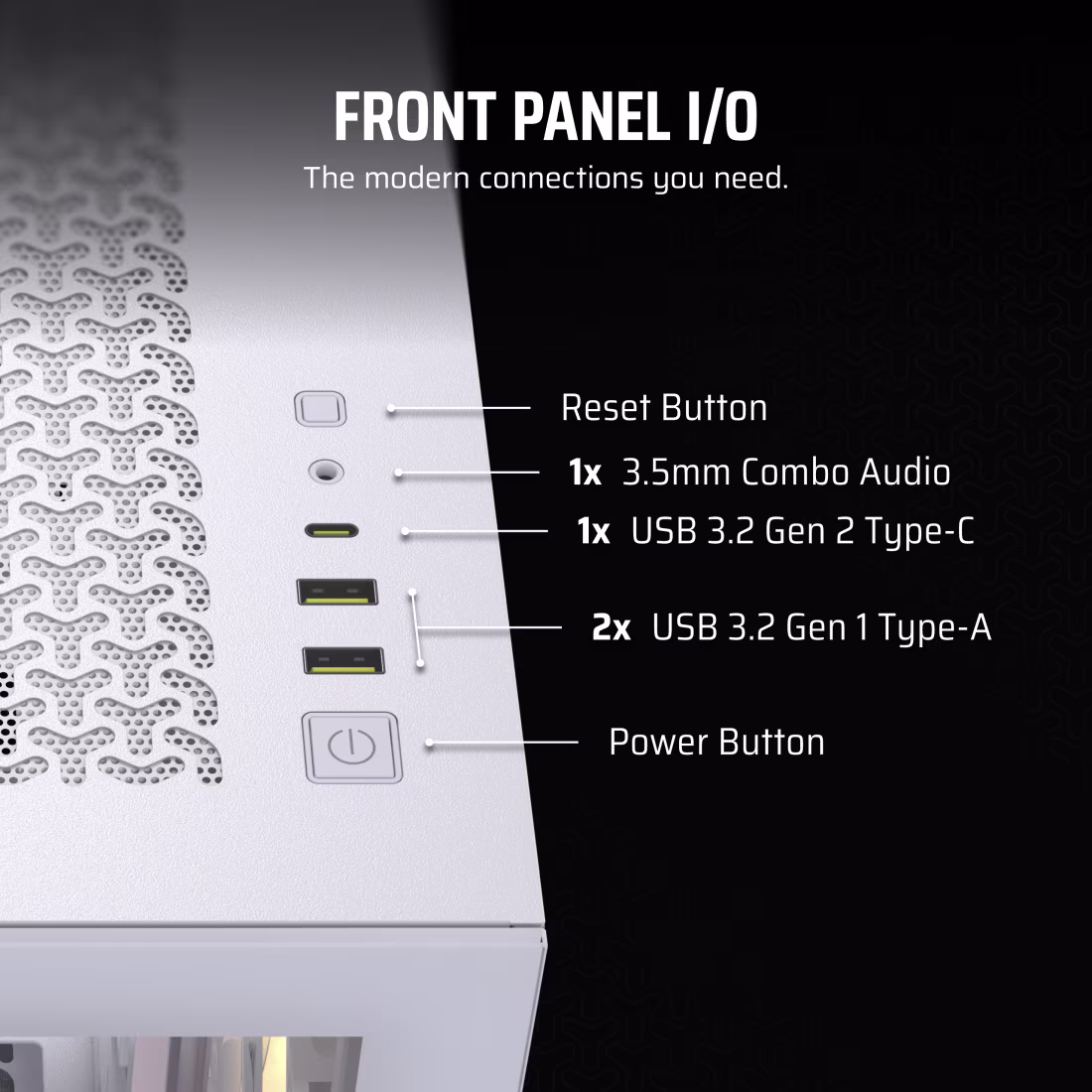

On the user-convenience front, the front I/O panel is modern and practical: it includes one USB 3.2 Gen 2 Type-C port, two USB 3.2 Gen 1 Type-A ports, a combined audio/microphone jack, plus power and reset buttons — ideal for connecting peripherals, external drives, or headsets easily.
Moreover, the case offers good cable management — there’s about 38–45 mm space behind the motherboard tray, enabling tidy routing of cables to keep the interior clean and maximize airflow.
Finally, thanks to its blend of builder-friendly design, strong cooling potential, compatibility with large components, and fully visible, modern aesthetics, the 3500X ARGB White is an excellent choice if you’re looking to assemble a balanced, high-performing, and visually attractive PC build.
Whether you’re building a gaming machine with a powerful GPU, a workstation for creative workloads, or a showpiece system with custom lighting, this case provides the flexibility and features to support it — without overbearing size or unnecessary bulk.
