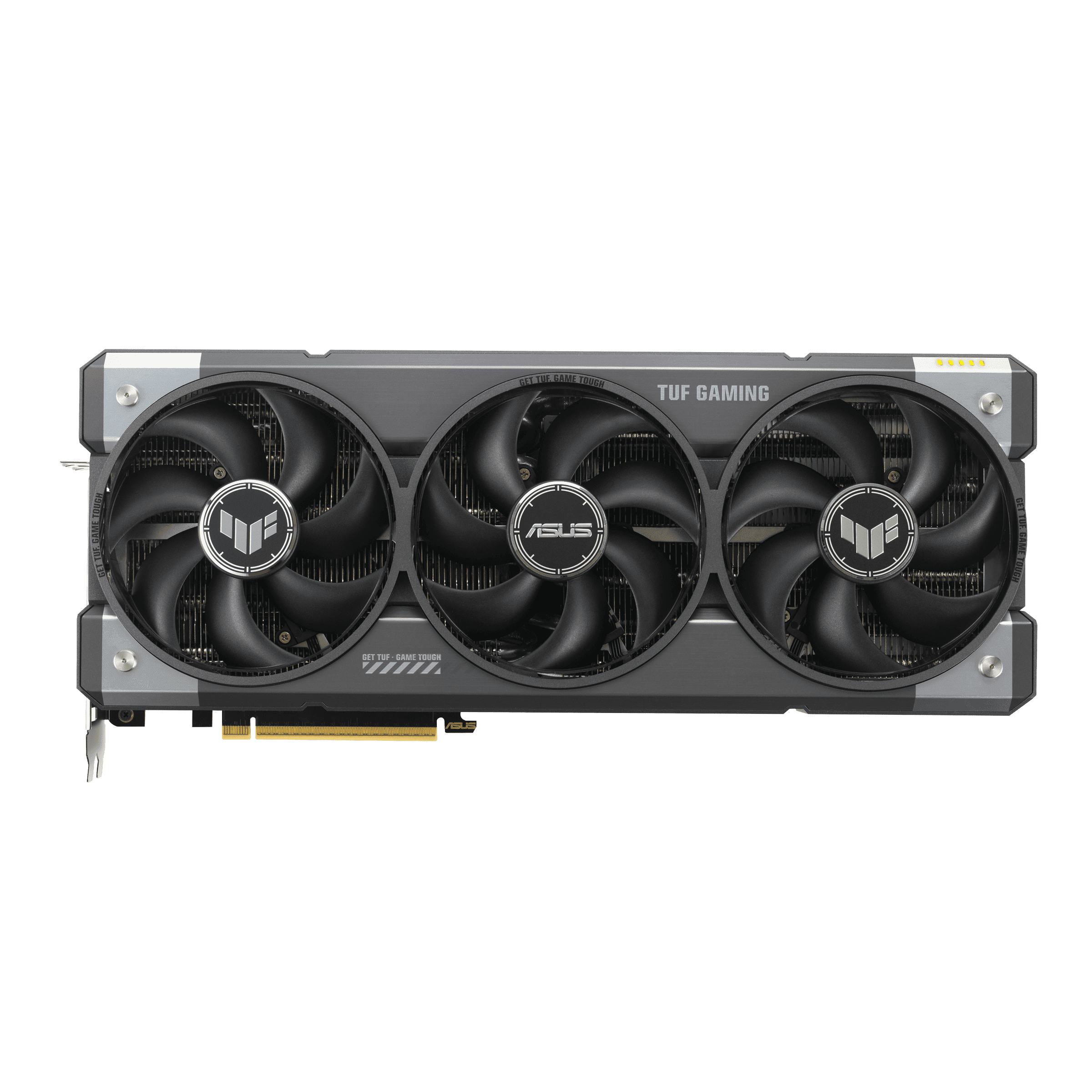

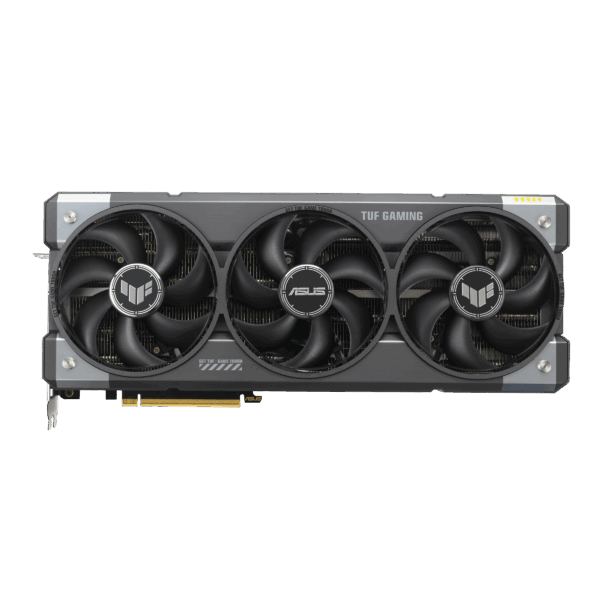

About ASUS TUF Gaming GeForce RTX 5090 OC Edition 32GB GDDR7 Graphics Card
TUF Endurance & Design The TUF Gaming RTX 5090 is built to last. It is encased in a robust metal exoskeleton that adds structural rigidity and protects the PCB from bending. Under the hood, military-grade capacitors rated for 20,000 hours at 105°C ensure stable power delivery even under extreme overclocking loads. The manufacturing process utilizes Auto-Extreme Technology, which solders all components in a single pass to reduce thermal strain and improve reliability.
Dominant Cooling with Vapor Chamber To tame the massive power of the RTX 5090, ASUS employs a colossal 3.65-slot heatsink coupled with a huge vapor chamber that efficiently spreads heat across the fin array. Three upgraded Axial-tech fans propel 23% more air than previous generations. The side fans spin counter-clockwise to minimize turbulence, while the 0dB technology keeps the card completely silent during light tasks.
Blackwell 8K Performance Powered by the NVIDIA Blackwell architecture, this card features 21,760 CUDA cores and 32GB of 512-bit GDDR7 memory, delivering unprecedented bandwidth for 8K gaming and professional AI rendering. It fully supports DLSS 4 with Multi-Frame Generation, allowing for high refresh rates in path-traced games. It also includes two native HDMI 2.1b ports, offering more display flexibility than standard reference card
ASUS TUF Gaming GeForce RTX 5090 OC Edition 32GB GDDR7 Graphics Card Specifications:
| Graphics Engine | NVIDIA GeForce RTX 5090 |
| Bus Standard | PCI Express 5.0 x16 |
| Video Memory | 32GB GDDR7 |
| Memory Interface | 512-bit |
| Core Clock | 2580 MHz (OC Mode) / 2550 MHz (Default) |
| CUDA Cores | 21760 Units |
| Memory Speed | 28 Gbps |
| Cooling System | TUF Triple Fan (Axial-tech, Vapor Chamber) |
| Output | 3x DisplayPort 2.1b, 2x HDMI 2.1b |
| Power Connectors | 1 x 16-pin (12V-2×6) |
| Recommended PSU | 1000W |
| TDP | 575W |
| Card Dimensions | 348 x 146 x 72 mm (3.65-Slot) |
| Feature Support | DLSS 4, Military-Grade Components, GPU Tweak III |
Key Features
-
32GB GDDR7 Memory: Massive 512-bit buffer for 8K textures and AI training.
-
Rugged Exoskeleton: Metal frame and backplate for maximum durability.
-
Vapor Chamber Cooling: Advanced thermal solution for the 575W TDP.
-
Extra HDMI Port: Dual HDMI 2.1b + Triple DP 2.1b connectivity.
-
Military-Grade Components: Capacitors rated for extreme longevity.
