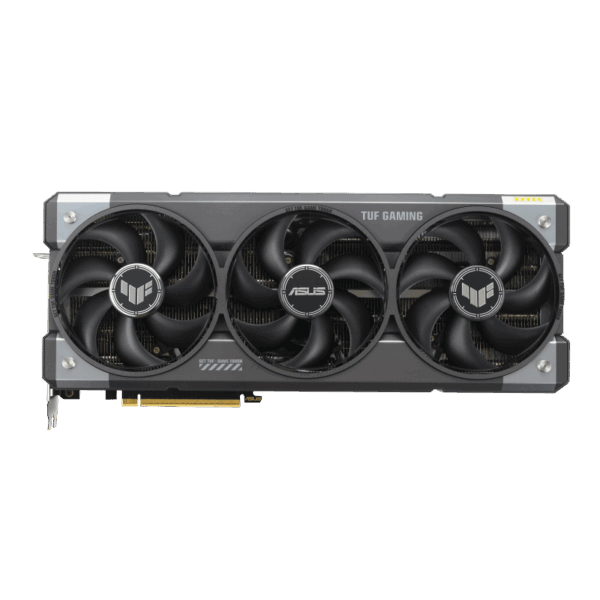

About ASUS TUF Gaming GeForce RTX 5080 OC Edition 16GB GDDR7 Graphics Card
Built TUF: Military-Grade Durability The TUF Gaming series is renowned for its reliability, and this card is no exception. It is fortified with a rigid Metal Exoskeleton (backplate and shroud) to prevent PCB flex and protect components. It utilizes Military-Grade Capacitors rated for 20,000 hours at 105°C, ensuring unwavering power delivery even during overclocking. A protective conformal coating on the PCB guards against moisture, dust, and debris.
Vapor Chamber & Axial-tech Cooling To tame the Blackwell GPU, ASUS employs a massive 3.6-slot cooling solution that features a large Vapor Chamber. This chamber efficiently wicks heat away from the GPU and GDDR7 memory into a jumbo-sized fin array. Three scaled-up Axial-tech fans drive 23% more air through the heatsink, with the central fan spinning in reverse to minimize turbulence. 0dB Technology stops the fans completely when temperatures drop below 50°C for silence during light work.
Blackwell Power & Connectivity Powered by the NVIDIA Blackwell architecture, the card features 16GB of GDDR7 memory running at a blistering 30 Gbps and supports the PCIe 5.0 interface. It fully utilizes DLSS 4 with AI Multi-Frame Generation for unparalleled 4K frame rates. Additionally, it uses a premium Phase-Change Thermal Pad instead of traditional paste, which improves thermal transfer and longevity. The card offers 2x HDMI 2.1b ports (along with 3x DisplayPort), providing greater flexibility for multi-monitor setups.
ASUS TUF Gaming GeForce RTX 5080 OC Edition 16GB GDDR7 Graphics Card Specifications:
| Graphics Engine | NVIDIA GeForce RTX 5080 |
| Bus Standard | PCI Express 5.0 x16 |
| Video Memory | 16GB GDDR7 |
| Memory Interface | 256-bit |
| Core Clock | 2700 MHz (Default) / 2730 MHz (OC Mode) |
| CUDA Cores | 10,752 Units |
| Memory Speed | 30 Gbps |
| Cooling System | Triple Axial-tech Fans w/ Vapor Chamber |
| Output | 3x DisplayPort 2.1b, 2x HDMI 2.1b |
| Power Connectors | 1 x 16-pin (12V-2×6) |
| Recommended PSU | 850W |
| TDP | 360W |
| Card Dimensions | 348 x 146 x 72 mm (3.6-Slot) |
| Feature Support | DLSS 4, Phase-Change Pad, Military-Grade Parts |
Key Features
-
16GB GDDR7 Memory: Ultra-fast 30 Gbps speed for 4K textures.
-
Vapor Chamber: Superior heat transfer for the massive 3.6-slot heatsink.
-
Military-Grade Components: Capacitors rated for 20K hours at high temps.
-
Phase-Change Thermal Pad: Better conductivity and durability than paste.
-
DLSS 4 Support: Next-gen AI Frame Generation for high FPS.
