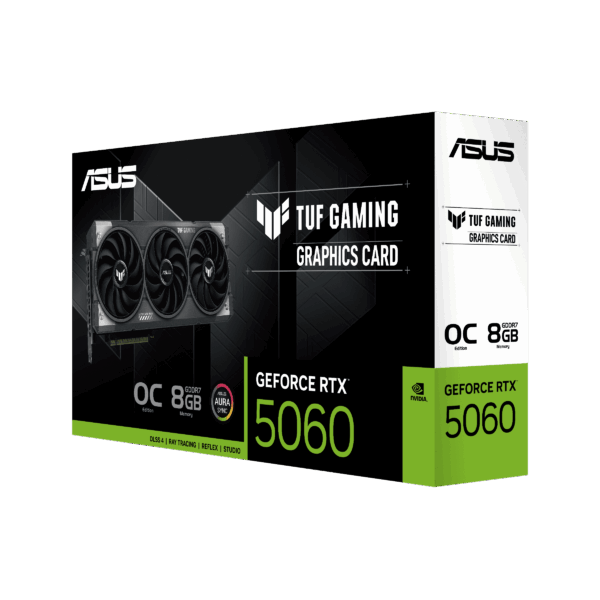

About ASUS TUF Gaming GeForce RTX 5060 OC Edition 8GB GDDR7 Graphics Card
TUF Built: Military-Grade Durability The TUF Gaming series is synonymous with toughness. This card is built with military-grade capacitors rated for 20,000 hours at 105°C, ensuring a long lifespan even under stressful conditions. The entire PCB is manufactured using ASUS Auto-Extreme Technology, an automated process that eliminates human error and reduces thermal strain on components. A rigid metal exoskeleton and backplate prevent PCB flex and protect sensitive electronics.
Superior Triple-Fan Cooling Unlike standard dual-fan 5060 models, the TUF Gaming edition employs a massive 3.1-slot cooling solution with three Axial-tech fans. These fans spin on dual-ball bearings and are scaled up to propel 21% more air through the card. The two side fans spin counter-clockwise to minimize turbulence and maximize air dispersion through the heatsink. With 0dB Technology, the fans shut off completely when temperatures drop below 50°C for silence during light tasks.
Blackwell Performance & PCIe 5.0 Powered by the NVIDIA Blackwell architecture, the TUF Gaming RTX 5060 leverages 3840 CUDA cores (a significant increase over the previous generation’s 3072) and ultra-fast GDDR7 memory. It utilizes the PCI Express 5.0 standard for double the data transfer speeds of PCIe 4.0. With support for DLSS 4, it uses AI Frame Generation to deliver high-FPS gaming in the most demanding ray-traced titles.
ASUS TUF Gaming GeForce RTX 5060 OC Edition 8GB GDDR7 Graphics Card Specifications:
| Graphics Engine | NVIDIA GeForce RTX 5060 |
| Bus Standard | PCI Express 5.0 x8 |
| Video Memory | 8GB GDDR7 |
| Memory Interface | 128-bit |
| Core Clock | 2640 MHz (OC Mode) / 2610 MHz (Default) |
| CUDA Cores | 3840 (Upgraded from 40-series) |
| Memory Speed | 28 Gbps |
| Cooling System | TUF Gaming Triple Fan (Axial-tech) |
| Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Connectors | 1 x 8-pin |
| Recommended PSU | 550W |
| TDP | 145W |
| Card Dimensions | 302 x 133.5 x 62 mm (3.1-Slot) |
| Feature Support | DLSS 4, Military-Grade Grade Components, Dual BIOS |
Key Features
-
3840 CUDA Cores: Enhanced processing power for 1440p gaming.
-
Axial-tech Triple Fans: Vented exoskeleton for superior airflow.
-
Military-Grade Capacitors: Certified for extreme durability and lifespan.
-
PCIe 5.0 Ready: Future-proof bandwidth for next-gen systems.
-
Dual BIOS: Switch between “Performance” and “Quiet” profiles instantly.
