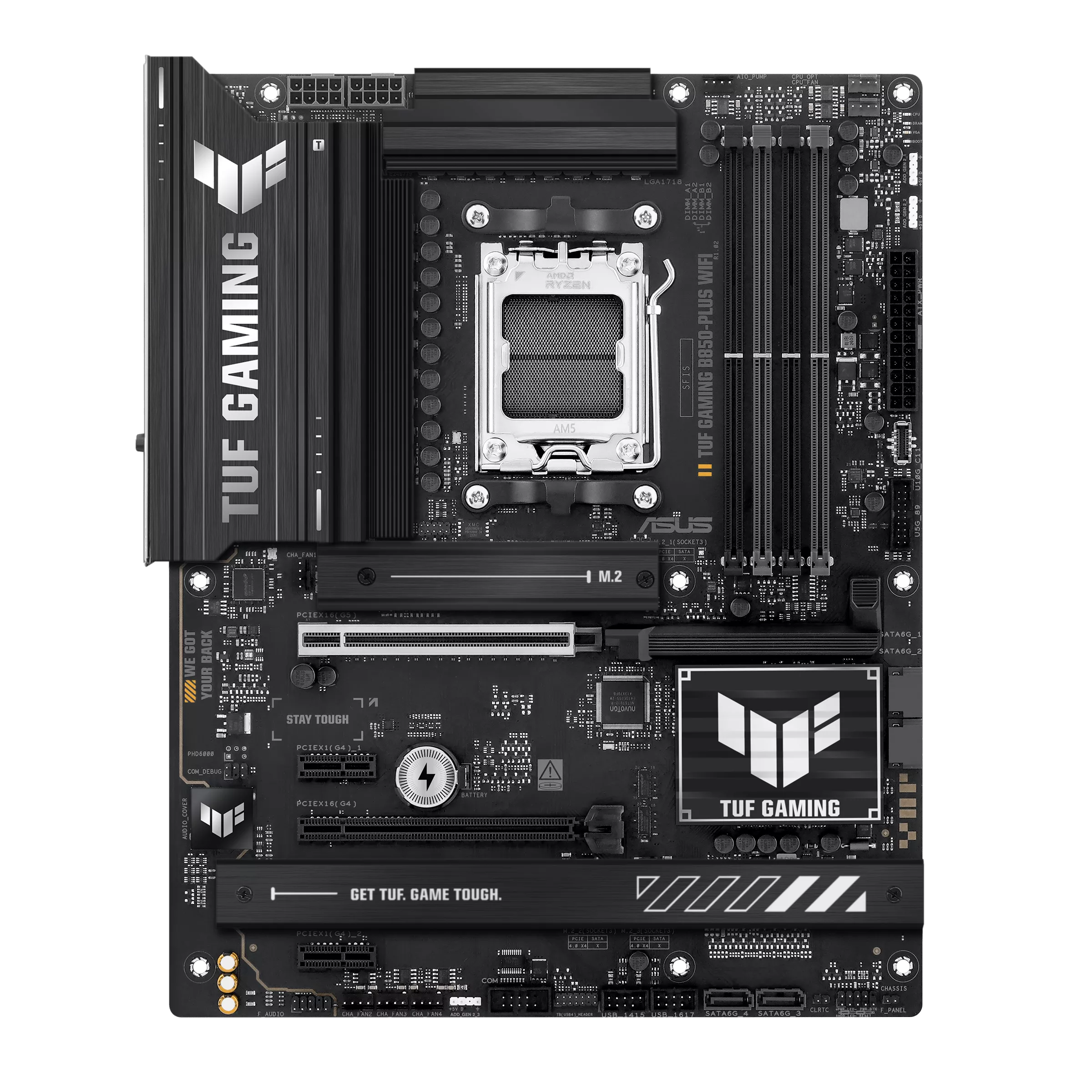

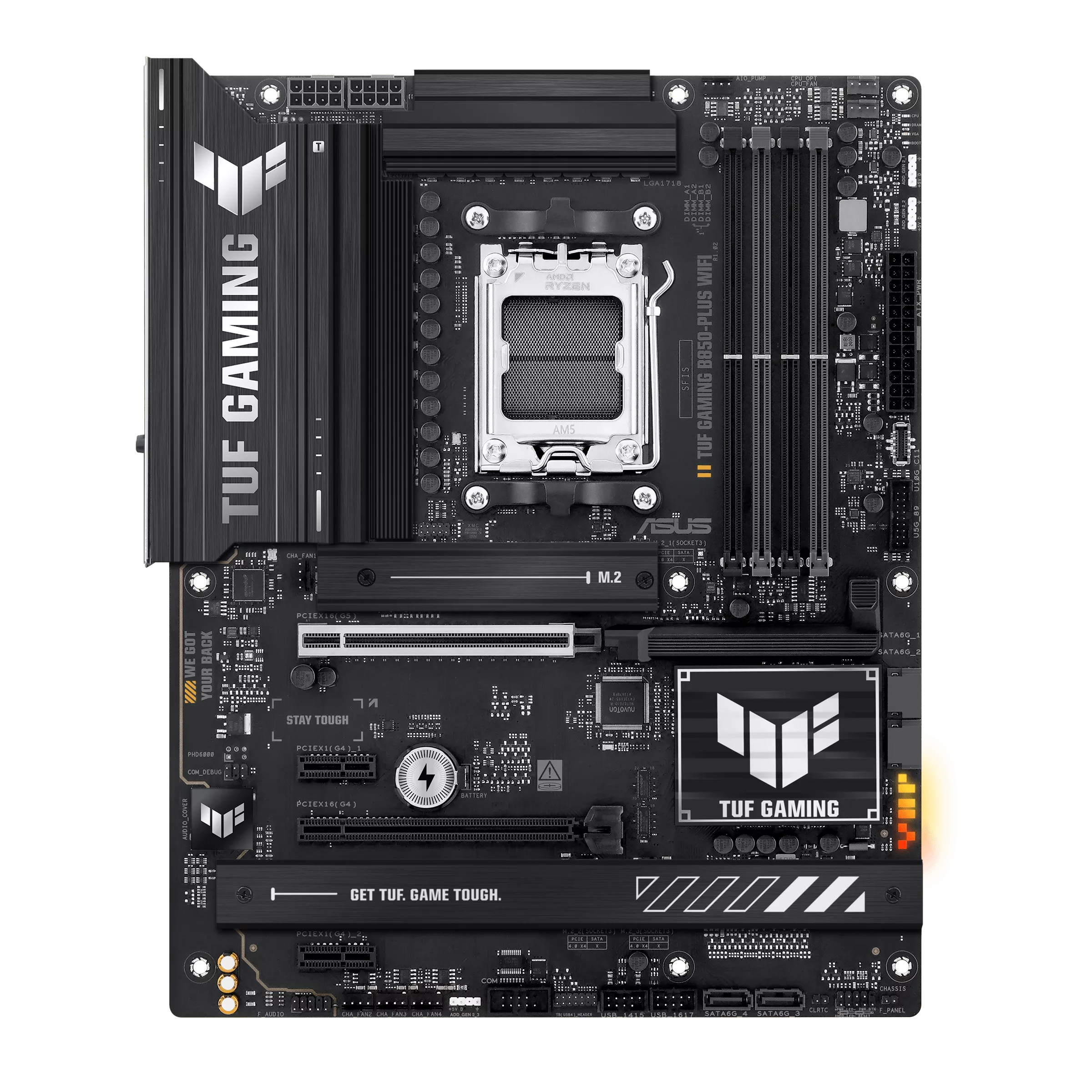

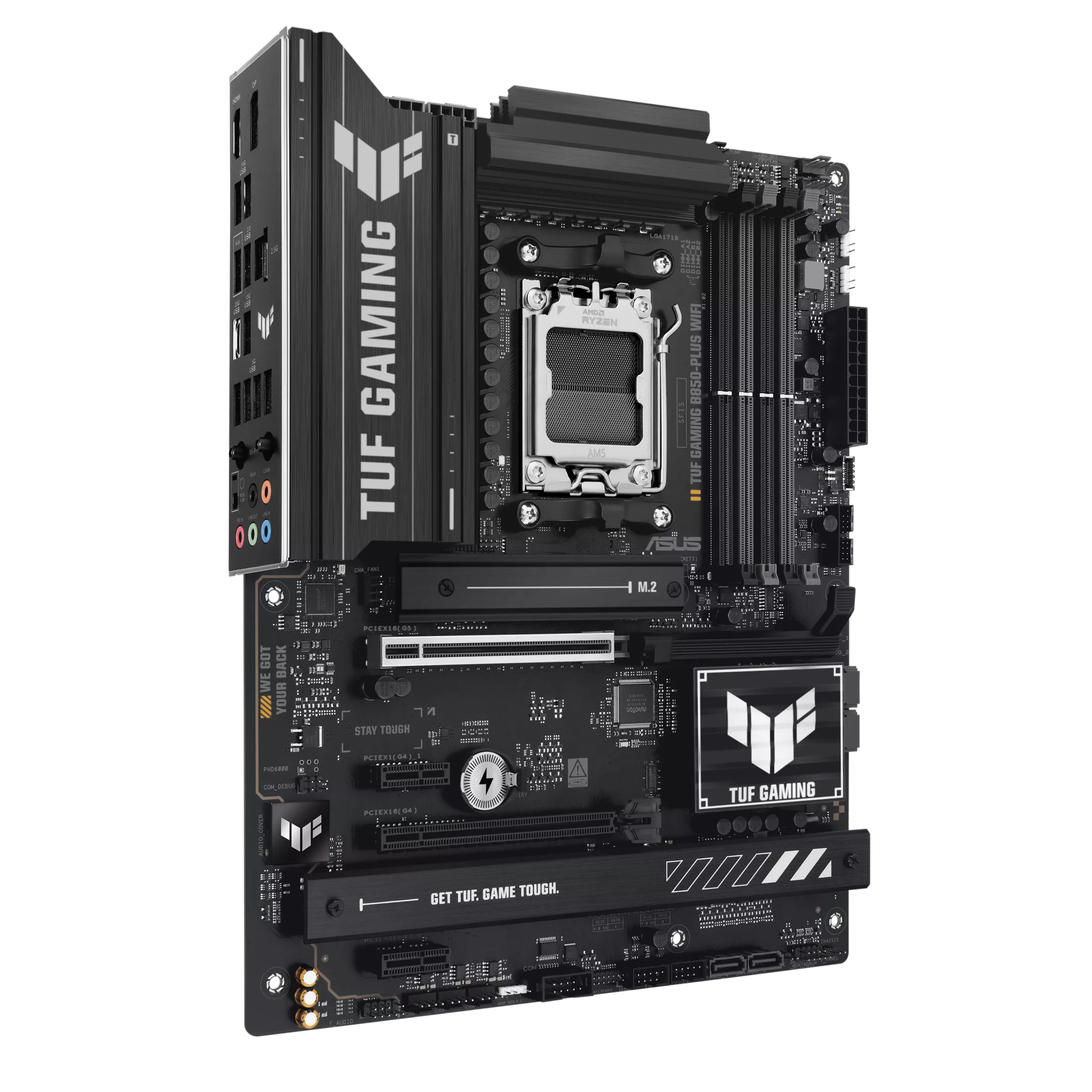

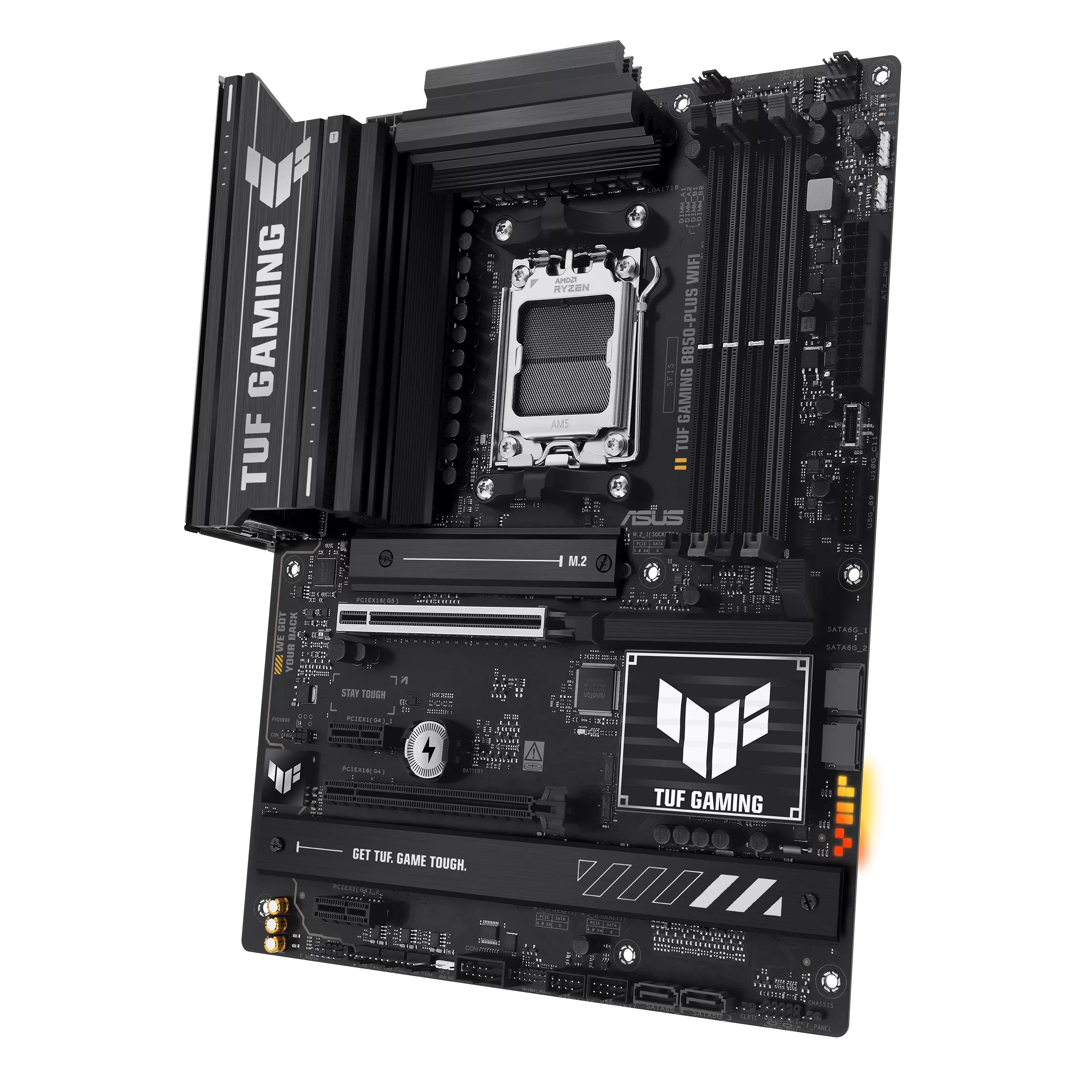

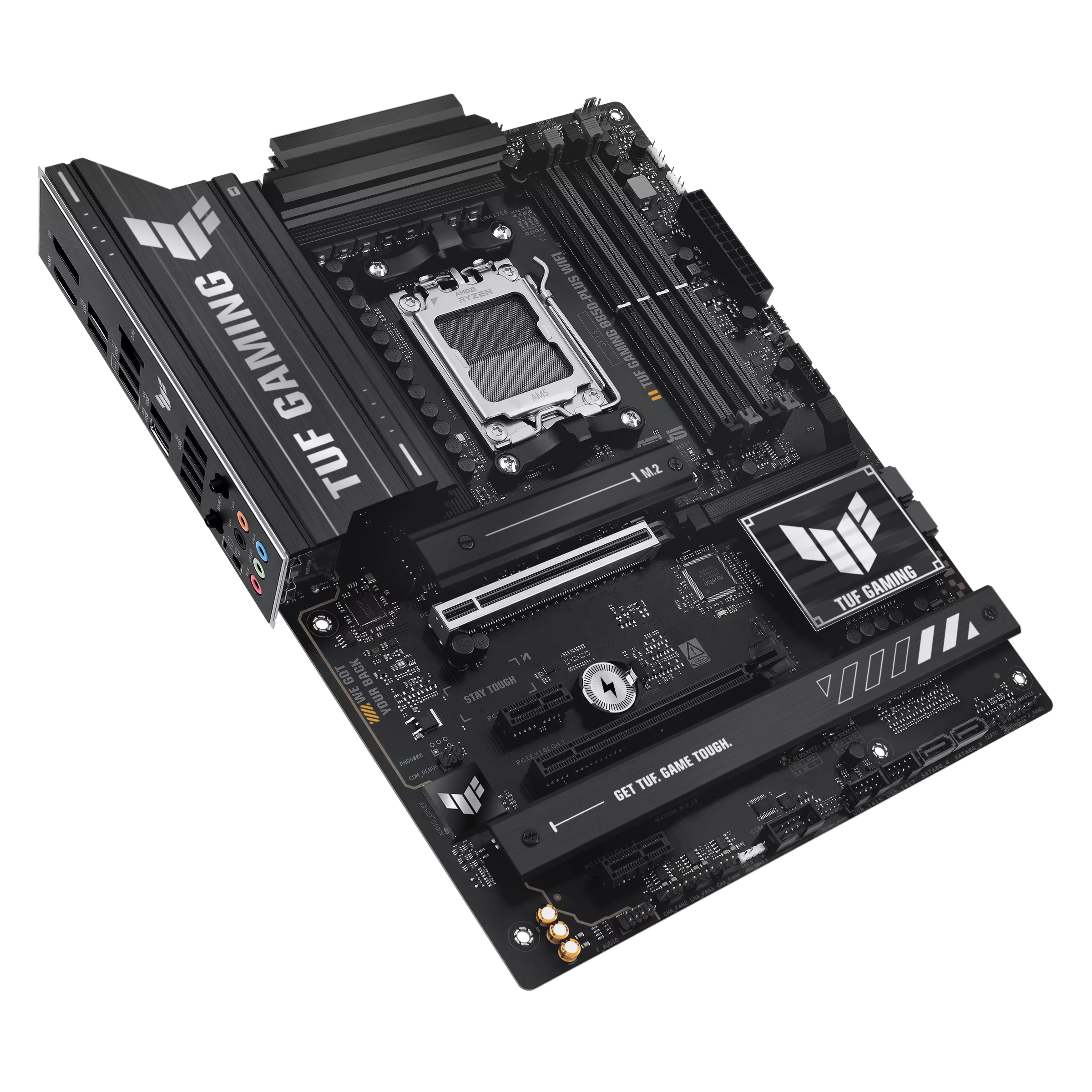

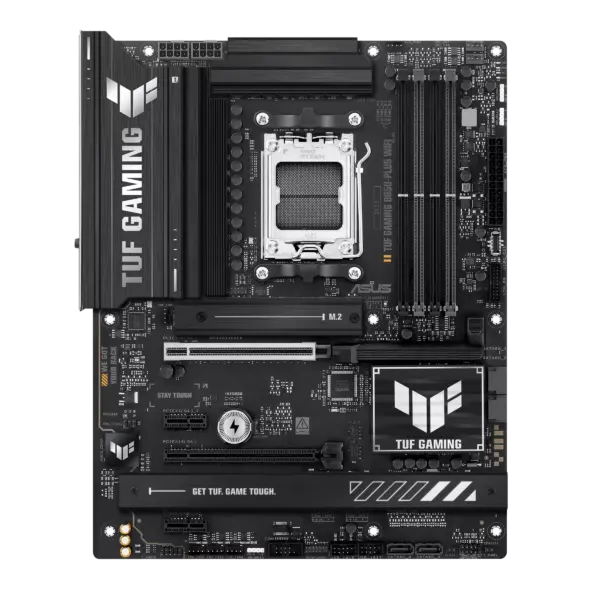

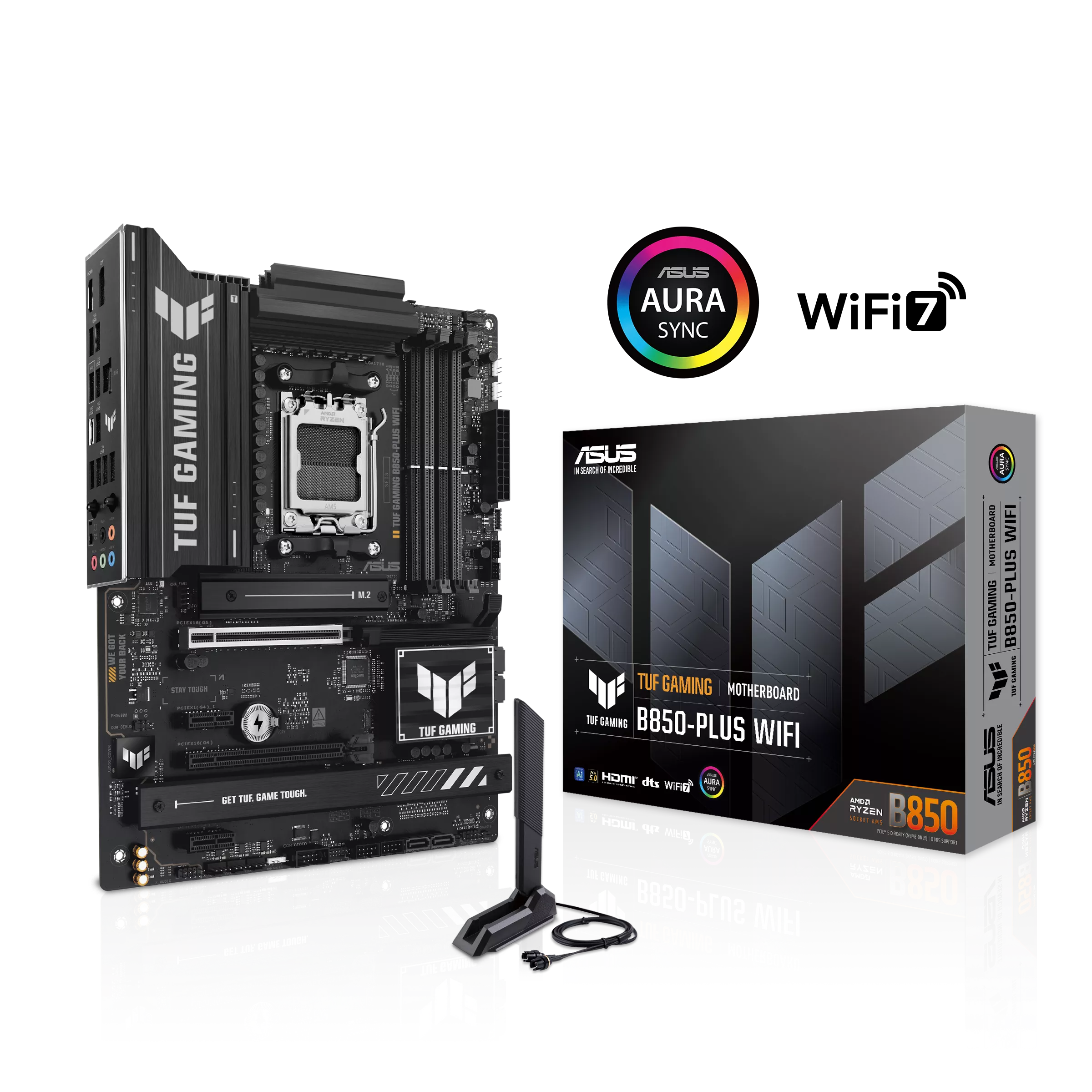

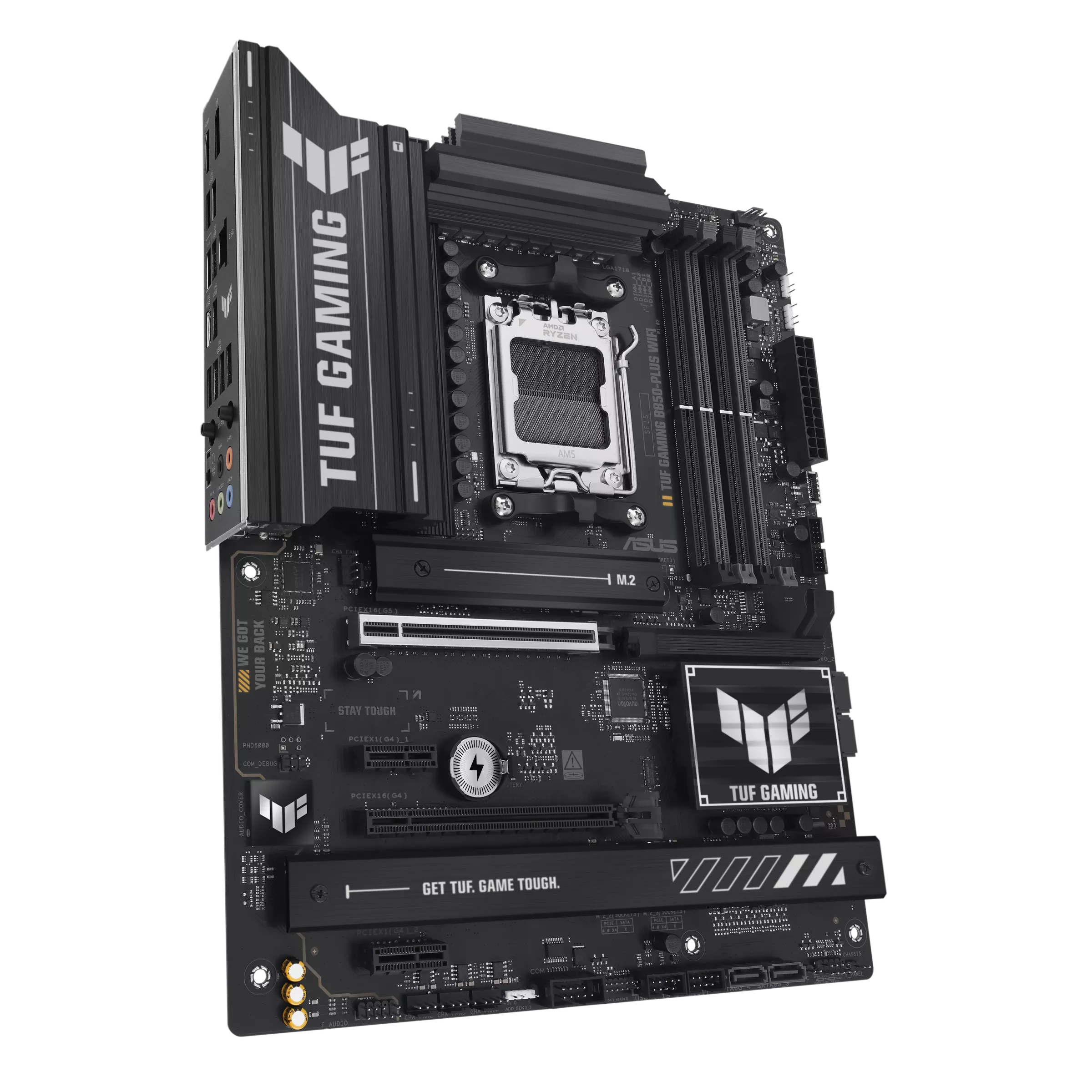

About the Asus TUF Gaming B850-Plus WiFi Motherboard
| Category | Specification |
|---|---|
| Product Name | ASUS TUF GAMING B850-PLUS WIFI Motherboard |
| CPU Socket | AMD Socket AM5 (supports Ryzen 7000 / 8000 / 9000 Series) |
| Chipset | AMD B850 |
| Form Factor | ATX |
| Memory Type | DDR5 DIMM (Dual Channel) |
| Memory Slots | 4 × DIMM |
| Max Memory Capacity | Up to 256 GB (varies by configuration) |
| Memory OC Support | Up to 8000+ MT/s with EXPO/AEMP |
| PCIe Expansion | 1 × PCIe 5.0 ×16 (SafeSlot), 1 × PCIe 4.0 ×16 (×4), 2 × PCIe 4.0 ×1 |
| Storage – M.2 | 1 × M.2 PCIe 5.0 ×4, 2 × M.2 PCIe 4.0 ×4 |
| Storage – SATA | Typically includes multiple SATA 6 Gb/s ports (common with ATX) |
| Networking – LAN | 1 × 2.5 Gb Ethernet |
| Wireless | Wi-Fi 7 (802.11be) with antenna support |
| Rear USB Ports | USB 20 Gbps Type-C, multiple USB 10 Gbps & 5 Gbps ports |
| Front USB Headers | Front USB 10 Gbps & additional USB headers |
| Audio | High-Definition audio codec with multiple jacks |
| Cooling | Heatsinks on VRM and M.2, fan headers & pump headers |

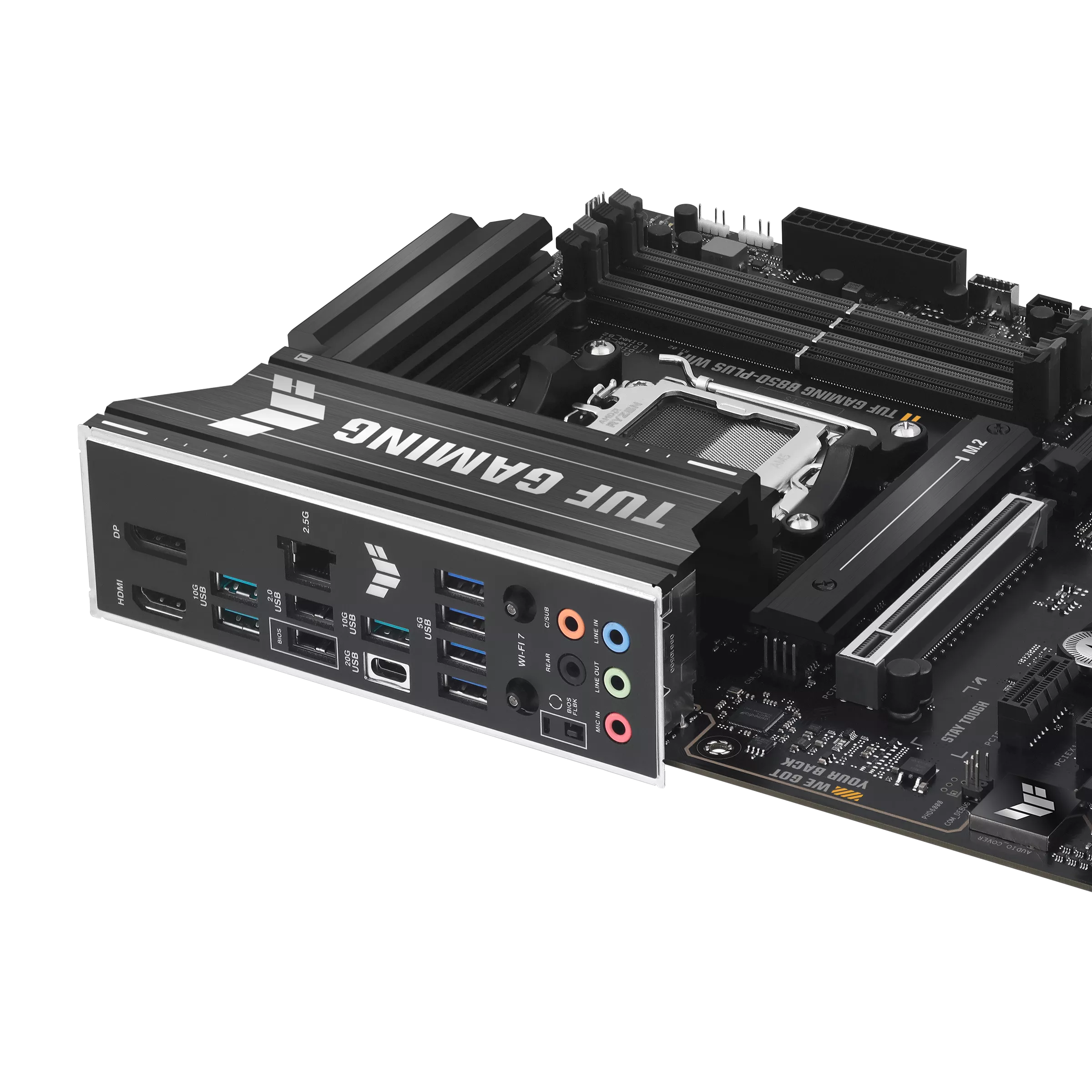

| DIY Features | PCIe Q-Release, M.2 Q-Latch, Q-LED, BIOS Flashback, Pre-mounted I/O shield |
| Lighting | Aura Sync RGB support |
| Power Delivery | Multi-phase power design for stable CPU delivery |
| Protection | TUF components, reinforced slots & shielded I/O |
Key features about the Asus TUF Gaming B850-Plus WiFi Motherboard
-
Stable AM5 CPU support with robust power delivery tailored for Ryzen 7000/8000/9000 processors ensures consistent performance across gaming and productivity workloads.
-
Three M.2 slots including one PCIe 5.0 x4 deliver cutting-edge storage speeds and future-ready NVMe support for speedy game load times and large file transfers.
-
Dual USB-C support with rear 20 Gbps and front 10 Gbps ports offers flexible high-speed connectivity for external SSDs and peripherals.
-

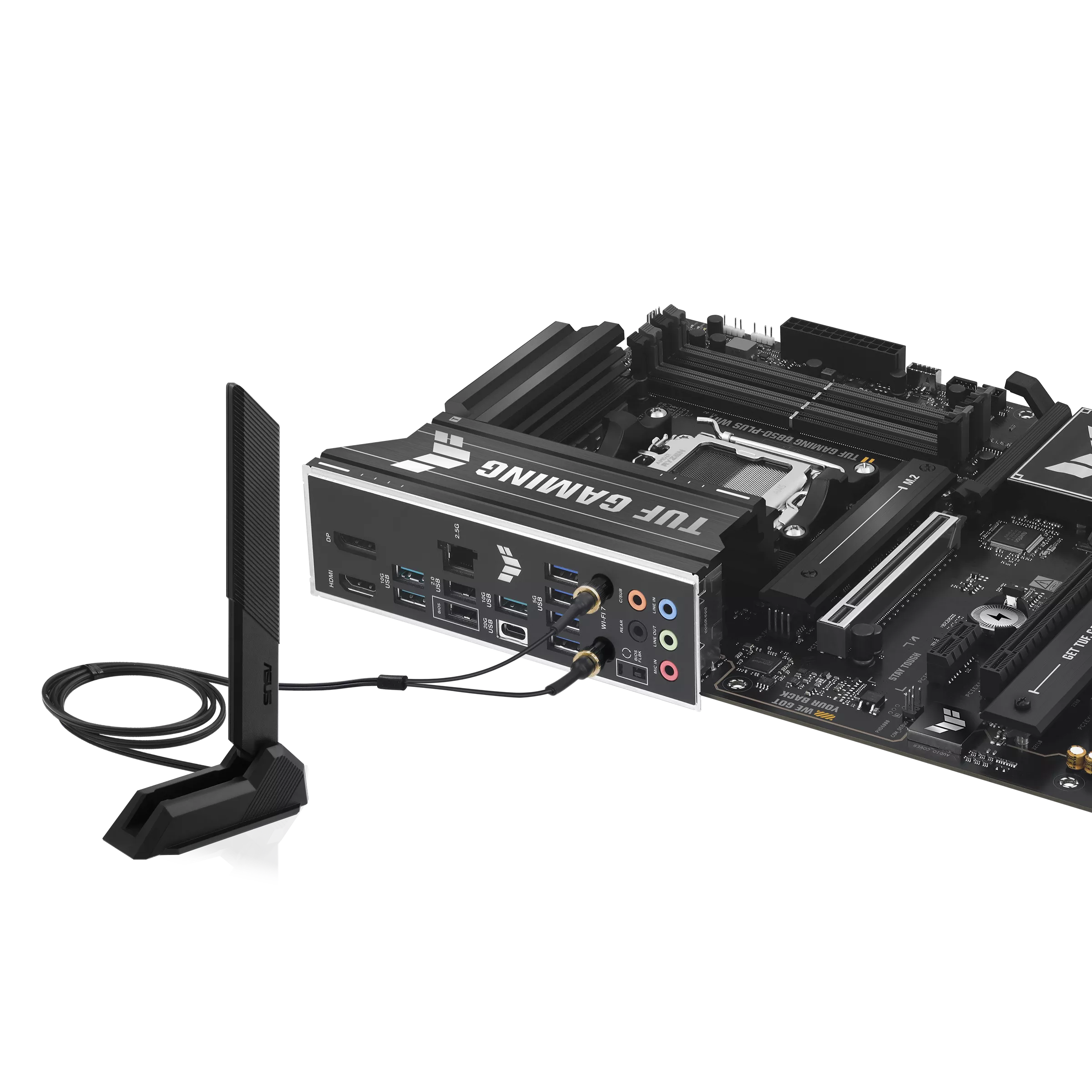

Wi-Fi 7 wireless brings enhanced throughput, reduced latency, and broader spectrum coverage for superior wireless gaming.
-
2.5 Gb Ethernet port ensures faster wired networking compared to standard Gigabit, benefiting local transfers and online play.
-
TUF components improve durability with military-grade capacitors and chokes for extended thermal-stress tolerance.
-
PCIe Q-Release makes removing expansion cards effortless, saving time and minimizing risk during upgrades.
-
M.2 Q-Latch allows tool-free installation and removal of M.2 SSDs for simpler storage upgrades.
-
TUF-tested heatsinks on VRMs and M.2 slots help lower overall temperatures for better sustained performance.
-
Multiple fan and pump headers support broad cooling setups including AIO or custom water loops.
-
Aura Sync RGB lighting lets users personalize system aesthetics with synchronized effects.
-
Pre-mounted I/O shield improves build quality and speeds up assembly.
-
Q-LED lighting aids in quick identification of boot issues during troubleshooting.
-
BIOS Flashback support enables updating firmware easily without CPU installed.
-
Dual PCIe x16 slots support discrete GPU and additional expansion card flexibility.
-
Four DIMM slots offer ample memory expansion and high-speed OC support via AEMP and EXPO.
-
SATA 6 Gb/s ports support legacy storage devices alongside modern NVMe drives.
-
Smart cooling tools optimize fan profiles for silent or aggressive cooling based on workloads.
-
Enhanced PCB design improves signal integrity and overclocking stability across components.
-
High-definition audio codec delivers rich sound quality for gaming and multimedia without an add-in card.
